CordZero™ A9 Vacuum Cleaner Pre-Filter

Features

Gallery

Specs

Reviews

Where to buy

Support

CordZero™ A9 Vacuum Cleaner Pre-Filter

CordZero™ A9 Vacuum Cleaner Pre-Filter

ADQ75393701

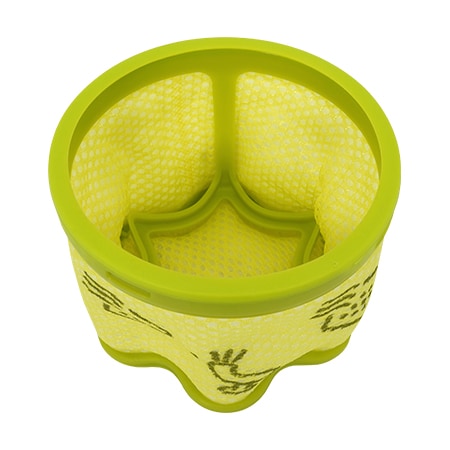

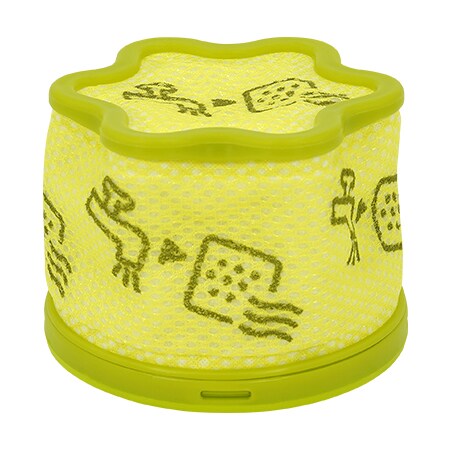

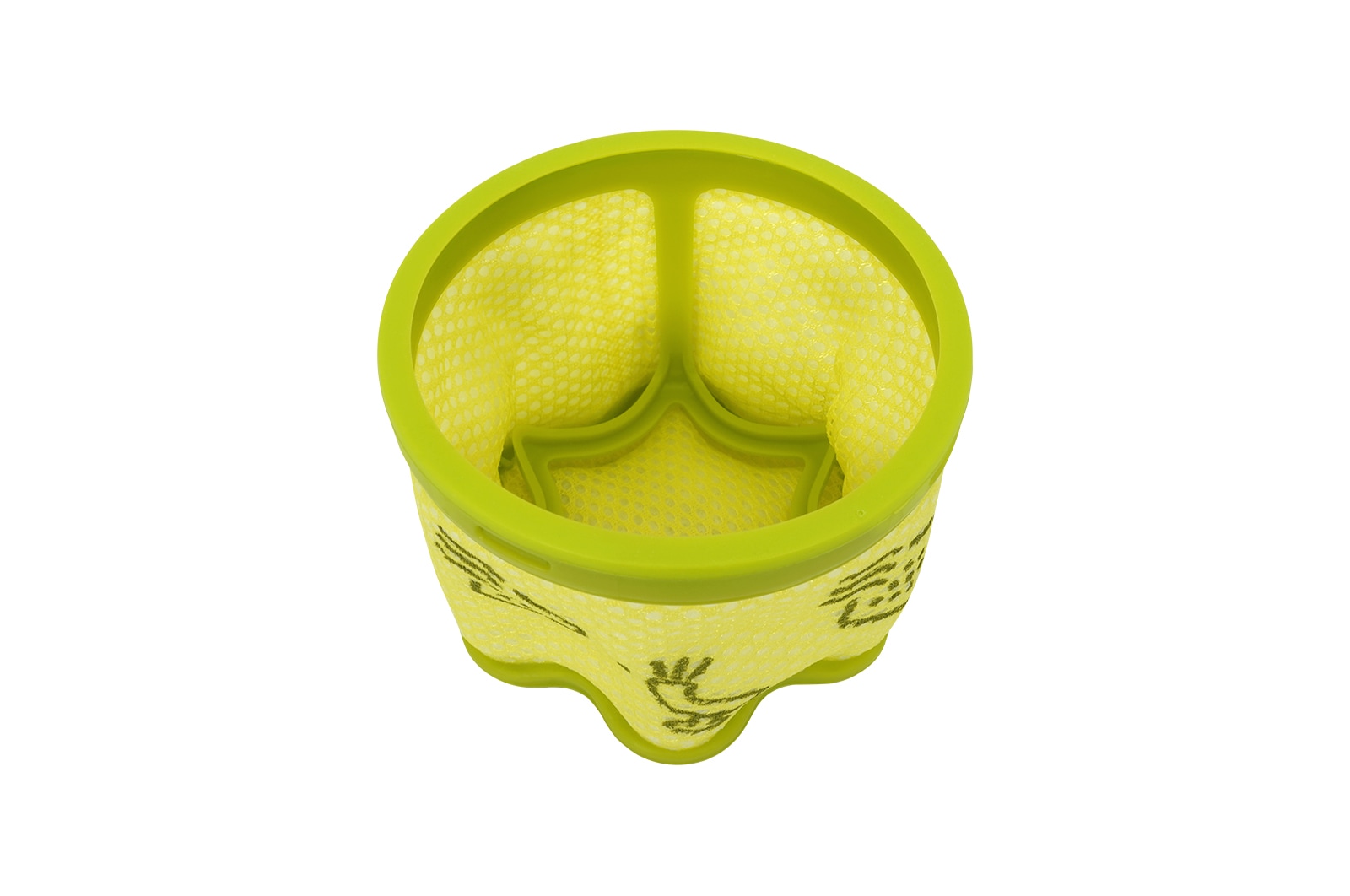

  • 15 degree view

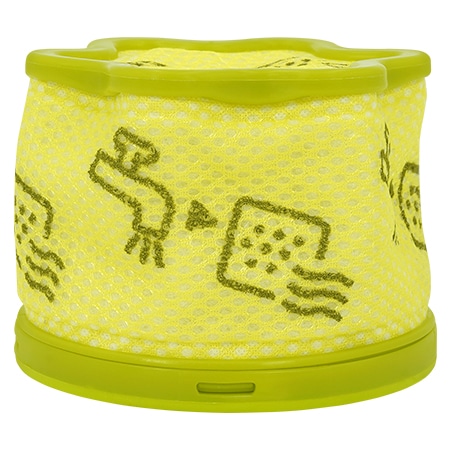

  • front view

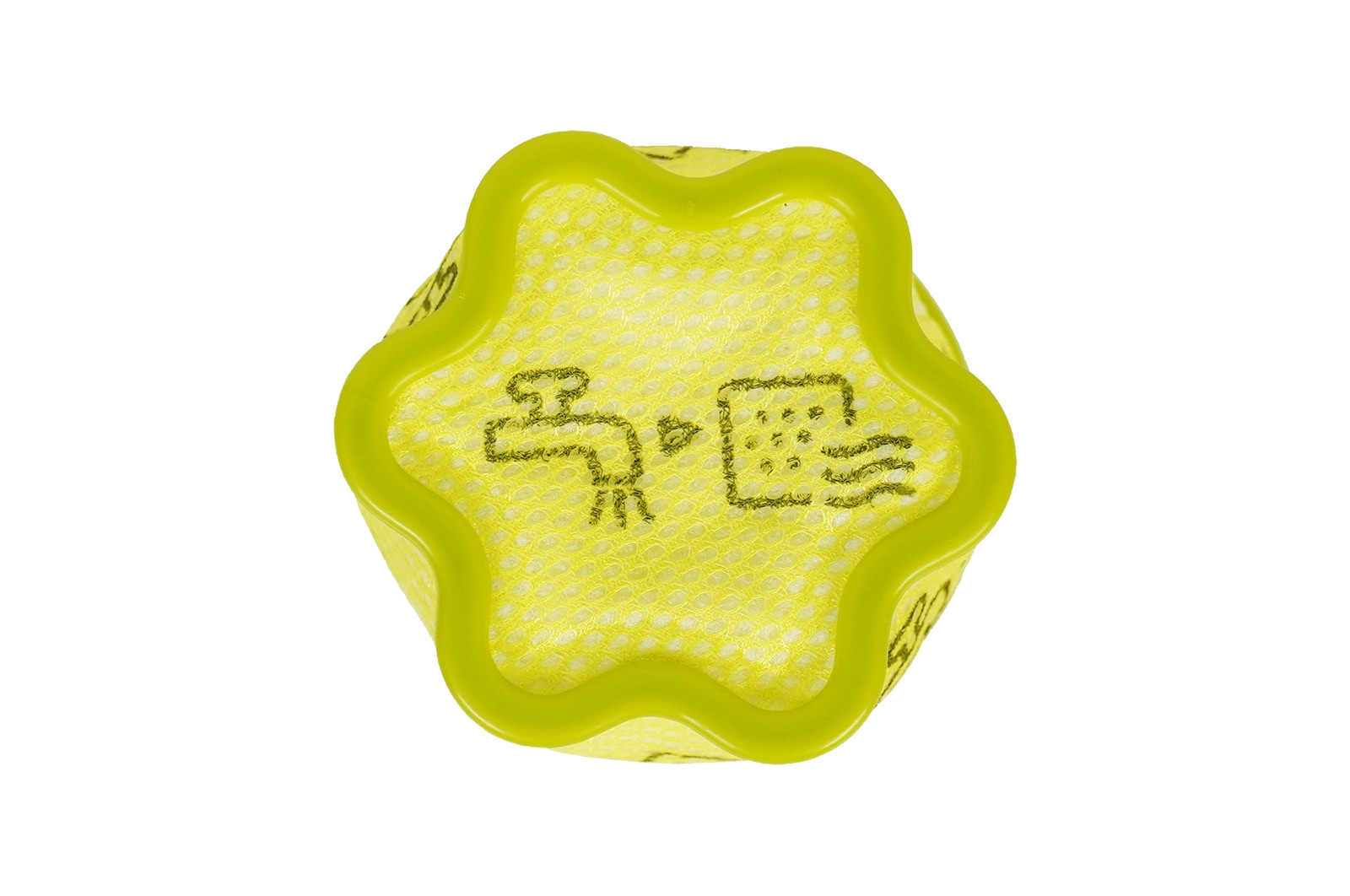

  • top view
  • rear view

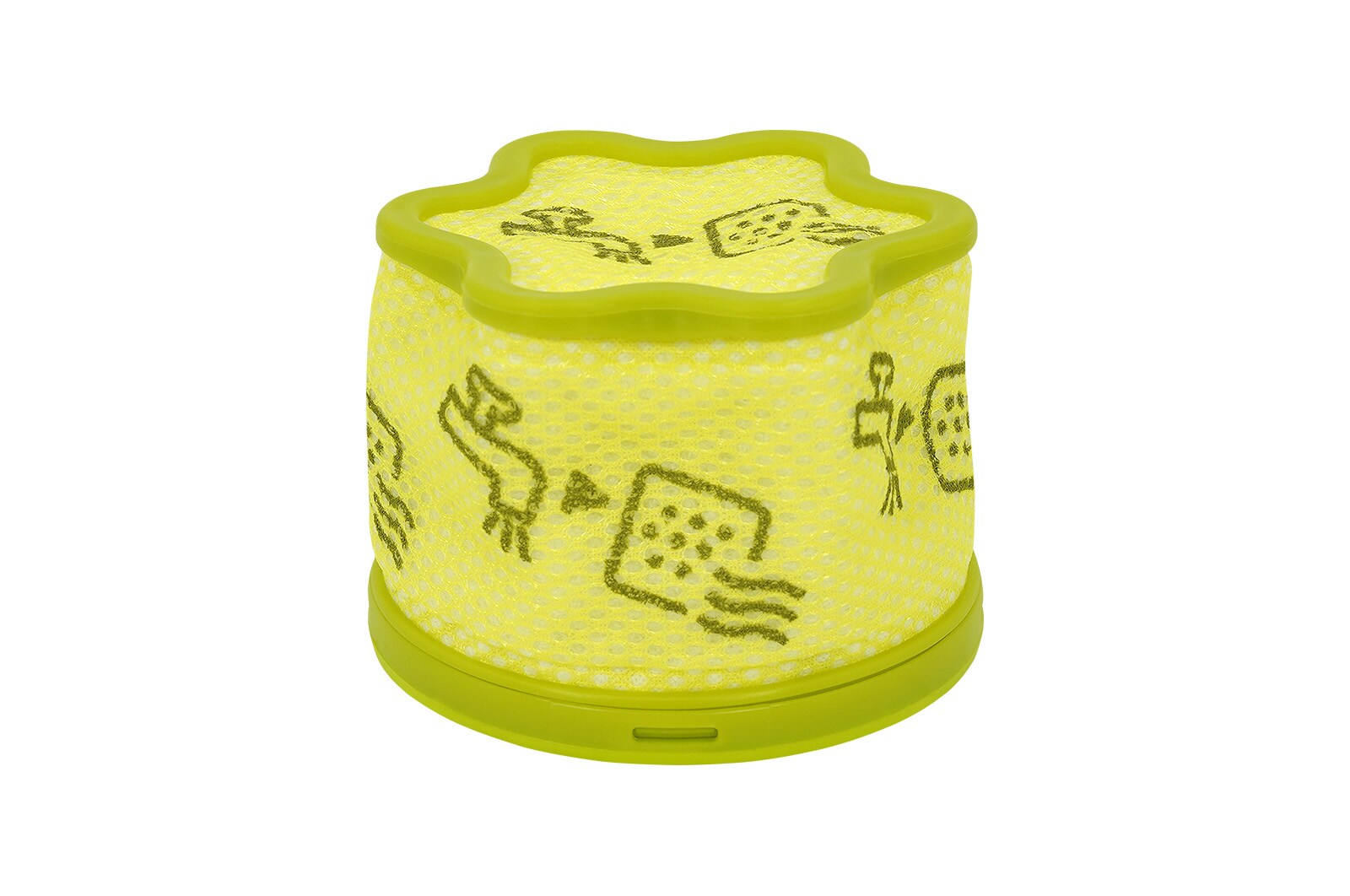

15 degree view

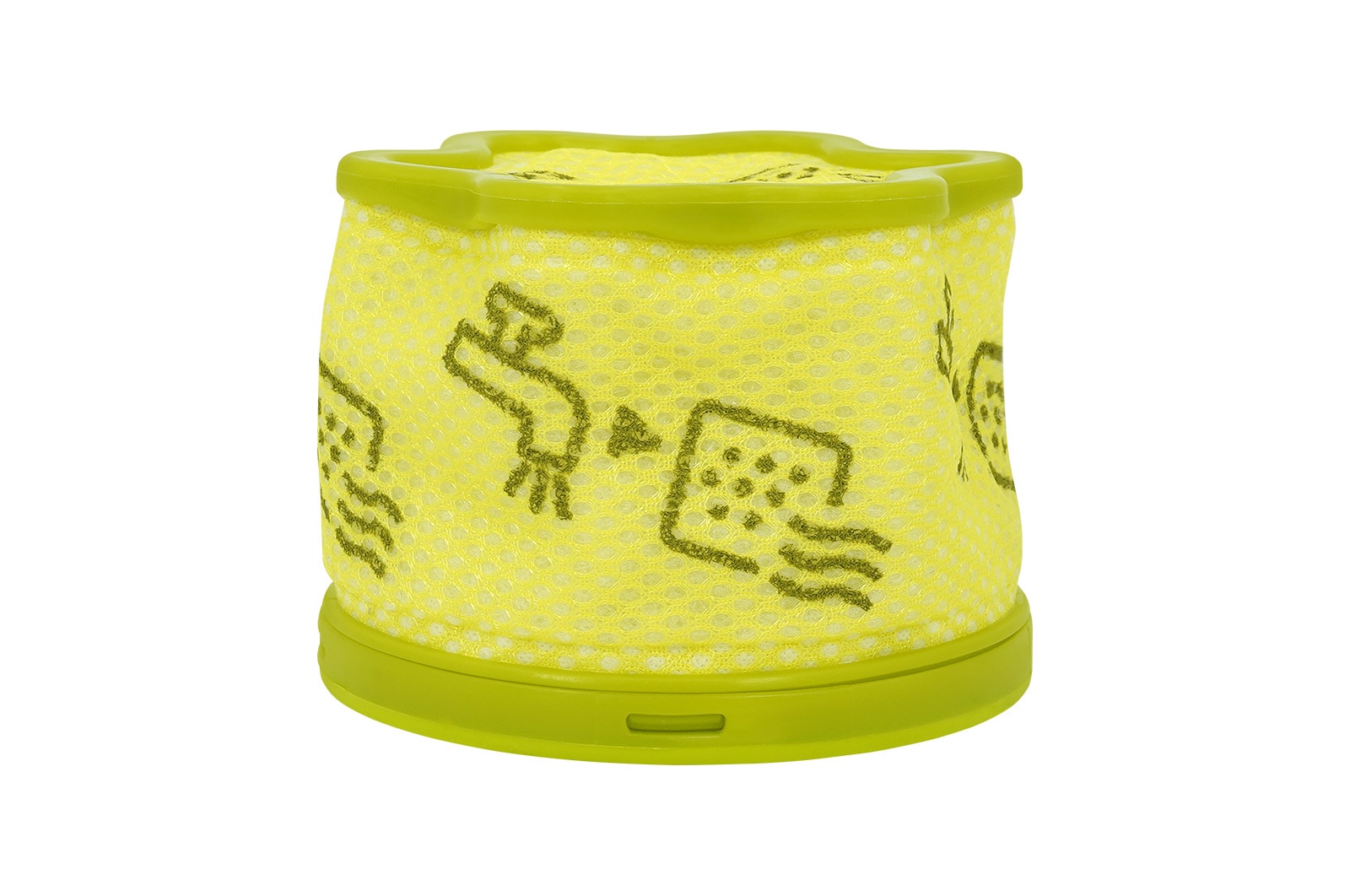

front view
top view
rear view

Key Features

  • LG Vacuum Cleaner Genuine Pre-Filter

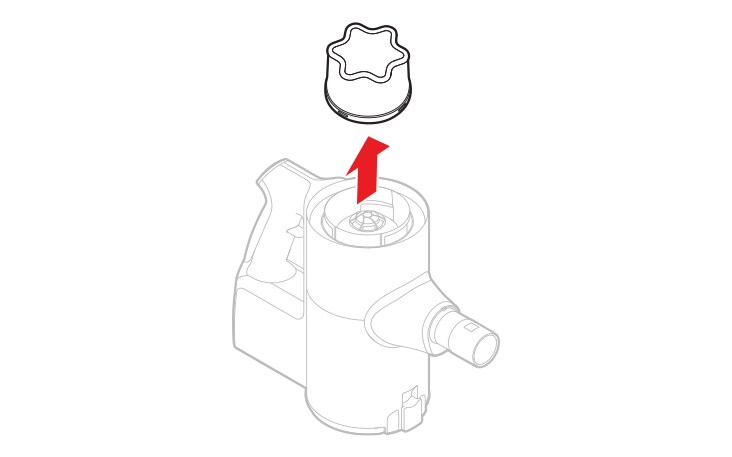

Mounting Location

The actual installation location of this item may vary depending on product model.

For more detailed information, please refer to the product manual for your model.

The pre filter is found by removing the exhaust filter from the main body of the product

How to Replace

The replacement instruction for this item may differ slightly from the information below.

For more detailed information, please refer to the product manual for your model.

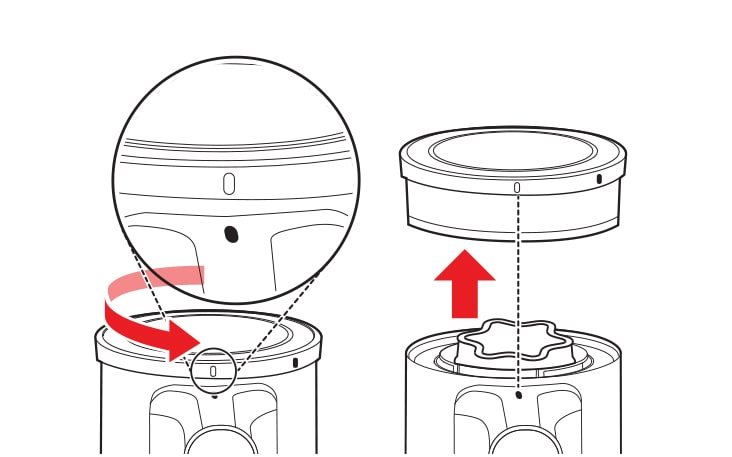

STEP 1

Remove the battery from the product body.

Rotate the exhaust filter to the unlocked position to separate it from the product body.

Remove the battery from the product body Rotate the exhaust filter to the unlocked position to separate it from the product body

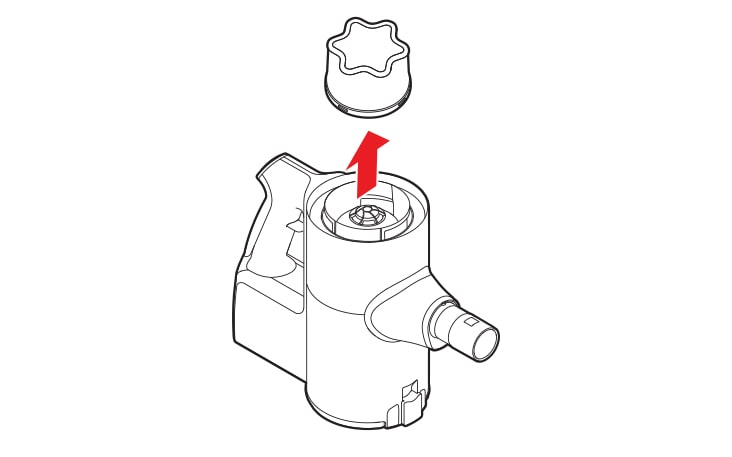

STEP 2

Lift out the pre-filter from the product body.

Lift out the pre filter from the product body

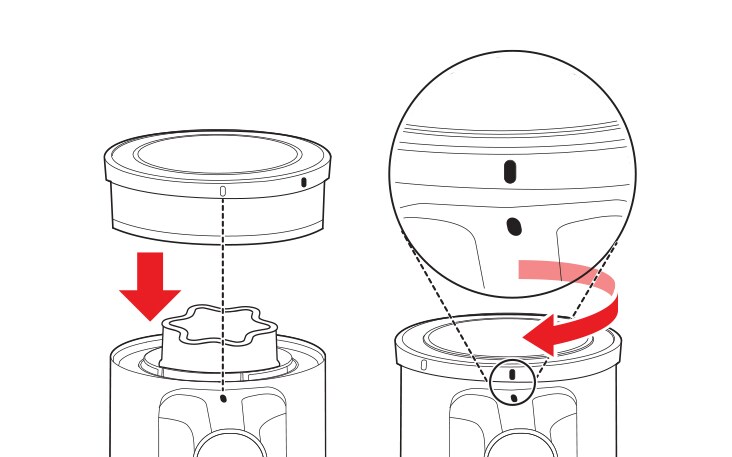

STEP 3

Insert the clean, dry pre-filter and rotate the exhaust filter to the locked position to reassemble it on the product body.

Insert the clean dry pre-filter and rotate the exhaust filter to the locked position to reassemble it on the product body

How to Clean

For more detailed information, please refer to the product manual for your model.

STEP 1

Remove the battery from the product body.

Use the combination tool to clean any dust off the motor.



- Do not wash the motor with water.

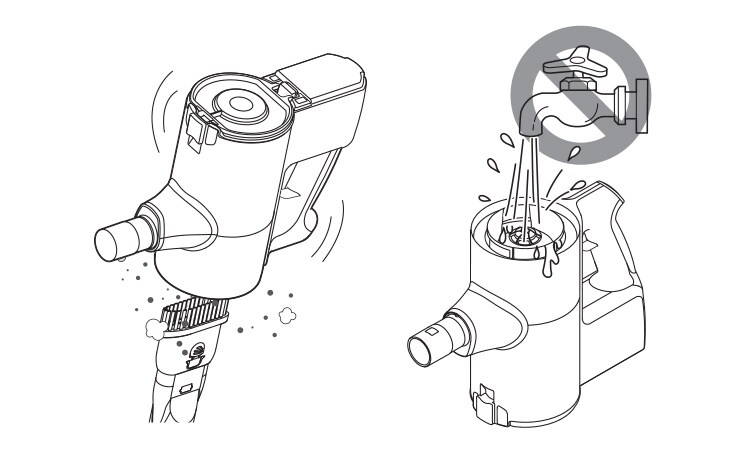

Illustration showing instructions for cleaning a vacuum cleaner. The left image depicts the vacuum shaken to remove debris, and cleaned with a small brush. The right image shows a red X over, highlighting not to wash the vacuum with water.

STEP 2

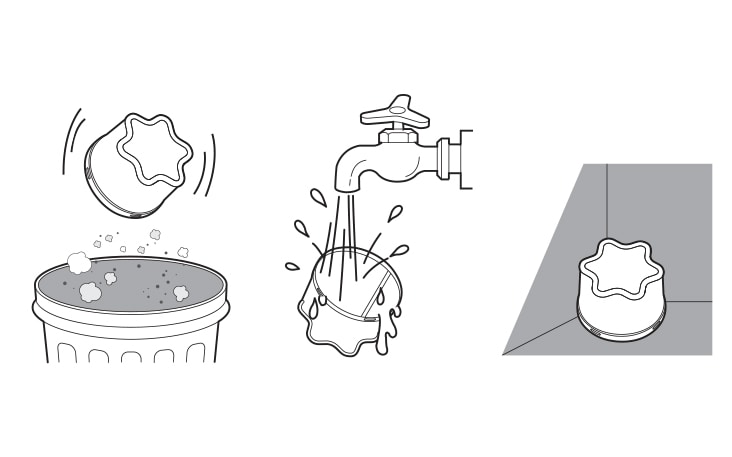

Clean the pre-filter by brushing the dust off it regularly and wash it in running water at least once a month.



- To avoid odor and the malfunction of the motor, allow the pre-filter to dry completely in a well-ventilated area out of direct sunlight for at least 24 hours before reassembling.

Clean the pre filter by brushing the dust off it regularly and wash it in running water at least once a month To avoid odor and the malfunction of the motor allow the pre filter to dry completely in a well ventilated area out of direct sunlight for at least 24 hours before reassembling

* Product images and features may contain advertising expressions and may differ from the actual product. Product appearance, specifications, etc. may change without prior notice for product improvement.

* All product images are photo cuts and may differ from the actual product. Product color may vary depending on monitor resolution, brightness settings, and computer specifications.

* The performance of the product may vary depending on the usage environment, and availability may vary by store.

Summary

Print

Dimensions

All specs

GENERAL

  • Part Number

    ADQ75393701

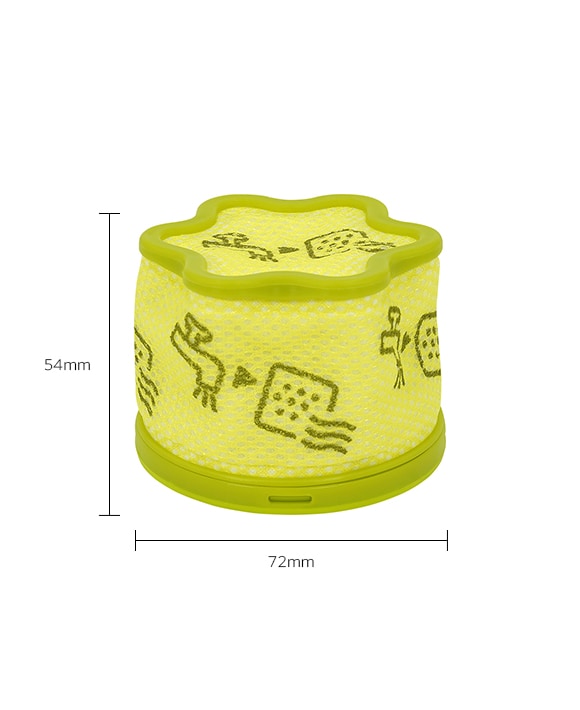

DIMENSIONS & WEIGHTS

  • Product Dimension (W x H x D, mm)

    75 x 75 x 55

  • Length (cm)

    5.4

  • Diameter (cm)

    7.2

  • Net Weight (g)

    13
