26,000 BTU, Multi Split Inverter Out Door Unit (Up to 4 IDU)

Specs

Reviews

Support

26,000 BTU, Multi Split Inverter Out Door Unit (Up to 4 IDU)

26,000 BTU, Multi Split Inverter Out Door Unit (Up to 4 IDU)

A4UQ26GFA2
()

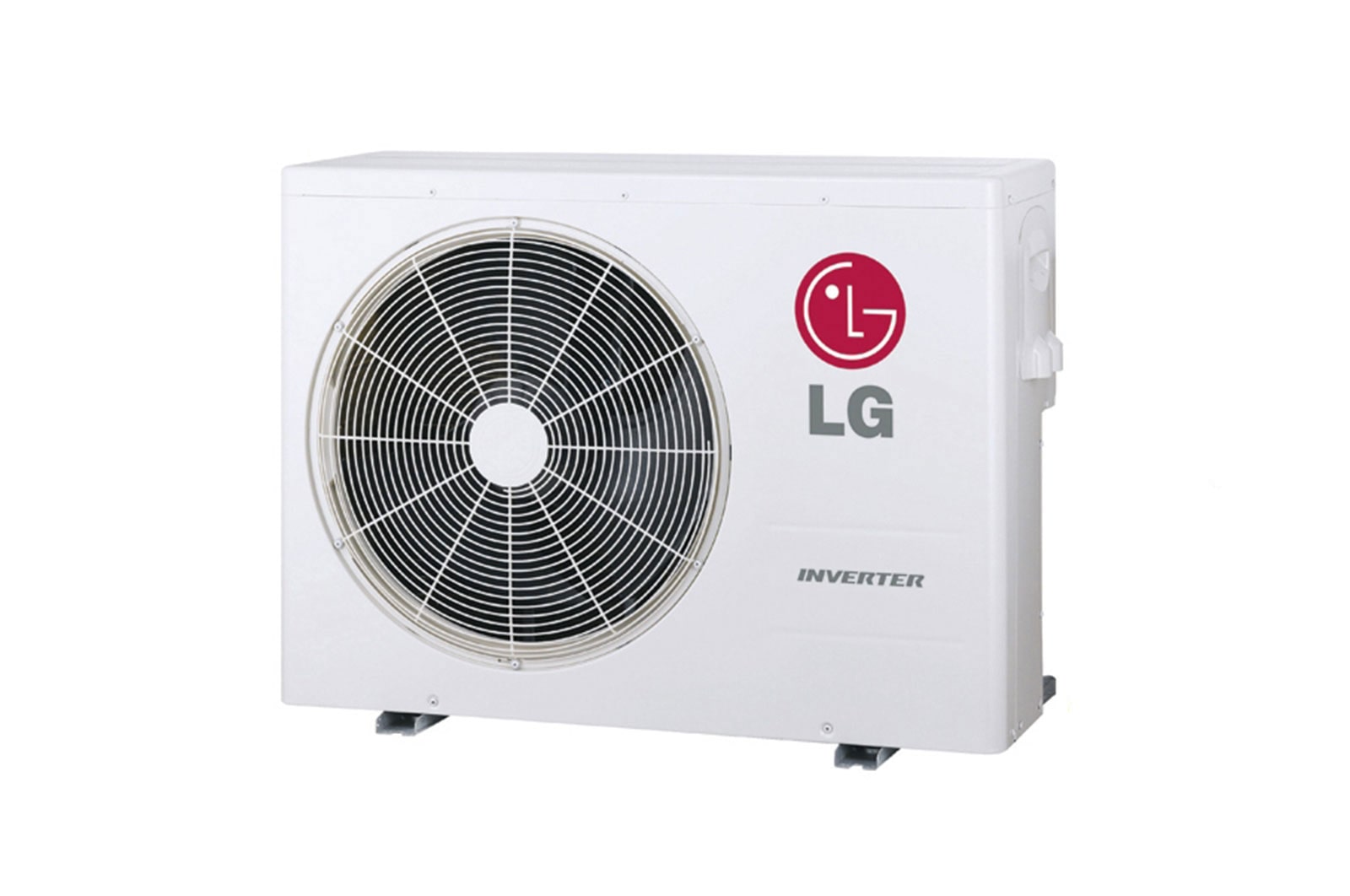

  • Front view of 26,000 BTU, Multi Split Inverter Out Door Unit (Up to 4 IDU) A4UQ26GFA2
Front view of 26,000 BTU, Multi Split Inverter Out Door Unit (Up to 4 IDU) A4UQ26GFA2

Key Features

  • Supreme Energy Efficiency
  • High Operation Reliability
  • Quiet Operation
  • Easy Installation
More
Print

All specs

COMPRESSOR

  • Motor Type

    BLDC

  • Motor Output (W x No.)

    1,500 (at 60Hz) x 1

  • Type

    Twin Rotary

  • Model (Model x No.)

    GKT176MAC x 1

CASING COLOR

  • Warm Gray

    Yes

COMBINATION

  • Sum of Indoor Units Capacity (kb tu/h)

    54

  • Number of Indoor Units

    4

TESTING COMBINATION

  • Testing Combination

    AMNC09GDBA2 x 4EA

WIRING CONNECTIONS

  • Power Supply Cable (included Earth)

    3C x 2.5 (No. x mm2 )

COOLING CAPACITY

  • Min.∼Rated∼Max. (kW)

    1.45 ~ 6.21 ~ 8.67

  • Min.∼Rated∼Max. (Btu/h)

    4,950 ~ 21,200 ~ 29,600

POWER INPUT

  • Min. ~Rated ~ Max.~ (kW)

    0.47 ~ 1.26 ~ 2.43

TICKS

  • Number of Ticks

    5

PIPING CONNECTIONS

  • Liquid - mm(inch) x No.

    6.35 (1/4) x 4

  • Gas - mm(inch) x No.

    9.52 (3/8) x 4

DIMENSIONS

  • W x H x D (mm)

    870 × 655 × 320

  • W x H x D (inch)

    34-1/4 x 25-25/32 x 12-19/32

RUNNING CURRENT

  • Min. ~ Rated ~ Max. ~ (A)

    2.1 ~ 6.2 ~ 11.0

POWER SUPPLY

  • V / Ø / Hz

    230 / 1 / 50

REFRIGERANT

  • Control

    Electronic Expansion Valve

  • Precharged Amount g(oz)

    1,500 (52.9)

  • Type

    R410A

  • Chargeless - Pipe length m(ft)

    60 (196.8)

NET WEIGHT

  • kg (lbs)

    45(99.2)

MAXIMUM HEIGHT DIFFERENCE

  • Outdoor Unit ~ Indoor Unit, Max (m/ft)

    15 (49.2)

  • Indoor Unit ~ Indoor Unit, Max (m/ft)

    7.5 (24.6)

PIPING LENGTH

  • Total Piping, Max (m)

    60 (196.8) ft

  • Each Branch Piping, Max (m)

    25 (82.0)

REFRIGERANT OIL

  • Charged Volume (cc x No.)

    470 x 1

  • Type

    FVC68D

ECO FRIENDLY FEATURES

  • NEA Energy rating

    5

  • Annual energy consumption (kWh)

    2523kWh

  • Annual energy cost

    $681

FAN

  • Air Flow Rate (m3 min x No.)

    44 x 1

  • Type

    Propeller

HEAT EXCHANGER

  • (Row x Column x Fins per inch) x No.

    (2 x 30 x 21) x 1

FAN MOTOR

  • Type

    BLDC

  • Output (W x No.)

    85.4 x 1

SOUND PRESSURE LEVEL

  • Rated, dB(A)

    48

OPERATION RANGE(OUTDOOR TEMPERATURE)

  • Min. ~ Max. °C DB(°F DB)

    -5 (23.0) ~ 48 (118.4)

HIGHLIGHTS

  • Type of AC

    Multi Split Inverter Out Door Unit
