22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a)

Specs

Reviews

Support

22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a)

22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a)

BSNQ246K3B3
()
  • BSNQ246K3B3 front view
  • LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
  • LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
  • LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
  • LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
  • LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
  • LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
  • LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
  • LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
  • LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
  • LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
  • LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
  • LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
BSNQ246K3B3 front view
LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3
LG 22,000 BTU, Dualcool Single Split Inverter Air Conditioner (R410a) , BSNQ246K3B3

Key Features

  • Dual Inverter Compressor® With 10 Year Warranty
  • Energy Saving
  • Fast Cooling
  • Simple And Slim Design With Hidden Display
  • Low Noise
  • Active Energy Control
More

Summary

Print

Dimensions

Capacity - Min.~Rated~Max.(Btu/h)
3,070 ~ 22,000 ~ 27,300
Dimension Indoor - (W × H × D)
998 x 345 x 210
Dual Inverter Compressor
Yes
10 years warranty
Yes

All specs

HIGHLIGHTS

  • Capacity - Min.~Rated~Max.(Btu/h)

    3,070 ~ 22,000 ~ 27,300

  • Power Input - Rated(Kw)

    1.84

  • Power Input - Max(Kw)

    3.70

  • Color

    White

  • Type of AC

    Single Split Inverter

POWER SUPPLY

  • Power Supply (V, Ø, Hz)

    230, 1, 50

RUNNING CURRENT

  • Running Current - Rated(Amp)

    8.10

  • Running Current - Max(Amp)

    17.0

AIR FLOW RATE

  • Indoor,Max(m3/min)

    20.0

  • Outdoor,Max(m3/min)

    49

MOISTURE REMOVAL

  • Moisture Removal(l/h.)

    2.5

SOUND LEVEL

  • Indoor,H/M/L/SL(dB(A)+3)

    47/32/37/28

  • Outdoor,Max(dB(A)+3)

    55

STANDARD PIPE LENGTH / MAX LENGTH

  • Standard Pipe length/Max length(metre)

    7.5/30

MAX ELEVATION

  • Max Elevation(metre)

    25

REFRIGERANT

  • Type

    R410A

  • Precharged Amount(Kg)

    1.4

PIPING CONNECTIONS

  • Liquid Side(mm(inch))

    Ø 6.35 (1/4)

  • Gas Side(mm(inch))

    Ø 15.88 (5/8)

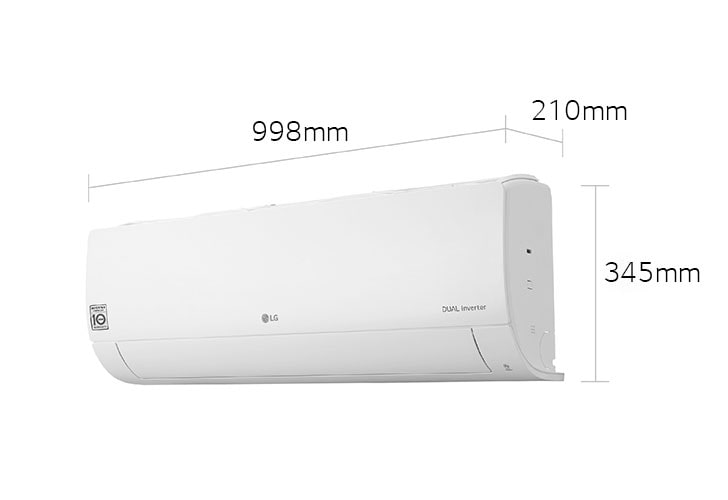

DIMENSIONS

  • Indoor (W x H x D)(mm)

    998 x 345 x 210

  • Outdoor (Wx H x D)(mm)

    870 x 650 x 330

NET WEIGHT

  • Indoor(kg)

    12.6

  • Outdoor(kg)

    43

OPERATION RANGE(OUTDOOR TEMPERATURE)

  • Cooling - Min. ~ Max.(°C DB)

    21 ~ 48

FULL LOAD COP

  • Full Load COP

    3.76

WEIGHTED COP**

  • Weighted COP**

    3.97
