Discontinued
LW5012

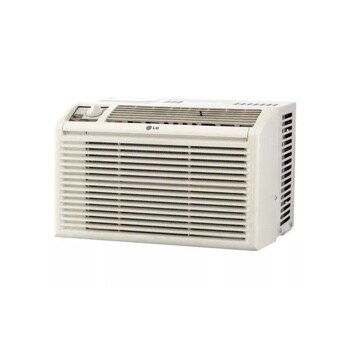

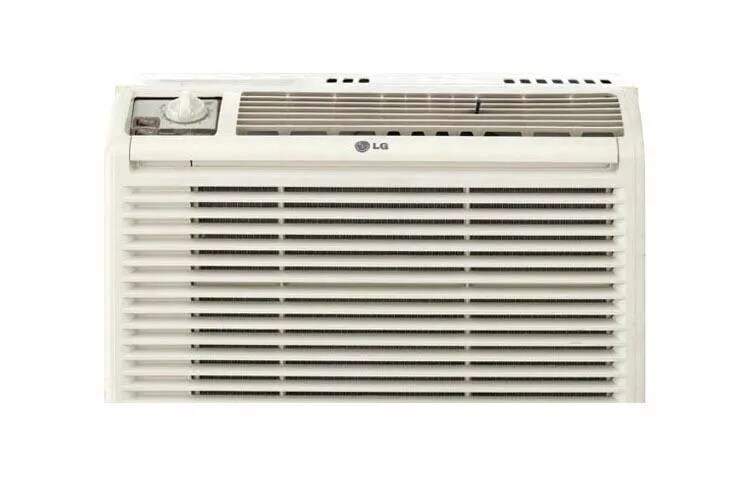

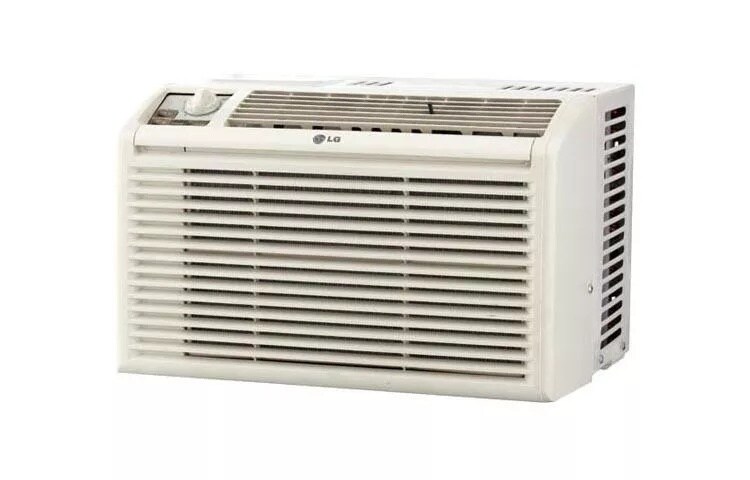

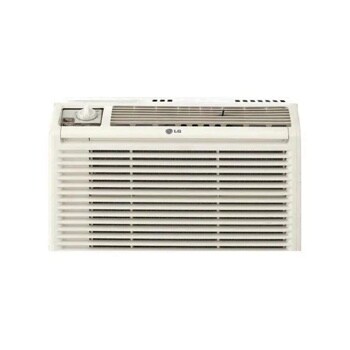

5,000 BTU Window Air Conditioner

  • 2 cooling and fan speeds
  • 2-way air direction
  • Easy-to-use installation kit
5,000 BTU Window Air Conditioner

PERFORMANCE

    • BTU Performance
    • 5,000
    • EER
    • 9.7
    • Dehumid. (Pts/Hr)
    • 1.5
    • Dry Air Flow (CFM)
    • 140
    • dBA Level (Indoor / Outdoor)
    • 52 / 56
    • Est. Cooling Area (Sq. Ft.)
    • 150

DIMENSIONS

    • Product (WxHxD)
    • 17 5/16" x 11 1/8" x 12 13/16"
    • Shipping (WxHxD)
    • 19 5/8" x 13 11/16" x 15 1/5"
    • Net Weight (lbs.)
    • 40
    • Shipping Weight (lbs.)
    • 44

FEATURES

    • Thermostat Control
    • Adjustable Thermostat
    • Air Deflection
    • 2-Way
    • Fan Speed: Cooling
    • 2
    • Fan Only Speed
    • 2
    • Compressor
    • Rotary
    • Indoor Fan Type
    • Turbo
    • Type Air Discharge
    • Top
    • Chassis Type
    • Top Down

MATERIALS/FINISHES

    • Available Colors
    • White

ELECTRICAL RATINGS

    • Voltage / 60 Hz
    • 115
    • Watts
    • 515
    • Rated Amps
    • 4.8

WARRANTY

    • Limited Warranty
    • 1 Year Parts and Labor with 1 Year Compressor
    • UPC
    • 048231365772

What people are saying

Rated 5 out of 5 by from I have had my LG window unit for over 7 years. No issues until now. Replacing power cord. Great investment overall.
Date published: 2020-06-14
Rated 1 out of 5 by from Bought one year ago and already blew out I bought this last year, used it maybe 50 days for 2-3 hours at a time in my 10 x 10 shed... The unit blew its fuse and will not start. The reset button on the cord does not reset. The unit also does not cool a 10 x 10 space.
Date published: 2019-08-09
Rated 1 out of 5 by from Disposable AC Lasted just over one year I purchased in June of 2017 and it the compressor went out in early August 2018.
Date published: 2018-08-07
  • y_2020, m_9, d_22, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_35
  • loc_en_US, sid_MD00002021, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 203ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Im missing the installation hardware, will half in screws work for holding it together? Also is there an online manual available?

Asked by: mikeS204
Our offices, in the United States, do not have product information for Canada. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lg.com/ca_en/index.jsp. You may also contact our Canada offices at 1-888-542-2623.
Answered by: NeilE
Date published: 2017-08-11

Can you purchase a replacement filter for a lw5012 window unit. The plastic has broken in several places causing the filter to be stuck within the unit. Thanks

Asked by: Surveyor
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for this item is: 5231A20030E.
Answered by: NeilE
Date published: 2017-04-26

I want to power this 5000 btu with a solar power so .how many watt does it require to kick the aircon for 6 hours a day

Asked by: Elelwani
515 watts =115v x 4.8 amps 515 watts minimum Dc 515 watts ÷12v = 42.9 amps 200 amp hour battery 200÷42.9= 4.6 hours Realty 2 hour run time
Answered by: Jimboflysrc
Date published: 2017-02-14

Where do the freon go up on my LG model serial number LW 5012

Asked by: Kirkbone
We regret the trouble you have experienced with this air conditioner. The coolant should not need to be recharged, as it is contained within the sealed system. This would only be required if there is a leak in the system, which would require service on the device. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2016-08-19

where is the thermostate control located

Asked by: frankie00
We appreciate your interest in this air conditioner. The control for the thermostat is located on the primary control panel. The UP/DOWN arrows will control the desired temperature of the device. If this does not resolve the matter, then the unit may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2016-06-22

i have only 5amp swich i want to konw exactly how much amp this ac do with just fan and when the compressor startwith maximum activity , i want mention that i have to work on 1.5 - 2amp taked from those 5amp (food cooler-other lamps)

Asked by: raji
Our offices, in the United States, do not have product information for Lebanon. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lg.com/levant_en/support.
Answered by: NeilE
Date published: 2015-11-18

i have 5amp switch , the electricity in my country is 220volt not 110 , i know that i can convert the 220 to 110volt using something , but can you convert it from your side , did the converting affect the amp and the watts i need details about that pls

Asked by: raji mostafa
Even if you could use a step down transformer to step the 220V in your outlet down to 110V to use this LG 5,000 BTU Window Air Conditioner, Model # LW5012, the one thing that you will not be able to change is the frequency. This unit has to be plugged into a standard 2-Pole, 3-wire grounding outlet rated at 125 VAC, and it should use a 15 amp time delay fuse or a 15 amp circuit breaker. As a general rule, it is unsafe to operate a 115V, 60Hz rated appliances at 115V, 50Hz. Operating a 60Hz appliances at 50Hz may result in excessive heat buildup in transformers or in certain types of electric motors. As you alluded to in your inquiry, it is possible to purchase 60Hz sine wave power systems that takes 240V 50Hz on input and produces 115V 60Hz on output, but these units are generally very expensive, and it is usually more cost effective just to replace the appliance...^IFV
Answered by: LGJoel
Date published: 2015-09-23

Does the air filter need to be replaced?

If so, where can I purchase one?
Asked by: MaryF
Hi MaryF. The Air Filter for the LG 5,000 BTU Window Air Conditioner, Model # LW5012 is a washable filter and your owner's manual recommends that you check it at least twice a month to see if it needs cleaning. The filter can be washed in lukewarm water below 40°C (104°F) You will find instructions on how to remove the front grille to get to the filter in the "Maintenance and Service" section of your owner's manual on page 18. If you need a copy of the manual, one can be downloaded from the support section on the LG site[http://www.lg.com/us/support-product/lg-LW5012]...^IFV
Answered by: LGJoel
Date published: 2015-06-17
