24CK560N-3A

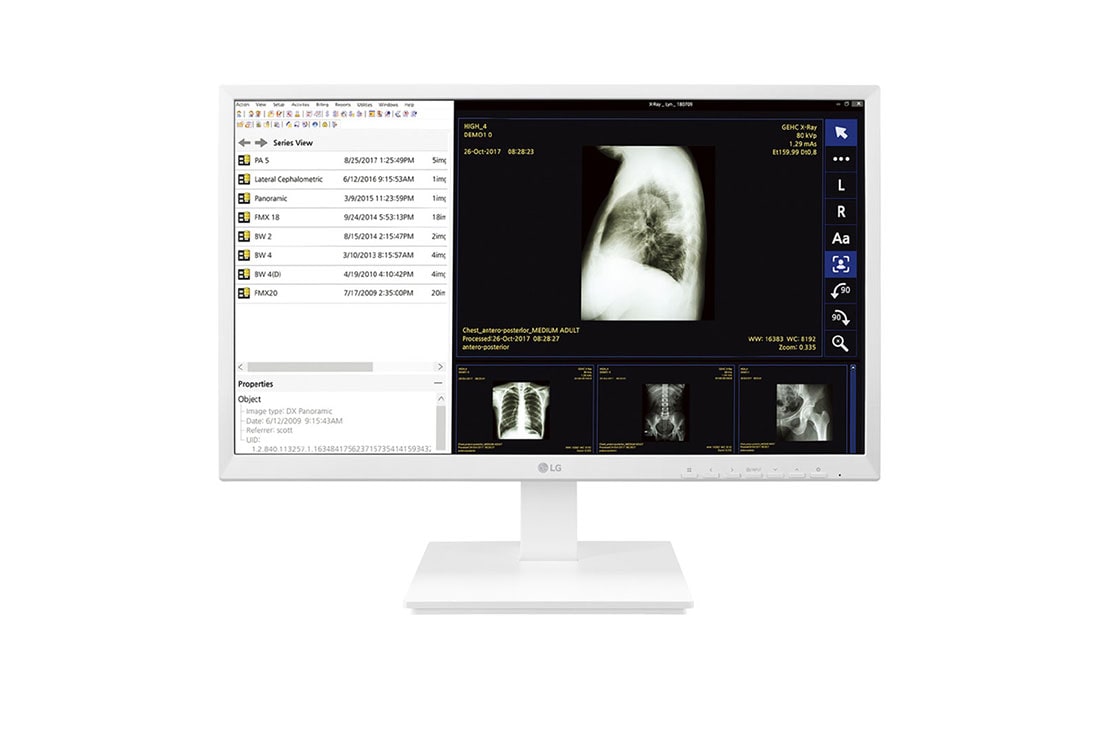

24” All-in-One FHD IPS Thin Client for Medical & Healthcare, medical standards IEC60601, CEMDD and FDA Class 1, Fanless & ergonomic design

KEY FEATURES

  • IEC60601, CE MDD, FDA (Class I)
  • AMD Prairie Falcon GX-212JJ
  • 23.8" Full HD IPS Display
  • Fanless Design
  • Ergonomic Stand
24” All-in-One FHD IPS Thin Client for Medical & Healthcare, medical standards IEC60601, CEMDD and FDA Class 1, Fanless & ergonomic design
$
*Enhanced security features are only available when using cloud computing services in connection with this product.
*IEC 60601: Series of technical standards for safety and essential performance of medical equipments, published by the International Electrotechnical Commission.
**CE marking: The medical device manufacturer's claim that a product meets the essential requirements of all relevant European Medical Device Directives.
***FDA Class I: Class I devices are subject to ‘General Controls’ as are Class II and Class III devices. Class I medical devices have a low to moderate risk to the patient and/or user.
****Recommended cleaning products are Isopropanol 100%, Ethanol 70%, Cidex OPA, 0.9% NaCl solution. All excluding screen. See user guide for cleaning instructions for more details.
*LG monitor 24BK550Y-W has the same design with 24CK560N.
  • External Display Support*

    LG cloud device supports up to 4K resolution for connected displays.

  • Fanless Design

    The fanless design reduces noise, so medical staff can focus and concentrate more on their work.

*Limited to devices supporting 4K resolution.

FEATURE

    • Size (Inch)
    • 23.8"
    • Panel Type
    • IPS
    • Color Gamut (CIE1976)
    • 72%
    • Color Depth (Number of Colors)
    • 16.7M
    • Pixel Pitch (mm)
    • 0.2745 x 0.2745
    • Aspect Ratio
    • 16:9
    • Resolution
    • 1920 x 1080
    • Brightness
    • 250cd/m² (Typ) 200cd/m² (Min)
    • Contrast Ratio (Original)
    • 1000:1 (Typ)
    • Response Time (GTG)
    • 5ms (High)
    • Viewing Angle (CR≥10)
    • 178/178 (CR≥10)

RESOLUTION

    • Signal-input - HDMI
    • 1920 x 1080 @ 60Hz
    • Signal Output - DisplayPort Out
    • External only : 4096 x 2160 @ 60Hz, Extension mode : 3840 x 2160 @ 60Hz

PC

    • Processor
    • AMD Pairie Falcon GX-212JJ
    • Operation System
    • Non OS
    • System Memory
    • 4GB DDR4
    • Graphics
    • Integrated Graphics
    • Storage
    • 32GB (M.2 SSD), M.2 2280/2242 SSD Supported (SATA/PCIe supported)
    • Display Support
    • 4096 x 2160 @ 50Hz, 3840 x 2160 @ 60Hz (via DisplayPort 1.2 out)
    • TPM (Trust Platform Module)
    • Software TPM

INTERFACE

    • Networking - Wireless
    • Intel Dual Band Wireless-AC 3168 1x1 AC (AGN support, BT 4.0 + LE Combo), Internal Antenna
    • Networking - BT
    • BT4.0
    • Networking - LAN
    • 1 x RJ45 : Ehternet 10/100/1000 (Support Wake on LAN)
    • Signal Input - HDMI
    • Yes (1.4)
    • Signal Input - DC-in
    • Yes
    • Signal Output - DisplayPort Out
    • Yes (1.2)
    • Audio Input - Mic In
    • Yes
    • Audio Output - Headphone Out
    • Yes
    • USB
    • 4 x USB2.0, 2 x USB3.0
    • DC-In
    • Yes

SPEAKER

    • Type
    • 2ch Stereo
    • Audio output (watt)
    • 2 x 3W

POWER

    • (Input/Output) - Type
    • Adapter
    • (Input/Output) - Input
    • 100~240 V (50/60 Hz)
    • (Input/Output) - Output
    • 65Watt
    • Consumption - Sleep Mode (Max)
    • 1.0Watt
    • Consumption - DC Off (Max)
    • 0.6Watt
    • Consumption - Long Idle (Display OFF)
    • 6.0Watt
    • Consumption - Short Idle (Display ON)
    • 30Watt
    • Consumption - TEC (kWh)
    • 96.5kWh

SPECIAL FEATURE

    • Picture - Reader Mode
    • Yes
    • Sound - Maxx Audio
    • Yes
    • Special Feature - Flicker safe
    • Yes
    • Special Feature - Smart Energy Saving
    • Yes
    • Special Feature - Super Resolution+
    • Yes
    • Special Feature - OSC (On Screen Control / Screen Split)
    • Yes

STAND

    • Tilt (Angle)
    • -5º ~ 35º
    • Swivel (Angle)
    • Yes ('0°~355° (±5°))
    • Height range
    • 5.1”/130mm
    • Down Height
    • 2.8”/70mm
    • Pivot
    • Yes (Bi-directional, 90º)

SIZE/WEIGHT

    • Dimension (WxDxH) - Set (with Stand)
    • 21.8” x 20.2” x 9.4”/553.8 x 512.9 x 240 mm
    • Dimension (WxDxH) - Set (without Stand)
    • 21.8” x 13.1” x 2.7”/553.8 x 333.1 x 67.6 mm
    • Dimension (WxDxH) - Box
    • 24.6” x 7.6” x 18.7”/626 x 194 x 474 mm
    • Dimension (WxDxH) - VESA / Wall Mount
    • 3.9” x 3.9”/100 x 100 mm (Wall mount)
    • Weight - Set (with Stand)
    • 13.4 lbs./6.1kg
    • Weight - Set (without Stand)
    • 8.7 lbs./3.95kg
    • Weight - Box
    • 18.2 lbs./8.25kg

ETC

    • Warranty
    • 3 Years
