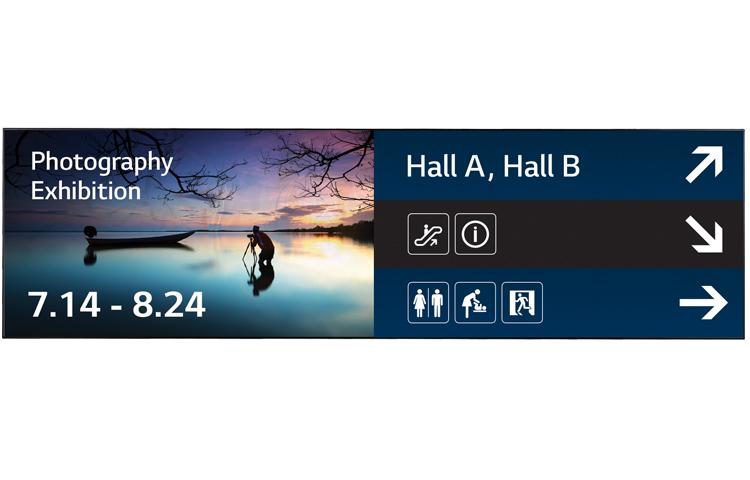

88BH7D
88” Class (87.80” Diagonal) Ultra-Stretch Digital Signage
  • Ultra HD Resolution (3,840 x 1,080)
  • 32:9 Extended Wide Format
  • PBP with Four Divisions in Landscape or Portrait
  • 32:9 Content Editing
  • Multimedia Content Creation
  • Lateral Tiling with Daisy Chain
88” Class (87.80” Diagonal) Ultra-Stretch Digital Signage
$ 10,000.00



The 88BH7D is a new signage format with a 32:9 “stretch” widescreen aspect ratio plus Ultra HD 4K resolution. Turn heads and engage customers as never before with installations that can maximize this dramatic effect in a variety of new ways. A work of art in itself, the Ultra-Stretch 88BH7D elevates virtually any space.

Ultra HD Resolution
(3,840 x 1,080)

The large Ultra HD screen delivers an immersive viewing experience.
Ultra HD Resolution<br> (3,840 x 1,080)1 Ultra HD Resolution<br> (3,840 x 1,080)2

32:9 Extended Wide Format

Dynamic, enhanced content can now be delivered on a single screen thanks to the new 32:9 format.
32:9 Extended Wide Format1 32:9 Extended Wide Format2

Sleek Design for Space

Ultra-Stretch Signage delivers seamless content as an in-store signboard, digital banner and more, thanks to its generous aspect ratio. Installed on a wall, on a pillar or perhaps over the entrance, it adds premium style while uniquely engaging with all who behold its striking form factor.
Sleek Design for Space1 Sleek Design for Space2

PBP with Four Divisions in Landscape or Portrait

The Picture-by-Picture (PBP) feature allows you to divide a screen into up to four parts, in landscape or portrait installations. It is a very effective and convenient way to deliver several advertisements or pieces of information at the same time.
PBP with Four Divisions in Landscape or Portrait1 PBP with Four Divisions in Landscape or Portrait2

32:9 Content Editing

Easily edit images and video clips of original content to fit the 32:9 format using the included LG SuperSign Media Editor.
32:9 Content Editing1 32:9 Content Editing2

Multimedia Content Creation

Combine video with up to 20 still photos in a single piece of content for an engaging new multimedia presentation.
Multimedia Content Creation1 Multimedia Content Creation2

Lateral Tiling with Daisy Chain

This product supports side-by-side tiling for 1x4 or 4x1 installations (landscape of portrait orientation) and up to a 4x4 installation with a daisy chain configuration.
Lateral Tiling with Daisy Chain1 Lateral Tiling with Daisy Chain2

LAN Daisy Chain

Control and monitor devices, distribute content and even update firmware over the LAN daisy chain.
LAN Daisy Chain1 LAN Daisy Chain2

PANEL

  • Screen Size
    88" (87.80" diagonal)
    Panel Technology
    IPS
  • Aspect Ratio
    32:9
    Contrast Ratio
    1,100:1 (Typ)
  • Native Resolution
    3,840 x 1,080 (UHD)
    Response Time
    8ms (G to G BW) typ.
  • Dynamic Contrast Ratio
    500,000:1
    Brightness
    700 cd/m2 (Typ)
  • Viewing Angle (H x V)
    178°/178°
    Surface Treatment
    AGLR (Haze 3%)
  • Orientation
    Landscape & Portrait Mode
    Color Depth
    10bit(D), 1.07 Billion

CONNECTIVITY

  • Input
    HDMI (3), DP, OPS, DVI-D, Analog Audio, USB 2.0, USB 3.0, SD Card
    Output
    DP, Analog Audio
  • External Control
    RS232C In/Out, RJ45 In/Out, IR & Light Sensor, Pixel Sensor

PHYSICAL SPECIFICATIONS

  • Bezel Color
    Black
    Bezel Width
    4.4 mm (L/R), 5.9 mm (U/D)
  • Monitor Dimension (W x H x D)
    85.0" x 24.1" x 4.1" / 2,158.3 x 611.2 x 103.9 mm (with handle) 85.0" x 24.1" x 3.3" / 2,158.3 x 611.2 x 84.8 mm (without handle)
    Weight (Head)
    75.4 lbs
  • Carton Dimensions (W x H x D)
    89.5" x 28.2" x 8.3"
    Packed Weight
    112.9 lbs (Pallet included)
  • VESA TM Standard Mount Interface
    600mm x 400mm

SPECIAL FEATURES

  • Yes
    Temperature Sensor, Auto Brightness Sensor, Tile Mode, Natural Mode@Tile Mode, ISM Method, DPM Select, Energy Saving, Smart Energy Saving, File Play with USB/SD/Internal Memory, 2/3/4PBP, Internal Memory 8GB (System 4GB + Available 4GB), Wi-Fi Dongle Ready(Support Beacon function), 4K Up Scaling

ENVIRONMENTAL CONDITIONS

  • Operating Temperature Range
    0°C to 40°C / 32°F to 104°F
    Operating Humidity Range
    10 % to 80 %

POWER

  • Power Supply
    100-240 V~, 50/60 Hz
    Power Type
    Built-in Power
  • Power Consumption (Smart Energy Saving)
    30% of typical
    Power Consumption (Typ./Max)
    400 W / 500 W

STANDARD CERTIFICATIONS

  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC

MEDIA PLAYER COMPATIBILITY

  • External Media Player Attatchable
    Yes
    OPS PC compatible (optional)
    Yes

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign Premium
    Control and Monitoring Software
    SuperSign C

ACCESSORIES

  • Basic
    Remote Controller (including battery 2ea), Power Cord, DP (2.6M), RS-232C Cable (3M), Owner's Manual (Website upload)
    Optional
    AN-WF500 (Wi-Fi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor) ** Stand is not available

WARRANTY

  • Limited Warranty
    3-Year Limited Warranty (Parts and Labor)

OTHER

  • UPC
    719192615632
