Discontinued
M4224C-BA

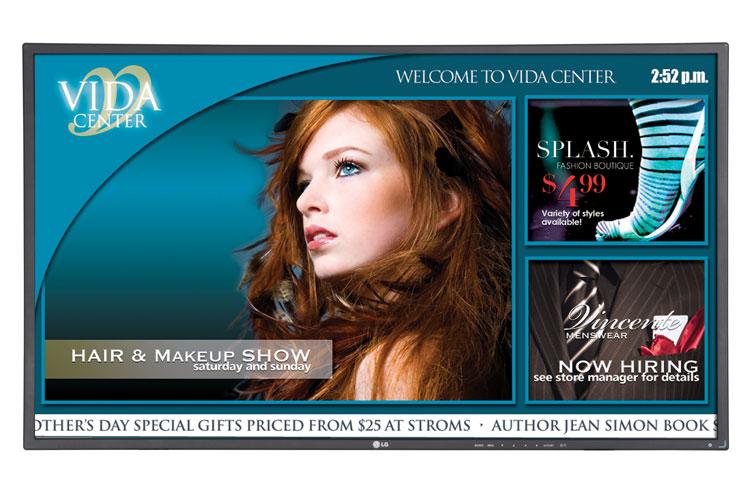

42'' class (42.0'' measured diagonally) LCD Widescreen Full HD Capable Monitor
42" class (42.0" measured diagonally) LCD Widescreen Full HD Capable Monitor

Overview

  • For digital signage applications, the M4224C-BA large screen LCD TV is designed to maximize content quality and effect. Features include a built-in LAN controller that eliminates the need of an IP card and IP interface box to manage multiple TVs. Deliver content with the brilliance and clarity of full HD 1080p. With landscape, portrait and 5x5 tile mode capabilities, the M4224C-BA adapts to your signage needs.

PANEL

  • LCD Panel Type
    42"
    Display Area
    42.0" diagonal
  • Super IPS
    Yes
    MTBF
    50,000 Hr. (Minimum) Portrait & Landscape
  • Aspect Ratio
    16 : 9
    Brightness
    700 cd/m^2
  • Viewing Angle
    178°/178°
    Pixels (H x V x 3)
    6,220,800
  • Response Time
    9 ms (G to G)
    Surface Treatment
    Hard Coating (3H) Anti-glare
  • Color Depth
    10.6 Billion
    Native Resolution
    1920 x 1080 (WUXGA)
  • Contrast Ratio
    3,000:1 (DCR)

VIDEO

  • Video Input
    RGB, HDMI/DVI
    H-Scanning Frequency
    30 ~ 83kHz (RGB, HDMI/DVI)
  • V-Scanning Frequency
    56 ~ 75 Hz (RGB), 60 Hz (HDMI/DVI)
    Sync Compatability
    Separate / Composite / Digital
  • Max Input Resolution
    1920 x 1080 @ 60Hz (RGB, HDMI/DVI)
    Recommended Resolution
    1920 x 1080 @ 60Hz (RGB, HDMI/DVI)
  • Pixel Frequency
    148.5MHz (RGB, HDMI/DVI)
    Color Temperature
    Warm/Medium/Cool/User
  • Picture mode
    Vivid/Standard/Cinema/Sports/Game/ User1/User2

REAR INPUTS/OUTPUTS

  • Audio Jack Built-in (No Amp)
    Yes
    External Speaker Out
    Yes
  • Discrete IR Input
    Yes
    Component Video
    1 Hi-Res (BNC)
  • HDMI with HDCP
    Yes
    PC Formats
    Auto Scaling to WUXGA
  • HDTV Formats
    Component : 720p/1080i/1080p HDMI :720p/1080i/1080p
    Audio Inputs
    2 Plus PC Sound
  • PC Input via 15-Pin Sub "D"
    1in / 1 out
    RJ-232C Input/Output
    1 / 1
  • Audio Output
    1
    Composite Video Input/Output
    1 (BNC) / 1 (BNC)
  • RJ45
    Yes
    S-Video
    1 (S-Video has a priority but there is no input mode)

CABINET

  • Color
    Black/Silver
    Monitor Dimensions
    38.1" x 22.0” x 5.0"
  • Monitor Weight
    41.2 lbs
    Carton Dimensions
    38.1" x 22.1” x 4.9”
  • Packed Weight
    48.0 lbs
    VESA Standard Mount Interface
    600mm x 400mm
  • Monitor with Opt. Stand
    38.1” x 25.0” x 10.2”
    Monitor with Opt. Stand & Speaker
    38.1" x 25.0” x 10.2”
  • Monitor Weight with Opt. Stand
    44.1 lbs
    Monitor Weight with Opt. Stand & Speaker
    45.8 lbs

SPECIAL FEATURES

  • Split Zoom (Self Video Wall, Max 5 x 5)
    Yes, supports natural mode
    Position
    H / V
  • Tracking
    Auto/Clock/Phase
    Set-up
    Language(English/French/Spanish/ Italian/German/Portugues/ Korean/Japanese/Chinese/Russian)
  • Mute
    Yes
    Sleep Timer
    Yes
  • Temperature Sensor
    Yes
    Source Selection
    Digital (HDMI/DVI)/Analog (RGB)/ Component/AV
  • Brightness/ Contrast
    Yes
    Advanced
    Gamma/Film mode/Black level/ Noise Reduction
  • Time
    Clock/On/off timer/Auto sleep/ Power on Delay
    Information Display
    Serial Number, SET ID, MNT S/W Version, LAN S/W Version
  • Auto Power / Source Memory
    Yes
    ISM Method
    Normal/White Wash/Orbiter/ Inversion/Dot wash
  • Color
    Warm/Medium/Cool User Control (R/G/B)
    Key Lock
    Yes
  • DPM Select
    Yes
    Backlight Control
    Yes

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Switch Type
    Tact Switch
    Power Consumption-Normal
    200W
  • Power Consumption-Standby/Suspend
    2W(RGB)/4W(HDMI/DVI)
    Power Consumption-DPM Off
    2W(RGB)/4W(HDMI/DVI)
  • Power Consumption-Switch Off
    1W

AUDIO

  • Balance
    Yes
    Auto Volume
    Yes
  • Audio Power
    20W(10W x 2)
    Speaker On/Off
    Yes
  • Sound Mode
    Clear Voice/Standard/Music/Cinema/ Sports/Game/User

STANDARD CERTIFICATIONS

  • Safety
    UL/c-UL/CB scheme/TUV/NEMKO
    EMC
    FCC Class "B"/VCCI/C-tick/CE/MIC
  • RoHS Compliant
    Yes

UPC Code

  • UPC
    7 19192 18545 6

LIMITED WARRANTY

  • Limited Warranty
    3 Years (Parts/Labor)

OPTIONAL ACCESSORIES-SP0000K (Speakers)

  • Packed Weight
    2.36 lbs (2 Speakers/1 Package)
    Weight (2 speakers)
    1.7 lbs
  • Packaging Dimensions (Wx H x D)
    15.1" x 5.3" x 6.9"
    Dimensions (Wx H x D) (each)
    2.9" x 13.7” x 2.2”

OPTIONAL ACCESSORIES-ST0000K (Stand)

  • Packaging Dimensions (Wx H X D)
    12.4” x 2.8” x 11.0”
    Dimensions (Wx H X D)
    2.6" x 10.1” x 7.3”
  • Shipping Weight
    3.64 lbs.
    Weight
    2.8 lbs
