LSAA012

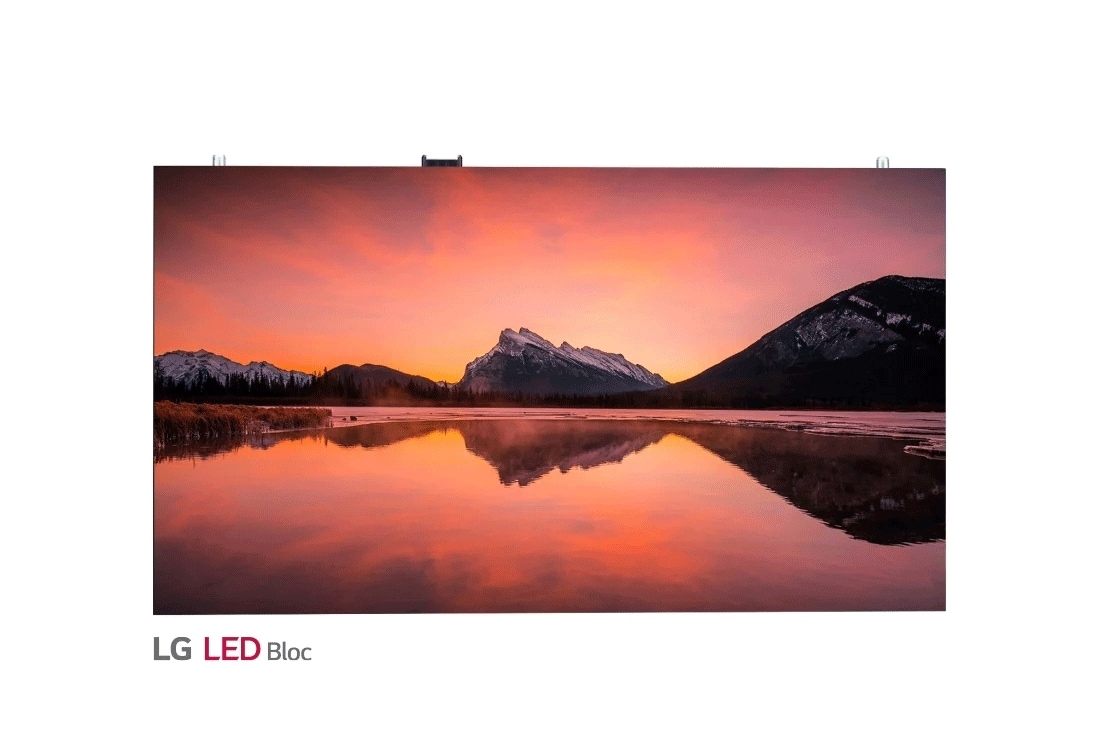

LSAA Series 1.25mm Cable-less LED with Cable-less Power Docking, AI-powered Image Processor, 600nits Brightness, & HDR10

  • Pixel Pitch: 1.25mm
  • Brightness: 600 cd/m²
  • Wireless Data Transfer and Cable-less Power Docking
  • AI-powered Image Processor
  • Real-time 365 Care Service
LSAA Series 1.25mm Cable-less LED with Cable-less Power Docking, AI-powered Image Processor, 600nits Brightness, & HDR10
$
*Images for illustration purposes only.
*There are power cables to power up the display.
*Images for illustration purposes only.

Why Cable-less LED

The innovative LSAA series digital signage uses wireless transmission technology. For up to UHD resolution with the 16:9 ratio, it does not require a cable connection between the cabinets to supply signal & power. Its block assembly design makes the LSAA012 easy to install.
*Images for illustration purposes only.
*Images for illustration purposes only.
*Based on P1.2, 16:9, UHD Resolution (8 x 8 Cabinets).
*Images for illustration purposes only.

Vivid Color Expression Powered by HDR

With HDR (HDR10, HDR10 Pro*) support, content becomes vivid and crisp. The wider color spectrum and greater contrast ratio allow viewers to fully enjoy content.
*Images for illustration purposes only.
*HDR10 Pro is LG's own HDR solution for processing HDR signal by using enhanced dynamic tone mapping.
*Images for illustration purposes only.
*Images for illustration purposes only.

EMC Class B Certified

The LSAA Series is certified as EMC Class B, which means it produces low amounts of electromagnetic energy that can interfere with other systems or create excess electromagnetic noise in the environment. This helps your electronic system to work properly in its operating environment without interrupting other systems.
*Images for illustration purposes only.

4-in-1 LED Package

With LSAA Series’ 4-in-1 LED package, 4 pixels are combined and integrated into one single LED package.
*Images for illustration purposes only.

Standby Mode

When there is no input signal for a period of time, the screen turns off and the main circuit parts inside the LED cabinet go to a standby mode. This decreases power consumption and enables the product to be reactivated simply by using a remote control.
*Images for illustration purposes only.

Power / Signal Redundancy Support

The LSAA series is designed to support redundancy of signal and power. With an optional embedded back-up power supply unit1, customers can assure the continuous operation of the screen with virtually no power failure, while the dual controllers minimize screen failure with a bi-directional signal input.
1. Additional cost for optional embedded back-up power supply unit.
2. Images for illustration purposes only.
3. The "Conventional" shown above refers to LED displays which do not support the power/signal redundancy mode.
4. The power/signal redundancy features are available from the third quarter of 2020.
5. The embedded back-up PSU model is optional.

Real-time 365 Care Service

Maintenance is easier and faster with the optional Signage365Care* service, a cloud service solution provided by LG service. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
*Images for illustration purposes only.
*The availability of the "Signage365Care" service differs by region, so please contact the LG sales representative in your region for more details.

PHYSICAL PARAMETERS

    • Model
    • Model LSAA012MX/SX
    • Pixel Configuration
    • 4 in 1 Package
    • Pixel Pitch (mm)
    • 1.25 mm
    • Module Resolution (W x H)
    • 240 x 90
    • Module Dimensions (W x H)
    • 300 x 112.5 mm
    • Weight per Module
    • 0.44 lbs/0.2 kg
    • LED Package Manufacturer
    • Xindeco
    • Number of Modules per Unit Case (W x H)
    • 2 x 3
    • Unit Case Resolution (W x H)
    • 480 x 270
    • Unit Case Dimensions (W x H x D)
    • 23.6 x 13.3 x 1.8 in / 600 x 337.5 x 44.9 mm
    • Unit Case Surface Area
    • 2.19 ft2 /0.203 m2
    • Weight per Unit Case
    • 15.2 lbs/6.9 kg
    • Weight per Unit Area
    • 7.0 lb/ft<sup>2</sup> , 34.1 kg/m<sup>2</sup>
    • Physical Pixel Density
    • 54,457 pixels/ft<sup>2</sup> , 640,000 pixels/m<sup>2</sup>
    • Flatness of Unit Case
    • ±0.5 mm
    • Unit Case Material
    • Die-cast Aluminum
    • Service Access
    • Front and Rear
    • Lead Type
    • Gold

OPTICAL SPECIFICATIONS

    • Brightness (After Calibration)
    • 1,200 nits (Peak) 600 nits (Typ)
    • Color Temperature
    • 6,500K / 2,800~10,000K, (Adjustable by LED Assistant on PC)
    • Visual Viewing Angle (Horizontal)
    • 160
    • Visual Viewing Angle (Vertical)
    • 140
    • Brightness Uniformity
    • 97%
    • Color Uniformity
    • ±0.015Cx,Cy
    • Contrast Ratio
    • Peak. 9,000:1 <br>Typ. 5,000:1
    • Processing Depth (bit)
    • 20 (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

    • Max Power Consumption per Unit
    • 106.7 W
    • Average Power Consumption per Unit
    • 64.02 W
    • Max Power Consumption per Unit Area
    • 526.9 W
    • Max Power Consumption per Unit
    • 364 BTU
    • Average Power Consumption per Unit
    • 218.4 BTU
    • Max Power Consumption per Unit Area
    • 1,798 BTU
    • Power Supply
    • 100 to 240 V
    • Frame Rate
    • 50/60 Hz
    • Refresh Rate
    • 3840Hz

OPERATION SPECIFICATIONS

    • Lifetime (Half brightness)
    • 100000 Hours
    • Operating Temperature
    • 32 to 104 °F/0 to +40 °C
    • Operating Humidity
    • 10-80% RH
    • IP Rating Front
    • IP20
    • IP Rating Rear
    • IP20

CERTIFICATIONS & STANDARDS

    • IEC 60950-1 (Safety)
    • Yes
    • FCC Part 15 Class B (EMC)
    • Yes
    • RoHS (Environmental)
    • Yes
