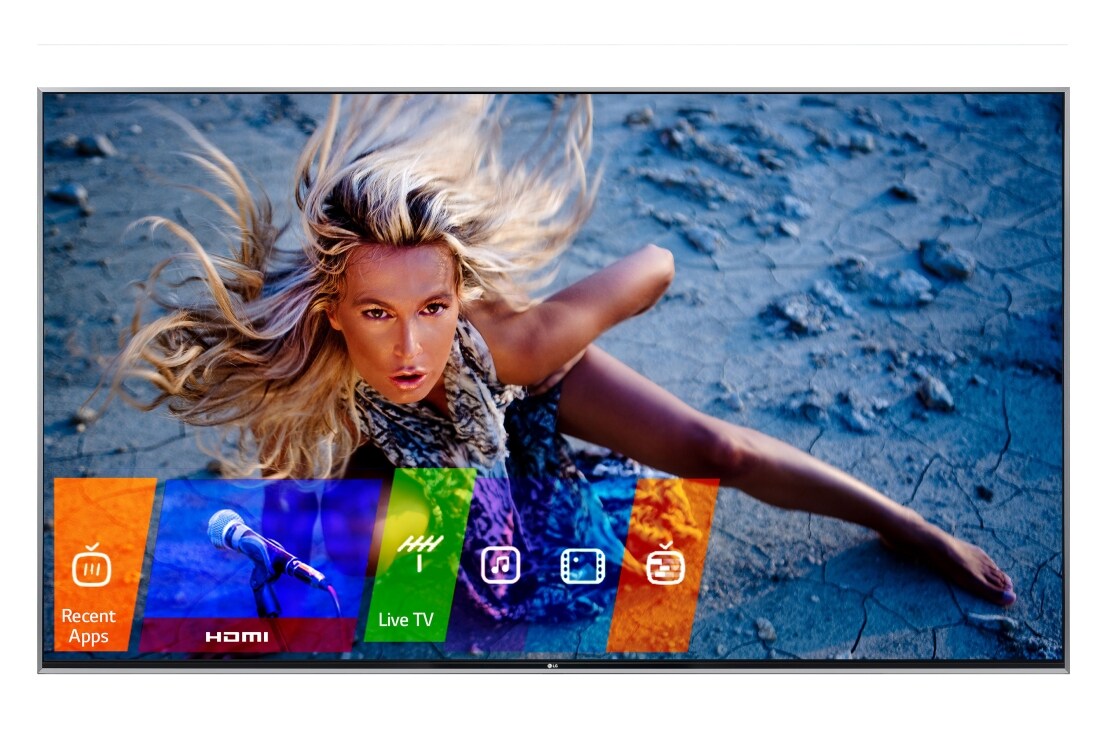

75UV770H
Edge-lit Smart IPTV with Ultra HD and Integrated b-LAN™
  • Pro:Centric® SMART
  • Integrated Pro:Idiom® DRM Technology
  • Ultra HD
  • webOS & Media Share Features
  • NEW Dolby Vision™ High Dynamic Range (HDR) with HDR10 Compatibility
Edge-lit Smart IPTV with Ultra HD and Integrated b-LAN™
$



The UV770H is a cost-effective Smart IPTV model series, offering Ultra HD display and an edge-lit LED display with a slim bezel design. This series supports the Pro:Centric® SMART application platform, as well as Media Share features and integrated Pro:Idiom® technology. The UV770H models also have an embedded b-LAN™ module.

 1



The UV770H is the latest in the line of Pro:Centric TVs that provide a unique and dedicated hotel applications hosting platform for LG's system integrators' interactive applications, enabling delivery for a wide range of custom applications tailored to both hotel management and guests' needs. LG Pro:Centric SMART offers extended customizable tools: HTML5, Java and Flash. Using these tools, partners can optimize the TVs by editing and developing their own enhanced service design to increase the visual impact on guests.
 1



GLOBAL LEADING DIGITAL RIGHTS MANAGEMENT (DRM) SOLUTION
Pro:Idiom unlocks access to premium content to help ensure rapid and broad deployment of HDTV and other digital content. Pro:Idiom has been designed specifically for users of premium HDTV content from cable, satellite, or video on demand (VOD) services, and help reduce costs and reduce maintenance. This leading DRM system is embraced for its security solution, which helps prevent illegal downloading of copyrighted content.
Smart Share1

Smart Share

LG Smart Share® allows guests to use the TV to access video, image, and music shared by DLNA Certified® devices connected to the same Access Point as the TV.
Screen Share 1

Screen Share

Screen Share enables screen sharing with a Miracast ® or Wireless Display (WiDi) capable device (e.g., a laptop with Intel ® hardware).
Bluetooth Sound Sync (Bluetooth 3.0)1

Bluetooth Sound Sync (Bluetooth 3.0)

Bluetooth Sound Sync allows guests to listen to audio from a Bluetooth-enabled mobile device through the TV’s speakers.
* Support devices for Bluetooth Sound Sync : Android (above v4.4 KitKat) / iOS based Mobile Device
SoftAP1

SoftAP

SoftAP enables the TV to function as a 2.4 GHz wireless access point for up to five devices.
DIAL1

DIAL

DIAL (Discovery and Launch) allows guests to play selected application media on the TV from a device with DIAL capability. The device may be used to cast any application for which a TV-compatible application has been created/selected.

DISPLAY

  • Diagonal Size
    74.65"
    Type
    Edge LED
  • Dynamic Contrast Ratio
    1,000,000:1
    Resolution
    3,840 x 2,160 (4K UHD)
  • Response Time (G to G)
    8m/s
    Frame Rate
    T120
  • Viewing Angle Degree
    178°/178°
    Static Contrast Ratio
    1,200:1

BROADCASTING SYSTEM

  • Analog
    NTSC
    Digital
    ATSC / VSB / Clear QAM
  • MPEG-2 / MPEG-4 H.264 DECODING
    No

VIDEO

  • Aspect Ratio
    6 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom, Just Scan)
    Picture Mode
    9 modes (Vivid, Standard, APS (Eco), Cinema, Sports, Game, HDR Effect, Expert (Bright Room), Expert (Dark Room))
  • Triple XD Engine
    Yes
    Real Cinema 24p (3:3 pull down)
    Yes
  • HDR
    Dolby VisionTM HDR, HDR10

AUDIO

  • Sound Mode
    6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
    Optical Sound Sync
    No
  • Audio Output / Speaker System
    10W + 10W / 2.0 ch
    Wireless Sound Sync
    No

SOLUTION

  • Type
    Pro:Centric® SMART / Pro:Centric® Direct
    Data Streaming (IP & RF)
    No
  • RF
    2 Tuner
    IP Return Path
    No
  • Server
    PCS400R, PCS200S
    Digital Rights Management
    Pro:Idiom
  • HCAP (SDK)
    GEM / Flash / HTML

SMART FEATURES

  • Smart UX
    webOS 3.5, Commercial Smart Home, Web Browser, Pre-loaded Apps, SDP (Service Delivery Platform), Magic Remote (Optional)
    Connectivity
    SoftAP, WiFi (802.11a/b/g/n/ac), ScreenShare (Miracast), SmartShare, DIAL, Bluetooth Sound Sync, LG Sound Sync

GENERAL FEATURES

  • USB
    Moving Picture Playback (.asf, .wmv, .avi, .mp4, .m4v, .mov, .3gp, .3g2, .mkv, .mpg, .mpeg, .dat, .etc), Picture (jpeg, jpg, jpe, BMP, PNG), Audio Codec (.mp3, .wav, .OGG, .WMA, .flac)
    Management
    Wake on RF, WOL (Wake on LAN) SNMP, Remote Diagnostics, MPI/RS-232C Protocol, IR Out, Multi IR Code, HTNG/HDMI-CEC
  • Anti-theft System
    No
    Installation
    EZ-Manager, USB Cloning
  • Setting Option
    Auto Off/Sleep Timer, Smart Energy Saving, Motion Eye care

HOSPITALITY FEATURES

  • Yes
    PDM(Installer menu), Welcome Screen(Splash Image), Insert Image(webOS default), Logical Channel Map, External Speaker Out, Instant ON, RJP Compatibility, b-LANTM embedded

INTERFACE

  • Side
    HDMI In (2), USB 2.0
    Rear
    RF In (b-LAN), AV In, Digital Optical Audio Out, HDMI Input, USB, RS-232C, RJ45(2), External Speaker Out, TV Link Configuration(b-LAN Service), MPI Port, Debug

ACCESSORIES

  • Yes
    Power Cable (5.9 ft.), Owner’s Manual / Easy Setup Guide

DIMENSIONS

  • Bezel Width On (L/R, U, B)
    14.7, 14.7, 14.7 (mm)
    Bezel Width (L/R, U, B) : off bezel based
    12.7, 12.7, 12.7 (mm)
  • Vesa (mm)
    600 x 400
    W x H x D / Weight (with stand)
    66.8" x 40.9" x 14.5" 92.6 lbs
  • Stand
    No
    W x H x D / Weight (w/o stand)
    66.8" x 38.6" x 1.5" 91.1 lbs
  • W x H x D / Weight (Carton)
    72.4" x 45.9 x 9.1" 116.8 lbs

POWER

  • Voltage, Hz
    100~240V, 50/60Hz
    Stand-by
    < 0.5
  • Watts (Typical)
    77.1

STANDARD CERTIFICATIONS

  • Safety
    UL
    Etc.
    RoHS, UL, ENERGY STAR® 7 Qualified, Dolby VisionTM
  • Environment
    FCC

WARRANTY/UPC

  • UPC
    719192617339
