KEY FEATURES

  • 27” IPS 8MP
  • 350nits(Typ.) & sRGB 99%
  • DICOM Part 14
  • Brightness Stabilization
  • Flicker Safe
  • Two-way Pivot

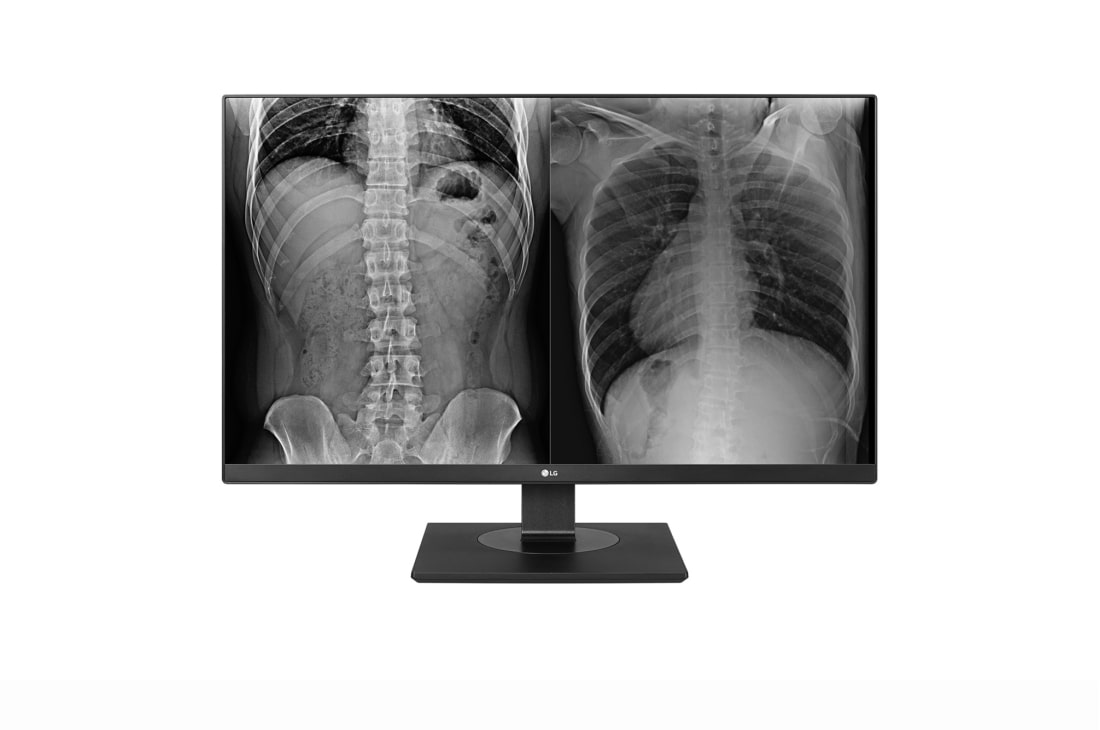

LG 8MP Clinical Review Monitor
$


Accurate Image Quality for Clinical Review

Medical Images with Ensured Consistency

*ACR-AAPM-SIIM Secondary Review Brightness Guideline : The secondary review brightness guideline developed collaboratively by the American College of Radiology (ACR), the American Association of Physicists in Medicine (AAPM), and the Society for Imaging Informatics in Medicine (SIIM).

Enhanced Viewing Comfort

PANEL

    • (GTG)
    • 5ms (High)
    • Aspect Ratio
    • 16:9
    • Brightness (DICOM Calibrated)
    • 250 cd/m²
    • Brightness
    • 350 cd/m² (Typ.)
    • Color Depth (Number of Colors)
    • 1.07 B (10bit)
    • Color Gamut (CIE1931)
    • sRGB 99%
    • Contrast Ratio (Original)
    • 1000:1
    • Panel Type
    • IPS
    • Pixel Pitch (mm)
    • 0.1554mm x 0.1554mm
    • Resolution
    • 3840 x 2160
    • Response Time_Typ. (on/off)
    • 14ms (Typ)
    • Size
    • 27" Class (27.0" Diagonal)
    • Surface Treatment
    • Anti-Glare 3H
    • Viewing Angle (CR≥10)
    • 178 / 178

SIGNAL INPUT

    • [ Jack Location ]
    • Rear
    • DisplayPort
    • x1 (1.2)
    • HDMI
    • x2 (2.0)
    • USB
    • USB3.0 1up 2down

AUDIO OUTPUT

    • [ Jack Location ]
    • Rear
    • Headphone Out
    • Yes

CABINET

    • Box
    • 694 x 504 x 185 mm / 27.3" x 19.8" x 7.3"
    • Monitor (with Stand)
    • 615.0 x 276.1 x 546.3 mm / 24.2" x 10.9" x 21.5"
    • Monitor (without Stand)
    • 615.0 x 42.7 x 365.1 mm / 24.2" x 1.7" x 14.4"
    • VESA® Wall Mount
    • 100 x 100
    • Weight (Box)
    • 22.7 lbs / 10.3 kg
    • Weight (with Stand)
    • 16.5 lbs / 7.5 kg
    • Weight (Without Stand)
    • 10.4 lbs / 4.7 kg

RESOLUTION

    • Digital (HDMI)
    • 3840x2160
    • Display Port
    • 3840x2160
    • HDMI
    • 3840x2160

Special Feature

    • 4 Screen Split
    • YES
    • Automatic Standby
    • YES
    • Brightness Stabilization
    • YES
    • Color Calibrated
    • Yes
    • Color Temperature
    • 6500K / 8500K / 9300K, Manual (5000K ~ 10000K)
    • DDC/CI
    • Yes
    • DICOM Mode
    • Yes (Kδ <= 10%)
    • DPM
    • YES
    • Dual Controller
    • YES
    • Dynamic Sync Mode (Thru Mode)
    • YES
    • Factory Calibration
    • Yes (Delta E<2, Gamma 1.8 ~ 2.6 / DICOM curve)
    • Flicker safe
    • Yes
    • Gamma
    • Gamma 1.8, Gamma 2.0, Gamma 2.2,Gamma 2.4, Gamma 2.6, DICOM Gamma curve
    • H/W Calibration
    • Yes (Calibration 1-2 Mode)
    • HDCP
    • YES
    • Key Lock
    • Yes
    • On Screen Control
    • YES
    • ORIGINAL RATIO
    • YES
    • PBP
    • YES
    • Picture Mode
    • Yes
    • Plug & Play
    • Yes
    • Quick Charge
    • YES
    • Reader Mode
    • Yes
    • Response Time Control
    • YES
    • SIX Axis Control
    • Yes
    • Smart Energy Saving
    • Yes (Conserve energy by using luminance compensation algorithm)
    • Super Resolution+
    • Yes
    • True Color Pro
    • YES
    • Uniformity Compensation
    • YES

COLOR

    • Back Cover
    • Black
    • Base
    • Black
    • Front
    • Black
    • Others
    • Deco cover : Black
    • Stand
    • Black

CONTROL KEY

    • [ Key Location ]
    • Bottom
    • Key Number (Power Key Included)
    • 5
    • Key Type
    • Joystick
    • LED Color(On Mode)
    • White
    • LED Color(Power save mode)
    • White Blinking

FREQUENCY

    • H-Frequency (Display Port)
    • 30~135kHz
    • H-Frequency (HDMI)
    • 30 ~ 135kHz
    • V-Frequency (Display Port)
    • 56~61Hz
    • V-Frequency (HDMI)
    • 56 ~ 61Hz

OSD

    • Country
    • Worldwide
    • Number of Language
    • 17

POWER

    • DC Off (Max)
    • 0.3W
    • Input
    • 100-240Vac, 50/60Hz
    • Normal On (Max) (Brightness100 + USB Load)
    • 65W
    • Output
    • 19V, 3.42A (65W)

POWER

    • Sleep Mode (Max)
    • 0.5W

POWER

    • Type
    • Adapter

STAND

    • Base Detachable
    • Yes
    • Height (mm)
    • Yes (range 150mm)
    • One Click stand set-up
    • Yes
    • Pivot
    • 180°
    • Swivel (Angle)
    • Yes (-45o ~ +45o )
    • Tilt (Angle)
    • Yes (-5o ~ 25o )

ACCESSORY

    • CD-ROM
    • Yes (User Manual / True Color Pro/Dual controller)
    • Display Port (1.2)
    • YES
    • Factory Calibration Report
    • YES
    • HDMI
    • Yes (Black)
    • Manual
    • YES
    • Others
    • Adapter
    • Power Cord
    • Yes (Black)
    • USB
    • Yes (USB3.0)

STANDARD

    • CCC (China)
    • YES
    • CE (EU)
    • Yes
    • CE MDD (EU)
    • CE MDD Class I
    • CISPR (Global)
    • YES
    • CMDR (Canada)
    • YES
    • cUL (US/Canada)
    • ANSI/AAMI ES 60601-1 CSA CAN/CSA-C22.2 NO. 60601-1
    • Display Port
    • YES
    • EN (EU) CB (EU)
    • EN 60601-1)
    • FCC (US)
    • FCC Part 15 Class A
    • FDA (US)
    • FDA Class I
    • ICES-003
    • YES
    • IEC (Global)
    • IEC 60601-1
    • MFDS (Korea)
    • MFDS Class I
    • RCM (Australia)
    • YES
    • RoHS / REACH / WEEE
    • Yes
    • TGA/RCM (Australia)
    • YES

Standard

    • Windows 10
    • Yes

OTHER

    • UPC
    • 7 19192 62502 0
    • Warranty
    • 3-Year Limited Warranty (Parts/Labor/Backlight)

Specification Sheet
