22XE1J

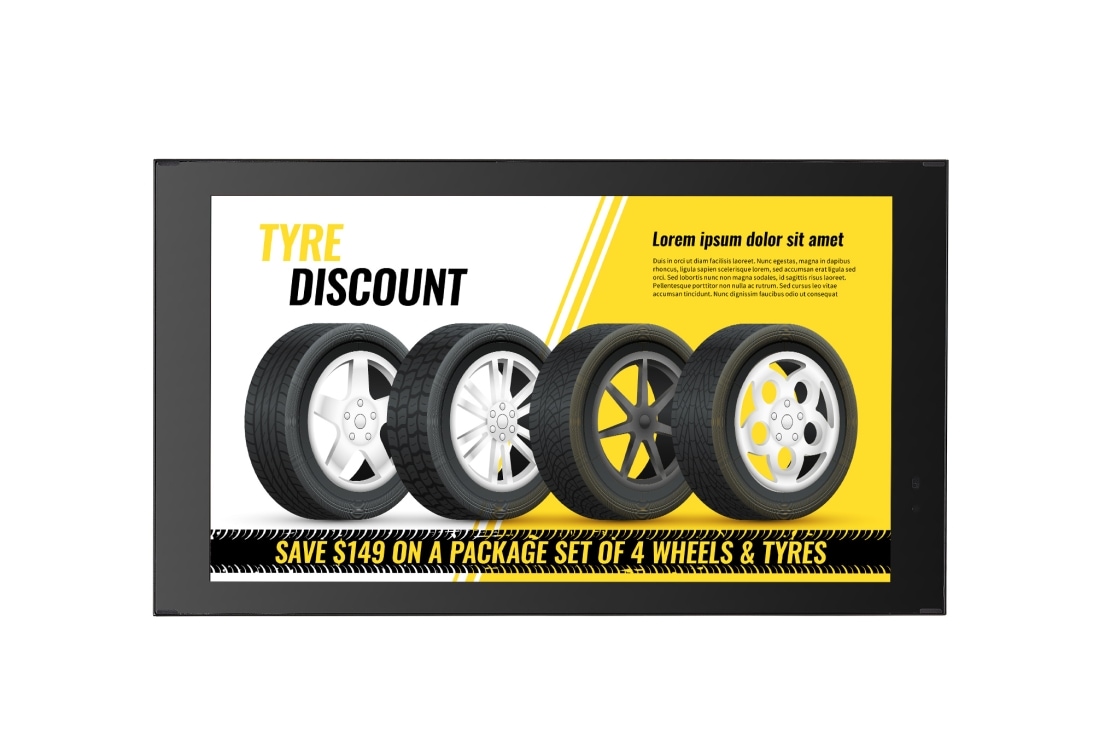

21.5” FHD IP-rated Outdoor Signage

KEY FEATURES

  • Brightness (Typ, w/ Glass) : 1,500 nits
  • IP56 Rated
  • 21.5" of Versatile Display Size
  • Wide Operating Temperature Range
  • webOSTM Smart Platform
  • Web-based Monitoring Solution
21.5” FHD IP-rated Outdoor Signage
$

Versatile Outdoor Display Fit for Your Business

*Screen Images are simulated for illustrative purposes only
*Screen Images are simulated for illustrative purposes only
*Screen Images are simulated for illustrative purposes only
*Screen Images are simulated for illustrative purposes only
*Screen Images are simulated for illustrative purposes only
*Conformal Coating : Thin protective films/breathing membranes that filter water vapor and solid debris
*Screen Images are simulated for illustrative purposes only
*Screen Images are simulated for illustrative purposes only

High Performance with webOS

Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 4.1 platform enhances user convenience with intuitive UI and simple app development tools.
*System-on-Chip
*Screen Images are simulated for illustrative purposes only

Easy Content Distribution
& SW Update

22XE1J features embedded Wi-Fi*, Bluetooth, and Beacon which makes it easy to wirelessly distribute content and update firmware. By using Beacon and BLE (Bluetooth Low Energy), a shop manager can seamlessly display and update promotions to visitors in real time.
*Wi-Fi performance may vary depending on your router and circumstance.
*Screen Images are simulated for illustrative purposes only

Real-Time & Remote Web Monitoring

With this web-based monitoring solution, users can easily control the display remotely. Users have full access to the display virtually anywhere at virtually any time from their mobile device or computer, providing them with access to current & past data, monitoring tools, and the ability to make any adjustments in real-time.
*Screen Images are simulated for illustrative purposes only

LG's Simple Advertisement Helper, Promota

With LG’s Promota* application, downloadable on mobile devices, users can create and showcase content for their display. Use Promota to add text and images to create an online profile for your business. Promota’s templates are tailored to different industries and makes it easy for users to deliver timely information such as event news, seasonal menus, promotions, and more to your customers.
*LG Promota is can be downloaded from the App Store and Google Play store. (Not available for Europe/CIS Region)
*Screen Images are simulated for illustrative purposes only

Real-time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
*Screen Images are simulated for illustrative purposes only

PANEL

    • Screen Size
    • 21.5"
    • Panel Technology
    • AHVA IPS
    • Back Light Type
    • Edge
    • Aspect Ratio
    • 16:9
    • Native Resolution
    • 1920 x 1080 (FHD)
    • Refresh Rate
    • 60 Hz
    • Brightness
    • 1500 nits (Typ, w/ Glass)
    • Contrast Ratio
    • 1000:1 (Typ)
    • Dynamic CR
    • 800,000:1
    • Color Gamut
    • NTSC 72%
    • Viewing Angle (H x V)
    • 89/89
    • Color Depth
    • 8 bit, 16.7 Million colors
    • Response Time
    • 25ms (G to G)
    • Surface Treatment (Haze)
    • Anti glare, 3H (Haze 25%)
    • Lifetime
    • 70,000 Hrs (Typ)
    • Operation Hours
    • 24 Hrs / 7 Days
    • Portrait / Landscape
    • Yes / Yes
    • QWP (Quarter Wave Plate)
    • Yes (Applied on Glass)

CONNECTIVITY

    • HDMI In
    • Yes (1), HDCP1.4
    • RS232C In
    • Yes (1)
    • RJ45 (LAN) In
    • Yes (1)
    • USB
    • USB2.0 Type A (1)
    • Externel Speaker Out
    • Yes (1, L/R, 10W+10W)

MECHANICAL

    • Bezel Color
    • Black
    • Bezel Width
    • 38.3mm (R/L), 24.0mm (T/B)
    • Weight (Head)
    • 18.3 lbs / 8.3kg
    • Packed Weight
    • 22.0 lbs / 10kg
    • Monitor Dimension(W x H x D)
    • 21.9 x 12.6 x 2.6 in / 557.3 x 319.8 x 65 mm
    • Shipping Dimensions (W x H x D)
    • 24.9 x 15.5 x 7.4 in / 632 x 394 x 187 mm
    • VESA Compatible
    • 100 mm x 100 mm

PROTECTIVE GLASS

    • Depth
    • 2mm
    • Tempered / Chemical Strengthening
    • Chemical strengthening
    • Anti-Reflective
    • Yes
    • Infrared - Resistance (IR)
    • Yes
    • Shatter-Proof
    • Yes

SPEACIAL FEATURES

    • Tilt
    • Yes (Max -15o degree, Up to 15o downward)
    • IP Rating
    • IP56
    • Direct Sunlight
    • Yes

KEY FEATURES

    • Internal Memory
    • 16GB
    • Wi-Fi
    • Yes
    • Temperature Sensor
    • Yes
    • Auto Brightness sensor
    • Yes
    • Humidity Sensor
    • Yes
    • Acceleration (Gyro) Sensor
    • Yes
    • Power Indicator
    • Yes
    • Fan
    • Yes
    • webOS Version
    • Yes
    • Local Contents Scheduling
    • Yes
    • Group Manager
    • Yes
    • USB Plug & Play
    • Yes
    • Fail over
    • Yes
    • Booting Logo Image
    • Yes
    • No Signal Image
    • Yes
    • Local Network Sync
    • Yes
    • Video Tag
    • Yes (4, Max One HDMI input)
    • Play via URL
    • Yes
    • Screen Rotation
    • Yes
    • External Input Rotation
    • Yes
    • Gapless Playback
    • Yes
    • Setting Data Cloning
    • Yes
    • SNMP
    • Yes
    • ISM Method
    • Yes
    • Status Mailing
    • Yes
    • Control Manager
    • Yes
    • Smart Energy Saving
    • Yes
    • PM mode
    • Yes
    • Wake on LAN
    • Yes
    • Network Ready
    • Yes
    • Beacon
    • Yes
    • HDMI-CEC
    • Yes
    • SI Server Setting
    • Yes
    • webRTC
    • Yes
    • Pro:Idiom
    • Yes

ENVIRONMENTAL

    • Operation Temperature
    • -22° F to 122° F / -30° C to 50° C
    • Operation Humidity
    • 5 % to 100 %

POWER

    • Power Supply
    • AC 100-240V~, 50/60Hz
    • Power Type
    • Built-In Power
    • Typ.
    • 85 W
    • Max.
    • 115 W
    • BTU (British Thermal Unit)
    • 290 (Typ), 393 (Max)
    • Smart Enegy Saving
    • 40 W
    • DPM
    • 0.5 W↓
    • Power Off
    • 0.5 W↓

CERTIFICATION

    • Safety
    • CB / NRTL
    • EMC
    • FCC Class "A" / CE / KC / VCCI
    • ErP/Energy Star
    • Yes/No

SOFTWARE COMPATIBILITY

    • SuperSign CMS
    • Yes
    • SuperSign Control / Control+
    • Yes/Yes
    • Signage 365 Care
    • Yes

Language

    • OSD
    • English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Turkish

ACCESSORIES

    • Basic
    • Remote Controller (including battery 2ea), Power Cord, Manual (EIG, IG), RS-232C Gender
