49XEB3E

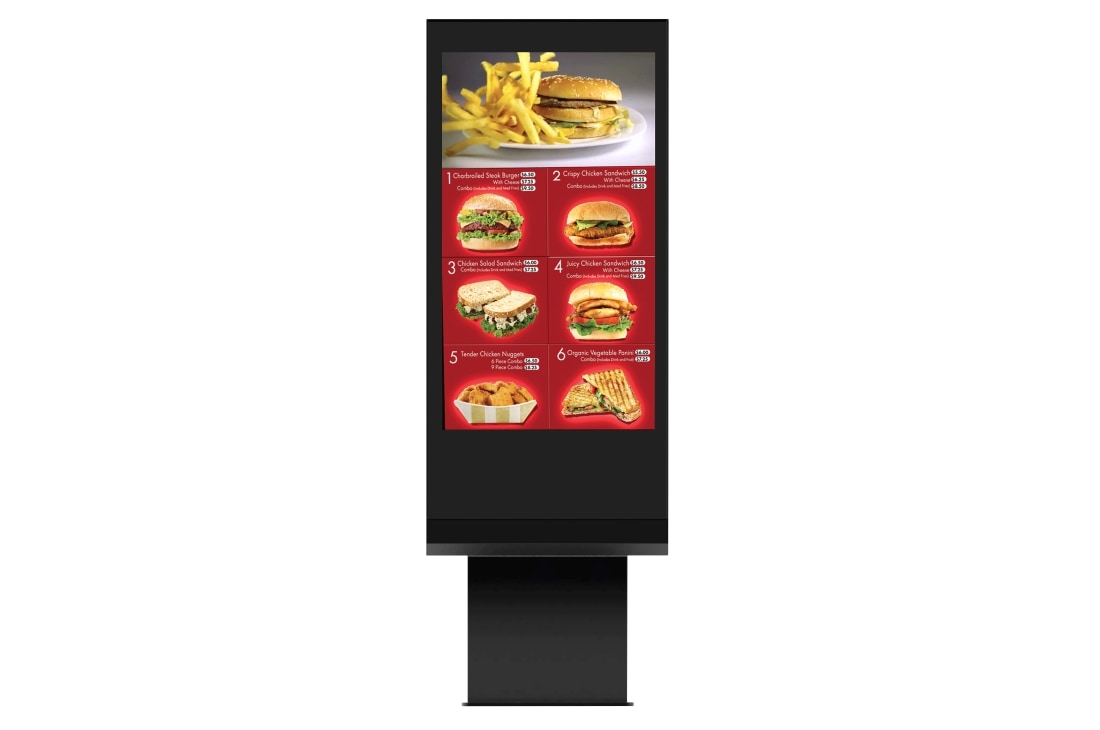

49” Class (48.50” Diagonal) Outdoor Commercial Signage

  • High Brightness
  • Visible with Polarized Sunglasses
  • Smart Brightness Control
  • Secured Protection with IP56 Design
  • Conformal Coating
49” Class (48.50” Diagonal) Outdoor Commercial Signage
$ 6,875.00

High Brightness

With a powerful brightness of 3,000 cd/m2 and wide viewing angles, the XE series delivers content clearly and catches the attention of viewers no matter where they are, making it the ultimate display for outdoor visibility.

Visible with Polarized Sunglasses

QWP* technology enables clear visibility even when the viewer is wearing polarized sunglasses.

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in daylight for better visibility, and it is decreased in darker environments for efficient power management.

Secured Protection with IP56 Design

The XE series is sealed with IP56 rated design for reliable operation. It’s designed to be not only water resistant but also resistant against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application.

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on every major circuit board protects against dust, iron powder, humidity, etc.

Electrical Safety

An electrical circuit breaker and surge suppressor are integrated inside ensuring absolute protection from overcurrent short circuits, and unwanted voltages. This helps prevent equipment damage and safety hazards in the future.

Protective Glass

Tempered and laminated front glass ensures protection, from outdoor extremities allowing minimal damage from external impacts.

Wide Range of Operating Temperatures

The panel offers superb reliability under a wide range of operating temperatures, so the XE series requires fewer constraints for outdoor installation.

Enhanced Thermal Management

The patented thermal management technology efficiently cools down the heat generated from every part of the product, preventing outside air from entering.

* Exclusive on 75"/55"

PANEL

    • Screen Size
    • 49” Class (48.50” Diagonal)
    • Panel Technology
    • IPS
    • Aspect Ratio
    • Brightness
    • 3,000 cd/m2 (Typ.), 2,400 cd/m2 (Min.)
    • Lifetime
    • 50,000 Hrs
    • Native Resolution
    • 1,920 x 1,080 (FHD), M+ (WRGB)
    • Operation Hours
    • 24Hrs
    • Orientation
    • Portrait only
    • QWP Polarizer (FPR Film)
    • Yes
    • Response Time
    • 8 ms (G to G BW, Typ.)
    • Surface Treatment
    • Hard Coating (2H), Anti-reflection Treatment of the Front Polarizer (Haze 3% (Typ.)), QWP
    • Viewing Angle (H x V)
    • 178 x 178

CONNECTIVITY

    • External Control
    • RS232C In/out, RJ45 In
    • Input
    • HDMI, DP, DVI-D, Audio In, USB 3.0
    • Output
    • DP, External Speaker Out

PHYSICAL SPECIFICATION

    • Bezel Color
    • Black
    • Bezel Width
    • 103.0 mm (T), 262.0 mm (B), 46.5 mm (L/R)
    • Front Glass
    • 6.8 mm (AR, Tempered & Laminated Glass)
    • Dimensions (w/o Stand)(W x H x D)
    • 701 x 1,445 x 180.9 mm / 27.6” x 56.9” x 7.1”
    • Dimensions (w/Stand)(W x H x D)
    • 745 x 1,980 x 321 mm / 29.3” x 78.0” x 12.6”
    • Weight (Head)
    • 58.6kg / 129.1lbs
    • Weight (Head + Stand)
    • 100kg / 220.4lbs
    • Dimensions (Carton) (W x H x D)
    • 863 x 1,624 x 333 mm / 34.0” x 63.9” x 13.1”
    • Weight (Packed)
    • 73.4kg / 161.8lbs

SPECIAL FEATURES

    • Yes
    • Temperature Sensor, Auto Brightness Sensor, Pixel Sensor, Cooling FAN, ISM Method, DPM Select, Energy Saving, Smart Energy Saving, File Play with USB, Internal Memory 8GB (System 4GB + Available 4GB), USB Cloning, Easy Brightness Control, Wake on LAN, Fail Over, DP Daisy Chain, Control Manager

ENVIRONMENTAL CONDITIONS

    • Operating Temperature Range
    • -22°F to 122°F / -30°C to 50°C
    • Operation Humidity
    • 5% to 100%
    • Dust / Water Proofing
    • IP56

POWER

    • Power Consumption (Smart Energy Saving)
    • 145 W
    • Power Consumption (Typ./Max)
    • 270 W / 400 W
    • Power Supply
    • 100-240V~, 50/60Hz
    • Power Type
    • Built-in Power

STANDARD CERTIFICATIONS

    • EMC
    • FCC Class "A" / CE / KCC
    • Safety
    • UL / cUL / CB

SOFTWARE COMPATIBILITY

    • Content Management Software
    • SuperSign CMS
    • Control and Monitoring Software
    • SuperSign Link

ACCESSORIES

    • Basic
    • Remote Controller, Manual (EIG, ESG), Regulation Book, Phone to RS232C Gender, USB Cable, HDMI Cable
    • Optional
    • Enclosure Stand (ST-491X, ST-493X), Circuit Breaker & Surge Suppressor (KT-PS)
