LDE3017SB

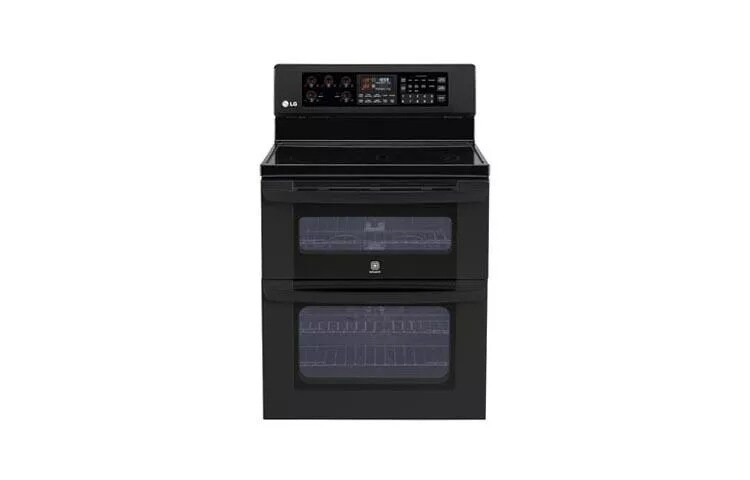

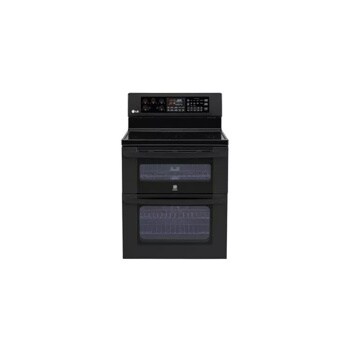

6.7 cu. ft. Capacity Electric Double Oven Range with Convection and Infrared Heating™
  • Infrared Heating™ System
  • Upper Oven Height (6")
  • Large Capacity (6.7 cu. ft.)
  • True Convection (Lower)
6.7 cu. ft. Capacity Electric Double Oven Range with Convection and Infrared Heating™

SUMMARY

  • Range Type
    Double Door

CAPACITY

  • Oven Capacity
    2.32 cu.ft. Upper / 4.38 cu.ft. Lower
    Total Capacity
    6.7 cu. ft.

OVEN FEATURES

  • Configuration
    Freestanding Electric Double Oven
    Control Type
    IntuiTouch™ / Keypad
  • Infrared Heating™ System
    Yes
    Display
    VFD Scrolling
  • Bake Element (Upper)
    2100W / 6 Pass
    Broil Burner (Upper)
    3200W (1600W x 2) Infrared Heating™
  • Bake Element (Lower)
    2500W / 8 Pass (Hidden Bake)
    Broil Element (Lower)
    3800W / 6 Pass
  • Oven Cooking Modes
    Bake, Broil, Convection Bake (Lower)
    Convection
    Roast (Lower), Proof (Lower), Warm

COOKTOP

  • Burner Type
    Radiant
    Element Configuration - Left Front
    9", 6" / 3000W, 1400W
  • Element Configuration - Left Rear
    6" / 1200W
    Element Configuration - Center (Warm)
    7" / 100W
  • Element Configuration - Right Front
    12", 9" / 2700W, 1700W
    Element Configuration - Right Rear
    6" / 1200W

DIMENSIONS/CLEARANCES/WEIGHT

  • Shipping Weight (lbs)
    263
    Cabinet Width (in)
    30"
  • Overall Depth (in)
    25 13/16"
    Overall Height (in)
    47 7/16"
  • Overall Width (in)
    29 7/8"
    Height to Cooking Surface (in)
    36"
  • Oven Interior Dimensions (in) (W x H x D)
    24 1/2" x 16 5/16" x 18 15/16"
    Oven Interior Dimensions (Upper) (in) (W x H x D)
    24 1/2" x 8 11/16" x 18 15/16"

POWER/RATINGS

  • Amp Rating at 208V
    40
    Amp Rating at 240V
    40
  • KW Rating at 208V
    120/208 VAC
    KW Rating at 240V
    120/240 VAC

MATERIALS/FINISHES

  • Available Colors
    Smooth White (SW), Smooth Black (SB), Stainless Steel (ST)
    Handle
    Matching Stainless
  • Door
    Full Stainless Steel Wrap
    Cooktop Finish
    Grey Patterned on Black Ceramic Glass

WARRANTY/UPC

  • Limited Warranty
    1 Year Parts and Labor
What people are saying
Rated 5 out of 5 by from This product has quality performance This convection oven is a high quality product. The features are easy to use. The convection bake or roast option is outstanding. The self cleaning feature is a godsend. This is the best oven I have ever owned.
Date published: 2013-11-29
Rated 5 out of 5 by from Great Range! I love the musical timer sounds. There are two timers also! The smooth top is wonderful...no more drip pans to clean. Spills clean up easily. All the area on cooktop is useable since it is completely flat. The cooking eyes are great for all pan sizes and the warming zone is nice. The double oven is great...no more wasted space, and I can get more cooking done in less time. The convection oven is nice too. Controls are fairy simply and straight-forward. I love my choice. The only thing I can't say in this review is durability and service life. How reliable and how long is yet to be known, but so far so good for 4 months.
Date published: 2013-07-14
Rated 5 out of 5 by from Everything about this range works beautifully. First new range in 12 years and I love it! Cooktop surface and both ovens heat up quickly. Convection oven works perfectly. Easy to understand settings and it looks fabulous in my kitchen!
Date published: 2013-06-03
  • y_2019, m_7, d_17, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_8
  • loc_en_US, sid_MD00001123, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 240ms
  • REVIEWS, PRODUCT
ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

just ordered LDE3017SB to be delivered in 2 wks, reviews talk about venting? is this something I need to worry about is it done @delivery

nothing was mentioned at store?
Asked by: ORJAC
We regret the uncertainty caused by this matter. The oven does have a heat vent, but it vents onto the cooktop surface. The vents are located under the control panel/display. Areas near the vent may become hot during oven operations and may cause burns. Do NOT block the vent opening. Avoid placing plastics near the vent as heat may distort or melt the plastic. It is normal for steam to be visible when cooking foods with high moisture.
Answered by: NeilE
Date published: 2013-10-22

Is it normal for clicking

Clicking sound every time heat elements come on and off?? Just checking to see if this is normal for the LDE3017SB
Asked by: yackyquacky
Sure is. Just cycling to keep a constant temperature. I heard it too once mine was installed and I started using it. Nothing to worry about.
Answered by: HAWIII
Date published: 2013-10-22

Does the power cord come with the LDE 3017 range?

Asked by: Jeffchris
No. And you can not use your old one. This is for safety reasons and warranty. I had to purchase it seperately for the installation.
Answered by: HAWIII
Date published: 2013-10-22

The range plays a tune when the range is preheated or when the timer is done. How can I turn this tune off?

Asked by: Cindy
press setting until chime on or off appers the press start.
Answered by: Nana03
Date published: 2013-10-22

Does this range come in Stainless.

Asked by: Anonymous
yes
Answered by: Nana03
Date published: 2013-10-22

does LDE3017SB have a hidden bake element?

Asked by: Anonymous
Yes, it has a Hidden Bake Element in the Lower Oven. The Upper Oven has a InfraGrill™ Broil Element. Thank you for your question, have a great week :)
Answered by: Nadine
Date published: 2013-10-22

How does the infrared system work?

Asked by: Michelle
INFRARED GRILL SYSTEM LG's first infrared heating element gets your oven to broil temperature more quickly and cuts 20% off your cooking time on common items like hamburgers and chicken breasts. Infrared cooking- which uses the same technology as premium outdoor grills- also allows your food to be juicier than traditional thermal cooking.
Answered by: Nadine
Date published: 2013-10-22
