6.7 cu. ft. Capacity Electric Double Oven Range with Convection and Infrared Heating™
DISCONTINUED
6.7 cu. ft. Capacity Electric Double Oven Range with Convection and Infrared Heating™

6.7 cu. ft. Capacity Electric Double Oven Range with Convection and Infrared Heating™

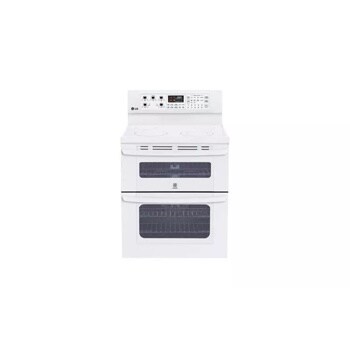

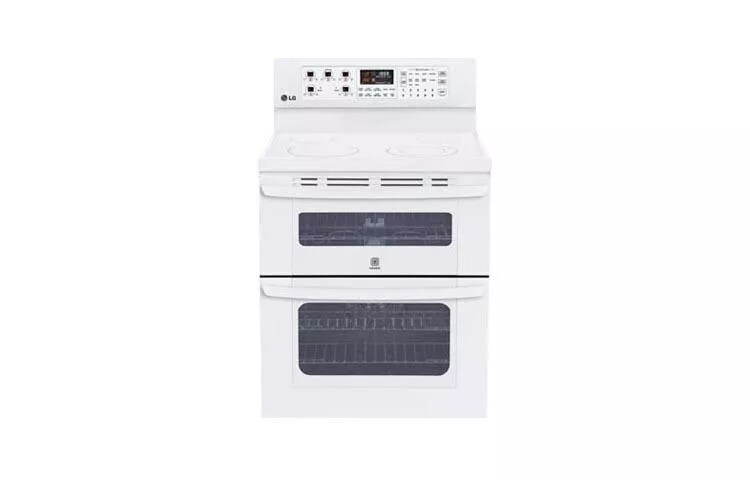

LDE3017SW

Key features

  • Infrared Heating™ System
  • Upper Oven Height (6")
  • Large Capacity (6.7 cu ft.)
  • True Convection (Lower)

Specifications

Download Spec Sheetdownload-guide iconDownload Energy Guide
  • POWER/RATINGS
  • COOKTOP
  • WARRANTY/UPC
  • OVEN FEATURES
  • SUMMARY
  • CAPACITY
  • DIMENSIONS/CLEARANCES/WEIGHT
  • MATERIALS/FINISHES
  • See All
  • POWER/RATINGS
    Amp Rating at 208V
    40
    Amp Rating at 240V
    40
    KW Rating at 208V
    120/208 VAC
    KW Rating at 240V
    120/240 VAC
    POWER/RATINGS
    Amp Rating at 208V
    40
    Amp Rating at 240V
    40
    KW Rating at 208V
    120/208 VAC
    KW Rating at 240V
    120/240 VAC
    COOKTOP
    Burner Type
    Radiant
    Element Configuration - Left Front
    9", 6" / 3000W, 1400W
    Element Configuration - Left Rear
    6" / 1200W
    Element Configuration - Center (Warm)
    7" / 100W
    Element Configuration - Right Front
    12", 9" / 2700W, 1700W
    Element Configuration - Right Rear
    6" / 1200W
    WARRANTY/UPC
    Limited Warranty
    1 Year Parts and Labor
    OVEN FEATURES
    Configuration
    Freestanding Electric Double Oven
    Oven Cooking Modes
    Bake, Broil, Convection Bake (Lower)
    Display
    VFD Scrolling
    Bake Element (Upper)
    2100W / 6 Pass
    Broil Burner (Upper)
    3200W (1600W x 2) Infrared Heating™
    Bake Element (Lower)
    2500W / 8 Pass (Hidden Bake)
    Broil Element (Lower)
    3800W / 6 Pass
    Control Type
    IntuiTouch™ / Keypad
    Convection
    Roast (Lower), Proof (Lower), Warm
    Infrared Heating™ System
    Yes
    SUMMARY
    Range Type
    Double Door
    CAPACITY
    Oven Capacity
    2.32 cu.ft. Upper / 4.38 cu.ft. Lower
    Total Capacity
    6.7 cu. ft.
    DIMENSIONS/CLEARANCES/WEIGHT
    Shipping Weight (lbs)
    263
    Cabinet Width (in)
    30"
    Overall Depth (in)
    25 13/16"
    Overall Height (in)
    47 7/16"
    Overall Width (in)
    29 7/8"
    Height to Cooking Surface (in)
    36"
    Oven Interior Dimensions (in) (W x H x D)
    24 1/2" x 16 5/16" x 18 15/16"
    Oven Interior Dimensions (Upper) (in) (W x H x D)
    24 1/2" x 8 11/16" x 18 15/16"
    MATERIALS/FINISHES
    Available Colors
    Smooth White (SW), Smooth Black (SB), Stainless Steel (ST)
    Handle
    Matching Stainless
    Door
    Full Stainless Steel Wrap
    Cooktop Finish
    Grey Patterned on Black Ceramic Glass
