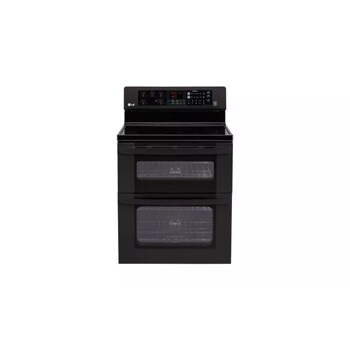

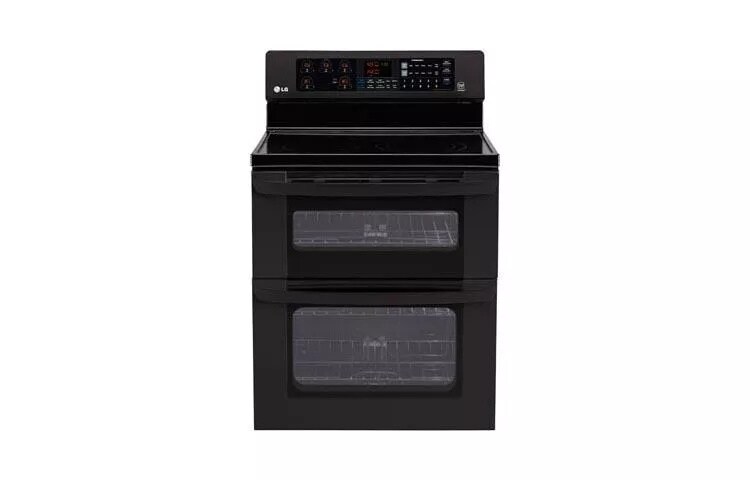

LDE3035SB

6.1 cu. ft. Capacity Electric Double Oven Range with SuperBoil™ Burner and EasyClean®

6.1 cu. ft. Capacity Electric Double Oven Range with SuperBoil™ Burner and EasyClean®

CAPACITY

    • Total Capacity
    • 6.7 cu. ft.

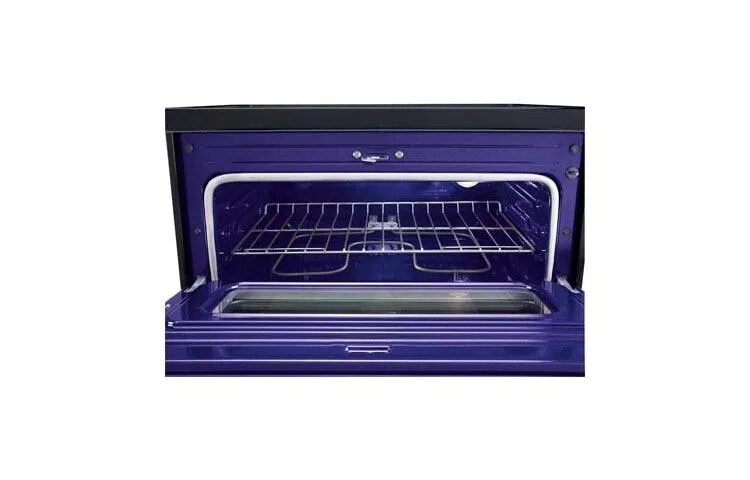

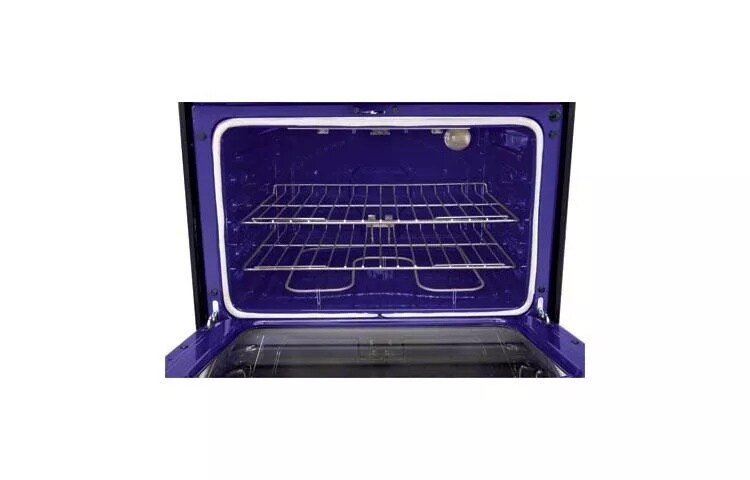

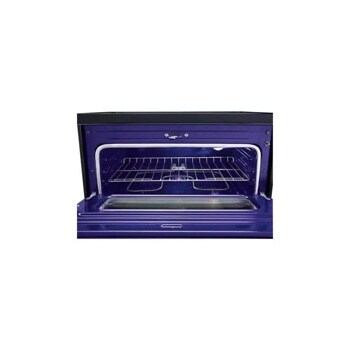

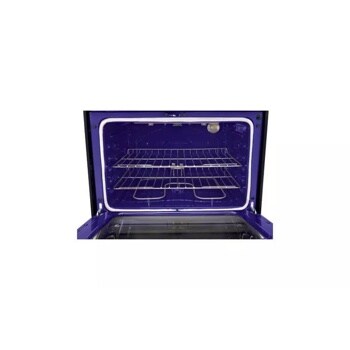

OVEN FEATURES

    • Configuration
    • Freestanding Electric Double Oven
    • EasyClean® Technology
    • Yes
    • Bake Element (Upper)
    • 2100W / 4 Pass (Exposed Bake)
    • Broil Element (Upper)
    • Sheathed Heater, 3200W
    • Bake Element (Lower)
    • 2500W / 4 Pass (Exposed Bake)
    • Broil Element (Lower)
    • 3800W / 6 Pass
    • Oven Cooking Modes
    • Bake, Broil, Proof (Lower Only), Warm
    • Cleaning
    • Self Clean / EasyClean®
    • Oven Light
    • Yes
    • Oven Rack
    • 3 Standard Racks
    • Oven Cleaning Features
    • Delay Bake, Delay Clean, Automatic Shut-Off

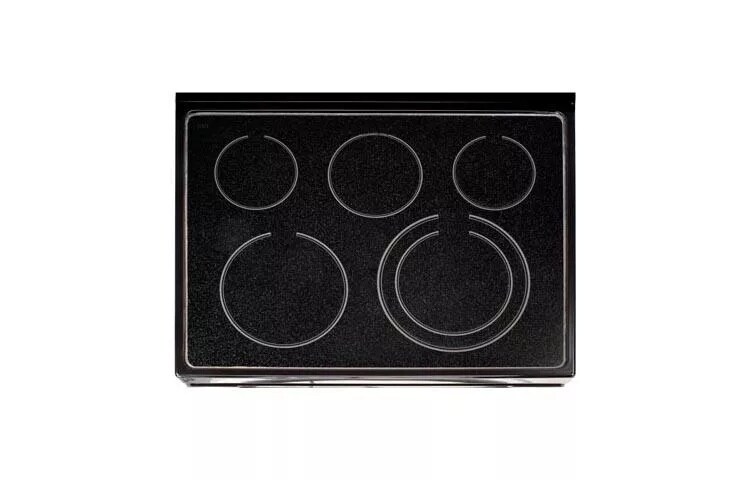

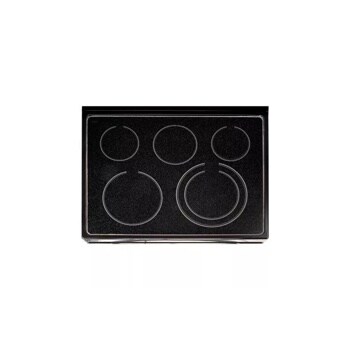

COOKTOP

    • Element Configuration - Left Front
    • 9” / 2500W
    • Element Configuration - Left Rear
    • 6" / 1200W
    • Element Configuration - Center (Warm)
    • 7" / 100W
    • Element Configuration - Right Front
    • 9” / 6” 3200W / 1400W
    • Element Configuration - Right Rear
    • 6" / 1200W
    • Cooktop Burner Type
    • Radiant
    • Cooktop Finish
    • Grey Patterned on Black Ceramic Glass
    • 5th Element
    • Yes

CONTROL

    • Control Location
    • Backsplash
    • Control Type
    • IntuiTouch™ Keypad
    • Control Display
    • VFD (Scrolling Display)

APPEARANCE

    • Available Colors
    • Stainless Steel, Smooth Black, Smooth White
    • Handle
    • Matching Stainless
    • Oven Door Feature
    • Large WideView™ Window, Full SS Wrap

DIMENSIONS/CLEARANCES/WEIGHT

    • Shipping Weight (lbs)
    • 243
    • Product Weight (lbs)
    • 193
    • Cabinet Width (in)
    • 30"
    • Overall Depth (in)
    • 28 3/16"
    • Overall Height (in)
    • 47 7/16"
    • Overall Width (in)
    • 29 7/8"
    • Oven Interior Dimensions (Upper) (in) (W x H x D)
    • 24 1/2" x 9 9/16" x 18 15/16"
    • Height to Cooking Surface (in)
    • 36"
    • Oven Interior Dimensions (Lower) (in) (W x H x D)
    • 24 1/2" x 16 5/16" x 18 15/16"

POWER/RATINGS

    • Amp Rating at 208V
    • 10.3 KW
    • Amp Rating at 240V
    • 13.8 W / 57.4 A
    • KW Rating at 208V
    • 120/208 VAC
    • KW Rating at 240V
    • 120/240 VAC

FIND THE RIGHT PRODUCTS

    • EasyClean®
    • Yes

WARRANTY/UPC

    • Limited Warranty
    • 1 Year Parts and Labor (In Home Service), 5 Years Limited on Cooktop and Radiant Surface Units (In home service)
    • UPC
    • 048231318273

What people are saying

Rated 1 out of 5 by from DO NOT BUY!!! I bought this in 2015 and have had the exact same problem 6 times. If I go to use the top and bottom ovens at the same time, they both shut off and I get code F19. It then has to be repaired with a new control board and thermostat. It also is always 50 to 150 degrees off.
Date published: 2018-10-27
Rated 5 out of 5 by from Love the dual oven This is a great oven. I love the dual oven's, I use it more than I thought I would. I figured I would use it when cooking for holidays but I use it on a regular basis. I can cook french fries in the top oven at 450 while cooking chicken in the bottom at 350. Highly recommend.
Date published: 2015-04-20
Rated 5 out of 5 by from Love the double oven Easy to use, great for big meals, inside looks great
Date published: 2015-04-15
  • y_2020, m_12, d_1, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_7
  • loc_en_US, sid_MD05041750, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 245ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

the LDE3035SB 6.1 or 6.7 cu ft?

the title on this appliance describes it as 6.1 cu ft, but the specs in the description describe it at 6.7 cu ft.... please just confirm for me that it is 6.7. i uploaded all the lde3035 models to show you the descrepancy.
Asked by: jacqui
Capacity: Upper Oven 2.32 cu. ft. Lower Oven 4.38 cu. ft. Total 6.7 cu. ft.
Answered by: Nadine
Date published: 2014-02-03

lower oven not baking right

On my LDE3035SB, the lower oven keeps burning the top of my cookies, while on the bottom of the cookies it's not baking at all. We tried all types of different temperature settings and rack settings, but it's always the same outcome. This makes me think the broil element is set too hotter than the baking element. Also, I am confused. The lower oven seems to have a hidden baking element, but the specifications on the LG website say it should be exposed. Also, the picture on the LG website shows it with a lower oven exposed baking element. If I do have one, why is it hidden? When I turn the lower oven on to bake, the bottom of the oven does seem to get hot, so maybe there is a hidden element. I am confused...why does the website have conflicting information. And regardless, how can I get my oven to work properly? I am not satisfied! :(
Asked by: Halfbake
We regret the trouble you have experienced with the operations of this range/oven. It would seem that the lower oven may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2014-01-22

down venting ? which electric range has it ?

need to have a range with 2 ovens and down-ventig the exsisting Dacor rage is in an island...
Asked by: Kalle

I saw that someone reviewing this appliance said you can not use aluminum foil with this appliance. Is that true?

Asked by: Pwambold
