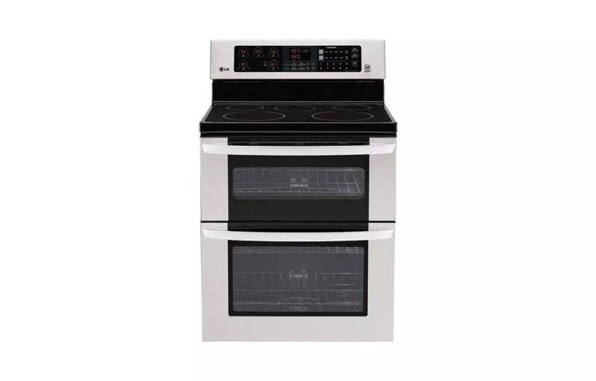

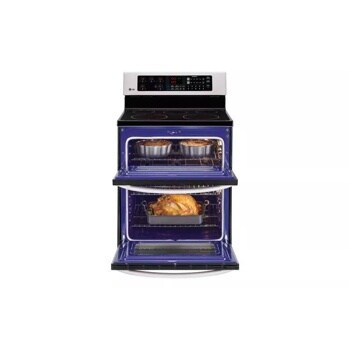

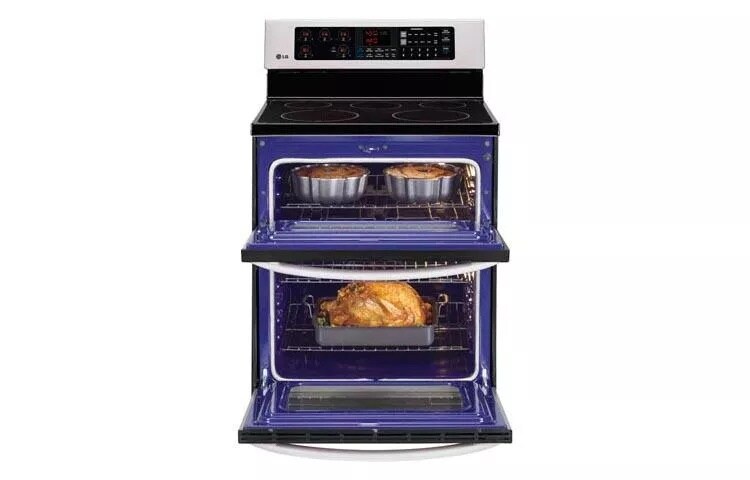

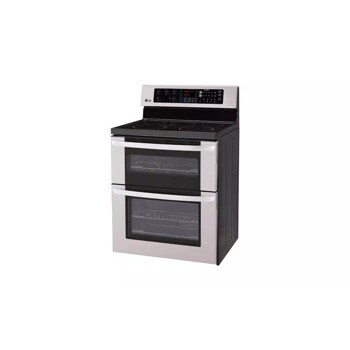

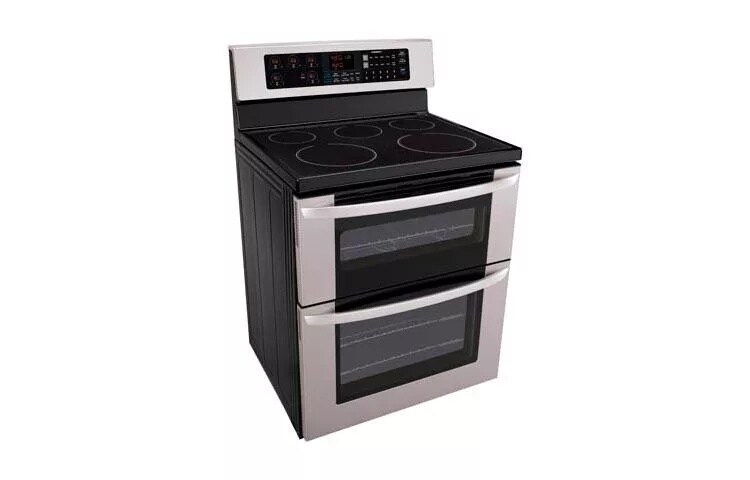

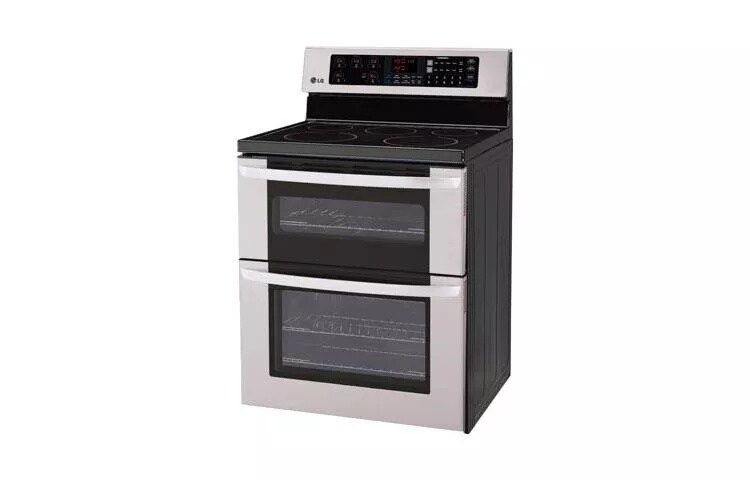

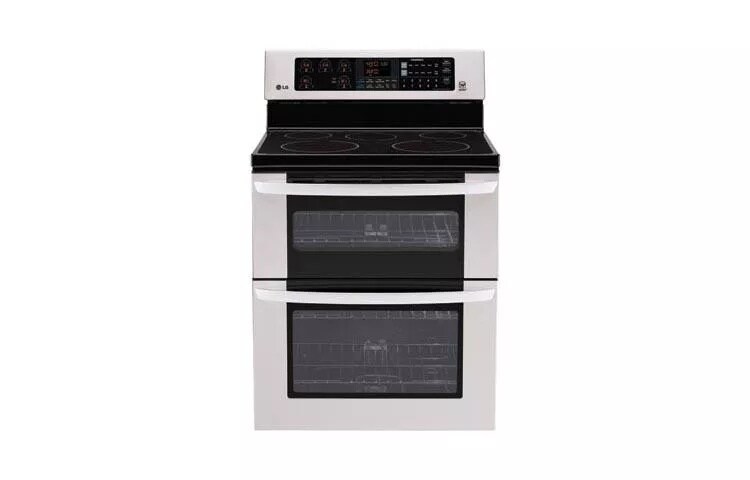

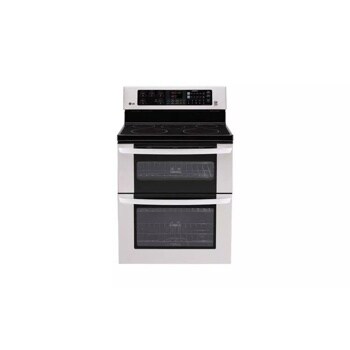

LDE3035ST

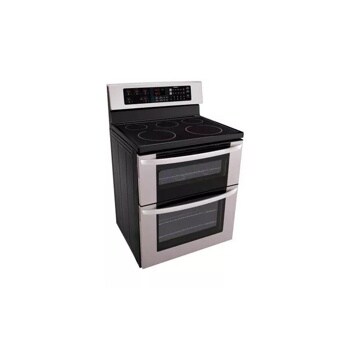

6.7 cu. ft. Capacity Electric Double Oven Range with SuperBoil™ Burner and EasyClean®

KEY FEATURES

  • EasyClean® Cleaning Feature
  • Large Capacity (6.7 cu ft.)
  • Upper Oven Height (6")
  • Fastest Boiling Element
6.7 cu. ft. Capacity Electric Double Oven Range with SuperBoil™ Burner and EasyClean®

CAPACITY

    • Total Capacity
    • 6.7 cu. ft.

OVEN FEATURES

    • Configuration
    • Freestanding Electric Double Oven
    • EasyClean® Technology
    • Yes
    • Bake Element (Upper)
    • 2100W / 4 Pass (Exposed Bake)
    • Broil Element (Upper)
    • Sheathed Heater, 3200W
    • Bake Element (Lower)
    • 2500W / 4 Pass (Exposed Bake)
    • Broil Element (Lower)
    • 3800W / 6 Pass
    • Oven Cooking Modes
    • Bake, Broil, Proof (Lower Only), Warm
    • Cleaning
    • Self Clean / EasyClean®
    • Oven Light
    • Yes
    • Oven Rack
    • 3 Standard Racks
    • Oven Cleaning Features
    • Delay Bake, Delay Clean, Automatic Shut-Off

COOKTOP

    • Element Configuration - Left Front
    • 9” / 2500W
    • Element Configuration - Left Rear
    • 6" / 1200W
    • Element Configuration - Center (Warm)
    • 7" / 100W
    • Element Configuration - Right Front
    • 9” / 6” 3200W / 1400W
    • Element Configuration - Right Rear
    • 6" / 1200W
    • Cooktop Burner Type
    • Radiant
    • Cooktop Finish
    • Grey Patterned on Black Ceramic Glass
    • 5th Element
    • Yes

CONTROL

    • Control Location
    • Backsplash
    • Control Type
    • IntuiTouch™ Keypad
    • Control Display
    • VFD (Scrolling Display)

APPEARANCE

    • Available Colors
    • Stainless Steel, Smooth Black, Smooth White
    • Handle
    • Matching Stainless
    • Oven Door Feature
    • Large WideView™ Plus Window, Full SS Wrap

DIMENSIONS/CLEARANCES/WEIGHT

    • Shipping Weight (lbs)
    • 243
    • Product Weight (lbs)
    • 193
    • Cabinet Width (in)
    • 30"
    • Overall Depth (in)
    • 28 3/16"
    • Overall Height (in)
    • 47 7/16"
    • Overall Width (in)
    • 29 7/8"
    • Oven Interior Dimensions (Upper) (in) (W x H x D)
    • 24 1/2" x 9 9/16" x 18 15/16"
    • Height to Cooking Surface (in)
    • 36"
    • Oven Interior Dimensions (Lower) (in) (W x H x D)
    • 24 1/2" x 16 5/16" x 18 15/16"

POWER/RATINGS

    • Amp Rating at 208V
    • 10.3 KW
    • Amp Rating at 240V
    • 13.8 W / 57.4 A
    • KW Rating at 208V
    • 120/208 VAC
    • KW Rating at 240V
    • 120/240 VAC

FIND THE RIGHT PRODUCTS

    • EasyClean®
    • Yes

WARRANTY/UPC

    • Limited Warranty
    • 1 Year Parts and Labor (In Home Service), 5 Years Limited on Cooktop and Radiant Surface Units (In home service)
    • UPC
    • 048231318259

What people are saying

Rated 5 out of 5 by from I bought my range 10 months ago to replace the one I had for 21 years it was similar to this one but it has some much more and I am absolutely thrilled with my purchase.
Date published: 2017-09-22
Rated 3 out of 5 by from This product is actually still working Bought this two years ago and it still meets our needs. I'm now worried about the durability of it because our LG Refrigerator stopped working within 6 months. I thought LG was a good quality brand, but I'm not convinced of that. I cannot in good conscience recommend this brand any longer.
Date published: 2017-07-08
Rated 5 out of 5 by from Cook like a Pro! We bought our Stove one month ago. At first I wasn't sure I liked it because of the push button controls. But now I can use it with ease! The settings are so accurate on the cook-top and both ovens. The Pizza setting on the top oven is great. I used easy clean yesterday, it took 20 minutes and the ovens were clean. I highly recommend this product.
Date published: 2016-11-02
  • y_2021, m_4, d_20, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_33
  • loc_en_US, sid_MD05038687, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 8ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

i turn on the back left burner and the front ft comes on also when i turn on the back middle burner the front left comes on but the back middle does not come on

Asked by: Jaxson jelly bean
We regret to read about the issues you are experiencing with the LG 6.7 cu. ft. Capacity Electric Double Oven Range with SuperBoil™ Burner and EasyClean®, Model # LDE3035ST. This is s discontinued product so we assume that you have had it for a while. Is this a recent development with the burners or have you always had this issue? The range oven will need to be inspected. Please contact our Support Center at (800) 243-0000 for assistance. You can also visit our site at https://www.lg.com/us/support/find-service-center to see if there are any LG Authorized Service Centers in your area that you can contact to make arrangements with for a qualified service technician to inspect the range oven...^IFV
Answered by: Ivanf
Date published: 2021-01-19

The clear cover over the template on the back of my stove on my electric double oven has broken. How do I go about replacing it?  It is LDE3035ST

Asked by: Jlhw
Hello, hate to hear, sounds like you might need a technician. Please give us a call at 1-800-243-0000 or drop us a line on Twitter at @LGUSSupport or on Facebook at @LGUSSupport when you are with the unit. ^AC
Answered by: Amber C
Date published: 2018-05-14

How to turn on cook top burners. I keep pressing the area but all 5 are blank and burners won't turn on.

Asked by: Jacanders
We regret the trouble you have experienced with this electric range. If none of the burner control pads light, and none operate, it would first be recommended to check the circuit breaker to ensure power is getting to the machine. If this does not resolve the matter, please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2017-03-30

Hi I have an LG  glass  top  the larger  burner only works on high sometimes  and turn  off you  can hear the relay clicks  but no burner. Ck continuity on burner  have 20.6 ohms  is that ok.

Asked by: Asner
We regret the trouble you have experienced with this electric range oven. The description provided suggests that the cooktop burners may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2016-11-10

how do I clean in between the glass on the bottom door if the oven? something must have dripped inside it. Or can I just remove it or replace it.

Asked by: desrinhart
We regret the inconvenience you have experienced with this gas range. These glass panes are not removable from the door, for cleaning purposes. As such, if the glass panes have something between them, the only option for cleaning them would be to obtain the assistance of a qualified technician.
Answered by: NeilE
Date published: 2016-09-08

DOES THIS COME WITH A BROIL PAN?

Asked by: SUSAN 23
The LG 6.7 cu. ft. Capacity Electric Double Oven Range with SuperBoil™ Burner and EasyClean™, Model # LDE3035ST does not come with a Broil Pan as an included accessory...^IFV
Answered by: LGJoel
Date published: 2015-11-23

Does the LG model 3031 ST have an anti tip bracket available?

Ttentancy requiriements suggest anti tip brackets for ovens. Please let me know what part number I can order and from where for a model similar o LDE 3031 ST (5 burner, double oven, not an easy clean... maybe a 2013 model year/ Thank youl
Asked by: Gwynedd
Hello Gywnedd. Anti-tip devices became a UL requirement on June 3, 1991. The American National Standards Institute (ANSI) and Underwriters Laboratories (UL) created standards in 1991 that require all ranges manufactured after that year to be capable of remaining stable while supporting 250 pounds of weight on their open doors. Manufacturers' instructions, too, require that anti-tip brackets provided be installed. If you do not have one installed on your oven, you can order one from any of the following LG Authorized Parts Distributors, but you will need to give them the Model number of your oven to get one that fits your oven: Encompass Parts 866-779-7906 http://www.encompassparts.com/lgcon... MCM Electronics 800-824-9491 http://www.mcmelectronics.com/lgpar... Andrews Electronics 800-274-4666 http://lge.andrewselectronics.com...^IFV
Answered by: LGJoel
Date published: 2015-06-15

The electric range model LDE3035st, what is the size of front burners? is it 9/12 or 9/6?

Asked by: Alimar
This is answered under the specifications tab on the product information page.
Answered by: spitzerone
Date published: 2015-04-06
