Discontinued

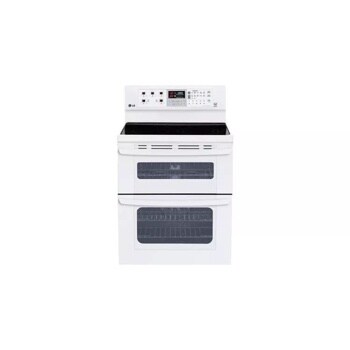

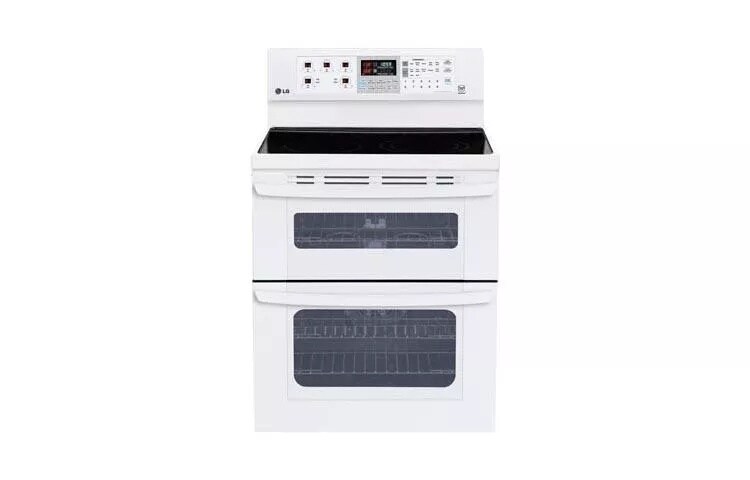

LDE3035SW

6.1 cu. ft. Capacity Electric Double Oven Range with SuperBoil™ Burner and EasyClean®

  • EasyClean® Cleaning Feature
  • Large Capacity (6.7 cu ft.)
  • Upper Oven Height (6")
  • Fastest Boiling Element
6.1 cu. ft. Capacity Electric Double Oven Range with SuperBoil™ Burner and EasyClean®

CAPACITY

  • Total Capacity
    6.7 cu. ft.

OVEN FEATURES

  • Configuration
    Freestanding Electric Double Oven
    EasyClean® Technology
    Yes
  • Bake Element (Upper)
    2100W / 4 Pass (Exposed Bake)
    Broil Element (Upper)
    Sheathed Heater, 3200W
  • Bake Element (Lower)
    2500W / 4 Pass (Exposed Bake)
    Broil Element (Lower)
    3800W / 6 Pass
  • Cooking Modes
    Bake, Broil, Proof (lower only), Warm
    Cleaning
    Self Clean / EasyClean®
  • Oven Light
    Yes
    Oven Rack
    3 Standard Racks
  • Oven Cleaning Features
    Delay Bake, Delay Clean, Automatic Shut-Off

COOKTOP

  • Element Configuration - Left Front
    9” / 2500W
    Element Configuration - Left Rear
    6" / 1200W
  • Element Configuration - Center (Warm)
    7" / 100W
    Element Configuration - Right Front
    9” / 6” 3200W / 1400W
  • Element Configuration - Right Rear
    6" / 1200W
    Cooktop Burner Type
    Radiant
  • Cooktop Finish
    Grey Patterned on Black Ceramic Glass
    5th Element
    Yes

CONTROL

  • Control Location
    Backsplash
    Control Type
    IntuiTouch™ Keypad
  • Control Display
    VFD (Scrolling Display)

APPEARANCE

  • Available Colors
    Stainless Steel, Smooth Black, Smooth White
    Handle
    Matching Stainless
  • Oven Door Feature
    Large WideView™ Window, Full SS Wrap

DIMENSIONS/CLEARANCES/WEIGHT

  • Shipping Weight (lbs)
    243
    Product Weight (lbs)
    193
  • Cabinet Width (in)
    30"
    Overall Depth (in)
    28 3/16"
  • Overall Height (in)
    47 7/16"
    Overall Width (in)
    29 7/8"
  • Oven Interior Dimensions (Upper) (in) (W x H x D)
    24 1/2" x 9 9/16" x 18 15/16"
    Height to Cooking Surface (in)
    36"
  • Oven Interior Dimensions (Lower) (in) (W x H x D)
    24 1/2" x 16 5/16" x 18 15/16"

POWER/RATINGS

  • Amp Rating at 208V
    10.3 KW
    Amp Rating at 240V
    13.8 W / 57.4 A
  • KW Rating at 208V
    120/208 VAC
    KW Rating at 240V
    120/240 VAC

FIND THE RIGHT PRODUCTS

  • EasyClean®
    Yes

WARRANTY/UPC

  • Limited Warranty
    1 Year Parts and Labor (In Home Service), 5 Years Limited on Cooktop and Radiant Surface Units (In home service)
    UPC
    048231318266

What people are saying

Rated 5 out of 5 by from Best Range LOVE, LOVE, LOVE....I use the small oven the most.
Date published: 2016-09-13
Rated 5 out of 5 by from Stove is easy to use. The only disappointment is the oven bulbs. Upper oven burned out within weeks and now after a few months the bottom one also needs to be replaced. Other than that oven meets all expectations and we are very happy with purchase.
Date published: 2015-07-28
Rated 5 out of 5 by from Love the double oven I took awhile to adjust the temperature in the ovens. They ran about 5 degrees cooler. Simple to adjust and now thinks cook perfect. Love it.
Date published: 2015-01-10
  • y_2020, m_2, d_22, h_13
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.5
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_13
  • loc_en_US, sid_MD05041749, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 216ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

hi, we just ordered the LG LDE3035SW and I was curious if it has the infrared grill? I have seen several pictures with and without the button at the top... thank you~

Asked by: Migon
We appreciate your interest in this electric range. This model was not designed with the Infrared Grill feature. This feature would be found on a similar model: LDE3037ST.
Answered by: NeilE
Date published: 2015-10-02

On the LGLDE3035SW dual oven range, is the electrical cord on the left side or right?

Asked by: Bobchi
Hi Bobchi. On the LG 6.1 cu. ft. Capacity Electric Double Oven Range with SuperBoil™ Burner and EasyClean™, Model # LDE3035SW, there is a cover located in the rear on the right side towards the bottom of the unit if you are standing behind the unit that has to be removed to expose the terminal block to which either a 3-wire or 4-wire hookup 240V electrical range power cord must is be attached. The link provided below is an instructional video for hooking up the power cord which will show where in the rear the cord is located...^IFV http://www.lg.com/us/support-product/lg-LDE3035SW
Answered by: LGJoel
Date published: 2015-07-25

I am purchasing your LDE3035SW. I read a review that stated NOT to use aluminum foil in ovens. Is this true and why?

Asked by: 4amanda
Just don't use foil to cover the bottom for spills it will mess with the cooking. You can "tent" a turkey or roast....at least I have.
Answered by: Freida
Date published: 2015-01-13

Does the LDE3035SW cooktop automatically shut off after a certain period of time?

My husband is making soup and wanted it to cook slowly overnight. But this morning the burners were off. Is there an auto shutoff feature that I'm not aware of?
Asked by: SheilaB104
Depending on your cooktop element setting or the temperature selected in your oven it is NORMAL operation for the cooking elements to cycle on and off. If this does not appear to be the case, then the unit may need to be checked by a qualified technician. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2014-12-17

How do you get the door of the lower oven apart to clean it if something was spilled in the vent?

Asked by: cyndilouwho
We regret the inconvenience you have experienced with this double oven. Unfortunately, this door has not been designed to be opened, except by assistance from a qualified technician. Attempting to disassemble the door can result in lack of sealing capabilities. If this is needed, then the unit will likely require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2014-09-25

Why does the white model LDE 3035sw not have the same large window on the top oven as the stainless steel model LDE 3035st?

Asked by: Kathyalmo
As it turns out, the window is the same size, it just look differently on the stainless steel model because of the color.
Answered by: Nadine
Date published: 2014-01-20

Does LG accord a unit with a hidden coil element in either lower or upper compartment?

An image on Lowe's website of LDE3035SW appears to have no exposed baking coil element in lower oven, yet LG's website shows clearly of the use of exposed lower coils in both "oven compartments." I'm in appliance sales at Lowe's and sold this model. The specifications -reported by Lowe's- states elements were hidden. Thus want to make sure our customer receives their intended wishes. Thanks, I can be reached at the store via 309-342-4488 - appl desk after 2pm - Central Time.
Asked by: Lilbuddy
