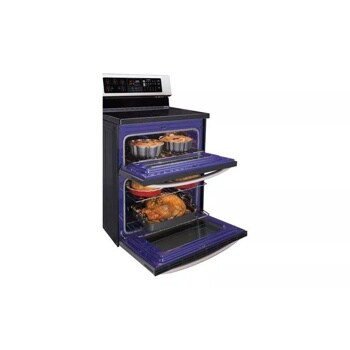

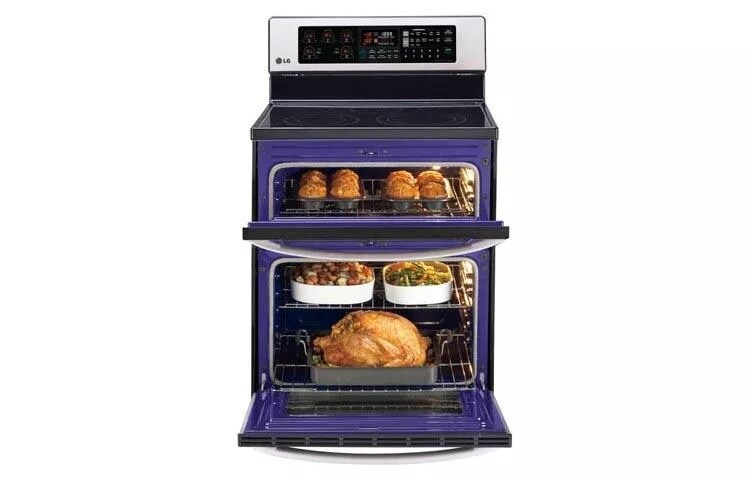

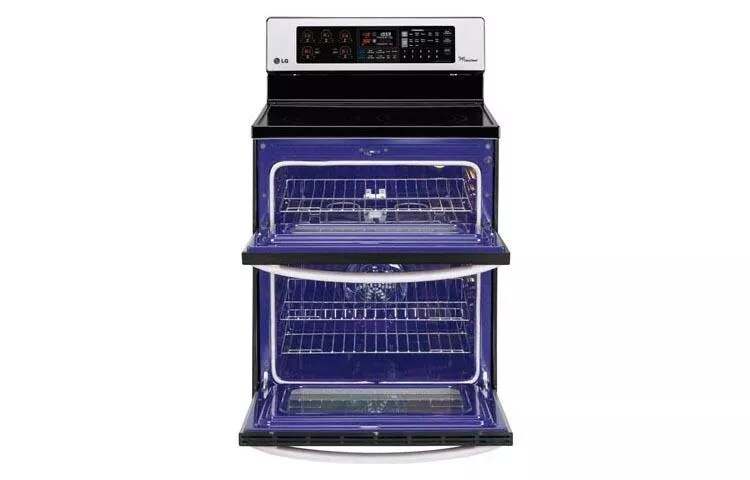

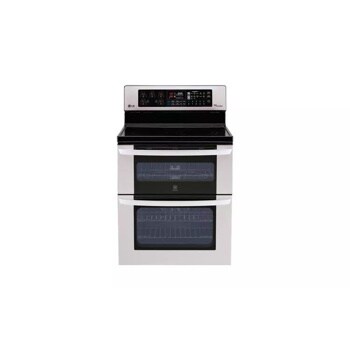

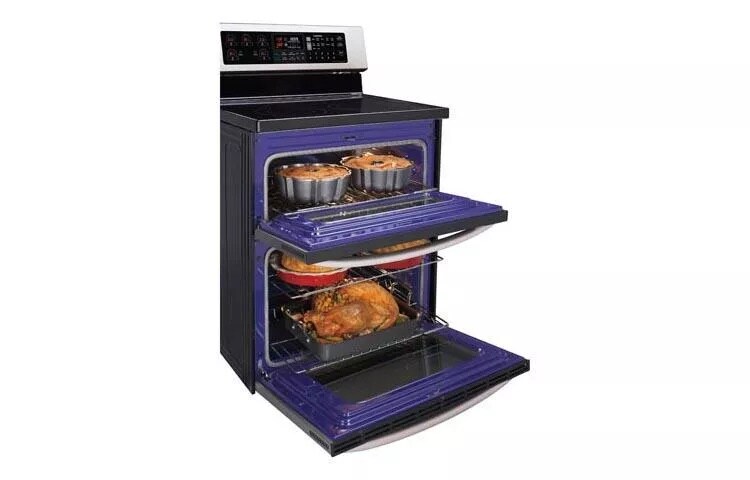

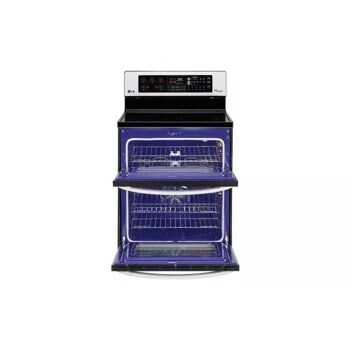

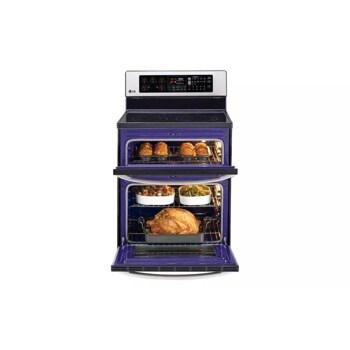

6.7 cu. ft. Capacity Electric Double Oven Range with Infrared Heating™ and EasyClean®


  • Infrared Heating™ System
  • EasyClean® Cleaning Feature
  • Large Capacity (6.7 cu ft.)
  • True Convection (Lower)
6.7 cu. ft. Capacity Electric Double Oven Range with Infrared Heating™ and EasyClean®


    • Range Type
    • Double Door


    • Upper Oven
    • 2.32 cu. ft.
    • Lower Oven
    • 4.38 cu. ft.
    • Total Capacity
    • 6.7 cu. ft.


    • Configuration
    • Freestanding Electric Double Oven
    • EasyClean® Technology
    • Yes
    • Infrared Heating™ System
    • Yes
    • True Convection
    • Yes
    • Bake Element (Upper)
    • 2100W / 6 Pass
    • Broil Element (Upper)
    • 3200W (1600W x 2) Infrared Heating™
    • Bake Element (Lower)
    • 2500W / 8 Pass (Hidden Bake)
    • Broil Element (Lower)
    • 3800W / 6 Pass
    • Oven Cooking Technology
    • Convection, Infrared Heating™
    • Oven Cooking Modes
    • Bake, Broil, Convection Bake (Lower), Convection Roast (Lower), Proof (Lower), Warm
    • Cleaning
    • Self Clean / EasyClean®
    • Oven Light
    • Yes
    • Oven Rack
    • 2 Standard Racks, 1 Offset Rack (Standard)
    • Oven Cleaning Features
    • Delay Bake, Delay Clean, Automatic Shut-Off


    • Element Configuration - Left Front
    • 9” / 6” 3200W / 1400W
    • Element Configuration - Left Rear
    • 6" / 1200W
    • Element Configuration - Center (Warm)
    • 7" / 100W
    • Element Configuration - Right Front
    • 12", 9" / 2700W, 1700W
    • Element Configuration - Right Rear
    • 6" / 1200W
    • Cooktop Burner Type
    • Radiant
    • Cooktop Finish
    • Grey Patterned on Black Ceramic Glass
    • 5th Element
    • Yes


    • Control Location
    • Backsplash
    • Control Type
    • IntuiTouch™ Keypad
    • Control Display
    • VFD (Scrolling Display)


    • Available Colors
    • Stainless Steel, Smooth Black, Smooth White
    • Handle
    • Matching Stainless
    • Oven Door Feature
    • Large WideView™ Plus Window, Full SS Wrap


    • Shipping Weight (lbs)
    • 263
    • Product Weight (lbs)
    • 213
    • Cabinet Width (in)
    • 30"
    • Overall Depth (in)
    • 28 3/16"
    • Overall Height (in)
    • 47 7/16"
    • Overall Width (in)
    • 29 7/8"
    • Oven Interior Dimensions (Upper) (in) (W x H x D)
    • 24 1/2" x 8 11/16" x 18 15/16"
    • Height to Cooking Surface (in)
    • 36"
    • Oven Interior Dimensions (Lower) (in) (W x H x D)
    • 24 1/2" x 16 5/16" x 18 15/16"


    • Amp Rating at 208V
    • 40
    • Amp Rating at 240V
    • 40
    • KW Rating at 208V
    • 120/208 VAC
    • KW Rating at 240V
    • 120/240 VAC


    • EasyClean®
    • Yes


    • Limited Warranty
    • 1 Year Parts and Labor (In Home Service), 5 Years Limited on Cooktop and Radiant Surface Units (In home service)
    • UPC
    • 048231318280

What people are saying

Rated 3 out of 5 by from Electric Double Oven Range I actually purchased this oven 1-20-2015. I have no idea why it says I purchased April 2021. Cook top is easy to clean, easy to use Top oven: Gets the most use, not confident temperature settings are true. They tend to be lower than the digital reading Bottom oven: Not a fan! I have to get on my hands and knees to check browning and to remove food from oven. Also, grease, fats and moisture drip between the two panes of glass. I have to unscrew the long screws on the door to separate the glass panes to clean them. This is a huge design flaw.!
Date published: 2021-04-24
Rated 3 out of 5 by from Keypad extremely BAD design I bought the oven 5y ago. The convection is good, takes a bit if getting used to if you good eith cast Iron pots, bending down.. etc. The top (cookie or Souza oven) is fine, even without the convection. The keypad in the back? Terrible. The clear layer on top of the cooking console is wearing away and looks like crap on the spaces used most often. Thank goodness this is discontinued. Absolutely no texting went into this product.
Date published: 2021-04-12
Rated 5 out of 5 by from Immaculate!!! I had this nice stove for approximately seven years and it’s Amazing! I wouldn’t trade it for any other appliance!!
Date published: 2021-01-21
  • y_2021, m_6, d_16, h_18
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.17
  • cp_1, bvpage1
  • co_hasreviews, tv_5, tr_167
  • loc_en_US, sid_MD05039374, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 5ms


Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

I haven't used the self cleaning on the oven since day one but every time I tried I would get a error on top oven saying door lock error and It would not run the cycle, never had the time to research back then I am retired now and tried again error still

Asked by: MC1028
The LG 6.7 cu. ft. Capacity Electric Double Oven Range with Infrared Heating™ and EasyClean®, Model # LDE3037ST has an automatic door locking system that should lock the door when the Self Clean cycle is initiated. During the oven's self-cleaning cycle, the door switch activates the door lock motor to prevent the oven door from being opened. If the door lock motor and the switch assembly are malfunctioning, the self-clean cycle will not start. The door switch alerts the oven controls that the door is closed and if it is defective, the self-cleaning function will not be allowed to begin. You can visit us at https://www.lg.com/us/support/find-service-center and enter your ZIP code or address into the appropriate field to use the locator to see if there is an LG Authorized Repair Service Center in your area that you can contact to make arrangements with for repair service. You can also contact our Support Center at (800) 243-0000 for assistance...^IFV
Answered by: Ivanf
Date published: 2021-06-04

Is this a good model number for a double oven range; FD1545TS.FSTLLGA?

Asked by: Christobel
Hi Christobel. Regrettably, FD1545TS.FSTLLGA is not a model number that we recognize for our range ovens. The model numbers for our Electric Range Ovens should begin with "LRE", "LSE" "LDE", or "LSSE" and those for our Gas Range Ovens should begin with "LRG", "LSD", "LTG" "LSSG", or "LSG"...^IFV
Answered by: Ivanf
Date published: 2019-11-07

I need 2 screw for my door oven. On the left side. I lost them when I cleand the glass inside. Where I can find this screw?

Asked by: Agnana77
Let's see if we can get that taken care of for you. Send us a message on Twitter at @LGUSSupport or on Facebook https://www.facebook.com/LGUSA/ so we can get more info and see what we can do.
Answered by: ChrisPSM
Date published: 2019-07-31

Best way to cook a 24lb turkey

Asked by: Joe fl
Hello, how to cook your turkey is truly personal preference but there are some tips in the manual. ^AC
Answered by: Amber C
Date published: 2018-11-26

I have this oven and when baking in the lower oven on convection bake, the fan will come on for maybe a second, then it's off for a minute or two. This continues throughout the entire baking session. Is this normal?

Asked by: Toadly
Convection ovens use a fan and an extra heating element to correct these flaws. Positioned at the back of the oven, the fan creates a stream of air that's passed over the third element and recirculated into the oven chamber, normalizing the temperature throughout. The fan coming on and off is part of the normal operation of the unit. ^CP
Answered by: ChrisPSM
Date published: 2017-12-07

Im confused on what type of kitchenware to buy for this oven? Is this electric, infrared or induction cooktop? Can i use cast iron for the cooktop? Please advise. Thanks

Asked by: rayshell
Our offices, in the United States, do not have product information for Canada. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lg.com/ca_en/index.jsp. You may also contact our Canada offices at 1-888-542-2623.
Answered by: NeilE
Date published: 2017-09-11

I am looking for the LDE3037ST model specifically. I see it is discontinued. Is there any place that still carries this model that I can buy? I don't like the knobs down in front that the new model has. Please let me know. Thanks!!

Asked by: Samantha LDE3037ST
Regrettably, once a product is discontinued, it means that it is no longer available for sale in any stores which is why we no longer have a listing for the LG 6.7 cu. ft. Capacity Electric Double Oven Range with Infrared Heating™ and EasyClean®, Model # LDE3037ST...^IFV
Answered by: LGJoel
Date published: 2017-09-04

How do I set the clock after power failure?

Asked by: Angela0716
We appreciate your interest in this electric range. Press the CLOCK button. Enter the time on the numeric keypad. Press START.
Answered by: NeilE
Date published: 2017-05-01
