Discontinued
LDG3016ST

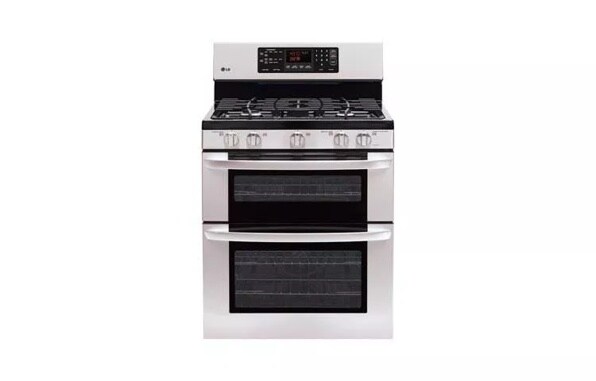

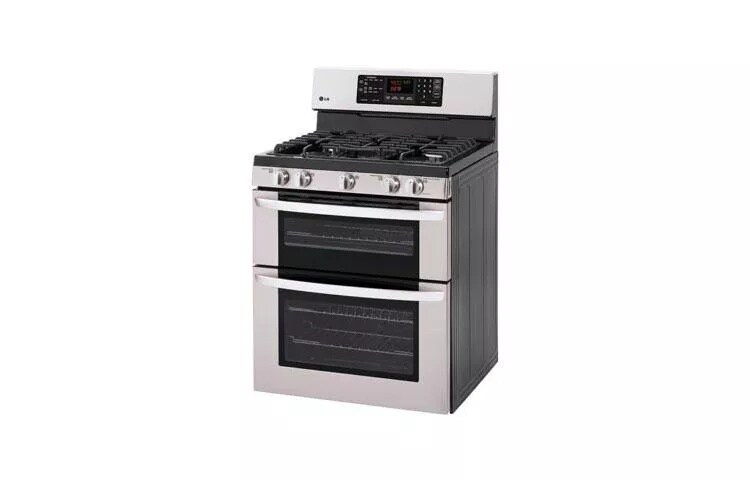

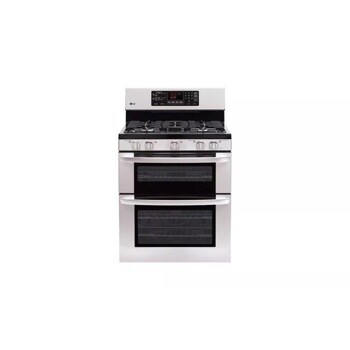

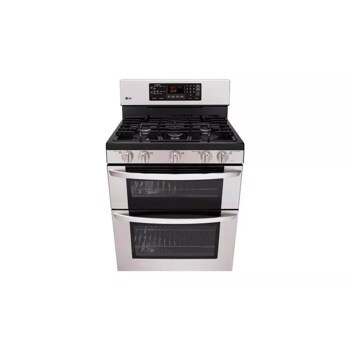

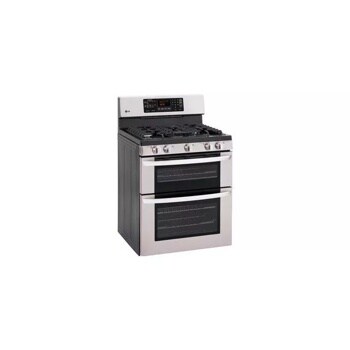

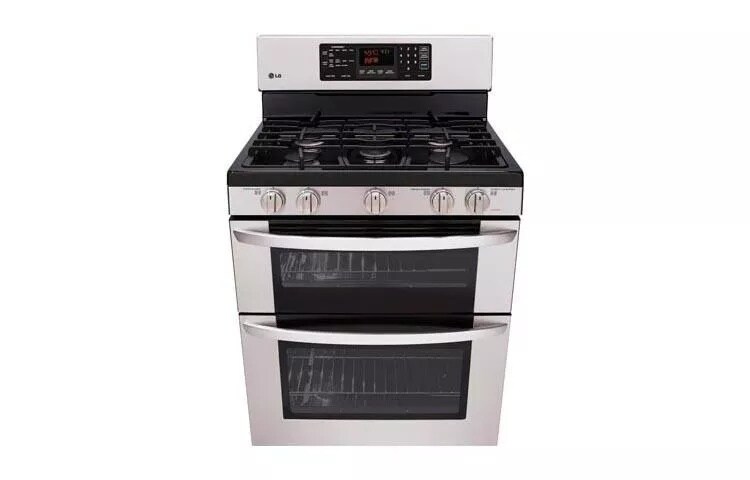

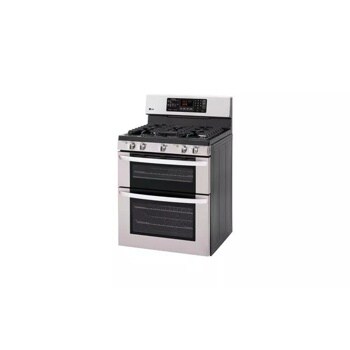

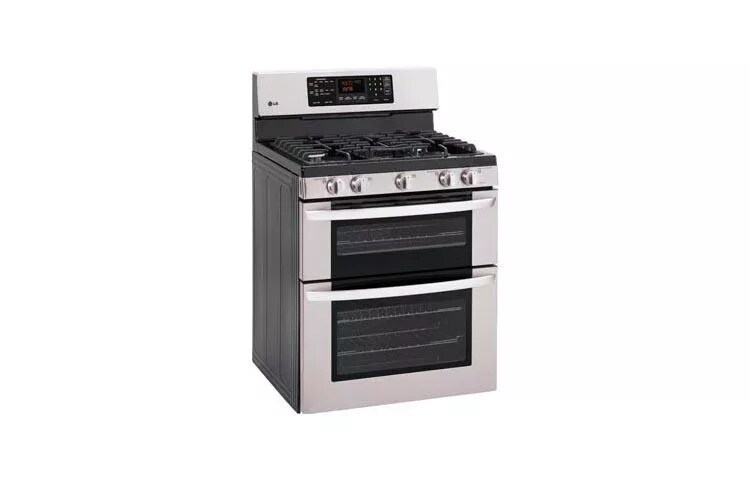

6.1 cu. ft. Capacity Gas Double Oven Range with EvenJet™ Convection System
CompareAdd to CompareRemove Compare
  • Maximum Usable Cooktop Space in a Gas Double Oven
  • Large Capacity Gas Oven (6.1 cu. ft.)
  • EvenJet™ Convection System
  • SuperBoil™17,000 BTU Burner
6.1 cu. ft. Capacity Gas Double Oven Range with EvenJet™ Convection System
Download Spec Sheet
Close

SUMMARY

  • Range Type
    Double Door
    Cooktop Material
    Porcelain
  • Capacity
    6.1 cu.ft.
    Product Dimensions (WxHxD)
    29 9/10" x 35 9/10" x 26 2/5"

CAPACITY

  • Oven Capacity
    2.2 cu.ft. Upper / 3.9 cu.ft. Lower
    Total Capacity
    6.1 cu. ft.

OVEN FEATURES

  • Configuration
    Freestanding Gas Double Oven

POWER/RATINGS

  • Requirements
    120 VAC
    KW / Amp Rating @120V
    11.65kW / 13.75A

DIMENSIONS

  • Cabinet Width
    30"
    Overall Height
    35 9/10"
  • Overall Width
    29 9/10"
    Oven Interior (WxHxD) Upper
    24 1/2" x 8 4/5" x 19 1/5"
  • Oven Interior (WxHxD) Lower
    24 1/2" x 13 2/5" x 19 1/5"
    Shipping Weight
    268 lbs.

FEATURES

  • Configuration
    Freestanding Gas Double Oven
    Control Type
    Knobs/Keypad
  • Display
    LED
    Bake Burner (Upper)
    14500Btu/h / 13500Btu/h
  • Broil Burner (Upper)
    14500Btu/h / 13500Btu/h
    Bake Burner (Lower)
    16000Btu/h / 14000Btu/h
  • Convection Conversion
    Yes
    Convection Roast
    Yes
  • Convection Bake
    Yes
    Cooking Modes
    Bake, Broil, Proof, Warm
  • Control Features
    Delay Bake, Delay Clean, Automatic Shut-Off
    Self-Cleaning
    Upper/Lower Ovens
  • Oven Light
    Yes
    No. of Racks
    2 Standard Racks
  • Large WideView™ Window
    Yes
    Accessories
    Griddle

COOKTOP SPECIFICATIONS

  • Burner Type
    Sealed Gas Burners
    Configuration - Left Rear
    9100Btu/h / 9100Btu/h
  • Configuration - Center (Single Oval)
    8000Btu/h / 8000Btu/h
    Configuration - Right Front
    17000Btu/h / 10000Btu/h
  • Configuration - Right Rear
    5000Btu/h / 5000Btu/h

MATERIALS/FINISHES

  • Available Colors
    Stainless Steel (ST)
    Knobs
    Nikel Plating
  • Handle
    Matching Stainless
    Door
    Full Stainless Steel Wrap
  • Cooktop Finish
    Porcelain

WARRANTY/UPC

  • Limited Warranty
    1 Year Parts and Labor, 5 Years Sealed Gas Burners
What people are saying
Rated 4 out of 5 by from HARD TO CLEAN COOKING TOP I have had this range for years now. And the top by the burners are impossible to get clean. I have tried to clean the top as soon as I can after cooking but there is a build up of who knows what that will not clean off. I have tried several cleaners, powders, counter top cleaners, and even electric tooth brush after I put Bar Keepers Friend on the mess. And the metal plates that goes over the burners are also a mess. The center burner that is for grilling only works if I use a match to light all the openings. I have taking it apart, scrubbed it and put it together. Still only has flame in around the area of the igniter. So much for cleaning it up with just soap and water like the owners manual says. As for the two front larger burners I do not know why they would design them with the flame just around the outer edge. Leave the middle section open open and worthless. Should have a flame in the center also so not just the outer edge of the pan gets hot.
Date published: 2019-07-25
Rated 2 out of 5 by from Initially Great Bought this range in March 2015. Loved this range initially even though there were a few initial setbacks. The biggest being that the grates are spaced too far apart for small skillets. This didn’t seem like a big deal, but I use an 8-inch skillet almost daily and it shouldn’t be a task to balance the skillet before cooking, but it is. The second thing was that the convection oven stopped working after 6 months. Since I mainly used the top oven which is not the convection oven, I kept putting off to call in a warranty repair, and you can guess when I finally called, it was out of warranty. I know that it is my fault that the repair wasn’t done within the warranty period, but an oven shouldn’t fail after 6-months, much less after only being used for the second time. As stated previously, I used the top oven since it’s more convenient. The third item was the middle burner. This burner is rated at 8000 BTUs, but it is a warmer at best especially with the grill that comes with the stove. These three items are not show stoppers and so you can continue to use the stove and oven with these known setbacks. However, the last straw was when the top oven would fail to ignite after 3.5 years. I had installed combustible gas detectors next to the oven and clothes dryer years ago as a precaution. I thought the first time was a fluke when the gas alarm went off since I was able to turn on the oven after resetting it. However, after multiple occurrences, I am thankful that I installed the alarms. Once I walked out of the room waiting for the oven to heat up when I heard the alarm going off. I realized that this could have been a serious situation without the alarms. In any case, my teenage kids sometimes bake so I opted to replace this oven for safety’s sake. It’s possible I received a lemon of a range but my washer/dryer are also LG products and the washer has also had multiple issues. It is a nice looking range but I cannot recommend this product.
Date published: 2019-06-25
Rated 5 out of 5 by from looks great Just received frig it looks great. Hope to get many years of use.
Date published: 2017-04-07
  • y_2019, m_10, d_21, h_23
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_54
  • loc_en_US, sid_MD00001273, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 197ms
  • REVIEWS, PRODUCT
See All Review
ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Need to replace display/touchpad that burnt off/is melting on the edges

Asked by: Estefania
We regret the trouble you have experienced with this gas range. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2019-06-21

The inner glass of the upper oven door shattered while it was helping out cooking Christmas dinner. Can the glass be replaced?

Asked by: heyabbott
We appreciate your interest in this dual oven range. Yes, the glass can be replaced. It would be recommended to contact a qualified service technician for this job. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2016-01-08

Where can I buy another griddle for this stove

Asked by: NJR2
The griddle for the LG 6.1 cu. ft. Capacity Gas Double Oven Range with EvenJet™ Convection System, Model # LDG3016ST can be purchased from any LG Authorized Parts Distributor or you can try any Home Improvement retailer like Home Depot etc., To find an LG Parts Distributor in your region, you can visit [http://www.lg.com/us/support/parts-accessories] and scroll down to the map of the US under the heading 'Parts Distributors' and click on the geographical location of your State on the map to get the contact information and web site for the Parts Distributor in your region...^IFV
Answered by: LGJoel
Date published: 2015-08-31

Does the stove LDG3016ST have a Cover?

I want to purchase a Stove top cover for my LDG3016St Stove to prevent dust and protect the stove range top. Please let me know where I can purchase it. If through you or, is there somewhere else I can purchase it fro?. Thank you KVP
Asked by: Mieses
Regrettably, LG does not make a cover for the LG 6.1 cu. ft. Capacity Gas Double Oven Range with EvenJet™ Convection System, Model # LDG3016ST. Yiu may want to google Home Improvement Retailers for those or try retailers like Home Depot or LOWES...^IFV
Answered by: LGJoel
Date published: 2015-08-05

Can cast iron grates be cleaned with scouring pads. Stains can't be removed with soap and water.

Asked by: Caligirl
We appreciate your interest in the proper maintenance of your gas oven and its burner grates. Do not operate a burner for an extended period of time without cookware on the grate. The finish on the grate may chip without cookware to absorb the heat. Grates should be washed regularly and after spillovers. Wash them in hot, soapy water and rinse with clean water. These grates are dishwasher safe. Never place the grates in the oven during a SELF CLEAN cycle.
Answered by: NeilE
Date published: 2014-01-22

The lower oven fan stays on, how do i turn if off

Asked by: sbryan7461
We regret any inconvenience you may have experienced with this oven. Does this fan noise occur on all cycles and cooking methods or is it only for certain instances, such as CONVECTION cooking? Please contact our Customer Interactive Center at 800-243-0000 to troubleshoot this matter.
Answered by: NeilE
Date published: 2017-01-27

does this range work with LP? I am reading a customer's review on it that says it only works with LNG. Can you direct me to where this info is?

This is in regards to the 3016ST model.
Asked by: Amy1
Yes, the stove comes with the LP jets included. You just have to swap them for the jets that come on the unit, or better yet, have a qualified service person do it.
Answered by: Paintdlady
Date published: 2013-10-22

Can I remove the metal box on the bottom back of this unit?

There is a metal box that is held by just one screw on the back bottom of this unit. I unscrewed the box from the unit and there's two wires connecting together. This box makes it so that I can't slide my range up close to the wall. By removing this little box, it brings me to just about an inch away from the wall, a good inch closer than with that box attached. Do I need to worry about having this metal box on?
Asked by: yolanda269
We appreciate your interest in the proper installation of this dual oven range. The box you have mentioned appears to be a protective cover for these wires. Such should be kept in place securely.
Answered by: NeilE
Date published: 2013-10-22
