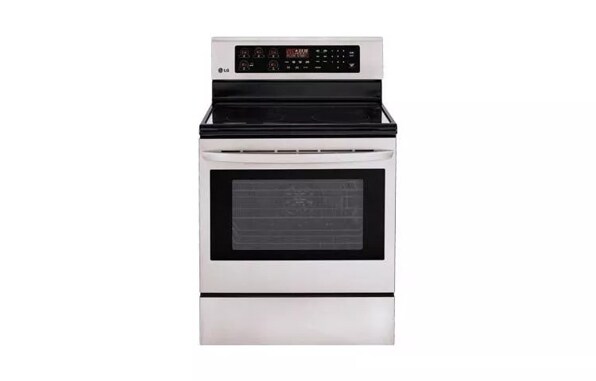

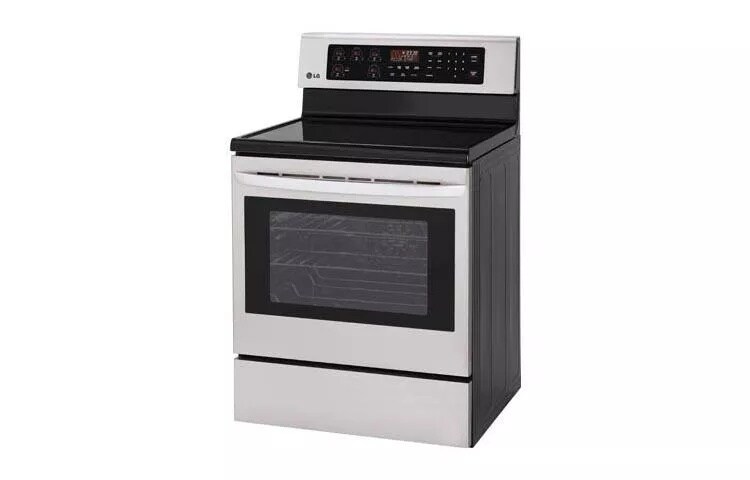

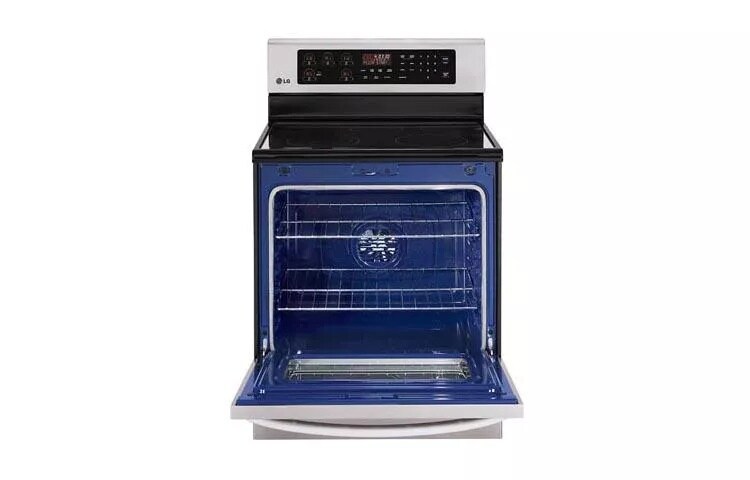

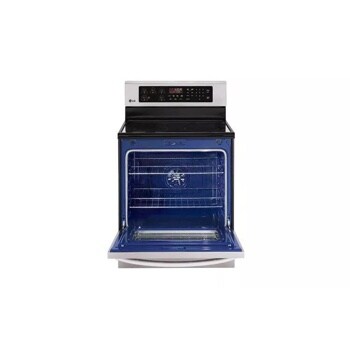

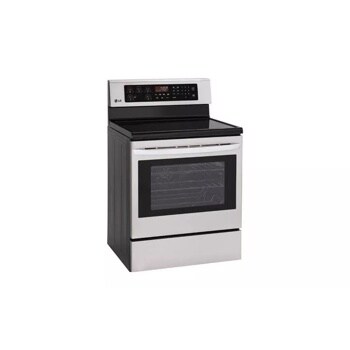

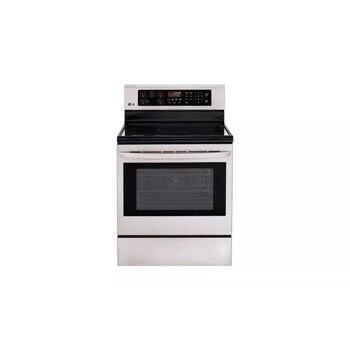

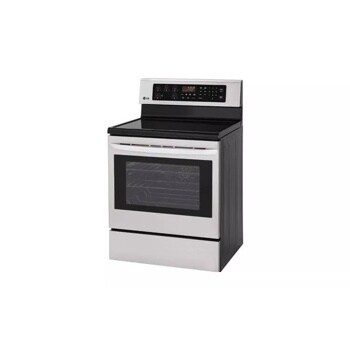

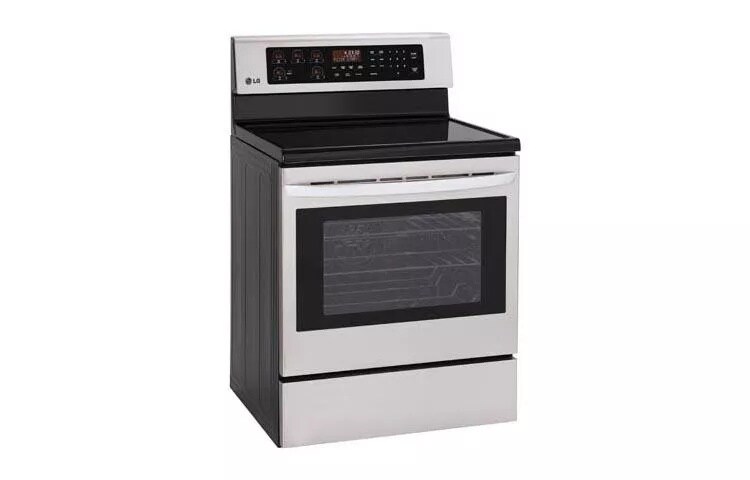

6.3 cu. ft. Capacity Electric Single Oven Range with Fan Convection
DISCONTINUED
6.3 cu. ft. Capacity Electric Single Oven Range with Fan Convection
LRE3023ST
Key features
- Large Capacity (6.3 cu ft.)
- Fan Convection
- IntuiTouch™ Controls
- 5 Cook Top Elements
Specifications
POWER/RATINGS
COOKTOP
WARRANTY/UPC
OVEN FEATURES
SUMMARY
CONTROL
CAPACITY
APPEARANCE
DIMENSIONS/CLEARANCES/WEIGHT
See All
POWER/RATINGS
Amp Rating at 208V
120 / 208 VAC
Amp Rating at 240V
120 / 240 VAC
KW Rating at 208V
11.5 kW
KW Rating at 240V
15.3 kW
POWER/RATINGS
Amp Rating at 208V
120 / 208 VAC
Amp Rating at 240V
120 / 240 VAC
KW Rating at 208V
11.5 kW
KW Rating at 240V
15.3 kW
COOKTOP
Element Size/Wattage - Left Rear
6" / 1200W
Element Size/Wattage - Right Rear
6" / 1200W
Element Size/Wattage - Center Rear
7"/100W (Warming)
Element Size/Wattage - Left Front
6”, 9” / 1400W, 3200W
Element Size/Wattage - Right Front
9" / 2500W
Cooktop Burner Type
Radiant
Cooktop Finish
Grey Patterned on Black Ceramic Glass
WARRANTY/UPC
Limited Warranty
1 Year Parts and Labor (In Home Service); 5 Years Limited on Cooktop and Radiant Surface Units
OVEN FEATURES
Oven Cooking Modes
Bake, Broil, Conv Bake, Conv Broil, Warm, Proof, Favorites
Door Lock
Yes
Configuration
Freestanding Electric Oven with Storage Drawer
Bake Element
3400W / 6 Pass (Hidden Bake)
Oven Cleaning Features
Delay Bake (up to 12 hours), Delay Clean, Automatic Shut-Off (After 12 hours)
Cleaning
Self Clean (3,4,5 hours)
Oven Light
Yes
SUMMARY
Range Type
Single Door
CONTROL
Control Location
Backsplash
Control Type
IntuiTouch™ Keypad
Control Display
Scrolling Display / White(Green VFD+Pink Smog)
CAPACITY
Oven Capacity
6.3 cu.ft.
APPEARANCE
Handle
Matching Stainless
Oven Door Feature
Large WideView™ Plus Window, Full SS Wrap
DIMENSIONS/CLEARANCES/WEIGHT
Cabinet Width (in)
30"
Overall Depth (in)
25 7/8 (to door) / 28 1/4" (including handle)
Overall Height (in)
47 1/8"
Overall Width (in)
29 7/8"
Height to Cooking Surface (in)
36"
Oven Interior Dimensions (Upper) (in) (W x H x D)
24 13/16 x 19 11/16 x 19 1/4"
Product Weight (lbs)
157
Drawer Dimensions (in) (W x H x D)
22 3/16 x 4 1/2 x 16 3/8"
Carton Dimensions (in) (W x H x D)
33 11/16 x 50 7/8 x 30 9/16"
Shipping Weight (lbs)
180
