Discontinued
LRG3093SB

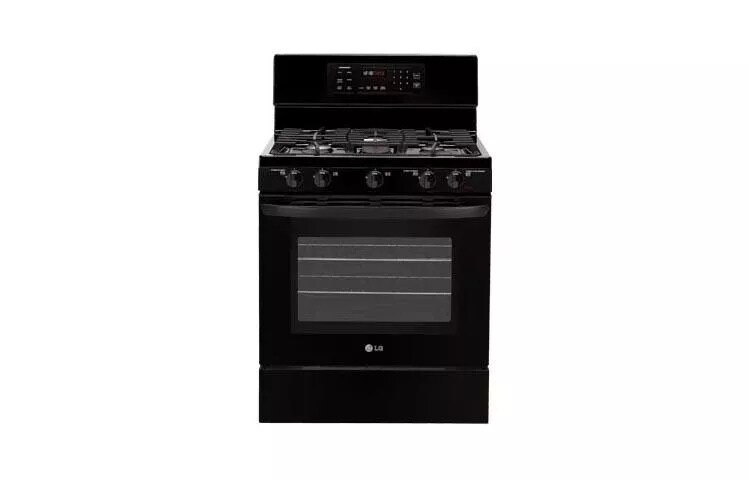

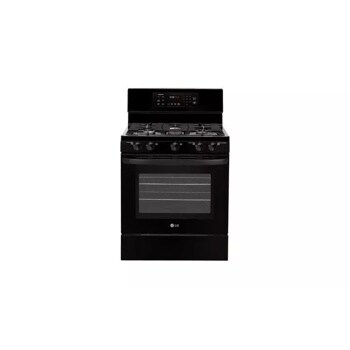

5.4 cu. ft. Capacity Gas Single Oven Range with Oval Burner and Griddle
  • Large Capacity Oven
  • Superboil™ 17,000 BTU Burner
  • 5 High Performance Sealed Burners
  • IntuiTouch™ Controls
5.4 cu. ft. Capacity Gas Single Oven Range with Oval Burner and Griddle

SUMMARY

  • Range Type
    Single Door
    Cooktop Material
    Coated Porcelain
  • Capacity
    5.4 cu. ft.
    Product Dimensions (WxHxD)
    29 15/16” x 47 5/8” x 26 29/32”
  • Color
    Smooth Black
    Control System
    IntuiTouch™/Knobs
  • Number of Burners
    5
    Burner Power (BTUs)
    Left Front (High Output): 12,000 BTU, Left Rear (All Purpose): 9,100 BTU, Center: 8,000 BTU, Right Front (SuperBoil™): 17,000 BTU, Right Rear (Simmer): 5,000 BTU
  • Broil Burner
    15,500 BTU Flat Broiler
    Bake Burner
    18,000 BTU

OVEN FEATURES

  • Configuration
    Freestanding Gas Oven with Storage Drawer

DIMENSIONS

  • Width
    29 15/16"
    Height (to top of cooktop)
    36"
  • Height (to top of backguard)
    47 5/8"
    Depth (including door)
    26 1/2"
  • Depth (including handle)
    26 29/32"
    Oven Capacity (WxHxD)
    24 1/2" X 19 1/2" X 19 11/16"
  • Drawer (WxHxD)
    23" x 4 11/16" x 16 1/2"
    WideView™ Window (WxH)
    19 19/32 x 11 1/32"
  • Net Weight
    227 lbs

TYPE

  • Type
    Free Standing Gas
    Oven/Cooktop
    IntuiTouch™/Knobs

FEATURES

  • Display
    VFD
    Electronic Clock & Timer
    Yes
  • Control Lock Function
    Yes
    Audible Preheat Signal
    Yes
  • Special Functions
    Temperature Unit of Measure (F/C) Beeper Volume (High, Low, Mute), Language: English or Spanish, Preheating Alarm Light On/Off
    Door Lock
    Yes

COOKTOP SPECIFICATIONS

  • Burner Type
    Coated Procelain
    No. of Sealed Gas Burners
    5
  • Configuration - Left Front
    12000Btu/h
    Configuration - Left Rear
    9100Btu/h
  • Configuration - Center (Single Oval)
    8000Btu/h
    Configuration - Right Front
    SuperBoil™ 17000Btu/h
  • Configuration - Right Rear
    5000Btu/h

OVEN SPECIFICATIONS

  • Capacity
    5.4 cu. ft.
    Type
    Self-Cleaning
  • Variable Cleaning Time
    2hr, 3hr, 4hr
    Delay Clean
    Yes
  • Broil Burner
    15.5k BTU
    Broiler Type
    Flat Broiler
  • Bake Burner
    18K BTU
    Delay Bake
    12 Hours
  • Automatic Shut-Off
    After 12 Hours
    WideView™ Window
    Yes
  • GoCook™ Smart Oven Light
    Yes
    Interior Oven Light Adjustment
    1, Auto/Manual
  • No. of Racks/Positions
    2 Full/7

DRAWER

  • Capacity
    1.0 cu. ft.
    Type
    Storage

MATERIALS/FINISHES

  • Available Colors
    Smooth White (SW), Smooth Black (SB), Stainless Steel (ST)
    Oven Interior
    Brilliant Blue
  • Knobs
    Matching Metal
    Handle
    Matching Commercial Handle

POWER SOURCE

  • Electrical Requirements
    540kW / 4.5A 120 VAC

WARRANTY/UPC

  • Limited Warranty
    One Year Parts & Labor
What people are saying
Rated 5 out of 5 by from great deal we lost our last stove to old age. after a lot of web surfing. this unit caught my attention and when we went to purchase. we found this unit in black for a great price and we love it.
Date published: 2014-01-07
Rated 5 out of 5 by from lg gas range We LOVE this product !! We spent half a day in sears choosing a stove, and this one by far was the one we both agreed on . for the features we needed and overall quality and appearance
Date published: 2013-03-28
Rated 5 out of 5 by from Cooks great! Love my new stove, burners responsive, the griddle feature is great when we can't grill outside. The oven heats up very quickly, as do the burners. It's also very classy-looking!
Date published: 2013-01-31
  • y_2019, m_10, d_15, h_21
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_7
  • loc_en_US, sid_MD00000927, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 9ms
  • REVIEWS, PRODUCT
ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

does this range come with the LP conversion kit since it is not clearly listed?

I sale the LG products an dhave a customer in store that needs a gas range with an lp conversion kit.
Asked by: applianceguru
As it turns out the LP conversion kit is not included, but can be purchased: http://www.lg.com/us/support/parts-accessories Make sure your range is properly adjusted by a qualified service technician or installer for the type of gas (natural or LP) that is to be used. Your range can be converted for use with either type of gas. See the installation instructions.
Answered by: Nadine
Date published: 2013-10-22

NEED A GAS STOVE ABLE TO BE LIT MANUALLY WO ELECTRICITY

Have an off-the-grid setup with solar & propane. If solar cuts off for some reason would want to be able to still use the stove's oven
Asked by: Nikky
In case of a power failure, you can light the gas surface burners on your range with a match. Hold a lit match to the burner, then push in and turn the control knob to the “LITE” position. Use extreme caution when lighting burners this way. Surface burners in use when an electrical power failure occurs will continue to operate normally.
Answered by: LGJoel
Date published: 2013-10-22

what is the width of the lrg30935b range?

Asked by: Anonymous
Width : 29 15/16" We appreciate your feedback, please give us a thumbs up if our answer was helpful to you, and let us know if we can assist you with anything else. Thank you! Have a lovely week!
Answered by: Nadine
Date published: 2013-10-22

Do you sell 36" 5 Burner Gas Ranges

I have been on your web site for almost an hour and cannot find basic measurements for ranges. I want an LG 36" Black 5 Burner Gas Range. Where can I purchase one?
Asked by: Anonymous
The Dimensions are listed under the Specification Tab of each product site. As it turns out, our black Ranges are all currently 30" not 36", unfortunately.
Answered by: Nadine
Date published: 2013-10-22

How low does the simmers setting go?

What is the temperature of the simmer setting at it's lowest point?
Asked by: Bart
Hello Brat, the smaller the flame the less heat gets distributed and therefore the food will cook slower and at a lower temperature. The simmers setting is the lowest temperature setting; it will keep cooked food hot / cook very slowly.
Answered by: Nadine
Date published: 2013-10-22

is it normal to have fumes when operating the broiler on a two week old range. Have used it three times and it has set off the smoke alarm each time.

We don't have the smoke issue with the regular oven.
Asked by: sue
Regrettably, your unit may require service. Please contact our Customer Interactive Center at 800-243-0000 for troubleshooting tips and service information.
Answered by: LGcustomeradvocate1
Date published: 2013-10-22

Is there a conversion kit to convert it back to Natural Gas once Converted to LP?

Asked by: Rachel
Hello, this is a very good question. No, there is no kit required for this to be done. Your Propane technician can "convert" it back at any time as it is very simple since the unit comes equipped for Natural Gas already.
Answered by: CustomerAdvocacy2
Date published: 2013-10-22

looking for griddle for my new range lrg3093sb

Asked by: Danny
Parts orders for your product are placed through our Authorized Parts Distributor. Our parts distributors are set by time zone. Please contact one of our distributors below to place your order. Eastern Time Zone: Encompass, 866-799-7906 Central Time Zone: MCM Electronics, 800-824-9491 Mountain, Pacific and All Other Time Zones: Andrews Electronics, 800-274-4666
Answered by: LGcustomeradvocate1
Date published: 2013-10-22
