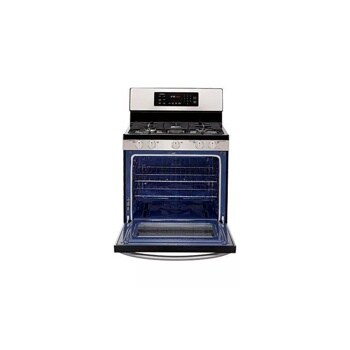

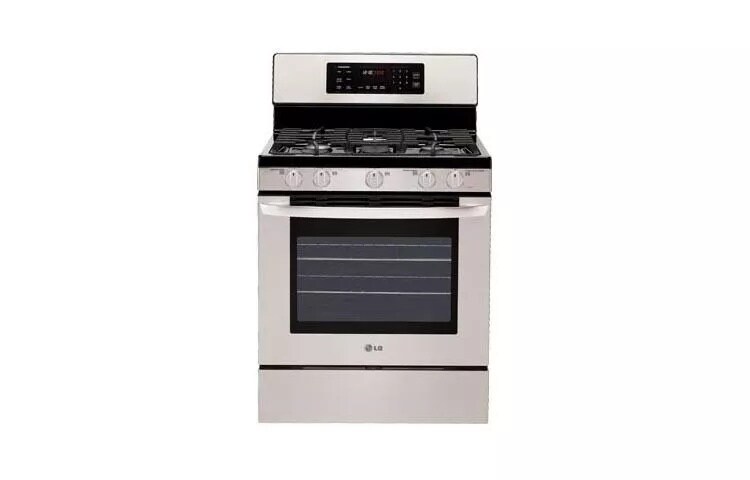

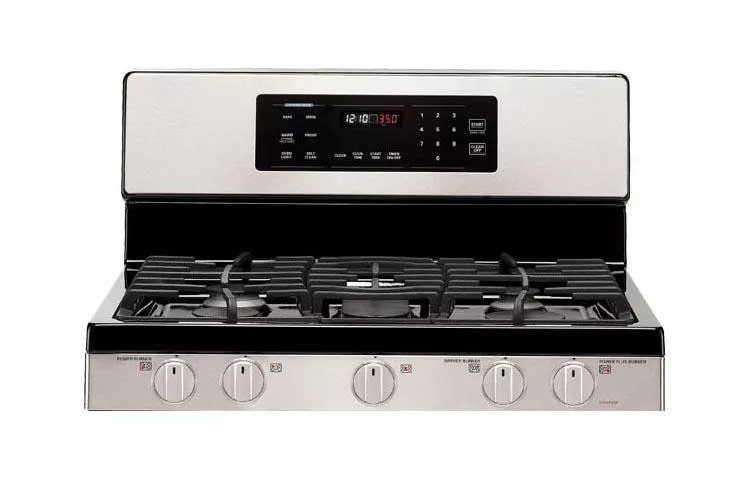

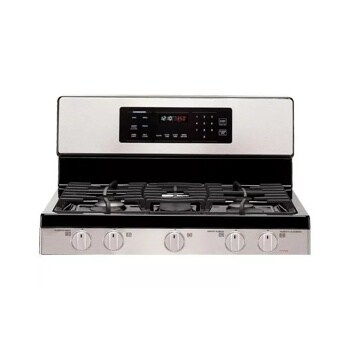

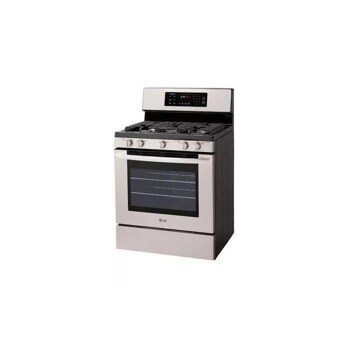

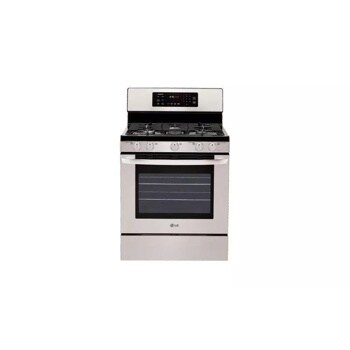

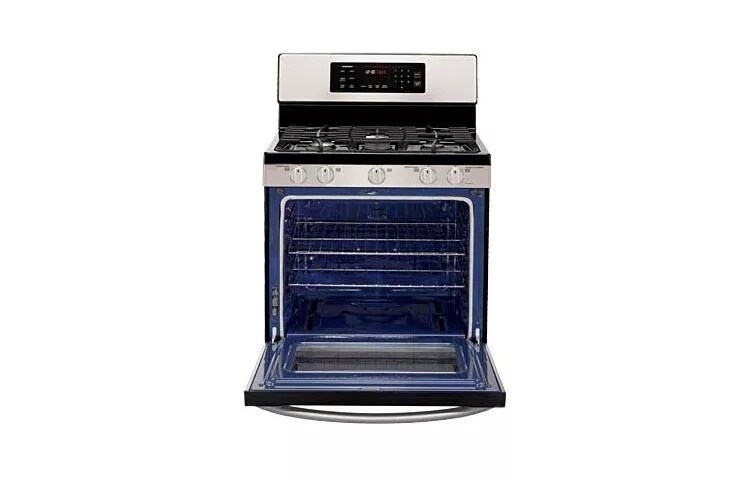

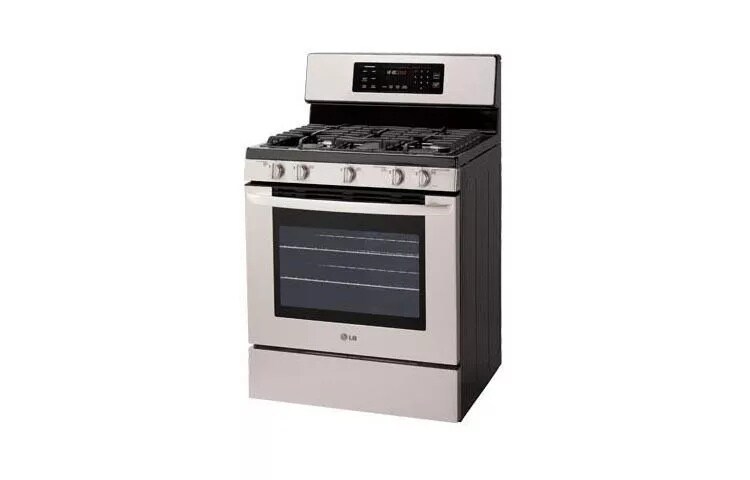

LRG3093ST

5.4 cu. ft. Capacity Gas Single Oven Range with Oval Burner and Griddle

KEY FEATURES

  • Large Capacity Oven
  • Superboil™ 17,000 BTU Burner
  • 5 High Performance Sealed Burners
  • IntuiTouch™ Controls
5.4 cu. ft. Capacity Gas Single Oven Range with Oval Burner and Griddle

SUMMARY

    • Range Type
    • Single Door
    • Cooktop Material
    • Coated Porcelain
    • Capacity
    • 5.4 cu. ft.
    • Product Dimensions (WxHxD)
    • 29 15/16” x 47 5/8” x 26 29/32”
    • Color
    • Stainless Steel
    • Control System
    • IntuiTouch™/Knobs
    • Number of Burners
    • 5
    • Burner Power (BTUs)
    • Left Front (High Output): 12,000 BTU, Left Rear (All Purpose): 9,100 BTU, Center: 8,000 BTU, Right Front (SuperBoil™): 17,000 BTU, Right Rear (Simmer): 5,000 BTU
    • Broil Burner
    • 15,500 BTU Flat Broiler
    • Bake Burner
    • 18,000 BTU

OVEN FEATURES

    • Configuration
    • Freestanding Gas Oven with Storage Drawer

DIMENSIONS

    • Width
    • 29 15/16"
    • Height (to top of cooktop)
    • 36"
    • Height (to top of backguard)
    • 47 5/8"
    • Depth (including door)
    • 26 1/2"
    • Depth (including handle)
    • 26 29/32"
    • Oven Capacity (WxHxD)
    • 24 1/2" X 19 1/2" X 19 11/16"
    • Drawer (WxHxD)
    • 23" x 4 11/16" x 16 1/2"
    • WideView™ Window (WxH)
    • 19 19/32 x 11 1/32"
    • Net Weight
    • 227 lbs

TYPE

    • Type
    • Free Standing Gas
    • Oven/Cooktop
    • IntuiTouch™/Knobs

FEATURES

    • Display
    • VFD
    • Electronic Clock & Timer
    • Yes
    • Control Lock Function
    • Yes
    • Audible Preheat Signal
    • Yes
    • Special Functions
    • Temperature Unit of Measure (F/C) Beeper Volume (High, Low, Mute), Language: English or Spanish, Preheating Alarm Light On/Off
    • Door Lock
    • Yes

COOKTOP SPECIFICATIONS

    • Burner Type
    • Coated Procelain
    • No. of Sealed Gas Burners
    • 5
    • Configuration - Left Front
    • 12000Btu/h
    • Configuration - Left Rear
    • 9100Btu/h
    • Configuration - Center (Single Oval)
    • 8000Btu/h
    • Configuration - Right Front
    • SuperBoil™ 17000Btu/h
    • Configuration - Right Rear
    • 5000Btu/h
    • Accessories
    • Griddle
    • Oval Burner
    • Yes

OVEN SPECIFICATIONS

    • Capacity
    • 5.4 cu. ft.
    • Type
    • Self-Cleaning
    • Variable Cleaning Time
    • 2hr, 3hr, 4hr
    • Delay Clean
    • Yes
    • Broil Burner
    • 15.5k BTU
    • Broiler Type
    • Flat Broiler
    • Bake Burner
    • 18K BTU
    • Delay Bake
    • 12 Hours
    • Automatic Shut-Off
    • After 12 Hours
    • WideView™ Window
    • Yes
    • GoCook™ Smart Oven Light
    • Yes
    • Interior Oven Light Adjustment
    • 1, Auto/Manual
    • No. of Racks/Positions
    • 2 Full/7

DRAWER

    • Capacity
    • 1.0 cu. ft.
    • Type
    • Storage

MATERIALS/FINISHES

    • Available Colors
    • Smooth White (SW), Smooth Black (SB), Stainless Steel (ST)
    • Oven Interior
    • Brilliant Blue
    • Knobs
    • Matching Metal
    • Handle
    • Matching Commercial Handle

POWER SOURCE

    • Electrical Requirements
    • 540kW / 4.5A 120 VAC

WARRANTY/UPC

    • Limited Warranty
    • One Year Parts & Labor

What people are saying

Rated 1 out of 5 by from Nothing but Trouble Thank God I bought the maintenance plan from Sears. I had so many issues with this product. The plastic knobs broke, there were computer/electronic issues, and I think the temperature gauge had to be replaced. Had I not PAID for the extra coverage I would have been beside myself.
Date published: 2020-12-11
Rated 1 out of 5 by from Heating Problems Temp isn't maintained at set temp. 18 mos. Old, didn't get the extended warranty because it should work right if it's brand new. Your product warrenty is only good for 12 months. Repair cost is now mine.
Date published: 2018-08-07
Rated 5 out of 5 by from Great Range and oven I have had this oven for sometime and it works perfectly
Date published: 2016-05-15
  • y_2021, m_4, d_13, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_50
  • loc_en_US, sid_MD00000950, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 38ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

The burner under the griddle on my double oven only lights halfway.

Asked by: Maur4053
That's not good! We're sorry to see that you've run into these issues with your range burner. We'll need to gather some additional details from you in order to see how we can best assist. Please reach out to a specialist via Twitter @LGUSSupport or via Facebook https://www.facebook.com/LGUSA/ ^CP
Answered by: ChrisPSM
Date published: 2019-12-02

What does the PF code mean on my LRG3093ST? And how do I get rid of it?

Asked by: Mv7136
We regret the trouble you have experienced with this gas range. The ‘PF’ typically denotes a Power Failure, and can usually be resolved by turning the product off and then on again. If this does not resolve the matter, then the range may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2016-11-18

My oval burner only lights half way. I have to use a lighter to light the rest. I have made sure it is clean and free of food or spills. What could possibly be causing this? What is suggested I do to fix the issue?

Asked by: Mommaof2
We regret the trouble you have experienced with this gas range. If the gas stream is deflected to where it cannot be lit with the other half of the burner, then it will likely require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2016-10-12

The grille sits too high and as a result the flame is too far away.  Even on your "super boil" setting it takes forever to boil water.  Any way to get a lower sitting grille?

Asked by: quechulo
I apologize, but no; there is only one size grille cover available for this gas range.
Answered by: NeilE
Date published: 2016-09-06

Hi the touch pad area where the start and clear/off buttons is located is not responsive. I tried unplugging unit and individual cables within panel. Where can I find a replacement control panel or have this unit servced?

Asked by: DannyRP
Hello , Thank you for your interest in LG , we would like to assist with your Touch pad and recommend calling our care line at 877-543-8325
Answered by: NeilE
Date published: 2016-06-11

After receiving the F11 error, and having a repair man come to our home, we were told that the gas valve needed to be replaced. LG no longer makes the gas valve MJX61842301. The stove is just over 4 years old and now unusable! What should we do?

Asked by: unhappyintoronto
Our offices, in the United States, do not have product information for Canada. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lg.com/ca_en/index.jsp. You may also contact our Canada offices at 1-888-542-2623.
Answered by: NeilE
Date published: 2016-04-16

my oven is not working and a message f11 apears.

Asked by: manpar
Check the MAIN GAS SHUT OFF valve or the OVEN GAS SHUT OFF valve. The oven gas shut-off valve may have accidentally been moved during cleaning or moving. Be certain that all these valves are fully active. If this does not resolve the matter, then the unit may require service. Please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2016-03-01

how could I reduce the gas pressure ?

Asked by: ruso
We appreciate your interest in this gas range and its operations. The gas pressure can generally be reduced by turning down the gas valve, which is positioned behind the range.
Answered by: NeilE
Date published: 2015-12-31
