KEY FEATURES

  • 9.4 cu. ft. Total Capacity (4.7 cu. ft. upper/lower)
  • True Convection
  • EasyClean®
  • Hidden Bake

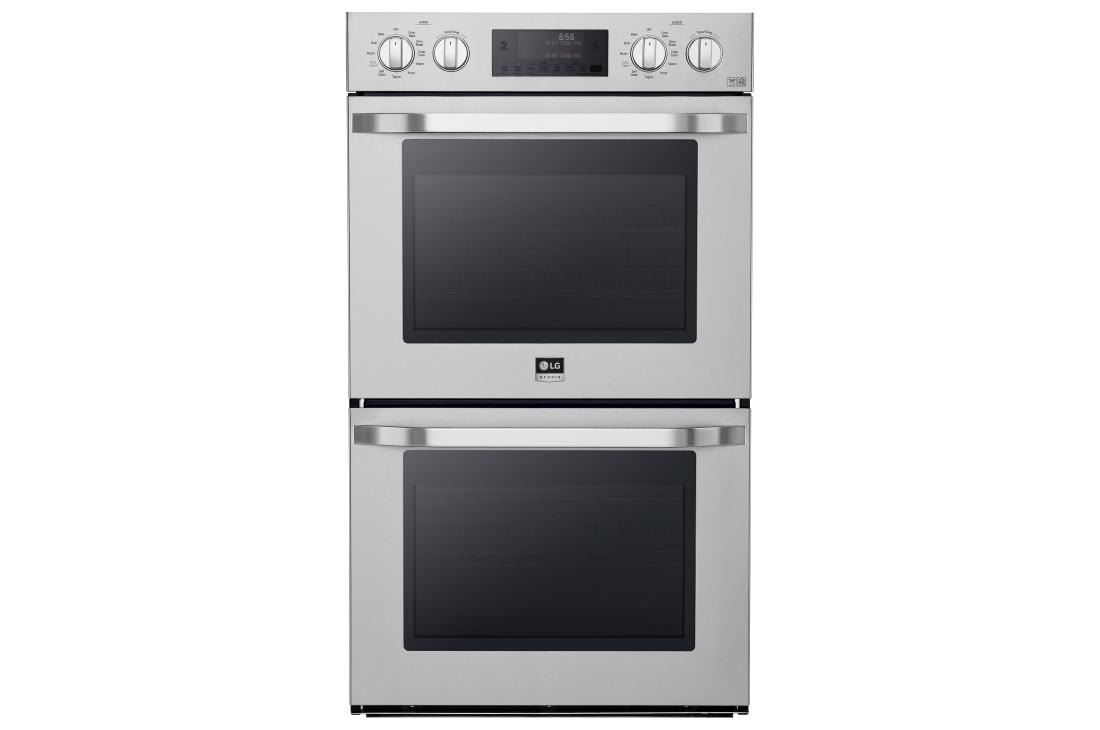

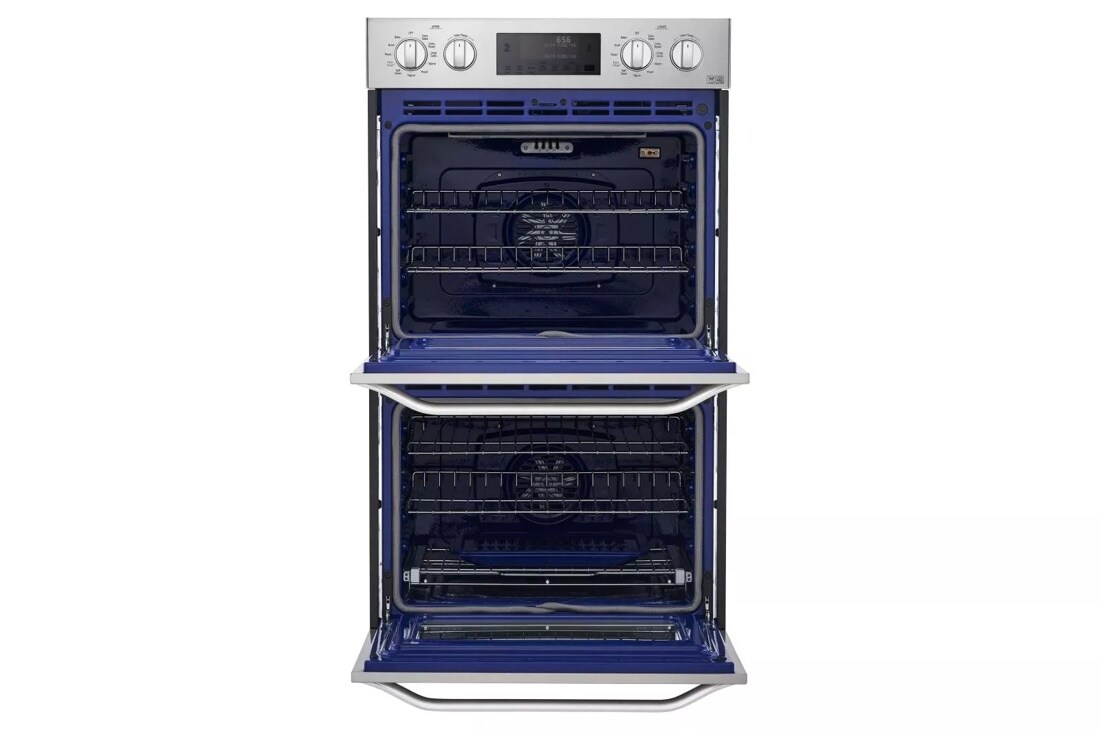

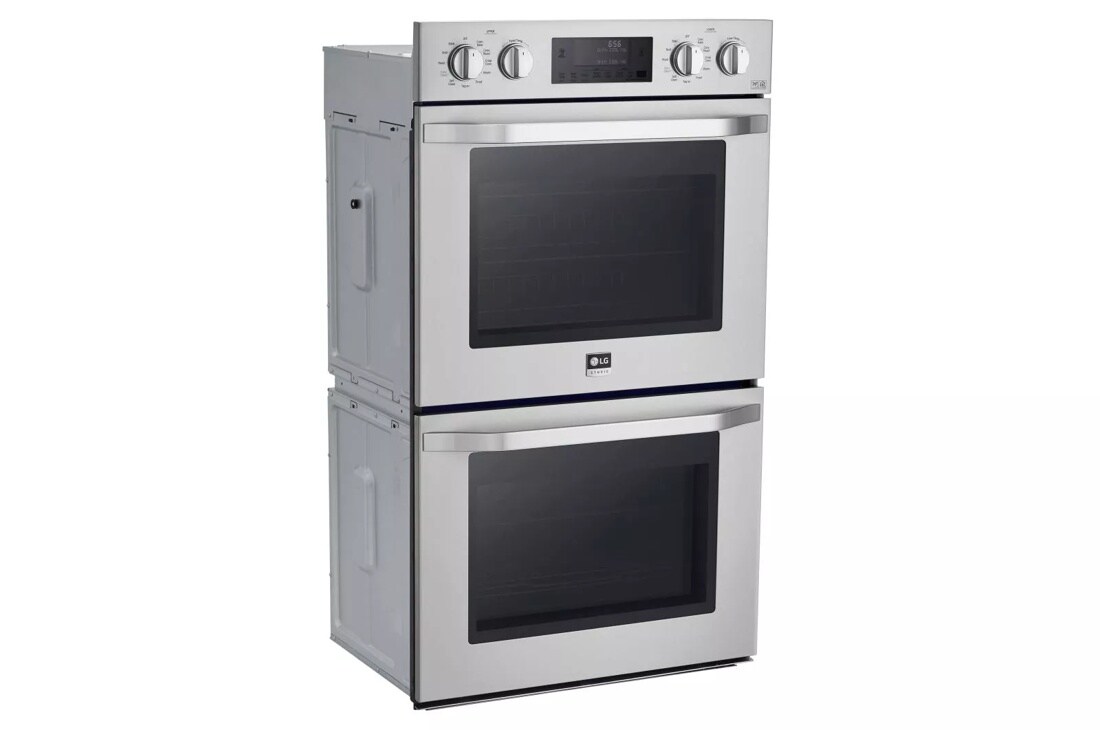

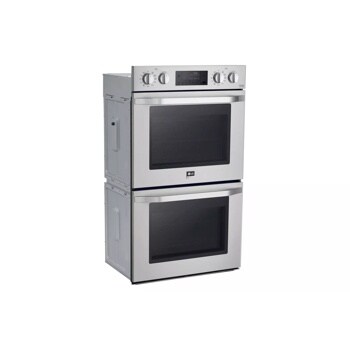

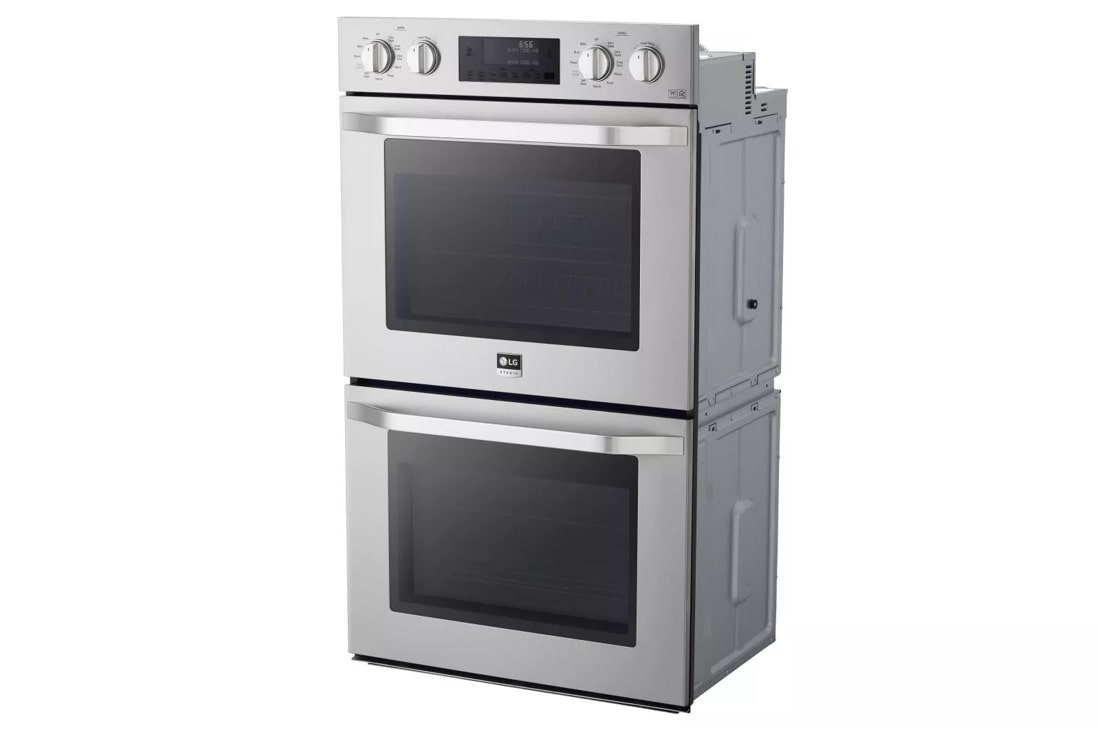

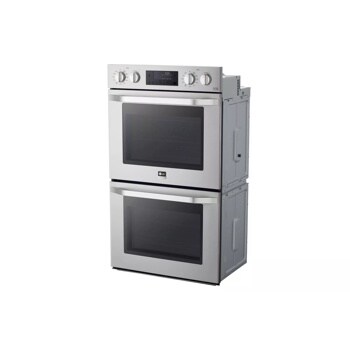

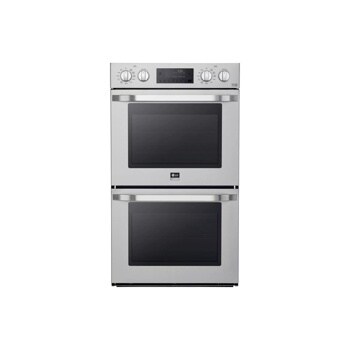

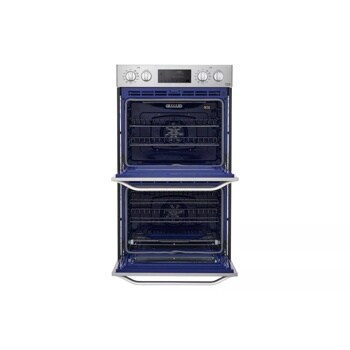

LG STUDIO 9.4 cu. ft. Double Built-In Wall Oven
Download Spec Sheet

DIMENSIONS/CLEARANCES/WEIGHT

    • Shipping Weight (lbs)
    • Approx. 137.6 kg (303bs)
    • Weight (Product)
    • Approx. 122.6 kg (270lbs)
    • Carton Dimensions (in) (W x H x D)
    • 33"(W) x 30"(D) x 57"(H)
    • Product (WxHxD)
    • 29-3/4"(W) x 52-1/16"(H) x 24-3/8"(D)
    • Cut-Out (WxHxD)
    • 28- 1/2"(W) x 51-15/16"(H) x 23-1/2"(D)
    • Stuffing Quantity (40ft High)
    • 64 units

SUMMARY

    • EasyClean®
    • Yes
    • Self + EasyClean®
    • Yes
    • Double Oven
    • Yes
    • LG STUDIO
    • Yes

CONTROLS

    • Oven
    • SmoothGlass Touch + Knob
    • Display
    • White VFD
    • Control Lock Capability
    • Yes

POWER/RATINGS

    • Electric Supply
    • 120/240 VAC,120/208 VAC
    • Max. Amp Load
    • 40.0A
    • Rating
    • 8.2 KW

WARRANTY/UPC

    • Limited Warranty
    • 2 Years Parts & Labor
    • UPC
    • 048232333206

ACCESSORIES

    • Grid
    • 1
    • Heavy Duty Rack
    • 4
    • Gliding Rack
    • 2
    • Broiler pan
    • 1
    • Meat Probe
    • 1

UPPER OVEN FEATURES

    • Broil element pass
    • 8
    • Bake element type
    • Hidden (8 pass)
    • Variable cleaning time
    • Yes (3,4,5 hrs)
    • Capacity (cu.ft)
    • 4.7
    • Interior Color
    • Blue
    • Variable broil
    • Yes( Full,Center / High,Med,Low)
    • Variable warm
    • Yes (High,Med,Low)
    • 12 hrs. shut-off
    • Yes
    • Lighting
    • 3 (Halogen Lamp - 3 dimension lighting)
    • Convection conversion
    • Yes
    • -Convection element
    • Yes (2,000 watts)
    • Proof
    • Yes
    • Self-clean
    • Yes
    • Broil element
    • 2,500 watts inner / 1,500 watts outer
    • Bake element
    • 2,500 watts
    • # of rack position
    • 5

LOWER OVEN FEATURES

    • -Convection element
    • Yes (2,000 watts)
    • Variable cleaning time
    • Yes (3,4,5 hrs)
    • Broil element pass
    • 8
    • Capacity (cu.ft)
    • 4.7
    • Interior Color
    • Blue
    • Variable broil
    • Yes( Full,Center / High,Med,Low)
    • Variable warm
    • Yes (High,Med,Low)
    • Broil element
    • 2,500 watts inner / 1,500 watts outer
    • Bake element
    • 2,500 watts
    • Bake element type
    • Hidden (8 pass)
    • 12 hrs. shut-off
    • Yes
    • Lighting
    • 3 (Halogen Lamp - 3 dimension lighting)
    • Proof
    • Yes
    • Self-clean
    • Yes
    • # of rack position
    • 5

SMART FUNCTION:

    • NFC
    • Yes

HANDLE

    • Color & Material
    • STS Finish (Aluminum)
