Discontinued
LWD3010ST

4.7(x2) cu.ft. Capacity 30” Built-in Double Wall Oven with Crisp Convection

  • Crisp Convection
  • Self Cleaning
  • SmoothTouch™ Controls
4.7(x2) cu.ft. Capacity 30” Built-in Double Wall Oven with Crisp Convection

SUMMARY

    • Oven Type
    • Double
    • Capacity
    • 4.7 cu.ft. Upper / 4.7 cu.ft. Lower
    • Dimensions (W x H x D)
    • 29 3/4" x 52 1/16" x 24 3/8"
    • Convection Bake
    • Yes
    • Convection Roast
    • Yes
    • Color / Finish
    • Stainless Steel
    • Interior Color
    • Blue
    • Self Cleaning
    • Yes
    • Auto Shut-Off
    • Yes

CONTROLS

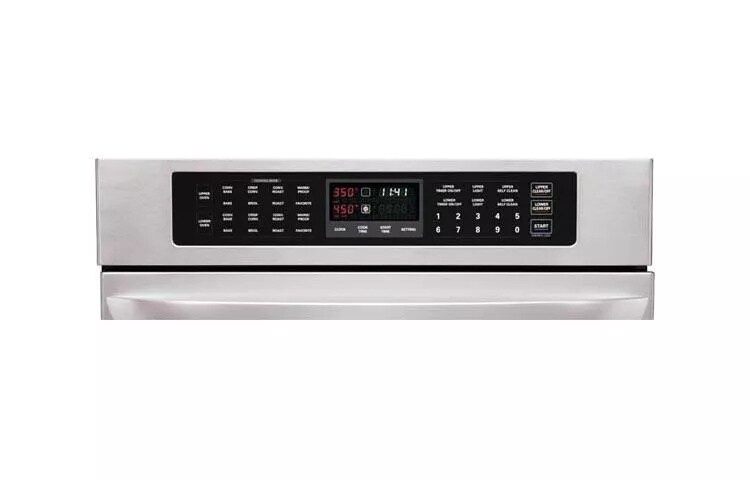

    • Display Type
    • White VFD

OVEN SPECIFICATIONS

    • Variable Broil
    • Full, Center/High, Med, Low
    • Broil Element
    • 2,500W Inner/1,500W Outer
    • Broil Element Pass
    • 8
    • Bake Element
    • 2,500W
    • Bake Element Type
    • Hidden (8 Pass)
    • No. of Racks
    • 5 Heavy Duty Racks
    • No. of Rack Positions
    • 5
    • Convection Element
    • 2500W Carbon Heater
    • Variable Warm
    • High, Med, Low
    • Specialized Cooking
    • Healthier Roast (Reduced Fat Cook) on Upper Oven Only, Crisp Convection
    • Broiler Pan
    • Yes

DIMENSIONS

    • Product (WxHxD)
    • 29 3/4" x 52 1/16" x 24 3/8"
    • Cut-Out (WxHxD)
    • 28 1/2" x 51 15/16" x 23 1/2"
    • Weight (Shipping)
    • 303 lbs.

WARRANTY/UPC

    • Limited Warranty
    • 1 Year
    • UPC
    • 048231317108

What people are saying

Rated 1 out of 5 by from Worst appliance I have ever owned. I bought this a few years ago and we don't use an oven that often, but the hinges on both top and bottom have given out and the thermal fuse blew on one and I have another thermal fault on the other. I moved the fuse from the one that had a good fuse to get the bottom working and it worked for a few months and now it stopped also. I bought an LG fridge around the same time and the compressor gave out after 7 years. Yes, within the warranty, but labor and diagnostic not included. Look elsewhere. LG should stick to consumer electronics.
Date published: 2020-05-16
Rated 5 out of 5 by from Still Going Strong We bought this double oven back in February 2016 and we still love it. It still keeps consistent temperatures. No matter what your baking, roasting or using convection we have always experienced properly cooked items. What I like the most is that it dosen't take long for the preheat. Cleaning is easy with the self clean function. Touch controls make it a snap to start what ever cooking your going to do.
Date published: 2018-07-08
Rated 5 out of 5 by from Love LG Great product all my electronics & appliances even cell are LG
Date published: 2016-11-02
  • y_2020, m_9, d_20, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_13
  • loc_en_US, sid_MD00000006, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 243ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

how much is this wall oven

Asked by: tina bean
The LG 4.7(x2) cu.ft. Capacity 30” Built-in Double Wall Oven with Crisp Convection, Model # LWD3010ST is a discontinued product and is no longer available for sale. The models that replaced it are the LSWD309BD (Black Stainless Steel), the LSWD306ST (Stainless Steel) and the LWD3063BD (Black Stainless Steel). The Suggested prices for them are shown on each of their product information pages at http://www.lg.com/us/wall-ovens. Prices may vary from one retailer to another since retailers do not always sell at the Suggested price so if you click on the 'Where to Buy' tab, a page will open up on which you can enter your zip code to get a listing of retailers within your area who carry the wall ovens and online sites and each will have a link to their websites where you can see what price they sell them for...^IFV
Answered by: LGJoel
Date published: 2017-08-25

Top oven will play music and says there is an error and to service

Asked by: JimmyGrf
We regret the trouble you have experienced with this dual oven. If this top oven states that it requires service, then it would be recommended to either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp
Answered by: NeilE
Date published: 2016-12-13

What's the amperage for 240v

Asked by: Bobby v
The LG 4.7(x2) cu.ft. Capacity 30” Built-in Double Wall Oven with Crisp Convection, Model # LWD3010ST must be installed and grounded properly by a qualified installer or service technician in accordance with local codes or, in their absence, with the latest edition of the National Electrical Code ANSI/NFPA 70. It must be supplied with the proper voltage and frequency and connected to an individual, properly grounded branch circuit protected by a circuit breaker or fuse. To determine the circuit breaker or fuse required, you have to verify its' wattage consumption on the rating plate attached to the unit and refer to a table to get the circuit breaker or fuse amperage. A double wall oven can consume up to 7,800W at 240 VAC and you would have to use a 40 Amp circuit breaker with wire gauge #8 AWG...^IFV
Answered by: LGJoel
Date published: 2016-11-02

How can I order additional racks.

Asked by: itspamo
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts.
Answered by: NeilE
Date published: 2016-07-21

This oven fan is very loud and continues to run for an extremely long time after the oven is turned off. How can this be corrected? It is embarrassing when your dinner guest can't hear over the fan. Is the only cooling vent in the front of the unit?

Asked by: Pedey
We regret the trouble you have experienced with this Dual Wall Oven. The only available vents are located in the front of the oven, as all other sides are designed to be enclosed in the cabinetry. The operations of the oven could be affected if the unit was not properly installed. If this is not the case, then the unit may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2016-03-29

Matching microwave oven/dishwasher?

I recently purchased the double wall oven, and would like the microwave and dishwasher to match as closely as possible. Suggestions as to a particular line or models? Thanks.
Asked by: Lucille
We appreciate your interest in this oven and its kitchen series. There is not a microwave model designed to exactly match this model. It is suggested to review the LMVM2033ST or the LMH2237ST, or other similar models listed on our website at http://www.lg.com/us/microwave-ovens.
Answered by: NeilE
Date published: 2016-03-25

what is the recomended height from the floor to the start of the cutout?

Asked by: vikes
We appreciate your interest in this Double Wall Oven. It is recommended to allow a minimum of 1” below the oven cut-out, to allow for overlap of the oven. These specifications are provided on page 5 of the Installation Guide that is packaged with the oven.
Answered by: NeilE
Date published: 2017-01-27

What is the lowest temperature settomg? I would like to dehydrate in my oven. Can you order glide/rollout racks for this mode?

Asked by: ovengirl
Both the upper and lower ovens on the LG 4.7(x2) cu.ft. Capacity 30” Built-in Double Wall Oven with Crisp Convection, Model # LWD3010ST can be programmed to bake at any temperature from 170°F (80°C) to 550°F (288°C). Default temperature is 350°F (177°C). The closest LG Authorized Parts Distributor to your region where you can order glide/rollout racks for this model if they are available is: Andrews Electronics 25158 Avenue Stanford Santa Clarita, CA 91355 Sales: 877-389-6384 Fax: 800-289-0301 http://lge.andrewselectronics.com...^IFV
Answered by: LGJoel
Date published: 2015-08-18
