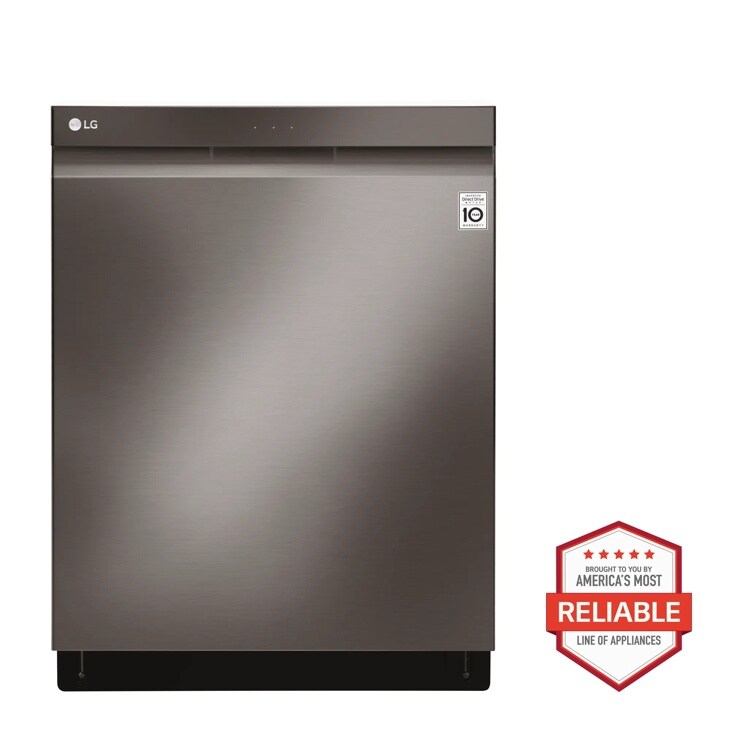

LDP6797BD
Top Control Smart wi-fi Enabled Dishwasher with QuadWash™
Black Stainless Steel
  • QuadWash™ System
  • SmartThinQ® Technology
  • LoDecibel™ Operation (44dB)
  • Height Adjustable 3rd Rack
  • Glide Rail
  • EasyRack™ Plus
Top Control Smart wi-fi Enabled Dishwasher with QuadWash™
$ 999.99
Where to Buy
Height Adjustable 3rd Rack1

Height Adjustable 3rd Rack

The height adjustable 3rd rack gives you more space for hard-to-fit items.

Smooth Operator1

Smooth Operator

Even your hardest dish loads glide in and out smoothly with the help of LG’s Glide Rail.

CAPACITY

  • Lower Rack Dish Height Limit
    12.5"
    Total Place Settings
    15
  • Upper Rack Dish Height Limit
    7.1"

DIMENSIONS/CLEARANCES/WEIGHT

  • Carton Dimensions (WxHxD)
    28" x 34.7" x 29.6"
    Unit Dimensions (WxHxD)
    23.75" x 33.6" x 24.6"
  • Depth with Door Open
    50.5"
    Product Weight (lbs)
    83.8 lbs
  • Shipping Weight with Carton (lbs)
    97.1 lbs
    Depth with Door Closed with Handle (in)
    24 5/8"

FEATURES

  • 3-Stage Filtration System
    Yes
    Anti-Bacterial Treatment (Sump, Inner / Outer filter, Drain pump case, Drain hose)
    Yes
  • Balanced Door
    Yes
    BPA-Free Nylon Coated Racks and Tines
    Yes
  • Detergent and Rinse-Aid Dispenser
    Yes
    End of Cycle Indicator
    Beeper + END Indication on Display
  • Hidden Water Heater
    Yes
    Hybrid Condensing Drying System
    Yes
  • Inverter Direct Drive Motor
    Yes
    LoDecibel™ Quiet Operation
    44 dB
  • Multi-Level (5) Water Direction
    Yes (Top Nozzle (Down), Upper Nozzle (Up/Down), Lower Nozzle (Up/Down)
    Number of Spray Arms
    3 (Top, Upper, Lower)
  • Safety Float Switch (Leaks)
    Yes
    SenseClean™ Wash System
    Yes
  • Soil (Turbidity) Sensor
    Yes
    Tub Insulation (Damping Sheet, Sound Absorbing Material (felt), Base)
    Yes
  • Vario Wash
    Yes

PERFORMANCE

  • Number of Wash Cycles
    9 (Auto, Heavy, Delicate, Normal, Turbo, Download Cycle, Machine Clean, Rinse, Express)
    Number of Wash Options
    8 (Dual Zone, Half Load, Energy Saver, High Temp, Extra Dry, Delay Start, Control Lock, Night Dry)
  • QuadWash®
    Yes

POWER RATINGS

  • CEE Tier
    1
    ENERGY STAR® Qualified
    Yes
  • Energy Use (kWh/Year)
    258 kWh
    Water Factor (WF)
    2.8

RACKS AND BASKETS

  • BPA-Free Nylon Coated Racks and Tines
    Yes
    Cup Rack
    Yes
  • Cutlery Baskets
    Yes
    EasyRack™ Plus System
    Yes
  • Fold Down Tines
    Yes (Half Fold on Upper & Lower)
    Glide Rail
    Yes (Upper)
  • Height Adjustability
    Yes
    Rack Handle
    Yes (Upper/Lower)
  • Stemware Holder
    Yes
    Height Adjustable Upper Rack
    Yes (One Touch; 3 Level)

SMARTTHINQ® SMART FEATURES

  • Cycle Complete Notification
    Yes
    Monitor Cycle Time
    Yes
  • Voice Activation
    Yes
    Works with the Google Assistant
    Yes
  • Wi-Fi
    Yes

STYLE AND DESIGN

  • Available Colors
    Matte Black Stainless Steel, Black Stainless Steel, Stainless Steel, Black, White
    Control Panel Location
    Top
  • Electronic Controls
    Hidden SmoothTouch™ Controls with LED Display
    Handle
    Flush
  • PrintProof™ Finish
    Yes (Black Stainless Steel Model Only)
    Scratch-Resistant
    Yes (Black Stainless Steel Model Only)
  • SignaLight™ Cycle Indicator Lights
    3
    Time Remaining Indicator
    Yes (LED)
  • Tub Material
    NeveRust™ Stainless Steel

SUMMARY

  • 3rd Rack
    Yes
    Control Panel
    Top Control
  • Handle Design
    Pocket Handle
    Height Adjustable 3rd Rack
    Yes
  • QuadWash®
    Yes
    SmartThinQ®
    Yes
  • Wi-Fi
    Yes

WARRANTY/UPC

  • UPC
    48231022187
    Control Board and Rack Parts
    5 Years
  • Stainless Steel Door Liner or Tub
    Lifetime
    Labor
    1 Year
  • Parts
    1 Year
    Direct Drive Motor
    10 Years
What people are saying
Rated 5 out of 5 by from Washing cycles So far I love my new dishwasher. The little rack on top for large spoons and utensils is a remarkable idea. Also, the option to wash the top half, the bottom half, or all the dishes at one time, is very convenient. sometimes you need to use what’s in there, but it’s not even near full, so you can save water & wash what you need. It’s also very quiet when running.
Date published: 2019-07-15
Rated 5 out of 5 by from Great dishwasher. Cleans and dry dishes very well Very happy with the dishwasher. Very easy to operate and the features are great also.
Date published: 2019-07-15
Rated 5 out of 5 by from Great!! I bought it 1 year ago. Quiet and clean!! I love it!!!
Date published: 2019-07-14
  • y_2019, m_7, d_16, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_622
  • loc_en_US, sid_MD05825071, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 8ms
  • REVIEWS, PRODUCT
ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

what is the part number for the upper rack on the ldp6797bd

Asked by: ddaa
The upper rack has part number MGR62422302. ^CP
Answered by: ChrisPSM
Date published: 2019-04-02

The drain hose is just inches short on my LDP6797BD. Is there an extension?

Asked by: Sgabe
Do not exceed 12 ft. (3.65 m) distance to drain. Do not connect drain lines from other devices to the dishwasher drain hose. If an extension drain hose is required, use 5/8" or 7/8" inside diameter, 2-3 ft. length hose and a coupler for connecting the two hose ends. ^CP
Answered by: ChrisPSM
Date published: 2019-03-18

Can I chose to turn off the drying cycle and let the dishes dry on their own?

Asked by: TawnyR
The Turbo cycle on the ENERGY STAR® Qualified LG Top Control Smart wi-fi Enabled Dishwasher with QuadWash™, Model # LDP6797ST does not have drying and you can select the Extra Dry and Night Dry option or another cycle for better drying. The Extra Dry option adds extra drying time to the cycle and raises the heated rinse temperature in all the cycles except for the Delicate cycle where it only adds extra drying time and does not add a high-temperature rinse. The Night dry option is designed for if you are leaving dishes overnight in the dryer after the cycle ends. This option will run the ventilation fan periodically to help vent the steam from the tub so the steam does not condense on the dishes as they dry. This option is selected by default for all cycles except the Normal cycle...^IFV
Answered by: LGJoel
Date published: 2019-03-11

Dishwasher is hooked up properly. Try to start led just flashes. no codes numbers just flash. Whats next?

Asked by: Mohe
Make sure the dishwasher is close to the cabinet as possible by raising the front legs. Had this problem with my dishwasher. Once I raised to the top of the cabinet it has worked perfectly.
Answered by: bogie1277
Date published: 2019-02-22

what is error code 0n that appears on LDP6797ST dishwasher

Asked by: RB1234
Hello, please see the link of troubleshooting steps below to assist with the issue you are having. ^AC https://www.lg.com/us/support/product-help/CT10000009-20150933422943-he
Answered by: Amber C
Date published: 2019-02-19

The control panel on my LDP6797BD dishwasher is cracked in several places can I just purchase the plastic cover the electronics appear to work OK.

Asked by: Rich14
Hello, hate to hear, sounds like you might need a technician. This may be done through our website: https://www.lg.com/us/support/repair-service/schedule-repair-continued or for a list of service centers in your area: https://www.lg.com/us/support/repair-service/find-repair-provider ^AC
Answered by: Amber C
Date published: 2019-01-11

The rinse aid dispenser door won't stay closed. Closure clip looks broken. Where can I buy a replacement door for the dispenser? Model: LDP6797ST

Asked by: Rich98031
Hello, that would require disassembling the entire door to repair. We do recommend service. This may be done through our website: https://www.lg.com/us/support/repair-service/schedule-repair-continued or for a list of service centers in your area: https://www.lg.com/us/support/repair-service/find-repair-provider ^AC
Answered by: Amber C
Date published: 2019-01-07

I can't start my dishwasher. Filled rinse agent, put in detergent pod selected power on, auto, start.....rinse aid icon flashes and will not start.  Set rinse to 3 as I have hard water....WILL NOT START! Rinse agent icon continues to flash and it is Full!

Asked by: Gramm
We regret to read about the issues that you are experiencing with your LG Top Control Smart wi-fi Enabled Dishwasher with QuadWash™, Model # LDP6797BD and apologize for any inconveniences. The dishwasher is equipped with an automatic error-monitoring system that detects and diagnoses problems at an early stage. Check to see if you have any error codes showing on the display. If the Rinse Aid light is still blinking after you have filled the rinse aid compartment, the dishwasher may need a hard reset. But before you do a hard reset, make sure that the door is closed and latched properly. Check that the Control Lock hasn't been inadvertently activated. Pressing and holding Half Load and Energy Saver simultaneously for three seconds will activate or deactivate this function. To do a rest, because the dishwasher is hardwired as opposed to being plugged into an outlet, resetting it will have to be done from the circuit breaker box or fuse box. You will need to locate the breaker that is allocated to the dishwasher and switch it off for about 15 seconds, then turn it back on again. If that does not resolve the blinking light, you will need to contact our Support Center at (800) 243-0000 for assistance with arranging for a repair service...^IFV
Answered by: LGJoel
Date published: 2019-01-03
