DLEY1201W

7.3 cu. ft. Ultra Large Capacity Dryer with Front Control Design and SteamFresh™ Cycle

KEY FEATURES

  • Ultra Large 7.3 cu. ft. Capacity

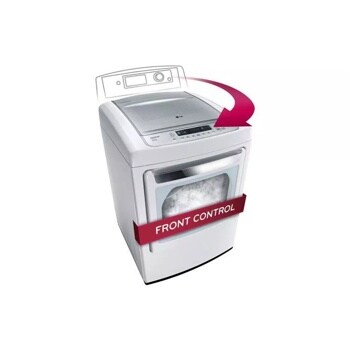

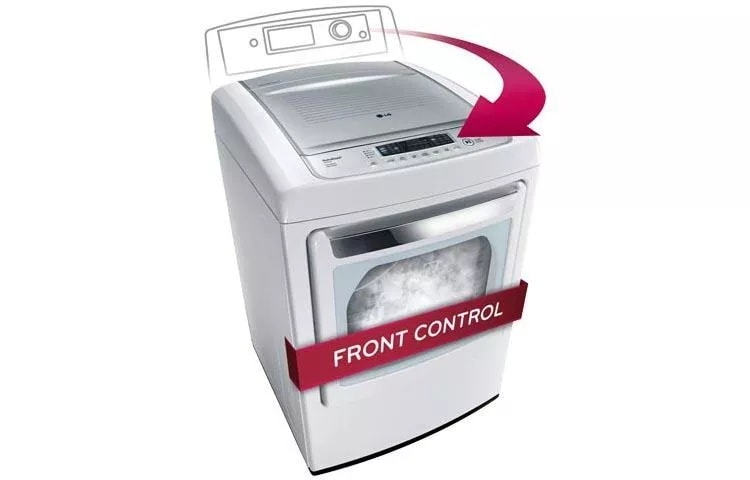

  • Front Control Design
  • SteamFresh™ Cycle
  • Smart Diagnosis™
7.3 cu. ft. Ultra Large Capacity Dryer with Front Control Design and SteamFresh™ Cycle

SUMMARY

    • Dryer Type
    • Electric
    • SteamDryer™
    • Yes

CAPACITY

    • Capacity
    • 7.3 cu. ft.

APPEARANCE

    • Design Look
    • Front Control
    • Front Electronic Control Panel with LED Display
    • Yes

DRYING PROGRAMS

    • Programs (Sensor Dry)
    • Cotton/Normal, Perm. Press/Casual, Heavy Duty, Small Load, Bulky/Bedding, Anti-Bacterial, Towels, Delicates, SteamFresh™, Wrinkle Free
    • Programs (Manual Dry)
    • Speed Dry, Air Dry
    • No. of Options
    • 7
    • Options
    • More Time, Less Time, Wrinkle Care, Custom Program, Child Lock, Damp Dry Signal, End of Cycle Signal
    • Temperature Settings
    • High, Medium High, Medium, Low, Ultra Low
    • Drying Levels
    • Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
    • Manual Dry Times
    • 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time

FABRIC CARE FEATURES

    • SteamFresh™ Cycle
    • Yes
    • Wrinkle Free Cycle
    • Yes
    • Sensor Dry
    • Yes
    • Precise Temperature Control with Variable Heater
    • Yes

CONVENIENCE FEATURES

    • LoDecibel™ Quiet Operation
    • Yes
    • SmartDiagnosis™
    • Yes
    • FlowSense™ Duct Clogging Indicator
    • Yes
    • Anti-Bacterial Cycle
    • Yes
    • Wrinkle Care Option
    • Yes
    • Remaining Time Display/Status Indicator(s)
    • Yes
    • End of Cycle Signal
    • Yes
    • Child Lock
    • Yes
    • 3 Minute Installation Check
    • Yes
    • Drum Light
    • Yes
    • Venting Option
    • 4 Way Venting
    • Leveling Legs
    • 4 Adjustable Legs
    • Reversible Door
    • Yes

MATERIALS AND FINISHES

    • Aluminized Alloy Steel Drum
    • Yes
    • Top Plate
    • Plastic
    • Cabinet
    • Painted Steel
    • Control Panel
    • Plastic
    • Chrome Edged Diamond Glass Door
    • Yes
    • Available Colors
    • White (W), Graphite Steel (V)

POWER SOURCE

    • Ratings
    • CSA Listed
    • Electrical Requirements
    • 240V, 30 Amps
    • Type
    • Electric

OPTIONS

    • Dryer Rack
    • 3750EL0001C
    • LP Conversion Kit
    • 4948EL4002B
    • Side Venting Kit
    • 3911EZ9131X

DIMENSIONS

    • Product (WxHxD)
    • 27" x 40 5/32" x 28 3/8" (50 1/4" D with door open)
    • Carton (WxHxD)
    • 29 1/2" x 43 7/10" x 31 1/4"
    • Weight (Product/Carton)
    • 121.7 lbs. / 139.6 lbs.

Warranty/UPC

    • Limited Warranty
    • 1 Year Parts and Labor
    • UPC
    • 048231013345

What people are saying

Rated 5 out of 5 by from Consistent and reliable We purchased our dyer in 2013 and it has been great
Date published: 2021-03-07
Rated 3 out of 5 by from Worked great....for 3 years I was loving my dryer until a week ago. We just had someone come out to look at it, and it turns out we need a new control panel. The dryer has only been used for 3 years in a 2 person household. For what we paid, I expected more. And the steam function has never worked properly. It just soaks the clothes.
Date published: 2018-03-10
Rated 5 out of 5 by from Good price.....Blue Ray looks sharper almost like 4K.....Easy to operate and use.
Date published: 2018-01-21
  • y_2021, m_4, d_16, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_4, tr_123
  • loc_en_US, sid_MD05036627, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 5ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Where is the wire diagram located on a LG Dryer 7.3 cu. ft. Ultra Large Capacity Dryer with Front Control Design and SteamFresh™ Cycle Model# DLEY1201W

Asked by: Nate C H
Based on the issues you are describing, it sounds like you may need a technician to check it out as we are unable to provide wiring diagrams. This may be done through our website: http://www.lg.com/us/support/repair-service/schedule-repair-us or for a list of service centers in your area: https://www.lg.com/us/support/repair-service/find-repair-provider
Answered by: ChrisPSM
Date published: 2020-03-20

My dryer turns on but produces no heat. I tested all the thermostat fuses and relays and the heating element and they are in working order. I believe it's the pcb. I bought this dryer second hand. Can you please help me in getting a new control board?

Asked by: Morgan2316
Any and all parts for the LG 7.3 cu. ft. Ultra Large Capacity Dryer with Front Control Design and SteamFresh™ Cycle, Model # DLEY1201W can be ordered from any of the three regional LG Authorized Parts Distributors located in the Western, Central and Eastern regions of the U.S. The closest one to your location is: Andrews Electronics 25158 Avenue Stanford Santa Clarita, CA 91355 Sales : 877-389-6384 Fax : 800-289-0301 http://lge.andrewselectronics.com. You can either call them for the correct part you need or you can see if you can enter the model number into the appropriate field on their site to get a listing of all the available parts for this dryer and identify the part you need from the parts listed for it...^IFV
Answered by: LGJoel
Date published: 2017-03-13

The breaker required is 30A / 240V. What is the maximum wattage this dryer draws. Thank you

Asked by: LCA3
Wattage is the product of Voltage and Amperage, so if the LG 7.3 cu. ft. Ultra Large Capacity Dryer with Front Control Design and SteamFresh™ Cycle, Model # DLEY1201W draws the full 30 amps at 240 Volts, the wattage will be 7.2 kW (7,200 Watts). Regrettably, the owner's manual does not include the wattage, however, the nameplate attached to the unit will list the units amperage draw at 240 V and you can calculate the peak wattage from that. The starting current is likely taken into account by the amperage listed on the nameplate. When the starting drive motor with the heating element is energized, the dryer may pull as much as what is listed on the nameplate. The dryer motor is rated for 240 V and the calculation of those numbers would be closer to the peak wattage used when the dryer is starting with the heating element on, so the calculation will be a conservative estimate...^IFV
Answered by: LGJoel
Date published: 2017-02-07

The lint screen broke and I am needing to get a other one. What is the product number for lint screen?

Asked by: Steakpotatoes
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for this item is: 5231EL1001C.
Answered by: NeilE
Date published: 2016-10-21

Just purchased this dryer! Pluged in have all lights and power just wont start! Does something have to be in it ?? Is it that smart or broke!!

Asked by: Scott lv nv
We regret the trouble you have experienced with this electric dryer. If nothing happens when the POWER button is pressed, then there may be a problem with either the connection of the power cord or the power supply itself, or possibly another related component. Check the connections on the power cord first. If this does not resolve the matter, then the unit may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2016-07-21

I have a 4 prong and have moved into an apartment that requires 3 prong? Is there an adapter I can buy or if I have to change the cord where can I find instructions to do it?

Asked by: aries1573
We appreciate your interest in this electric dryer. We have no adapters available, nor are aware of any, to convert a 4-prong dryer cord into a 3-prong cord. Instructions on how to remove and install a power cable are listed in the owner’s manual on pages 23-26. If there is any uncertainty, it may be recommended to obtain the assistance of a professional installer or a qualified service technician.
Answered by: NeilE
Date published: 2016-03-22

Can this dryer be transported on it'so side or back?

Asked by: Swival
We appreciate your interest in this electric dryer. It is recommended to keep this dryer upright as much as possible. If this device must be transported where it cannot stand upright, then it may be placed on its side. Never transport this dryer on its back.
Answered by: NeilE
Date published: 2016-03-11

Is this dryer stackable?

Asked by: Baci
I apologize, but no; this model has not been designed as a stackable product. The matching washer has not been configured in such a manner as to allow other devices to be mounted to it.
Answered by: NeilE
Date published: 2015-05-12
