DISCONTINUED

LHB306

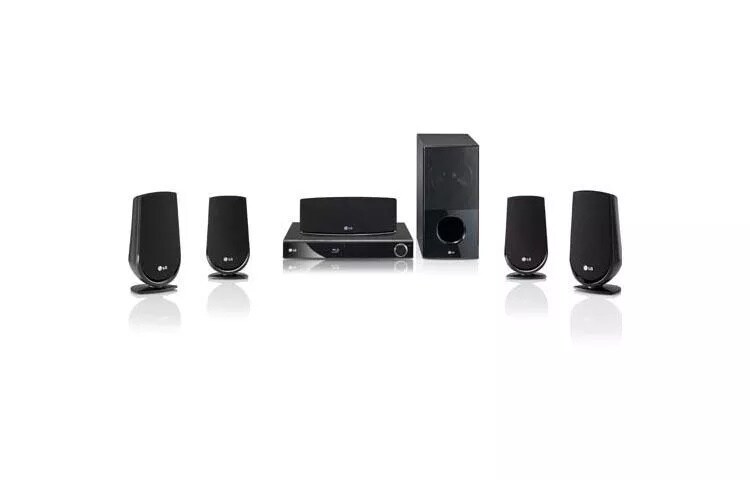

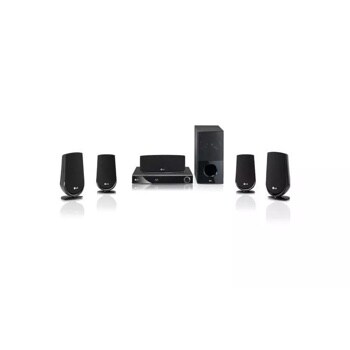

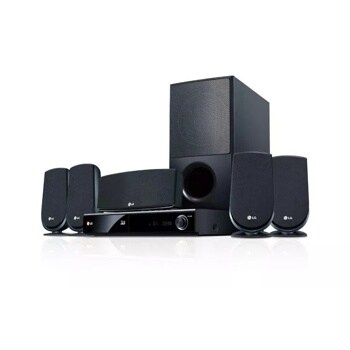

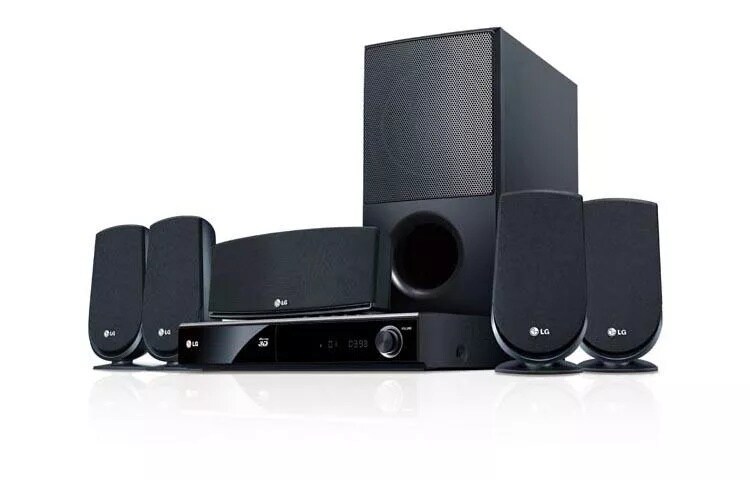

LHB306 Blu-ray Home Theater System

Name: LHB306 Blu-ray Home Theater System
Brand: LG Electronics
SKU: LHB306
Availability: Discontinued
Rating: 4.17 (6 reviews)

Key Features

All Specs

Blu-ray Disc™ 1080p Playback
dts-HD Master Audio Essentials

Compare

Features and Specs

Collapse All

SUMMARY

Disc Playback Capability

Blu-ray Disc™, BD-R/RE, DVD, DVD-R, DVD-RW

Blu-ray Support

Yes

Full HD 1080p resolution

Yes

No. of HDMI Ports

1

Disc Capacity

1

Video Content Formats

MPEG4 AVC, HP@L4.1, MPEG2, HP@ML, SMPTE VC1, AP@L3, AVCHD, DivX/DIvX HD, MKV

Surround Sound

5.1 Channel

Total Output Power

850W

SimpLink™ connectivity

Yes

Limited Waranty

1 Year Parts/90 Days Labor

CONVENIENCE FEATURES

Sleep

Yes

Screen Saver

Yes

Parental Lock

Yes

Repeat

Yes

A-B Repeat

Yes

Speaker/Woofer Level Trim

Yes

Speaker Distance (Channel Delay)

Yes

Mute

Yes

A/V Sync Delay (Audio Delay)

Yes

Scan (fwd/rev)

Yes

Skip (fwd/rev)

Yes

Slow (fwd/rev)

Yes

Test Tone

Yes

SIZE & WEIGHT

Main Unit Dimensions (WxHxD)

14.0" x 2.2" x 12.0"

Rear Speaker Dimensions (WxHxD)

4.0" x 7.5" x 3.2"

Front Speaker Dimensions (WxHxD)

4.0" x 7.5" x 3.2"

Subwoofer Dimensions (WxHxD)

7.4" x 15.0" x 12.4"

Center Speaker Dimensions (WxHxD)

9.8" x 3.9" x 3.4"

Shipping Dimensions (WxHxD)

22.3" x 15.1" x 14.2"

Main Unit Weight

20.5 lbs

Shipping Weight

29.5 lbs

PLAYABLE CONTENT FORMAT (DNLA)

MPEG1 SS

Yes

MPEG2 PS

Yes

MPEG2 TS

Yes

DivX/DivX HD

Yes

XVID

Yes

MKV

Yes

MP3

Yes

WMA

Yes

AC3

Yes

AAC

Yes

TUNER

AM/FM Tuner

Yes

FM Tuner Range (100kHz)

87.50 ~ 108.00 MHz (50kHz)

AM Tuner Range (10kHz)

520 ~ 1720kHz

Radio Tuner Presets

50

AUDIO CAPABILITIES

2 Channel Down Mix

Yes

Dolby® Digital

Yes

Dolby® Digital Plus

Yes

DTS™

Yes

DTS-HD Master Audio™ Essential

Yes

LPCM

Yes

Digital/Analog Conversion

192KHz/24bit

Signal/Noise Ratio

100+ dB

Dolby® TrueHD

Yes

DSP

Yes

AV INPUTS/OUTPUTS

Optical Digital Audio In

1

Audio L/R In

1

HDMI Out

1

FM Antenna Input

1

Ethernet/LAN (RJ-45)

1

USB 2.0

1

Speaker Out/Type

5 (Push-type)

Subwoofer Out/Type

1 (Push-type)

AMPLIFIER / SPEAKER

Output Power - Front

141W x 2

Output Power - Center

141W

Output Power - Rear

141W x 2

Output Power - Subwoofer

145W (Passive)

Center Speaker Type

Satellite

Front Speaker Types

Satellite

Rear Speaker Types

Satellite

Subwoofer Speaker Type

Passive

Total

850W

POWER

Power Requirements

AC 120 V, 60Hz

Power On Consumption (Max.)

120W

Power Off Consumption (Avg.)

0.09W

WARRANTY

Limited Warranty

1 Year Parts/90 Days Labor

VIDEO FORMAT

MPEG2, HP@ML

Yes

MPEG4 AVC, HP@L4.1

Yes

SMPTE VC1, AP@L3

Yes

AVCHD

Yes

DivX/DIvX HD

Yes

MKV

Yes

VIDEO CAPABILITIES

Digital/Analog Conversion

162MHz/12bit

NTSC Hz

60Hz

Deep Color (HDMI™)

Yes

x.v.Color (HDMI™)

Yes

Composite Output

480i

HDMI™ Output

Up to 1080p (24 & 60Hz)

SPECIAL FEATURES

Blu-ray BonusView

Yes

Blu-ray BD-Live™

Yes

Blu-ray 3D

Yes

Smart Phone LG Remote App

Yes

DISC PLAYBACK CAPABILITY

Disc Capacity

1

CD-R/RW

Yes

Blu-ray Disc

Yes

BD-R/RE

Yes

DVD

Yes

DVD-R

Yes

DVD-RW

Yes

INCLUDED ACCESSORIES

Remote Control

Universal

A/V Cable

1 (RCA Type)

FM Antenna

1
