Discontinued
LHB336

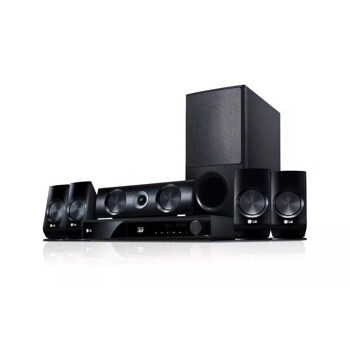

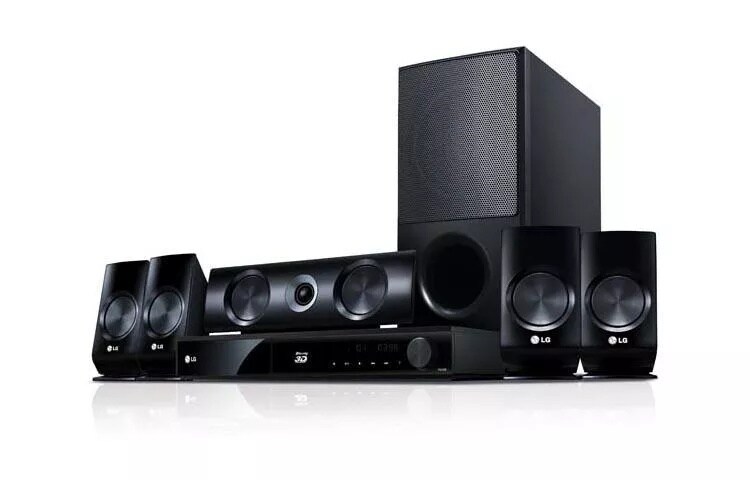

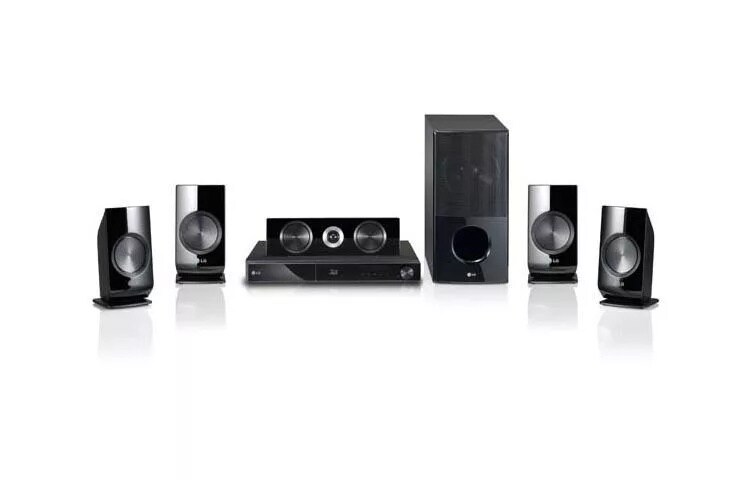

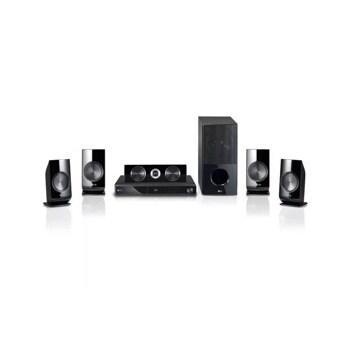

3D-Capable Blu-ray Disc™ Home Theater System with Smart TV
  • Smart TV Access
  • 3D Blu-ray Disc™ & Blu-ray Disc™ 1080p Playback
  • DLNA Certified
  • 1080p Up-scaling
3D-Capable Blu-ray Disc™ Home Theater System with Smart TV

SUMMARY

  • Blu-ray Support
    Yes
    Full HD 1080p resolution
    Yes
  • Upscale Standard DVDs
    Yes
    No. of HDMI Ports
    2 (1 In / 1 Out)
  • Disc Capacity
    1
    Disc Playback Capability
    Blu-ray Disc™, BD-R/RE, DVD-Video, DVD±R, DVD-RW, DVD+RW, Audio CD, CD-R/RW
  • Video Content Formats
    MPEG4 AVC, HP@L4.1, MPEG2, HP@ML, SMPTE VC1, AP@L3, AVCHD
    Home Link Playable Content Format
    DivX®/DivX HD, MPEG2 TS/PS, MPEG1 SS, XVID, MKV, AVI, WMA, MP3, AC3, AAC, JPEG
  • Surround Sound
    5.1 Channel
    Total Output Power
    1100W (4Ω, Peak)
  • Video, Pictures and Music via USB 2.0
    Yes
    SimpLink™ connectivity
    Yes
  • Limited Waranty
    1 Year Parts/90 Days Labor

SIZE & WEIGHT

  • Main Unit Dimensions (WxHxD)
    17.1" x 2.3" x 11.1"
    Front Speaker Dimensions (WxHxD)
    3.7" x 7.2" x 3.3"
  • Center Speaker Dimensions (WxHxD)
    12.9" x 3.9" x 3.0"
    Rear Speaker Dimensions (WxHxD)
    3.7" x 7.2" x 3.3"
  • Subwoofer Dimensions (WxHxD)
    7.5" x 15.2" x 14.1"
    Shipping Dimensions (WxHxD)
    23.8” x 15.0” x 17.1”
  • Main Unit Weight
    8.27 lbs
    Front Speakers Weight
    1.34 lbs each
  • Center Speaker Weight
    2.67 lbs
    Rear Speakers Weight
    1.34 lbs each
  • Subwoofer Weight
    11.0 lbs
    Shipping Weight
    35.3 lbs

AMPLIFIER / SPEAKER

  • Output Power - Front
    180W x 2 (4Ω, Peak)
    Output Power - Center
    180W (4Ω, Peak)
  • Output Power - Rear
    180W x 2 (4Ω, Peak)
    Output Power - Subwoofer
    200W (4Ω, Peak)
  • Center Speaker Type
    Satellite
    Front Speaker Types
    Satellite
  • Rear Speaker Types
    Satellite
    Subwoofer Speaker Type
    Passive

TUNER

  • AM/FM Tuner
    Yes
    FM Tuning Range (50kHz / 100kHz)
    87.5 ~ 108.0 MHz
  • AM Tuner Range (10kHz)
    522 ~ 1620kHz
    Radio Tuner Presets
    50

SPECIAL FEATURES

  • Blu-ray BonusView
    Yes
    Blu-ray BD-Live™
    Yes
  • Home Link (DLNA® Client)
    Yes
    MusicID®
    Yes
  • Wireless LAN
    Ready (Adapter required, sold separately)
    ARC
    Yes
  • NetCast™ Entertainment Access
    Yes
    Netflix® Instant Streaming Ready
    Yes
  • Vudu™ (Streaming)
    Yes
    YouTube™
    Yes
  • Roxio® CinemaNow
    Yes
    Pandora® Internet Radio
    Yes
  • Picasa™ Web Albums
    Yes
    AccuWeather®
    Yes

VIDEO CAPABILITIES

  • Digital/Analog Conversion
    162MHz/12bit
    NTSC Hz
    60Hz
  • Deep Color (HDMI™)
    Yes
    x.v.Color (HDMI™)
    Yes
  • Composite Output
    480i
    HDMI™ Output
    480p/720p/1080i(24/60)

AUDIO CAPABILITIES

  • Digital/Analog Conversion
    192KHz/24bit
    Signal/Noise Ratio
    100+ dB
  • LPCM
    Yes
    Dolby® Digital
    Yes
  • Dolby® Digital Plus
    Yes
    Dolby® TrueHD
    Yes
  • DTS™
    Yes
    DTS-HD Master Audio™ Essential
    Yes
  • Sound Modes (DSP)
    9 Modes

CONVENIENCE FEATURES

  • Screen Saver
    Yes
    Parental Lock
    Yes
  • Quick Loading
    Yes
    Scan (fwd/rev)
    Yes
  • Skip (fwd/rev)
    Yes
    Slow (fwd/rev)
    Yes
  • Repeat
    Yes
    A-B Repeat
    Yes
  • Speaker/Woofer Level Trim
    Yes
    Speaker Distance (Channel Delay)
    Yes
  • Test Tone
    Yes
    Mute
    Yes
  • A/V Sync Delay (Audio Delay)
    Yes
    Sleep
    Yes

FRONT AUDIO / VIDEO INPUTS & OUTPUTS

  • USB 2.0 In
    1
    iPod/iPhone Dock
    1
  • Portable Audio In
    1

REAR AUDIO / VIDEO INPUTS & OUTPUTS

  • Digital Audio In (Optical)
    2
    HDMI™ Out
    1
  • Component Video Out
    1
    Composite Video Out
    1
  • FM Antenna Input
    1
    AM Antenna Input
    1
  • LAN Port (RJ-45)
    1
    Speaker Output/Type
    5/Push-type
  • Subwoofer Output/Type
    1/Push-type

INCLUDED ACCESSORIES

  • Remote Control
    1
    Remote Control Batteries
    2 (Size AAA)
  • A/V Cable
    1
    Color-coded Speaker Cables
    5
  • FM Antenna
    1
    AM Antenna
    1
  • Nero MediaHome 4 Essentials Software CD
    1
    User Manual
    1

POWER

  • Power Requirements
    AC 120 V, 60Hz
    Power Consumption
    150W
What people are saying
Rated 4 out of 5 by from I HAD THIS FOR SEVERAL YEARS NOW,AND LOVE IT DEATH!!!!
Date published: 2017-08-21
Rated 4 out of 5 by from Great Value Great system for the money. Sound is good as well as the picture.
Date published: 2014-09-06
Rated 5 out of 5 by from Absolutly amazing producta I Love LG Sound is exceptional. Recently switched froma Sony 3d 5.1 and love my new LG matching smart ray set up and TV
Date published: 2013-10-27
  • y_2019, m_10, d_15, h_1
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_18
  • loc_en_US, sid_MD00001251, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 190ms
  • REVIEWS, PRODUCT
ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Keeps shutting off, now when turned on will only scroll please wait and nothing happens. Can’t open dvd door. Nothing.

Asked by: Jimbo388
Hello Jimbo388, sounds like you may need service. Please give us a call at 1-800-243-0000, come chat with us at http://www.lg.com/us/support/chat-and-email-information or drop us a line at Twitter at @LGUSSupport or on Facebook at @LGUSSupport when you are with the unit. ^AC
Answered by: amber
Date published: 2018-01-02

How do you install new apps to premium it has the old apps from the previous owner but won't let me add new ones

Asked by: Johnny lungs
The LHB336 has access to the following apps: NetCast Entertainment Access, Netflix, Vudu, YouTube ,Roxio CinemaNow, Pandora Internet Radio, Picasa Web Albums and AccuWeather. ^CP
Answered by: ChrisPSM
Date published: 2017-12-28

Can I get only DVD player

Asked by: Midhun Mathai
We are only able to support products in the USA. For the proper support channels, please see- www.lg.com/ae/support ^CP
Answered by: ChrisPSM
Date published: 2017-12-20

How do I change the settings from a wired connection to wireless

Asked by: Larry358
Please see page 62 of the manual located here: http://www.lg.com/us/support-product/lg-LHB336 ^AC
Answered by: amber
Date published: 2017-11-17

How can I connect my home theater so that I can Hear the tv on the speakers

Asked by: Claudia1089
We appreciate your interest in this Home Theater System. Connect this system to the TV using an OPTICAL Digital Audio cable. Once this connection has been made, follow the TV instructions on how to set the Audio Output.
Answered by: NeilE
Date published: 2017-06-28

My blu ray player hdmi in port stop working..How is this possible.It worked fine for several years.

Asked by: Shep10
We regret the inconvenience you have experienced with this Home Theater System. Despite the most exacting quality standards, product failures can sometimes occur, even when a device has been working for some time. If this device is no longer operating, then the system may require service. Please contact our Customer Interactive Center at 800-243-0000 to make proper service arrangements.
Answered by: NeilE
Date published: 2017-01-26

Can I possibly purchase the receiver only?

Asked by: Pulidoj93
The speakers and the Subwoofer for the 3D-Capable Blu-ray Disc™ Home Theater System with Smart TV, Model # LHB336 are available through LG Authorized Parts Distributors and if the main unit is available, you would need to order it from any of LG's 3 regional Authorized Parts Distributors. The closest one to you is: Andrews Electronics 25158 Avenue Stanford Santa Clarita, CA 91355 Sales : 877-389-6384 Fax : 800-289-0301 http://lge.andrewselectronics.com ...^IFV
Answered by: LGJoel
Date published: 2017-01-25

Can I purchase extra speakers for my lhb336

Asked by: Terri j 513
We appreciate your interest in this Home Theater System. While extra speakers can certainly be purchased, only a certain number of speakers can be connected to the system at any given time. For additional information, please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2016-09-15
