Discontinued
LHB536

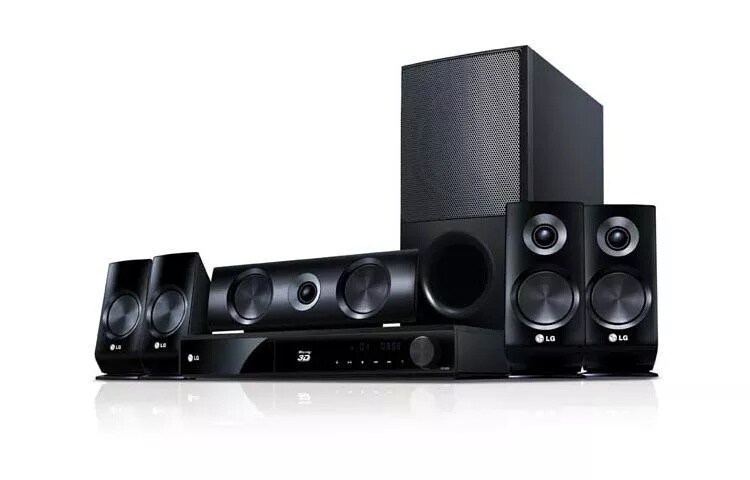

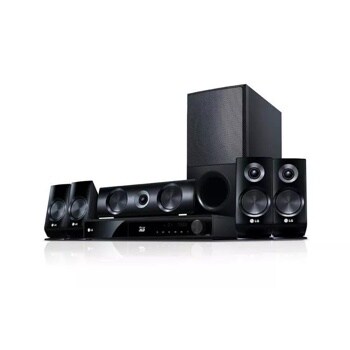

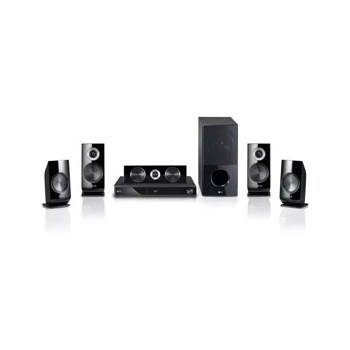

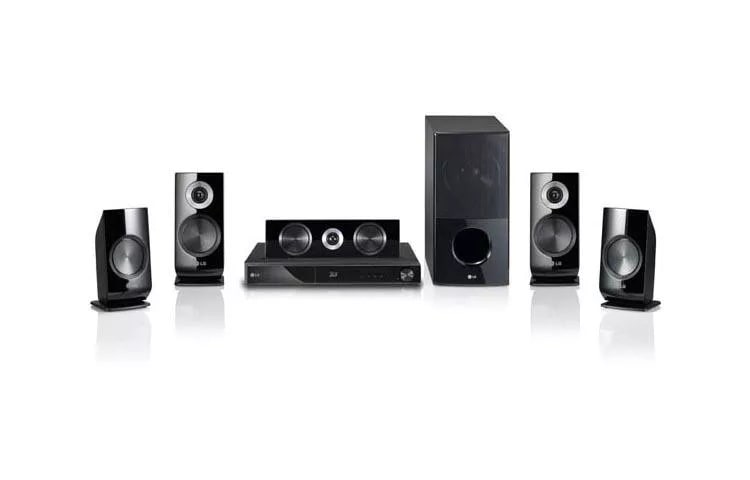

3D-Capable Blu-ray Disc™ Home Theater System with Smart TV and Wireless Connectivity
  • SMART TV including Magic Motion Remote
  • 3D Blu-ray Disc™ & Blu-ray Disc™ 1080p Playback
  • DLNA Certified
  • 1080p Up-scaling
3D-Capable Blu-ray Disc™ Home Theater System with Smart TV and Wireless Connectivity

SIZE & WEIGHT

  • Main Unit Dimensions (WxHxD)
    17.1" x 2.3" x 11.1"
    Front Speaker Dimensions (WxHxD)
    3.7" x 8.3" x 3.3"
  • Center Speaker Dimensions (WxHxD)
    12.9" x 3.9" x 3.0"
    Rear Speaker Dimensions (WxHxD)
    3.7" x 7.2" x 3.3"
  • Subwoofer Dimensions (WxHxD)
    7.5" x 15.2" x 14.1"
    Shipping Dimensions (WxHxD)
    23.9" x 14.6" x 15.2"
  • Main Unit Weight
    8.25 lbs
    Front Speakers Weight
    1.5 lbs each
  • Center Speaker Weight
    2.67 lbs
    Rear Speakers Weight
    1.34 lbs each
  • Subwoofer Weight
    11.0 lbs
    Shipping Weight
    35.3 lbs

AMPLIFIER / SPEAKER

  • Output Power - Front
    180W x 2 (4Ω, Peak)
    Output Power - Center
    180W (4Ω, Peak)
  • Output Power - Rear
    180W x 2 (4Ω, Peak)
    Output Power - Subwoofer
    200W (4Ω, Peak)
  • Total
    1100W
    Center Speaker Type
    Satellite
  • Front Speaker Types
    Dual Driver Satellite
    Rear Speaker Types
    Satellite
  • Subwoofer Speaker Type
    Passive

DISC PLAYBACK CAPABILITY

  • Disc Capacity
    1
    DVD-R
    Yes
  • Audio CD
    Yes
    DVD-RW
    Yes
  • Blu-ray Disc
    Yes (2D & 3D)
    BD-R/RE
    Yes
  • Dual Disc (DVD+CD)
    Yes (DVD Layer Only)
    DVD
    Yes
  • CD-R/RW
    Yes

VIDEO FORMAT

  • DivX/DIvX HD
    Yes
    MKV
    Yes
  • AVCHD
    Yes
    MPEG2, HP@ML
    Yes
  • SMPTE VC1, AP@L3
    Yes
    MPEG4 AVC, HP@L4.1
    Yes

AV INPUTS/OUTPUTS

  • USB 2.0
    1
    Optical Digital Audio In
    1
  • Audio L/R In
    1
    HDMI In
    2
  • HDMI Out
    1
    Component Video Out
    1
  • Component Video Out
    1
    FM Antenna Input
    1
  • AM Antenna Input
    1
    Ethernet/LAN (RJ-45)
    1
  • iPod Cradle
    1
    Subwoofer Out/Type
    1 (Push-type)
  • Speaker Out/Type
    5 (Push-type)

TUNER

  • AM/FM Tuner
    Yes
    FM Tuning Range (50kHz / 100kHz)
    87.5 ~ 108.0 MHz
  • AM Tuner Range (10kHz)
    522 ~ 1620kHz
    Radio Tuner Presets
    50

PLAYABLE CONTENT FORMAT (DNLA)

  • MPEG1 SS
    Yes
    MPEG2 PS
    Yes
  • MPEG2 TS
    Yes
    DivX/DivX HD
    Yes
  • XVID
    Yes
    MKV
    Yes
  • MP3
    Yes
    WMA
    Yes
  • AC3
    Yes
    AAC
    Yes

SPECIAL FEATURES

  • Blu-ray 3D
    Yes
    Blu-ray BonusView
    Yes
  • Blu-ray BD-Live™
    Yes
    Smart Phone LG Remote App
    Yes
  • Home Link (DLNA® Client)
    Yes
    Made for iPod
    Yes
  • MusicID®
    Yes
    Wireless LAN
    a/b/g/n (2.4GHz only)
  • Wi-Fi® Direct
    Yes
    HDMI 1.4
    Yes
  • ARC
    Yes

LG SMART TV

  • LG App Store
    Yes
    Netflix
    Yes
  • Vudu
    Yes
    CinemaNow
    Yes
  • YouTube
    Yes
    Pandora
    Yes
  • Picasa
    Yes
    AccuWeather
    Yes

VIDEO CAPABILITIES

  • Digital/Analog Conversion
    162MHz/12bit
    NTSC Hz
    60Hz
  • Deep Color (HDMI™)
    Yes
    x.v.Color (HDMI™)
    Yes
  • Composite Output
    480i
    Component Output
    Up to 1080i
  • HDMI™ Output
    Up to 1080p (24 & 60Hz)

AUDIO CAPABILITIES

  • Digital/Analog Conversion
    192KHz/24bit
    Signal/Noise Ratio
    100+ dB
  • LPCM
    Yes
    2 Channel Down Mix
    Yes
  • Dolby® Digital
    Yes
    Dolby® Digital Plus
    Yes
  • Dolby® TrueHD
    Yes
    DTS™
    Yes
  • DTS-HD Master Audio™ Essential
    Yes
    DSP
    11 Modes

CONVENIENCE FEATURES

  • Screen Saver
    Yes
    Parental Lock
    Yes
  • Instant Booting
    Yes
    Scan (fwd/rev)
    Yes
  • Skip (fwd/rev)
    Yes
    Slow (fwd/rev)
    Yes
  • Repeat
    Yes
    A-B Repeat
    Yes
  • Speaker/Woofer Level Trim
    Yes
    Speaker Distance (Channel Delay)
    Yes
  • Test Tone
    Yes
    Mute
    Yes
  • A/V Sync Delay (Audio Delay)
    Yes
    Sleep/Clock/Alarm
    Yes

POWER

  • Power Requirements
    AC 120 V, 60Hz
    Power On Consumption (Max.)
    150W
  • Power Off Consumption (Avg.)
    1.4W

WARRANTY

  • Limited Warranty
    1 Year Parts/90 Days Labor
What people are saying
Rated 5 out of 5 by from ABSOLUTELY ASTOUNDING FLAWLESS A-1 CATS MEOW Has far exceeded any and all of my expectations!!!
Date published: 2016-03-05
Rated 5 out of 5 by from A great blend of features and style I am very pleased with my purchase. I love the dnla and online features - playing music from my home network on a great sounding system rocks! LG Smart TV apps are good too.
Date published: 2012-05-03
Rated 5 out of 5 by from Incredible sound This unit has a great sound. It also is easy to hookup and has great features.
Date published: 2011-10-26
  • y_2019, m_9, d_17, h_7
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_4
  • loc_en_US, sid_MD00000057, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 229ms
  • REVIEWS, PRODUCT
ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Can you put a amp to boost it louder? It's not near as loud as I wanted

Asked by: Jt likesitloud
I apologize, but no; this system already provides all the amplification for which it was designed to support. Additional amplification can result in damage to the system and is not recommended.
Answered by: NeilE
Date published: 2017-03-03

System won't play back from a desktop computer. Is there a setting that i need to change?

Asked by: Tac34
We regret the inconvenience you have experienced with this Home Theater System. To determine any settings adjustments which might be necessary, it would be important to know specifically which settings are already in use. Please contact our Customer Interactive Center at 800-243-0000 for assistance in this matter.
Answered by: NeilE
Date published: 2017-01-24

LG/ LHB536

NEED TO BUY REMOTE... HOW MUCH AND HOW DO I ORDER??? PLEASE LET ME KNOW....THANK YOU.
Asked by: ANGELA4U
Accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for the Remote Control is AKB73275501.
Answered by: NeilE
Date published: 2013-10-22

how do i hool up my wireless speakers

we did the steps 1-6 and nothing is working now !!! so i need some help
Asked by: lilmama
We regret the inconvenience you have experienced with this Home Theater System. According to our records, this model is not configured for wireless speakers. If this is an incorrect model number or some other error, please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2013-10-22

Why don't I have sound from rear speakers?

Just purchased LHB536 on Saturday. I had store delivery & set up and I do not have any rear speaker sounds in TV mode. I do have sound when using DVD.
Asked by: Martini
The symptom you have described is likely normal operation. Many television broadcasts send out a STEREO sound signal, which will naturally fill the front left and right speakers, as this is the configuration of how the TV would play the audio without the home theater system. Make sure that the TV is configured to output all its audio signals, and check on the audio configuration of what is being played on the TV. If it should be more than STEREO sound, then additional troubleshooting may be necessary. Please contact our Customer Interactive Center at 800-243-0000 for more assistance in this matter.
Answered by: NeilE
Date published: 2013-10-22

The LHB536 auto Turn off

when i turn on the LG LHB 536 . it show please wait then Ipod in,after that it turn off itself
Asked by: Doragon
Our offices, in the United States, do not have any product information for Viet Nam. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lg.com/vn/support/contact/support-here-to-help.jsp.
Answered by: NeilE
Date published: 2013-10-22

What features am i open to?

I currently have the 47LD520 tv, the LHB536 home theater system and the LG Thrill Optimus 3D P925 cellphone. Could you give me some info / advice on how i could fully utilize these items? For eg what apps i might b able to use to control the tv or home theater system or maybe use these items in a wireless media server?
Asked by: Neuklass
We appreciate your interest in these products. The LHB536 will not be capable of utilizing Apps from your phone. It is designed to utilize Apps made available to Home Theater Systems through the LG Apps Store for AV equipment.
Answered by: NeilE
Date published: 2013-10-22

Why this product LHB576 discontinued?

I am owning LHB976 and plan to return becuase no space to keep th front speaker. I am interested in LHB576 and would like to know why this discontinued. Thanks
Asked by: somu
We regret your displeasure with the LHB976 Home Theater System. The only reason that the LHB536 system was discontinued is that it is being replaced by updated products. Our currently available models can be reviewed on our website at http://www.lg.com/us/home-theater-systems.
Answered by: NeilE
Date published: 2013-10-22
