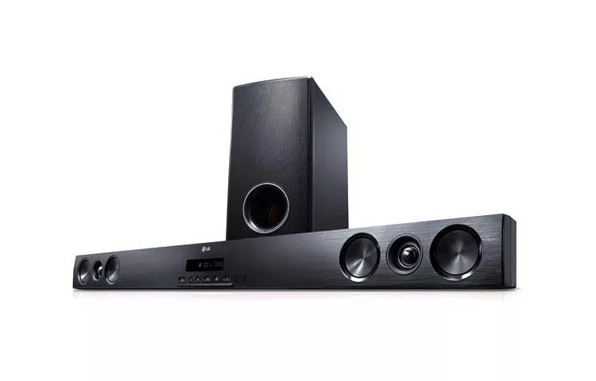

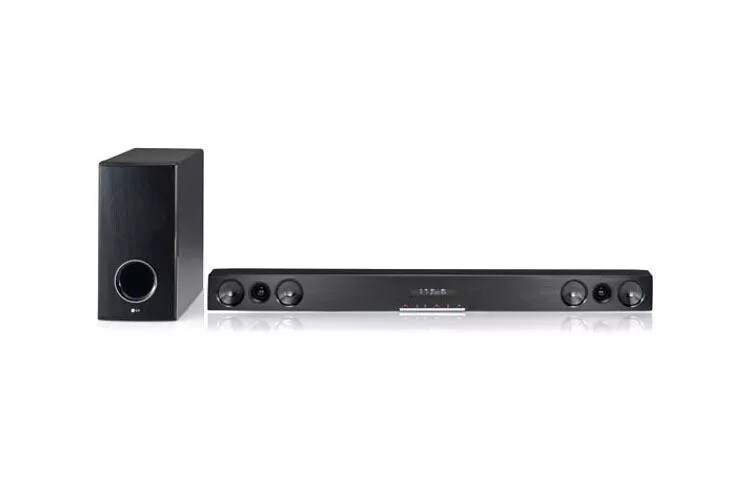

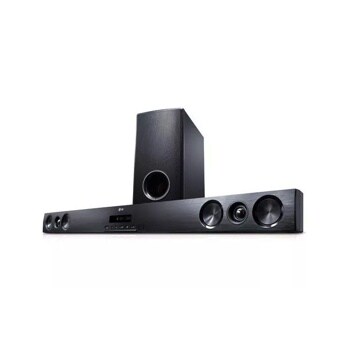

LSB316

Sound Bar with Wireless Subwoofer and Bluetooth® connectivity

KEY FEATURES

  • Bluetooth® Streaming
  • Wireless Subwoofer
  • Silk Dome Speaker Technology
  • 280W 2.1 Ch Virtual Surround Sound
Sound Bar with Wireless Subwoofer and Bluetooth® connectivity

SIZE & WEIGHT

    • Main Unit Dimensions (WxHxD)
    • 39.4" x 3.2" x 2.0"
    • Subwoofer Dimensions (WxHxD)
    • 7.7" x 15.4" x 12.5"
    • Shipping Dimensions (WxHxD)
    • 41.2" x 20.5" x 10.9"
    • Main Unit Weight
    • 20.3 lbs
    • Subwoofer Weight
    • TBD
    • Shipping Weight
    • 31.1 lbs

AMPLIFIER / SPEAKER

    • Speaker Type
    • Speaker Sound Bar
    • Output Power
    • 140W (70W x 2)

AV INPUTS/OUTPUTS

    • Optical Digital Audio In
    • 2
    • Portable Audio Input
    • 1
    • Subwoofer Output
    • Wireless Subwoofer

FILE SHARING PLAYABLE CONTENT FORMAT

    • MP3
    • Yes
    • WMA
    • Yes

AUDIO CAPABILITIES

    • Digital/Analog Conversion
    • 192KHz/24bit
    • Signal/Noise Ratio
    • 100+ dB
    • LPCM
    • Yes
    • 2 Channel Down Mix
    • Yes
    • Dolby® Digital
    • Yes
    • Dolby® Digital Plus
    • Yes
    • Dolby® TrueHD
    • Yes
    • DTS™
    • Yes
    • DTS-HD Master Audio™ Essential
    • Yes
    • DSP
    • 9 Modes

CONVENIENCE FEATURES

    • Slow (fwd/rev)
    • Yes
    • Mute
    • Yes
    • A/V Sync Delay (Audio Delay)
    • Yes
    • Sleep
    • Yes

INCLUDED ACCESSORIES

    • Remote Control
    • Universal
    • Customer Registration Card
    • 1
    • Optical Cable
    • 1
    • User Manual
    • 1

POWER

    • System
    • AC 120V, 60Hz
    • Power On Consumption (Max.)
    • 30W
    • Power Off Consumption (Avg.)
    • 0.5W

WARRANTY

    • Limited Warranty
    • 1 Year Parts/90 Days Labor

What people are saying

Rated 5 out of 5 by from GREAT SOUND TRULY RECOMMEND IF YOU WISH TO HAVE A GREAT SOUND IN A COMPACT SYSTEM. I WAS MUCH SUPRISED AT THE OUTPUT OF THE SPEAKERS AND SUB WOOFER. BEST OF ALL IT IS BLUETOOTH CAPABLE AND YOU CAN PLACE THE WOOFER IN ANY AREA OR CORNER OF THE ROOM. PRICE WAS VERY REASONABLE FOR SYSTEM QUALITY
Date published: 2014-04-11
Rated 5 out of 5 by from Great sound quality I purchased the 43" 3D TV and didn't realize that with the speakers in the rear, you don't get very good sound. I went on-line and researched a surround system #which I really didn't want# and came across this sound bar. I went back to Best Buy and purchased it the next day. The set up was surprisingly easy #and even if you get stuck, the Customer Service staff at LG are tremendous#. The sound is fantastic.........OK, not movie theater fantastic, but for a TV room you can change the type of sound you want and, in may cases, it actually sounds like surround. I love it and would definitely recommend it to anybody who needs to have speakers in front of them. It looks sleek and great on the mantle under the TV and is light, one wire connection, effective and priced right!!
Date published: 2013-03-12
Rated 4 out of 5 by from Love the Bluetooth capabilities Looked for about a week to fine the perfect Sound Bar that fit all my requirements. Was amazed at the quality of the LG Sound Bar with the wireless sub woofer. Easy to set up and the sound is awesome. LOVE IT!
Date published: 2013-03-07
  • y_2021, m_4, d_9, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_19
  • loc_en_US, sid_MD00000391, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 23ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Does LG have compatible rear speakers for LSB316 SOUNDBAR. My sound bar works great and I don't want to buy a new one. I would like to expand the audio experience with what I have.

Asked by: Bobzob
apologize, but no; this system has not been designed to add any additional speakers. There are no output ports on this device.
Answered by: ChrisPSM
Date published: 2019-08-09

how much do they cost

Asked by: bigsky0325
The 2011 LG Speaker Sound Bar, Model # LSB316 is a discontinued product and is no longer available for sale...^IFV
Answered by: LGJoel
Date published: 2017-09-14

My sound bar and the wireless subwoofer doesnt conect i follow the instruction and doesnt work

Asked by: Hector latino
We regret the inconvenience you have experienced with this Audio System. If the instructions are not allowing the connection between the speaker and the subwoofer, then then device will likely require service. Please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2016-06-17

When I cut my sound bar on it does not say Bluetooth ready. How do I fix this?

Asked by: Timeaster
We regret the inconvenience you have experienced with this Sound Bar system. Press the INPUT button on the remote control until BT is made available. If this does not resolve the matter, please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2016-02-29

I have lost the wall mounting plate for lsb316 sound bar

Asked by: Wayne63
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for this Wall Bracket is MAZ62836401.
Answered by: NeilE
Date published: 2016-02-25

the powercord on the subwoofer got cut while I was moving im having trouble locateing the part number to order a new one

Asked by: j0nathan
Accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for this Power Cord is EAD60816718.
Answered by: NeilE
Date published: 2017-01-27

I have a LSB316 sound bar & 39Ln53000 LED TV

I want to be able to shut off the sound bar when I shut off my Cable Co. remote and have it turn on again when I turn on the TV
Asked by: myserve123
All codes to be used for programming the Universal remote control will be located in the setup instructions for the Controller. If you have experienced trouble in locating codes for LG, you may also try using Zenith or Goldstar codes, as some of these coincide with LG frequencies.
Answered by: NeilE
Date published: 2014-07-15

I need to get a new wall mount for my LG LSB316. What is the stock number for this item and does MCM carry it? Thanks!

Asked by: Alee
Accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for the Mounting Bracket is MAZ62836401.
Answered by: NeilE
Date published: 2014-07-03
