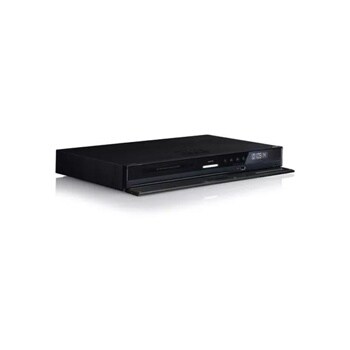

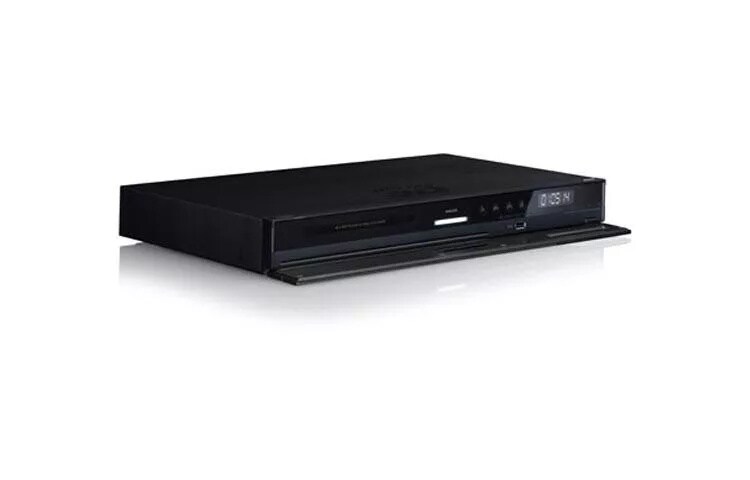

BD690

3D-Capable Blu-ray Disc™ Player with Smart TV and 250GB storage

3D-Capable Blu-ray Disc™ Player with Smart TV and 250GB storage

VIDEO FEATURES

    • Digital/Analog Conversion
    • 162MHz/12bit
    • NTSC Hz
    • 60Hz
    • Deep Color (HDMI™)
    • Yes
    • Deep Color (HDMI™ 1.4a)
    • Yes
    • Composite Output
    • 480i
    • Component Output
    • Up to 1080i
    • HDMI™ Output
    • Up to 1080p (24 & 60Hz)

AV INPUTS/OUTPUTS

    • Digital Out (Optical)
    • 1
    • Composite Video Out
    • 1
    • HDMI™ Out
    • 1
    • Audio L/R Out
    • 1
    • Component Video Out
    • 1
    • Digital Out (Coaxial)
    • 1
    • LAN Port (RJ-45)
    • 1

DIMENSIONS / WEIGHT

    • Unit Dimensions (W x H x D)
    • 16.9" x 2.3" x 9.8"
    • Shipping Dimensions (W x H x D)
    • 19.8" x 4.7" x 14.0"
    • Unit Weight
    • 6.6 lbs
    • Shipping Weight
    • 9.3 lbs

AUDIO CAPABILITIES

    • Digital/Analog Conversion
    • 192KHz/24bit
    • LPCM
    • Yes
    • Dolby® Digital
    • Yes
    • Dolby® Digital Plus
    • Yes
    • Dolby® TrueHD
    • Yes
    • Dolby® Digital 2 ch Down Mix
    • Yes
    • DTS™
    • Yes
    • DTS-HD Master Audio™
    • Yes
    • Dynamic Range
    • Yes
    • Dynamic Range Contol On/Off
    • Yes

SUMMARY

    • 3D Blu-ray Disc Playback
    • Yes
    • Wi-Fi Connectivity
    • Yes
    • NetCast™ Entertainment Access
    • Yes
    • Internet Services
    • Netflix®, Vudu™, YouTube™ and Roxio® CinemaNow
    • Blu-ray Support
    • Yes
    • Full HD 1080p resolution
    • Yes
    • USB 2.0 connectivity
    • Yes
    • No. of HDMI Ports
    • 1
    • Express Reaction Startup
    • Yes
    • Disc Capacity
    • 1
    • Disc Playback Capability
    • Blu-ray™ Disc, BD-R/RE, DVD, DVD±R/RW, Audio CD, CD-R/RW
    • Video Content Format
    • DivX®/DivX HD, MPEG4 AVC, HP@L4.1, MPEG2, HP@ML, SMPTE VC1, AP@L3, MPEG2, HP@ML, AVCHD, MKV
    • Home Link Playable Content Format
    • DivX®/DivX HD, MPEG2 TS/PS, MPEG1 SS, XVID, MKV, AVI, WMA, MP3, AC3, AAC, JPEG, PNG
    • SimpLink™ connectivity
    • Yes
    • Limited Waranty
    • 1 Year Parts/90 Days Labor
    • Menu Language
    • English/Spanish/French

SPECIAL FEATURES

    • LG App Store
    • Yes
    • Netflix®
    • Yes
    • Vudu™
    • Yes
    • CinemaNow
    • Yes
    • YouTube™
    • Yes
    • Pandora
    • Yes
    • Picasa
    • Yes
    • AccuWeather®
    • Yes
    • MusicID®
    • Yes
    • Blu-ray BonusView
    • Yes
    • Blu-ray BD Live
    • Yes
    • DLNA
    • Yes
    • Screen Saver Mode
    • Yes
    • Zoom
    • Yes
    • Marker/Search
    • Yes
    • Resume Play
    • Yes
    • Lock (Parental Control)
    • Yes
    • Search (Fwd/Rev)
    • Yes
    • Repeat
    • Yes
    • Repeat A-B
    • Yes

WIRELESS LAN (INTERNAL ANTENNA)

    • Wireless Networking Access
    • Yes
    • Wi-Fi® Certified
    • 802.11b/g/n (2.4GHz band only)

HARD DISC DRIVE

    • Storage Capacity*
    • 250GB

CONVENIENCE FEATURES

    • Parental Lock
    • Yes
    • Bookmark Search
    • Yes
    • Resume
    • Yes
    • Chapter Skip (Fwd/Rev)
    • Yes
    • Repeat Play
    • Yes
    • MP3 ID3 Tag Support
    • Yes

ACCESSORIES / BOX CONTENTS

    • Remote Control
    • 1 (Universal)
    • Batteries
    • 2 (Size AAA)
    • Quick Start Guide
    • 1 (English)
    • Customer Registration Card
    • 1 (English)
    • A/V Cable
    • 1 (RCA Type)

POWER

    • Power Requirements
    • AC 120V, 60Hz
    • Power Consumption
    • 19.86W

What people are saying

Rated 1 out of 5 by from Opportunity for Bitterness The other reviewer spelled it out pretty well. This unit is one of the worst pieces of technology that I've ever owned.....and that's saying something.
Date published: 2015-03-23
Rated 1 out of 5 by from GREAT TV STAND I BOUGHT THE BD690 AS A UPGRADE, HAVING A RC897T I THOUGHT LG WAS THE WAY TO GO, THE PRICE WAS HIGH,THE REMOTE DOES NOT ALWAYS WORK,STREAMING SOMETIMES IMPOSSIBLE, CANT RECORD TO THE 250 GIG HARDDRIVE. A 6TH GRADER WOULD HAVE DONE A BETTER JOB PROGRAMING IT. LG SHOULD HAVE RECALLED THIS JUST TO SAVE THEIR NAME.
Date published: 2014-08-06
Rated 2 out of 5 by from not to sure about this blue ray player after 2 years it needs fixed??? don't think I will buy lg again
Date published: 2014-03-28
  • y_2020, m_10, d_29, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_13
  • loc_en_US, sid_MD00001306, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 229ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

The front panel has been broken off, if there a place online I can purchase parts?

Asked by: kewlchicc
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts.
Answered by: NeilE
Date published: 2017-04-04

When Playing a movie located on the hard drive it shows in a split screen. How do I resolve this. It is hook up to an LG 3d tv; have tried to adjust from TV but still the same thing.

Asked by: Medina1
We regret the inconvenience you have experienced with this BluRay player. We would be more than happy to troubleshoot this matter with you. Please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2016-11-01

Is the hdd locked to the device once initialized and formatted?

Asked by: ddonnie03
We are not clear on your inquiry with regards to the HDD being "locked to the device once initialized and formatted" on the LG 3D-Capable Blu-ray Disc™ Player with Smart TV and 250GB storage, Model # BD690. The 250GB HDD is built-in on this unit and does not need to be initialized and formatted as its already set up to be used with the unit...^IFV
Answered by: LGJoel
Date published: 2016-10-20

The BD690 fails to install downloaded updates

The BD690 will download the update, but the update fails to install. How can I update the software from a disk or flash drive.
Asked by: RangerT244
We regret the inconvenience you have experienced with this BluRay player and its automatic updates. A copy of the update file can be downloaded from our website at http://www.lg.com/us/support-product/lg-BD690#. Installation instructions are available in the same location.
Answered by: NeilE
Date published: 2013-10-22

Where can I find parts to the BD690?

Asked by: Henry
All parts and accessories can be purchased through our parts distributors: Encompass Parts 866-779-7906 http://www.encompassparts.com/lgconsumer MCM Electronics 800-824-9491 http://www.mcmelectronics.com/lgparts Andrews Electronics 800-274-4666 http://lge.andrewselectronics.com
Answered by: GlennM
Date published: 2013-10-22

Does it have support for 240V?

Seems like the device only supports 120V. I need to know whether this supports 240V (UK) as well when I'm travelling abroad. If not supported, what's the cost for an adapter?
Asked by: Pola
Please contact LG's Customer Service team at www.lgusa.com/support for assistance.
Answered by: LGJoel
Date published: 2013-10-22

Can I load VHS movies onto the hard drive

On an LG BD690 w/ 250 gb hard drive, can I hook up a VHS player to the unit and store the VHS movie onto the hard drive? Or can I do it by routing the VHS player through a receiver into the BD690? Is it even possible to store movies on the hard drive?
Asked by: DaPhist
You can copy video, music, and photo files onto the HDD either through disc, usb, or network device.
Answered by: LGJoel
Date published: 2013-10-22

how do i get hulu plus

Asked by: louplumero
Be sure you are connected with an ARC capable HDMI cord to the HDMI (ARC) connector on the TV. Turn ARC on in the TV settings, access your hoome network and you should be able to see the menu's from the Player on the TV screen. It's easier to sign up for Hulu on the web and let it find your set through the software.
Answered by: Capnflyboy
Date published: 2013-10-22
