Discontinued
LTCS24223B

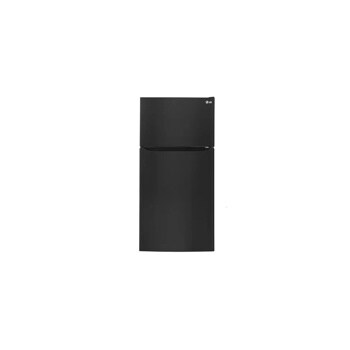

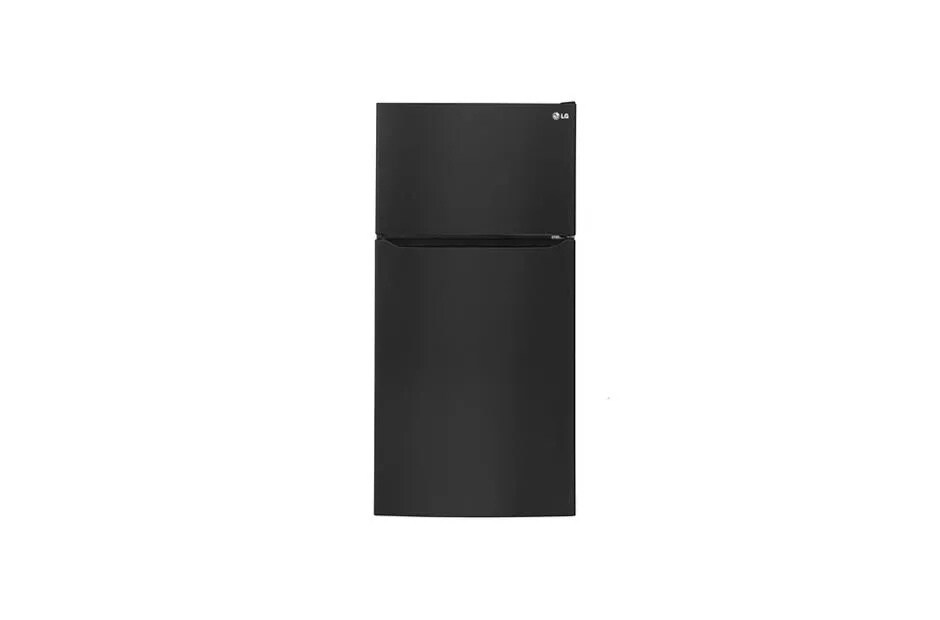

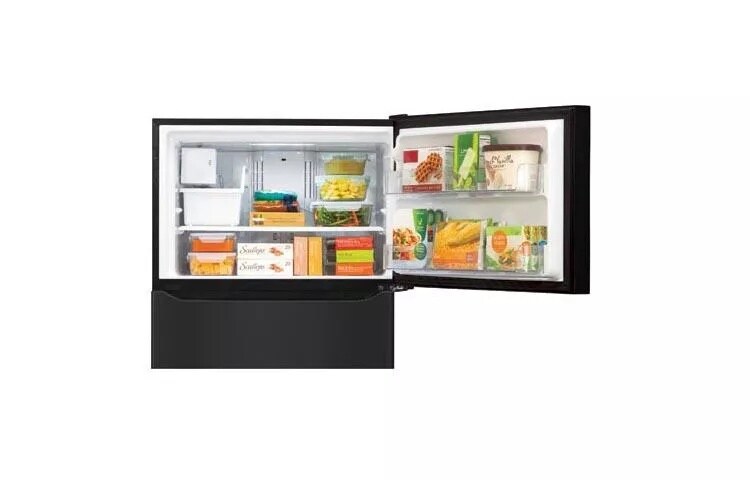

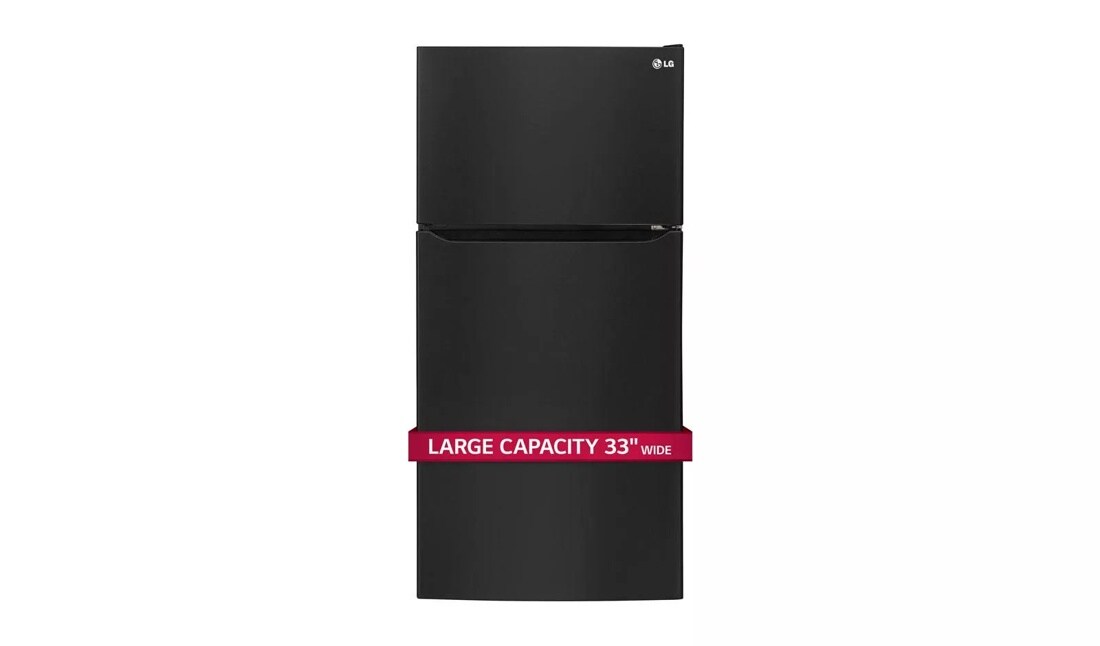

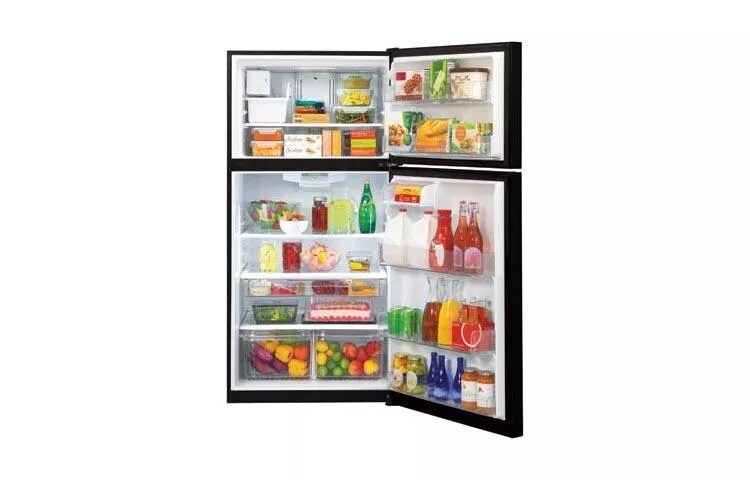

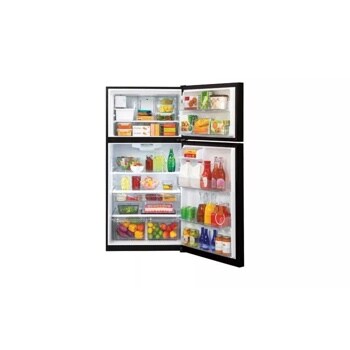

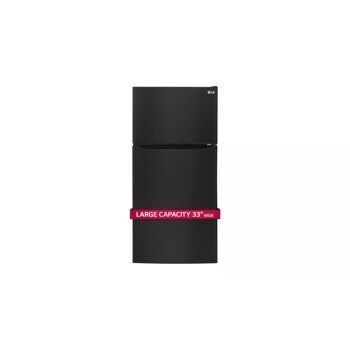

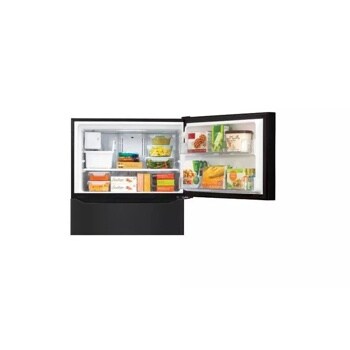

24 cu. ft. Top Mount Refrigerator

  • 24 cu. ft. Capacity
  • Contoured Doors with Pocket Handles
  • Full Width Pantry Drawer
  • Factory Installed Ice Maker
24 cu. ft. Top Mount Refrigerator

SUMMARY

    • Door Type
    • Top Mount Freezer

CAPACITY

    • Refrigerator
    • 17.60 cu. ft.
    • Freezer
    • 6.2 cu. ft.
    • Total
    • 23.8 cu. ft.

FEATURES

    • ENERGY STAR® Qualified
    • Yes (501 kWh/Year)
    • Temperature Sensors
    • Yes
    • Temperature Controls
    • Electronic
    • LoDecibel™ Quiet Operation
    • Yes
    • Freezer Door Type
    • Top Swing Door
    • Display
    • Internal Membrane / Green LED

REFRIGERATOR

    • No. of Shelves
    • 2 Full
    • Shelf Construction
    • Tempered Glass
    • Crisper Bins
    • 2 Humidity Crispers
    • Full Width Pantry Drawer
    • Yes
    • Gallon Storage
    • 2 Gallons
    • Refrigerator Light
    • Premium LED
    • Daily Ice Production
    • 3.7 lbs
    • Ice Storage Capacity
    • 5.5 lbs
    • Multi-Air Flow Cooling
    • Yes
    • Temperature Sensors
    • 4
    • Compressor Type
    • Inverter
    • Full Snack Tray/2 Bottle Guides
    • Yes

REFRIGERATOR DOOR

    • Dairy Bin
    • 1
    • No. of Door Bins
    • 3 (2 Gallon Sized)
    • Tall Item Retainer
    • Yes

FREEZER

    • Ice Maker
    • Yes
    • Ice Bin
    • Yes
    • No. of Shelves
    • 1
    • Shelf Construction
    • Tempered Glass
    • Freezer Light
    • Premium LED
    • No. of Door Bins/Shelves
    • 2
    • Auto Defrost
    • Yes

MATERIALS AND FINISHES

    • Contour Door
    • Yes
    • Reversible Doors
    • Yes
    • Surface
    • Coated Metal, Stainless Steel
    • Back
    • Flush & Metal Cover Over Mechanical Parts
    • Available Colors
    • Stainless Steel (S), Smooth White (W), Smooth Black (B)

SPECIFICATIONS

    • Dimensions (W case x H top of hinge x D with handles)
    • 32 3/4" x 68 1/2" x 33 3/8"
    • Depth including Door
    • 33 3/8"
    • Depth without Door
    • 29"
    • Depth (Total with Door Open)
    • 63"
    • Height to Top of Case
    • 67 7/8"
    • Height to Top of Door Hinge
    • 68 1/2"
    • Width
    • 32 3/4"
    • Installation Clearance
    • 2"
    • Weight (Unit/Carton)
    • 224 lbs./248 lbs.
    • Carton Dimensions (WxHxD)
    • 34 4/5" x 71 3/7" x 38 1/7"

RATINGS

    • Amps
    • 20 Amp
    • Requirements
    • 120V, 60Hz, 15 Amp
    • UL Listed
    • Yes
    • Energy Consumption
    • 438kWh

WARRANTY

    • Limited Warranty
    • 1 Year Parts and Labor, 5 Years on the Sealed System (Parts & Labor), 5 Years on the Compressor (Parts & Labor), 6-10 Years on Linear Compressor (Parts Only)
    • UPC
    • 048231786577

What people are saying

Rated 5 out of 5 by from great Ts much roomer than the one I had. The wide door shelves are plus for holding gallons of milk or juice. It did not come with a place for you to store egg.
Date published: 2020-03-12
Rated 5 out of 5 by from Cools great in all areas! LED lights are nice.... i've had this for about 3 weeks now and it is the most quiet fridge ever! - my older one was a 2008 and was loud new. this one is like a dream!! so quiet - i have an open den and small home and i can watch tv, nap, etc., without hearing a loud compressor. Very nice large capacity in freezer w/plenty of room for the icemaker - very pleased w/this model.
Date published: 2020-01-31
Rated 5 out of 5 by from Great 2nd refrigerator Love our LG refrigerator! We use it as our 2nd refrigerator and it holds a lot of food!!
Date published: 2019-10-11
  • y_2020, m_9, d_26, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_107
  • loc_en_US, sid_MD05130502, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 6ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

If we are only using the ice maker occasionally can we just shut it off or is it necessary to pull the refrigerator out so we can shut off the water. Would like to just shut it off the ice maker without having to shut off the water ?

Asked by: bobbee25
Hello, you can leave the water turned on unless you are leaving the unit for long periods of time for safety reasons. ^AC
Answered by: Amber C
Date published: 2018-09-14

I changed the door openings ... hency factory seal was broken. Was told to use vaseline on the gaskets on all 4 corners ... do I not need to use vaseline all along the entire length of the doors and along top and bottom.

Asked by: Helen F
After changing doors, make sure that the corners of the Door Gaskets are not folded over. To ensure a good seal, apply a small amount of silicon grease on the corners of gaskets. The owner's manual does not say the entire length needs to be greased to ensure a proper seal. ^CP
Answered by: ChrisPSM
Date published: 2018-04-26

after the ice maker is hooked up, how long does it take to start making ice?

Asked by: bobcat lisa
We appreciate your interest in this refrigerator and its features. The ice will start to be made between 12 and 24 hours after turning on your refrigerator.
Answered by: NeilE
Date published: 2017-09-19

How do I get my fridge charged up fridge doesn't stay cold and freezer doesn't freeze things I have a ltc24223b

Asked by: Jermaine Barnett
We apologize about the issue you are having with the refrigerator. If the unit doesn't stay cold, it may require service. We recommend contacting a qualified service technician. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp
Answered by: NeilE
Date published: 2017-08-24

How do i adjust the temperature settings on my lg refridgerator?

Asked by: Jenibelle
We appreciate your interest in this refrigerator. The temperature settings are on loop control. Continue pressing the REFRIGERATOR button until it reaches its lowest setting. Press it again, and the setting should jump to its HIGHEST setting. The same would work for the FREEZER.
Answered by: NeilE
Date published: 2017-03-29

Can the freezer work and the bottom stop working?

Asked by: Debbie61
We regret the trouble you have experienced with this refrigerator. As both compartments run on the same compressor system, it is most likely that ventilation is being blocked in one of the 2 compartments, restricting the air flow. If this is not the case, then the refrigerator will likely require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2016-05-10

I have the 24c and the door is like fiber glass is it possible to get scratches out the door and the side panel of the refrigerator

Asked by: Ebony carr
We regret the trouble you have experienced with this television. Scratches can generally be corrected by touch-up paint. Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders and pricing information, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts.
Answered by: NeilE
Date published: 2016-03-03

Its been 33 hours now and still no ice has been made. What do i need to do? The Led light is still in the middle.

Model: LTCS24223B
Asked by: Twoods107
We regret the trouble you have experienced with this refrigerator. Check to ensure the water is flowing properly. Check the temperature of the freezer to make sure it is able to freeze. If these are both operating properly, and there is still no ice, then the unit may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2015-10-18
