7.3 cu.ft. Ultra Large Capacity Electric SteamDryer™ with TrueSteam™ Technology

7.3 cu.ft. Ultra Large Capacity Electric SteamDryer™ with TrueSteam™ Technology

DLEX5680W

7.3 cu.ft. Ultra Large Capacity Electric SteamDryer™ with TrueSteam™ Technology

All Spec

TYPE

Front Loader

Yes

Design Look

Rear Control

Intelligent Electronic Controls with Dual LED Display

Yes

Touch Buttons

Yes

Dial-A-Cycle™

Yes

Capacity

7.3 cu.ft.

Dry Linen Capacity

>10.2 kg

DRYING PROGRAMS

14 Programs

Sensor Dry: Cotton/Normal, Perm. Press/Casual, Heavy Duty, Bulky Bedding, Delicates, Anti-Bacterial, Towels, Small Load, Sports Wear, SteamFresh™, SteamSanitary™ | Manual Dry: Speed Dry, Air Dry, Freshen Up

10 Options

More Time, Less Time, Wrinkle Care, Custom Program, Child Lock, ReduceStatic™, EasyIron™, Damp Dry Signal, End of Cycle Signal, Rack Dry

5 Temperature Settings

High, Medium High, Medium, Low, Ultra Low

5 Drying Levels

Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry

Dry Times

60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time

FABRIC CARE FEATURES

SteamFresh™ Cycle

Yes

SteamSanitary™ Cycle

Yes

ReduceStatic™ Option

Yes

EasyIron™ Option

Yes

Sensor Dry

Yes

Precise Temperature Control and Variable Heater

Yes

CONVENIENCE FEATURES

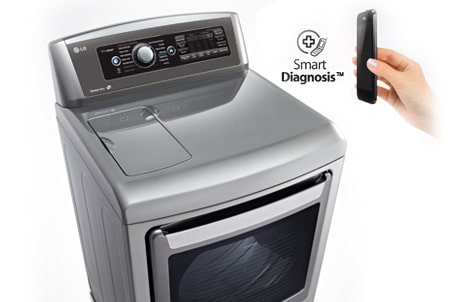

SmartDiagnosis™

Yes

FlowSense™ Duct Clogging Indicator

Yes

Anti-Bacterial Cycle

Yes

Wrinkle Care Option

Yes

Remaining Time Display/Status Indicator(s)

Yes

End of Cycle Signal

Yes

Child Lock

Yes

Drying Rack

Yes

Drum Light

Yes

Reversible Door

Yes

Leveling Legs

4 Adjustable Legs

Venting Option

4 Way Venting (Electric) / 3 Way Venting (Gas)

3 Minute Installation Check

Yes

LoDecibel™ Quiet Operation

Yes

MATERIALS AND FINISHES

NeveRust™ Stainless Steel Drum

Yes

Cabinet

Painted Steel

Control Panel

Plastic

Top Cover

Painted

Diamond Glass Door

Dark Gray Tint

Door Rim

Chrome

Available Colours

Graphite Steel (V), White (W)

POWER SOURCE

Ratings

UL Listed

Electrical Requirements

240V, 30 Amps

Type

DLEX5680V

DIMENSIONS

Product (WxHxD)

27" x 45 3/8" x 28 3/8" (50 1/4" D with door open)

Carton (WxHxD)

29 1/2" x 48" x 31 1/4"

Weight (Product/Carton)

134 lbs./155 lbs.

UPC CODES

DLEX5680V

772454 061592

DLGX5681V

772454 061608

WARRANTY

Warranty

1 year parts and labour
