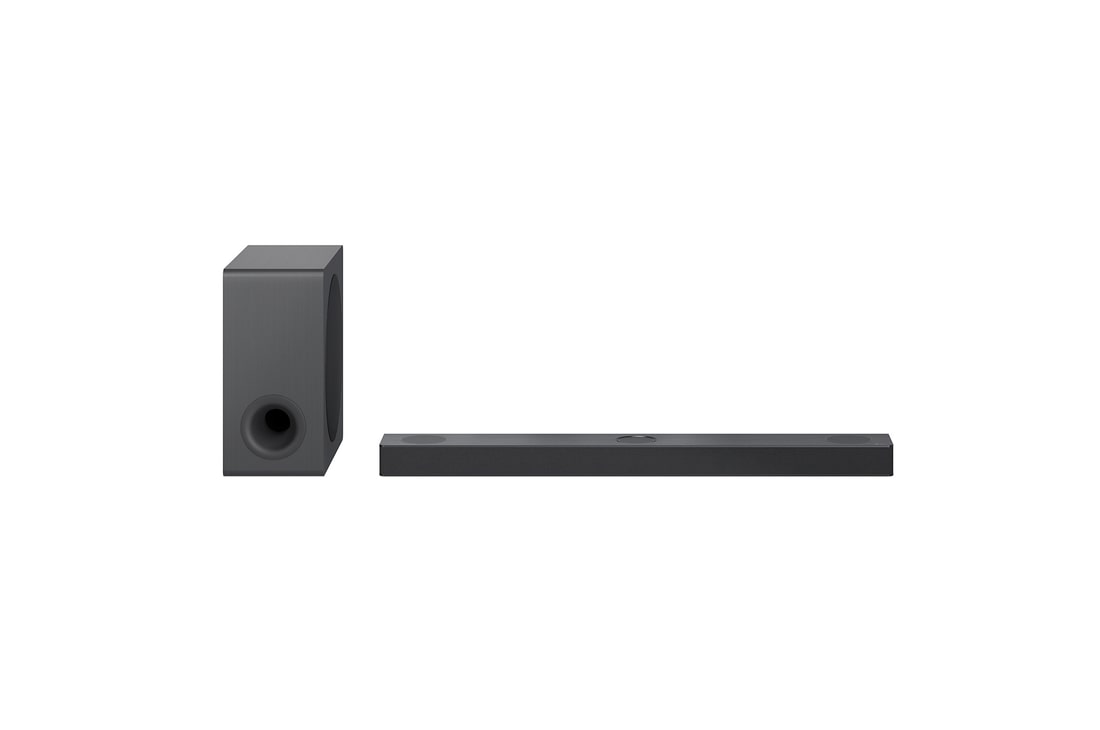

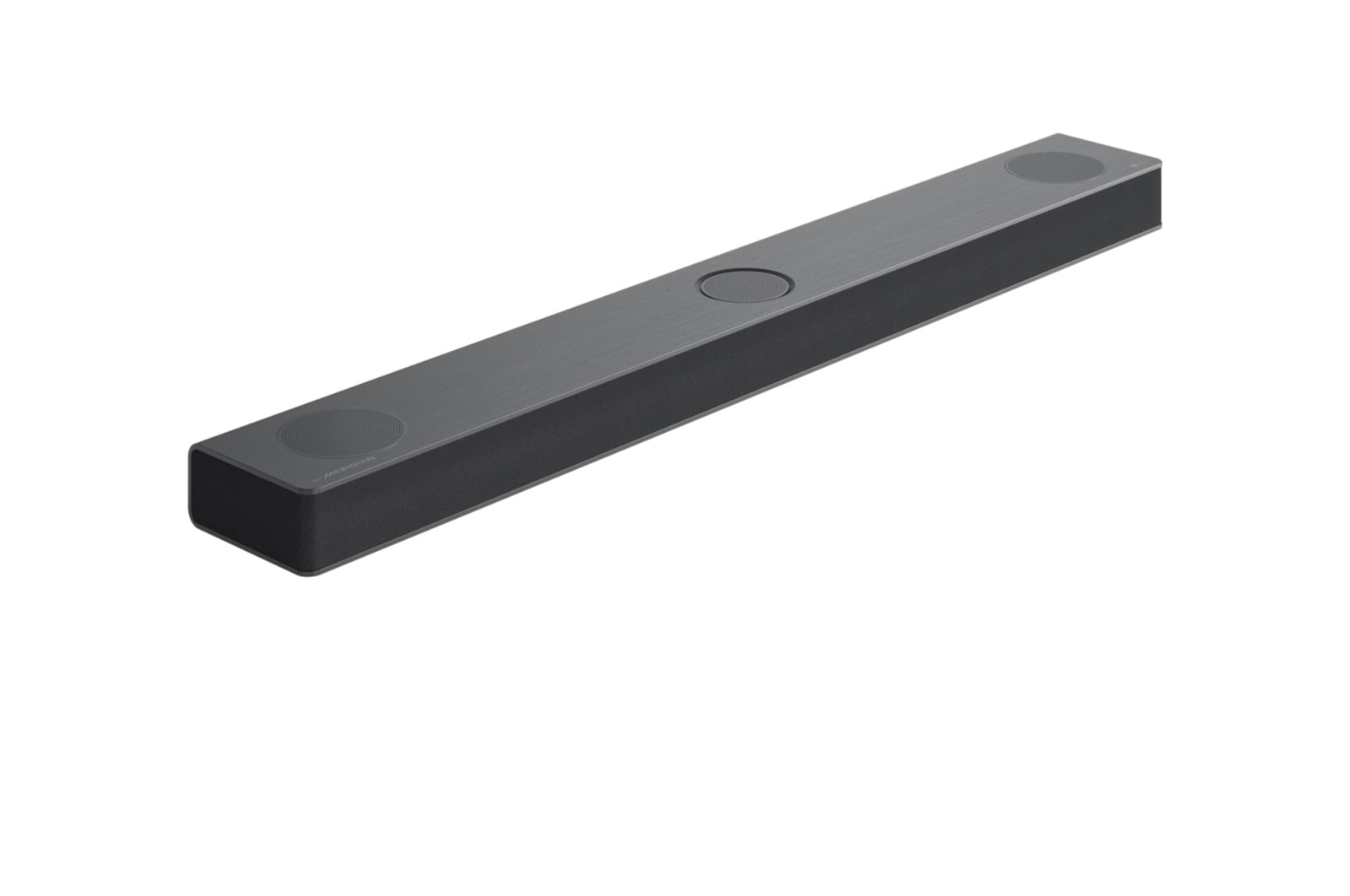

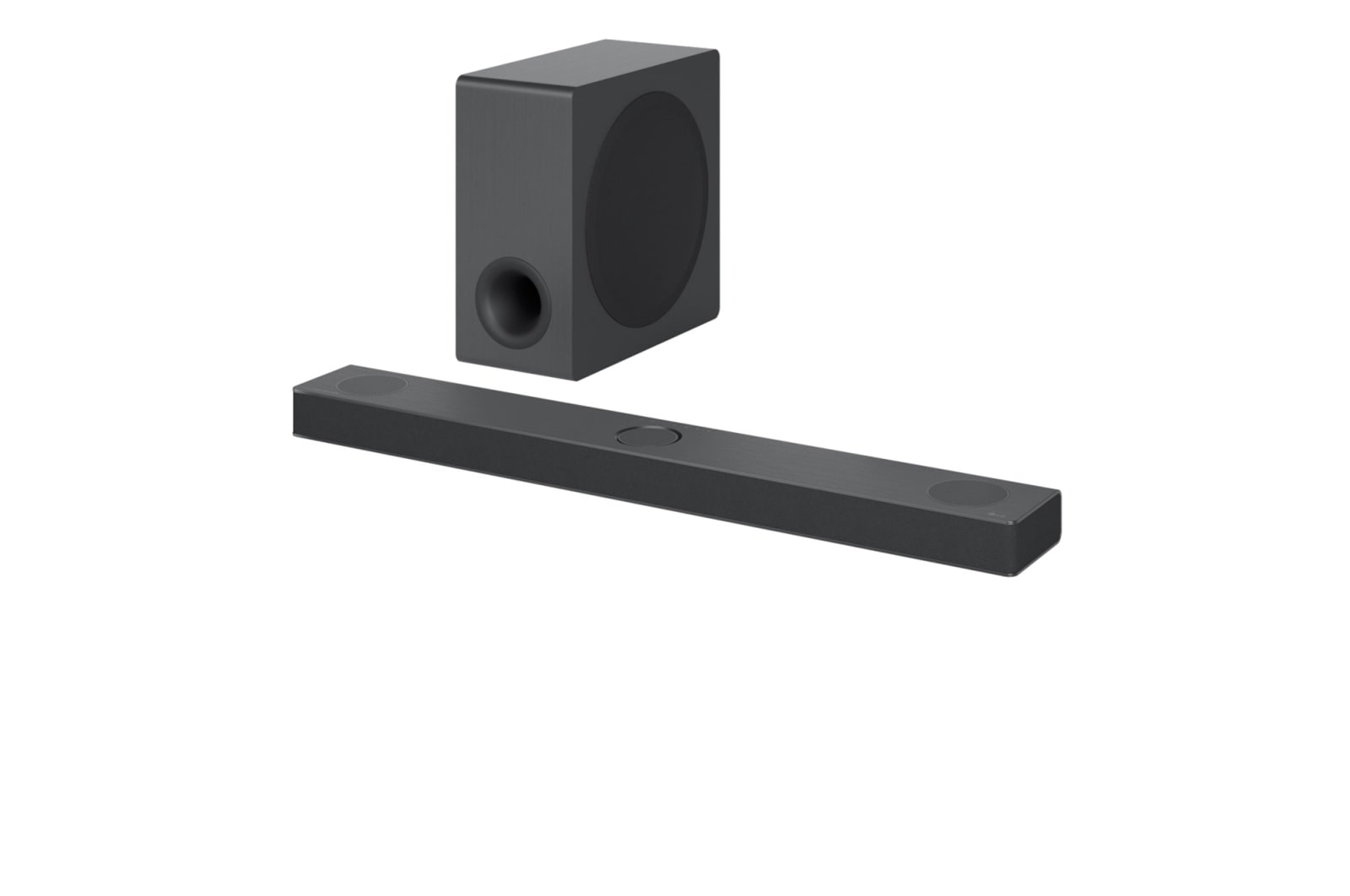

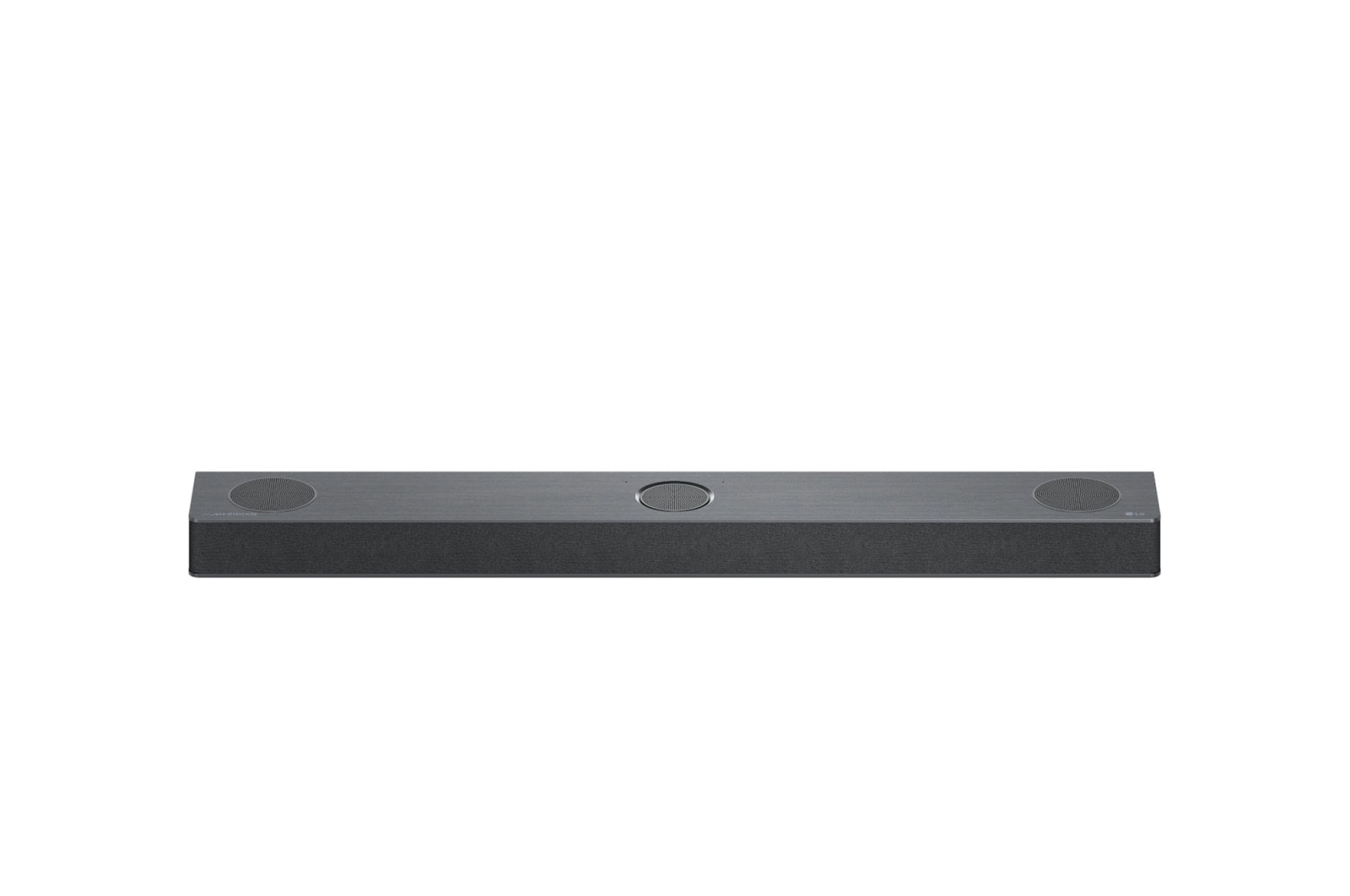

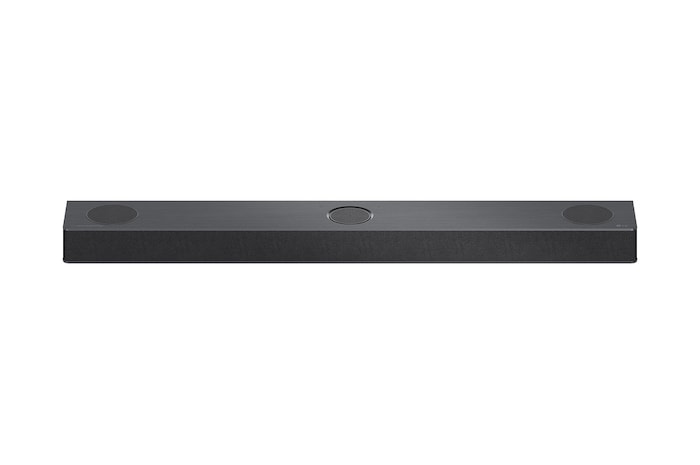

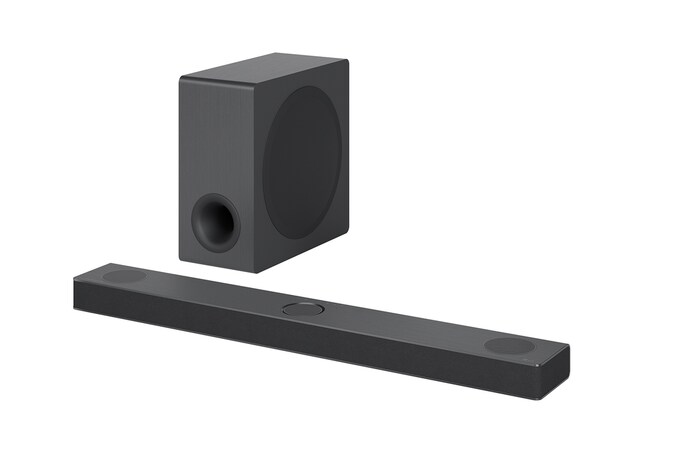

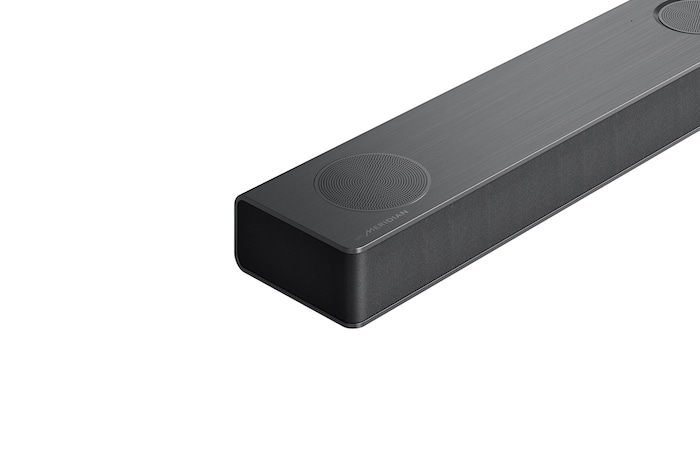

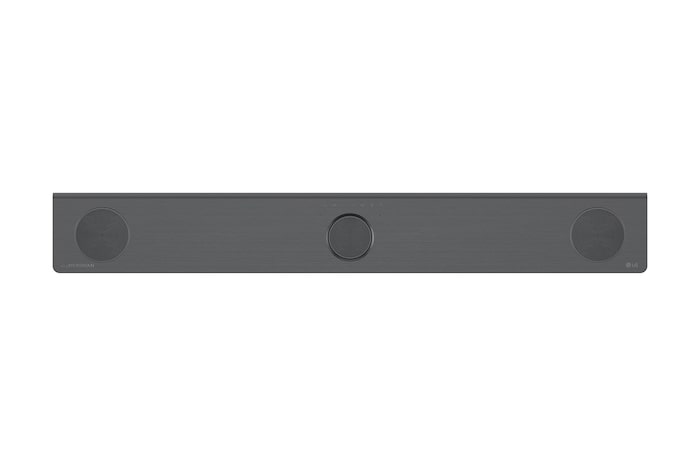

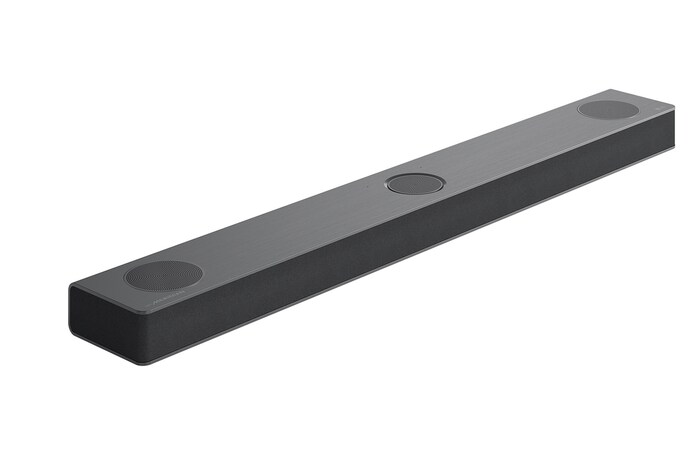

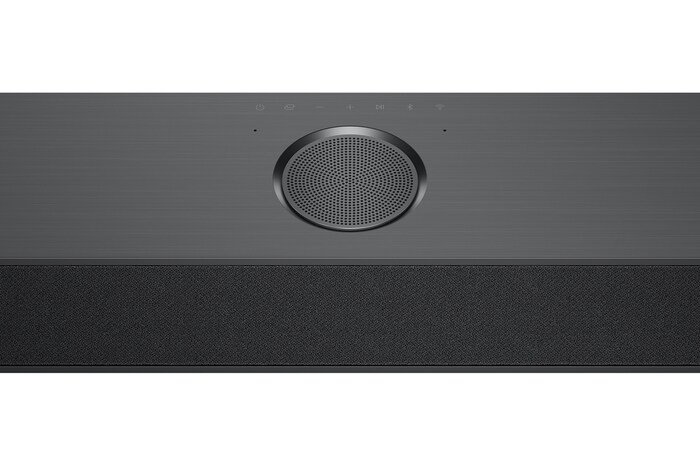

LG S80QY 480W 3.1.3ch High Res Audio soundbar with Dolby Atmos

S80QY

Key Features

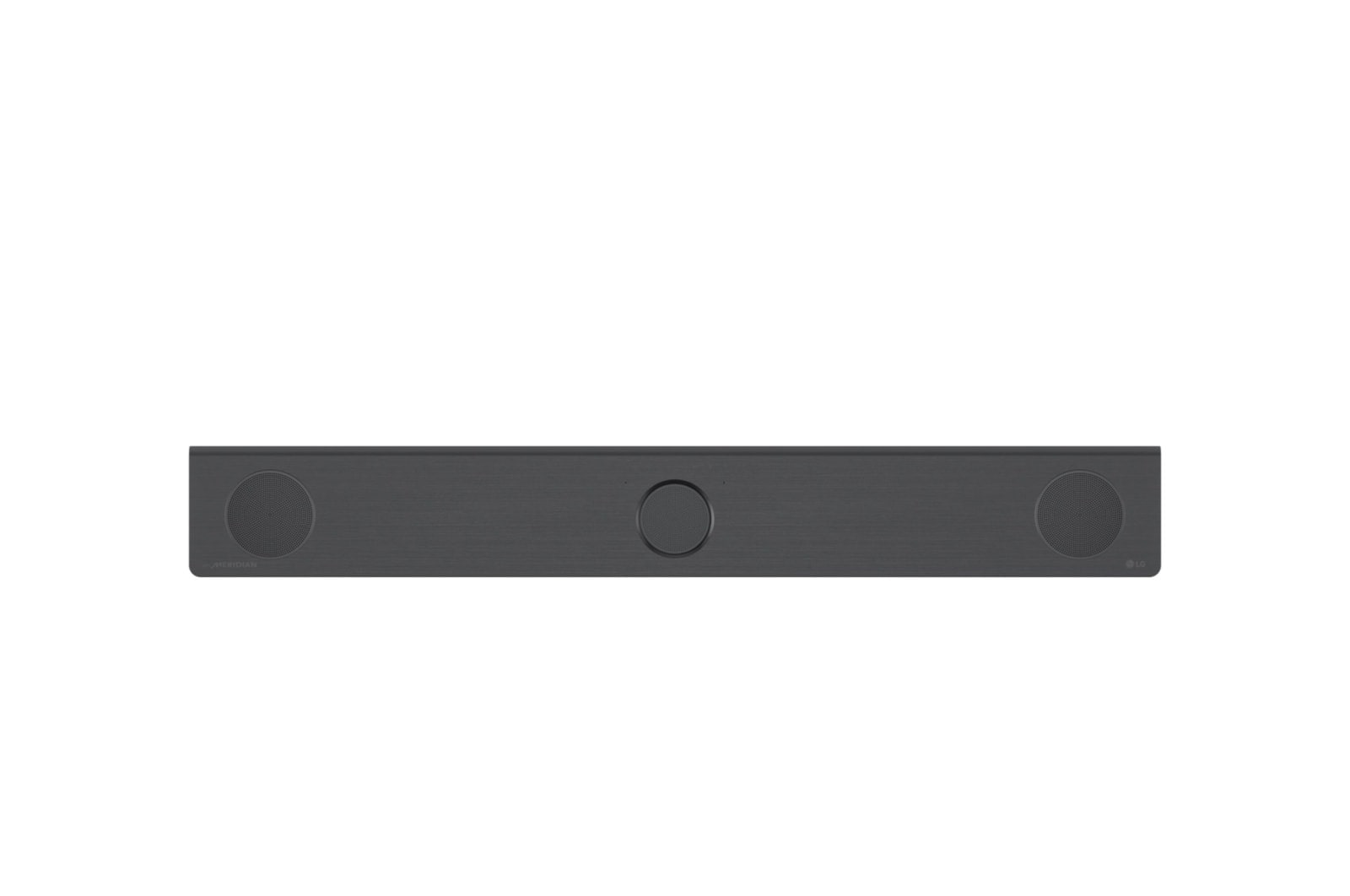

Triple Up-Firing Channels
3.1.3 Channel Audio, 480W power
High-Resolution Audio

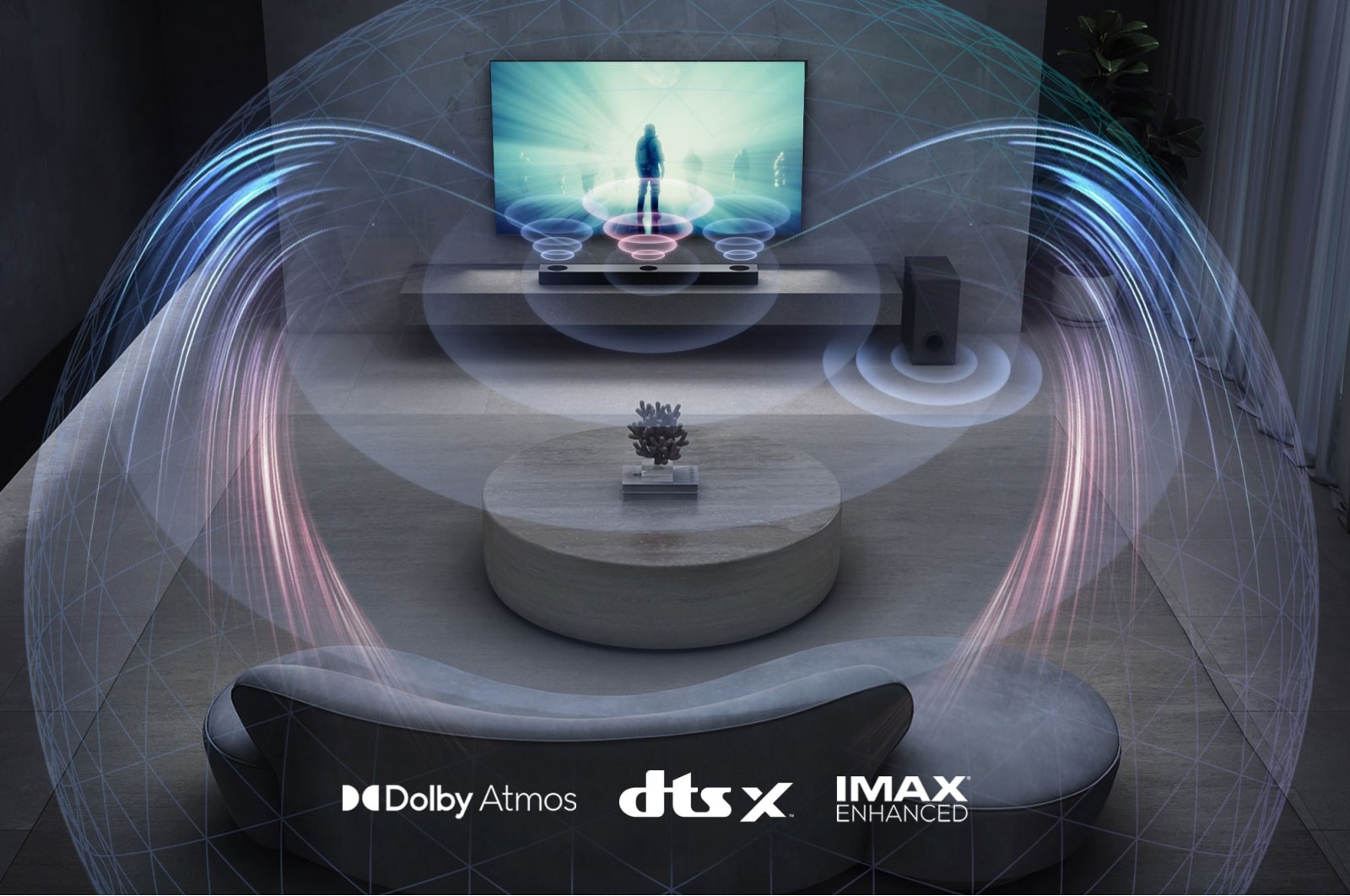

Dolby Atmos & DTS:X & IMAX ENHANCED

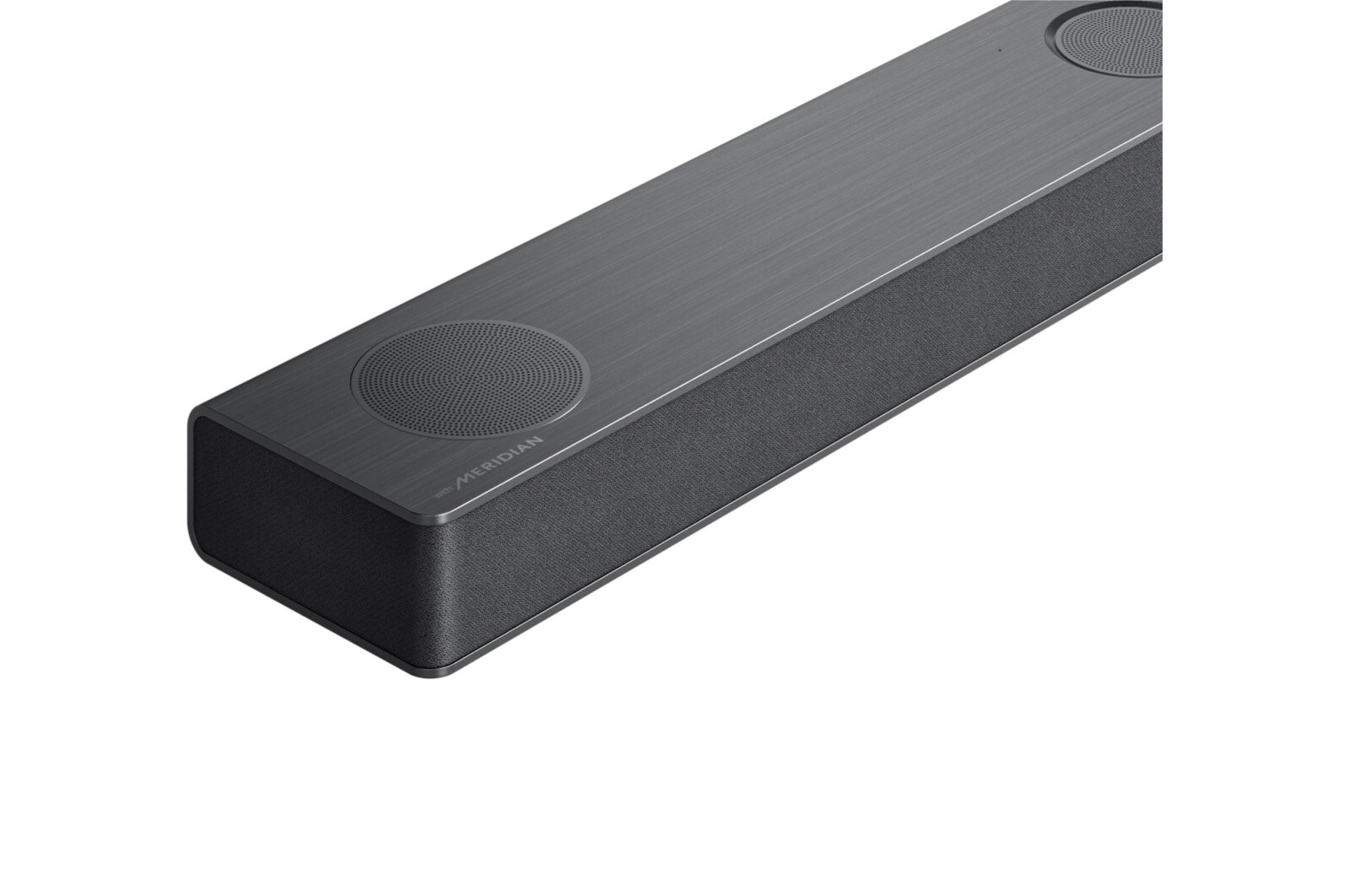

Meridian
AI Room Calibration & AI Sound Pro

All Spec

CONVENIENCE

Remote App - iOS / Android OS: Yes / Yes

Smart Phone File Playback (Bluetooth): Yes

NSU / FOTA: Yes / No

Control with your TV Remote (Vol+/-, Mute): Yes / Yes

Sound Sync - Bluetooth(LG TV) / Optical: No / Yes

Auto Power On/Off - Bluetooth (LGTV) / Optical: No / Yes

Auto Power On/Off - RCU / APP: Yes / Yes

A/V Sunc (0~300ms) - RCU / APP: No / Yes

Woofer Level (-15 ~ 6dB, 1dB/Step): Yes

Channel Level (-6 ~ 6dB, 1dB/Step)_Soundbar Main - Top / Center (Top) / Surround: Yes / Yes / No

Channel Level (-6 ~ 6dB, 1dB/Step)_Soundbar Rear - Rear_Front / Rear Surround / Rear Top: Yes / No / No

Mute: Yes

Auto Dimmer: Yes

USB Host / Charge: Yes / No

Built-in Music: Yes (2)

FILE FORMAT

FLAC - C4A / USB: Yes / Yes

OGG - C4A / USB: Yes / Yes

WAV - C4A / USB: Yes / Yes

MP3 - C4A / USB: Yes / Yes

AAC - C4A / USB: Yes / Yes

MODEL INFORMATION

Brand Information: LG Sound Bar

Model Name: S80QY

Subwoofer Model Name: SPQ8-W

System (Main Chip): MT8532

Mainset/Subwoofer Color: Dark Steel Silver

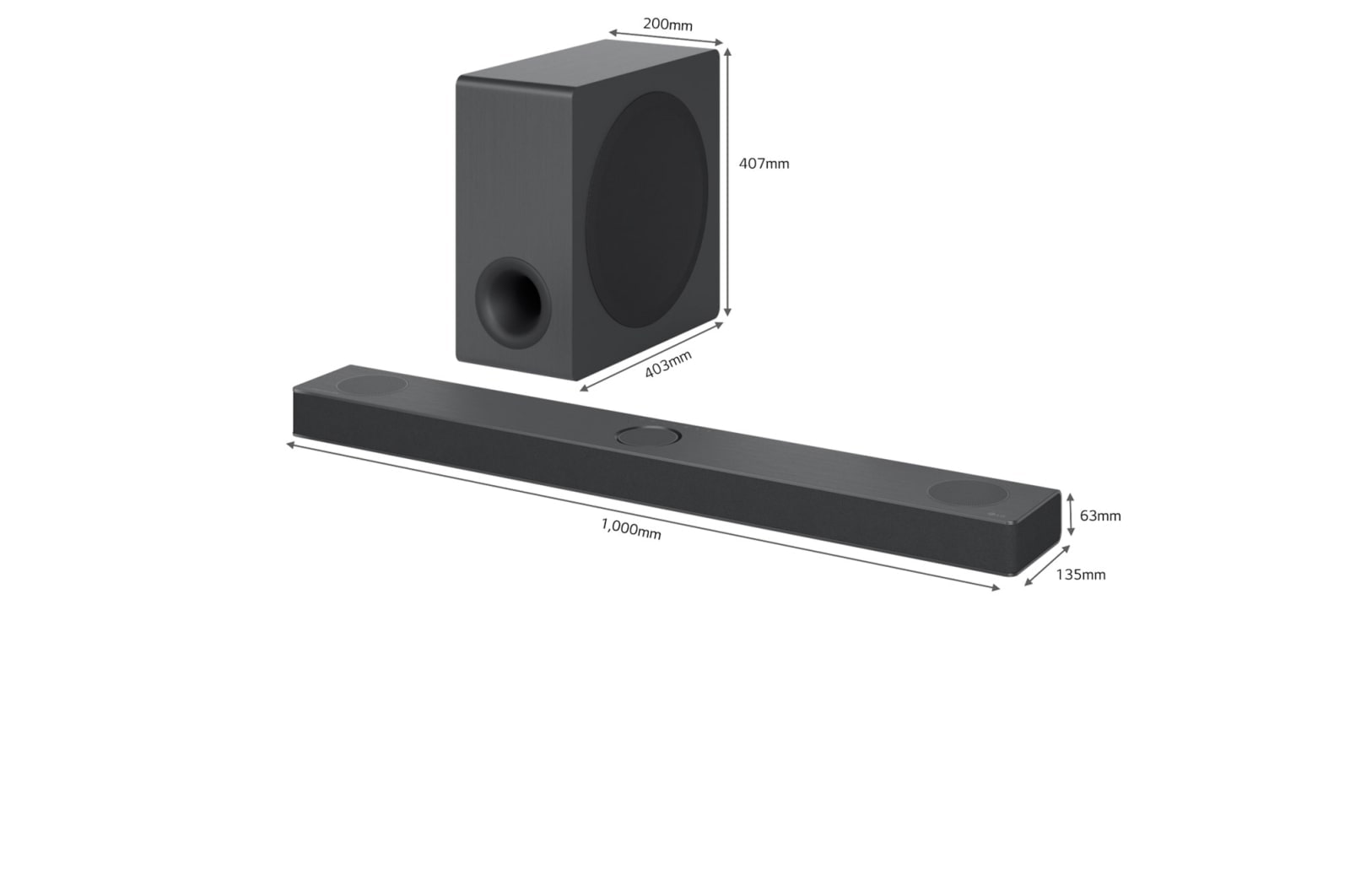

SIZE(W X H X D, MM)

Main (w/ Foot ): 1000 x 63 x 135

Matching TV size (`20 New): 55 ~ 65 inch

Subwoofer: 201.7 x 407 x 403

WEIGHT(KG)

Main: 4.5Kg

Subwoofer: 10Kg

Gross Weight: 12.4Kg

CARTON BOX

Size (W x H x D) mm: 1108 x 551 x 257

Type: Flexo (L)

Color: Yellow

DISPLAY INFORMATION

Display Type: LCD (5 char.)

SALES/SUB REGION

Sales Region: ASIA

Sub Region: AP,SL,TH,PH,VH,ML, IN,IL,HK,KR

MATERIAL

Main - Front / Top / Bottom: Jersey/Mold/Mold

Subwoofer - Front / Body: Jersey / Wood

NUMBER OF CHANNELS

Number of channels: 3.1ch

OUTPUT POWER(THD 10%)

Total: 480W

Front: 45W x 2

Center: 40W

Top: 45W x 2

Top Center: 40W

Subwoofer: 200W(Wireless)

SPEAKER UNIT_FRONT(L/R)

SPL: 83dB

System: Closed

Tweeter Unit: 20mm Silk Dome

Woofer Unit: 52 x 99 mm

Impedance: 4ohm

SPEAKER UNIT_CENTER

SPL: 83dB

System: Closed

Woofer Unit: 2.5 inch

Impedance: 4ohm

SPEAKER UNIT_TOP(L/R)

SPL: 83dB

System: Closed

Woofer Unit: 2.5 inch

Impedance: 4ohm

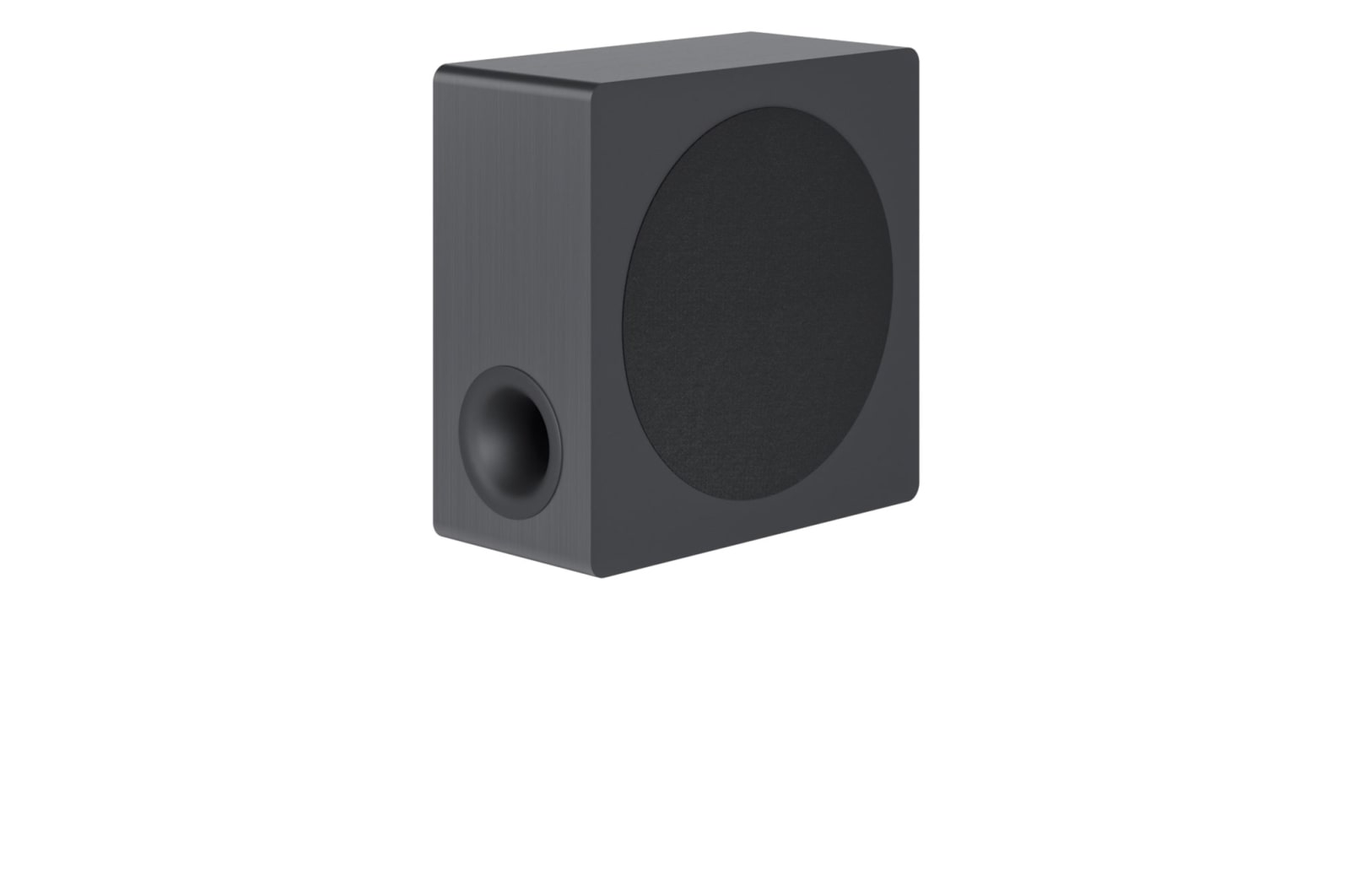

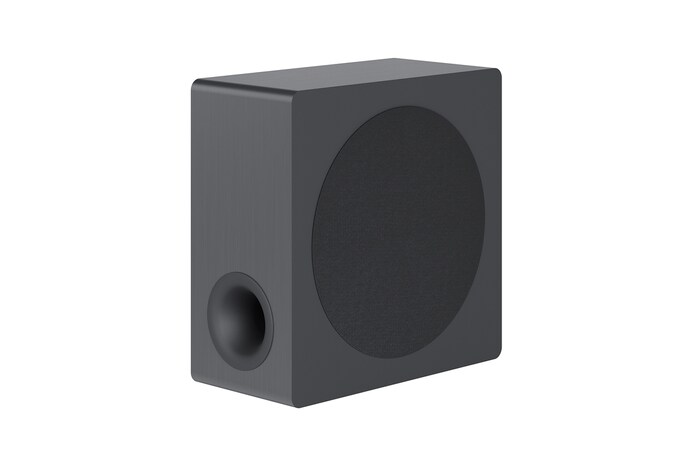

SPEAKER UNIT_SUBWOOFER

SPL: 86dB

System: Bass Reflex

Woofer Unit: 8 inch

Impedance: 3ohm

CONNECTIVITY_GENERAL

Optical: Yes(1)

HDMI In / Out: Yes(1) / Yes(1)

USB: Yes

CONNECTIVITY_WIRELESS

Bluetooth Version: 5.0

Bluetooth Codec - SBC / AAC: Yes / Yes

Wi-Fi (2.4G / 5G): Yes

Wireless Rear ready: Yes (1:2)

HI-RESOLUTION AUDIO

Sampling - "24bit/192kHz" / "24bit/96kHz": No / Yes

Upbit/upsampling - "24bit/192kHz" / "24bit/96kHz": No / Yes

SOUND EFFECT

AI Sound Pro: Yes

Standard: Yes

Music: Yes (w/ Meridian)

Cinema: Yes

Clear Voice: Yes

Sports: Yes

Game: Yes

Bass Blast / Bass Blast +: Yes

Dolby ATMOS: Yes

DTS:X: Yes

SOUND CONTROL

User EQ - RCU / App: Yes / Yes

Night Time On/Off - RCU / App: Yes / Yes

Dynamic Rage On/Off - RCU / App: No / Yes

Auto Volume Leveler On/Off - RCU / App: No / Yes

Surround On/Off - RCU / App: Yes / Yes

AI Room Calibration (2 MIC In) - App: Yes

Soundbar Mode Control (by TV GUI): Yes

TV Sound Mode Share: Yes

GOOGLE SUPPORTED

Google Assistant Built In (Controller, 2 MIC In): Yes

Google Fast Pairing: Yes

AUDIO FORMAT(BITSTREAM)

LPCM: Yes

Dolby Atmos: Yes

Dolby TrueHD: Yes

Dolby Digital Plus: Yes

DTS:X: Yes

DTS-HD Master Audio: Yes

Dolby Digital: Yes

DTS Digital Surround: Yes

DTS-HD High Resolution: Yes

AAC / AAC+: Yes / Yes

POWER_MAIN

SMPS: Yes

Power Off Consumption: 0.5W ↓

Power Consumption: 59W

POWER_SUBWOOFER

Type (SMPS, "(SMPS)" Sheet): Yes

Power Off Consumption: 0.5W ↓

Power Consumption: 40W

Wireless Frequency: 5GHz

ACCESSORY_MANUAL

Web Manual (File): Yes (Full)

Built-in Manual (Book) (Simple or Full): Yes (Simple)

Wall Mount Guide: Yes

Wireless Speaker Reset Guide: Yes

Open Source - Yes (Full or Simple) / X: Yes (Full)

Warranty Card: Yes

ACCESSORY_REMOTE CONTROL

Model Name: RAV21 (21)

Battery(Size): AA x 2

Battery Built-in: Yes

ACCESSORY_OTHERS

Wall Mount Bracket: Yes

HDMI Cable: Yes

CONTAINER Q

20ft: 240

40ft: 528

40ft (HC): 572

NUMBER OF SPEAKER UNITS

Number of Speakers: 9EA

HDMI SUPPORTED

Pass-through: Yes

Pass-through (4K): Yes

VRR / ALLM: Yes

HDR10 / HDR 10+: No / Yes

Dolby Vision: Yes

Audio Return Channel (e-ARC): Yes

Audio Return Channel (ARC): Yes

CEC (Simplink): Yes

SPEAKER UNIT_TOP CENTER

SPL: 85dB

System: Open

Tweeter Unit: 20mm Silk Dome

Impedance: 4ohm

ALEXA SUPPORTED

Works with Alexa (Controllee): Yes

SPOTIFY SUPPORTED

Spotify Connect: Yes

APPLE SUPPORTED

AirPlay 2: Yes

TIDAL SUPPORTED

Tidal Supported: Yes
