1.0HP Split Type Dual Inverter Residential Air Conditioner

1.0HP Split Type Dual Inverter Residential Air Conditioner

HS-09ISA

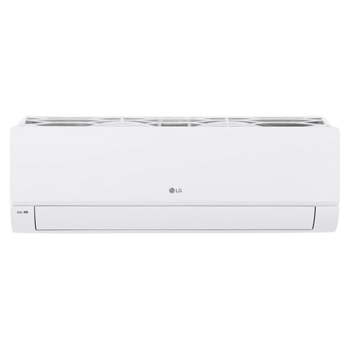

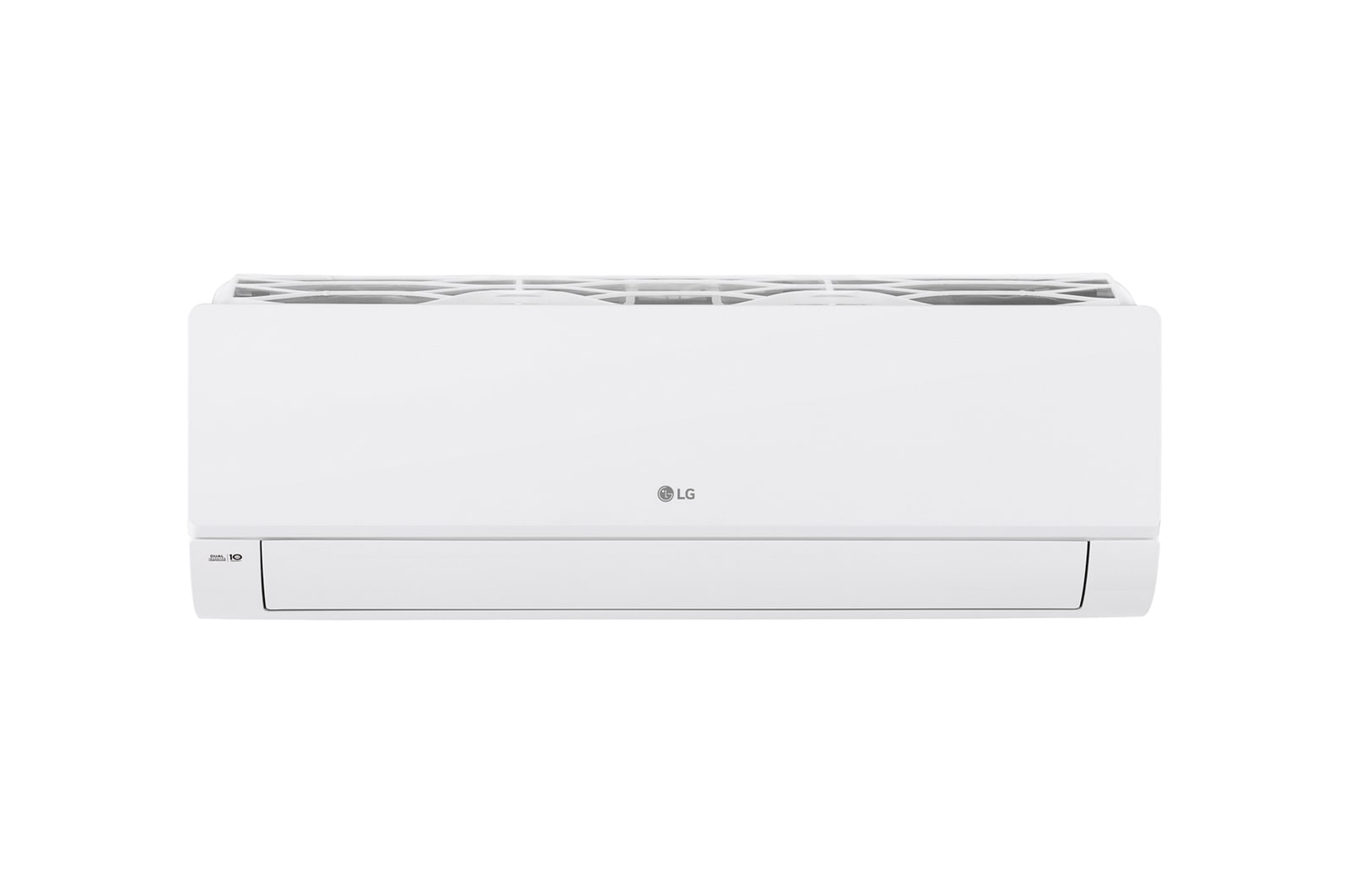

Front view of 1.0HP Split Type Dual Inverter Residential Air Conditioner HS-09ISA

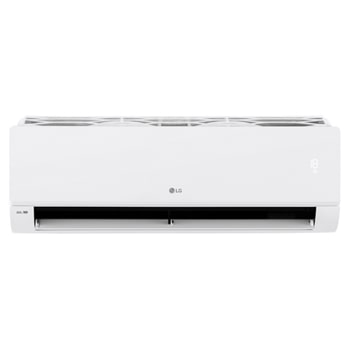

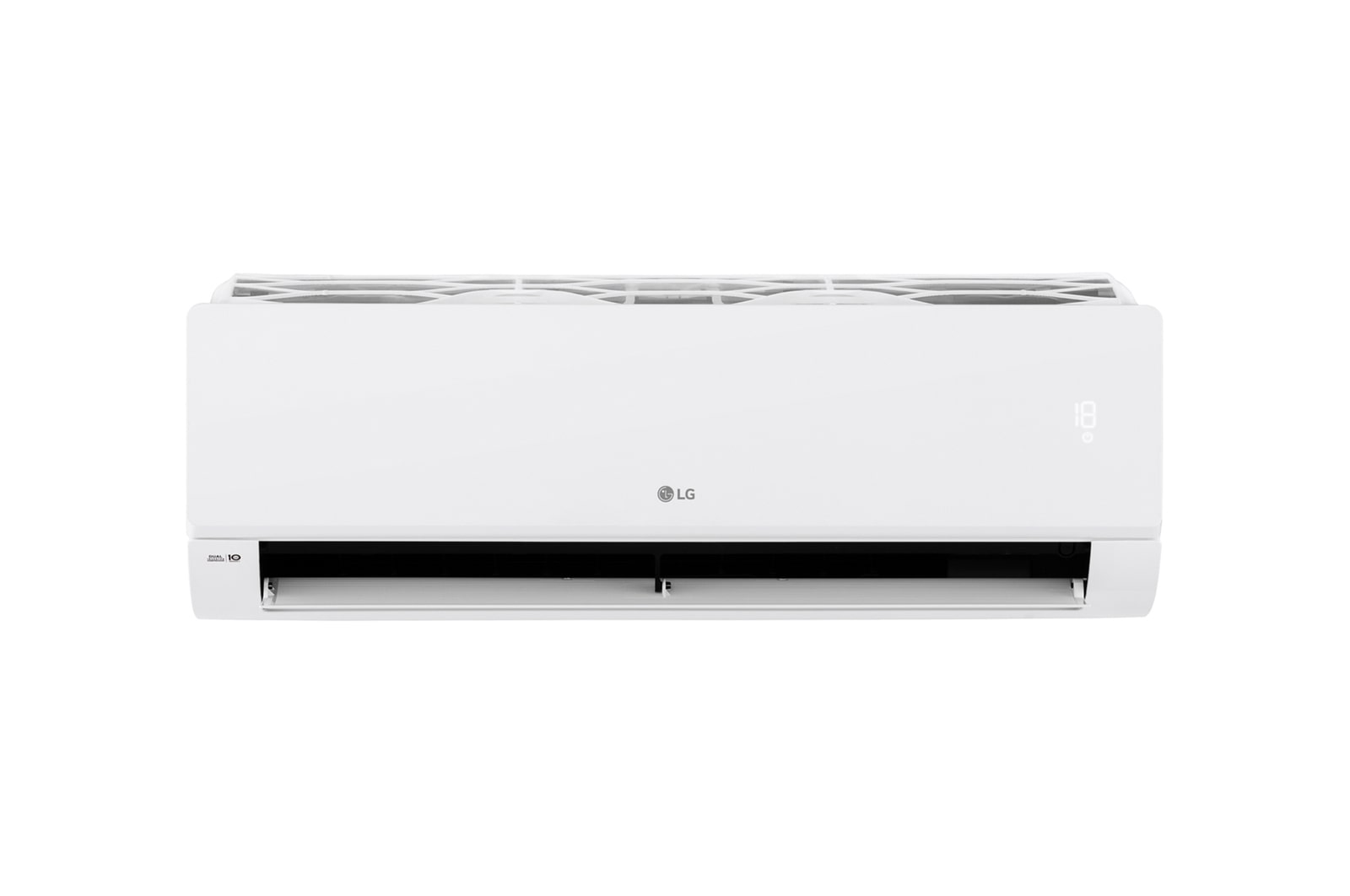

Front view of the LG wall mounted air conditioner with open vane

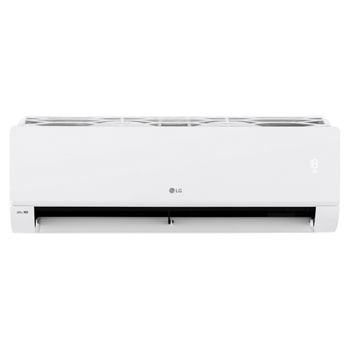

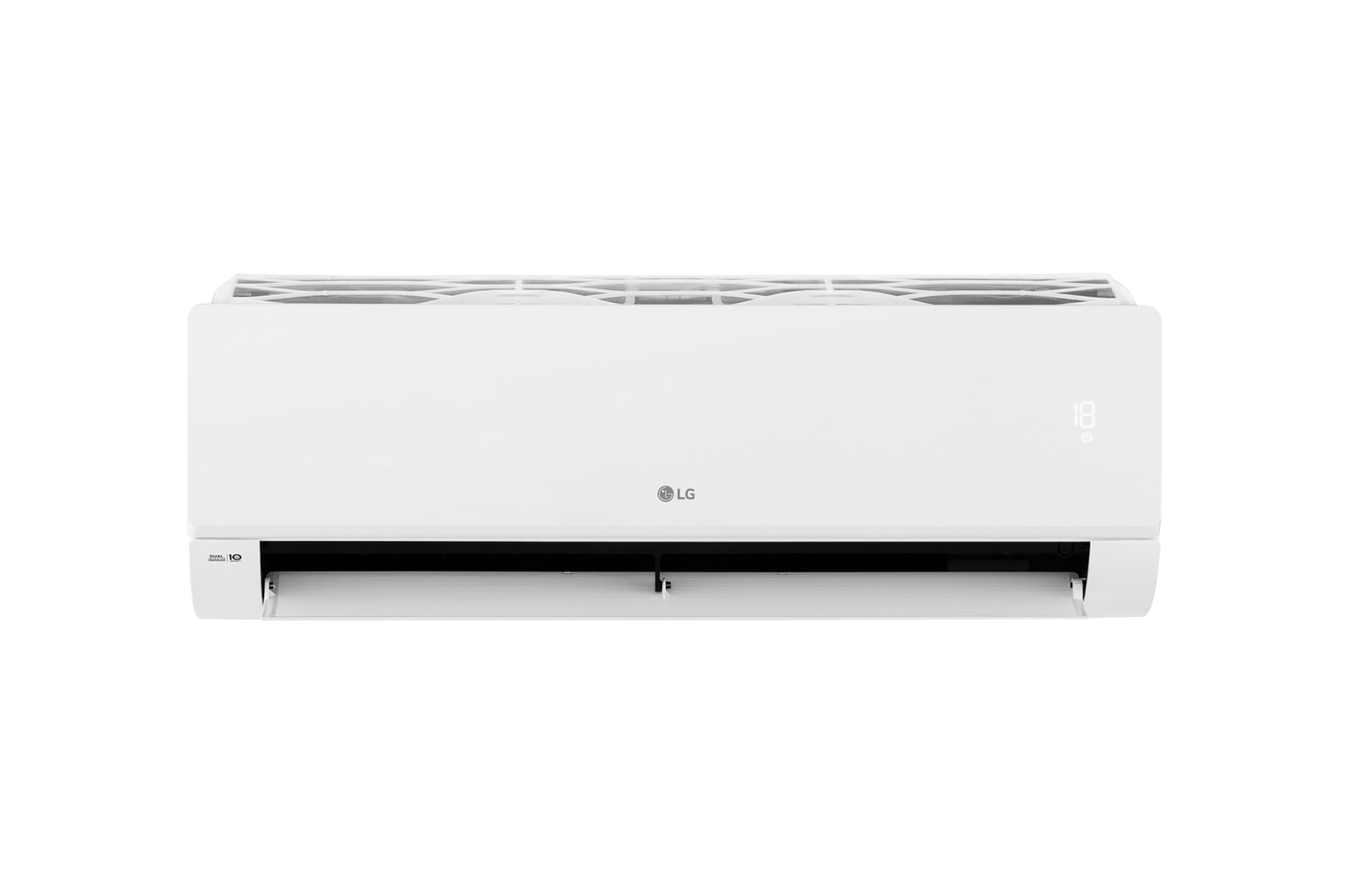

Front view of the LG wall mounted air conditioner with wide open vane

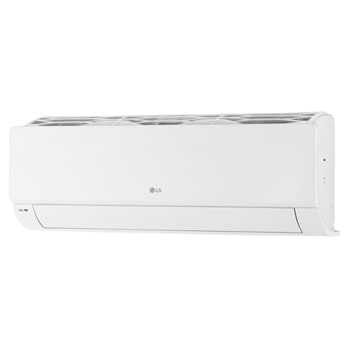

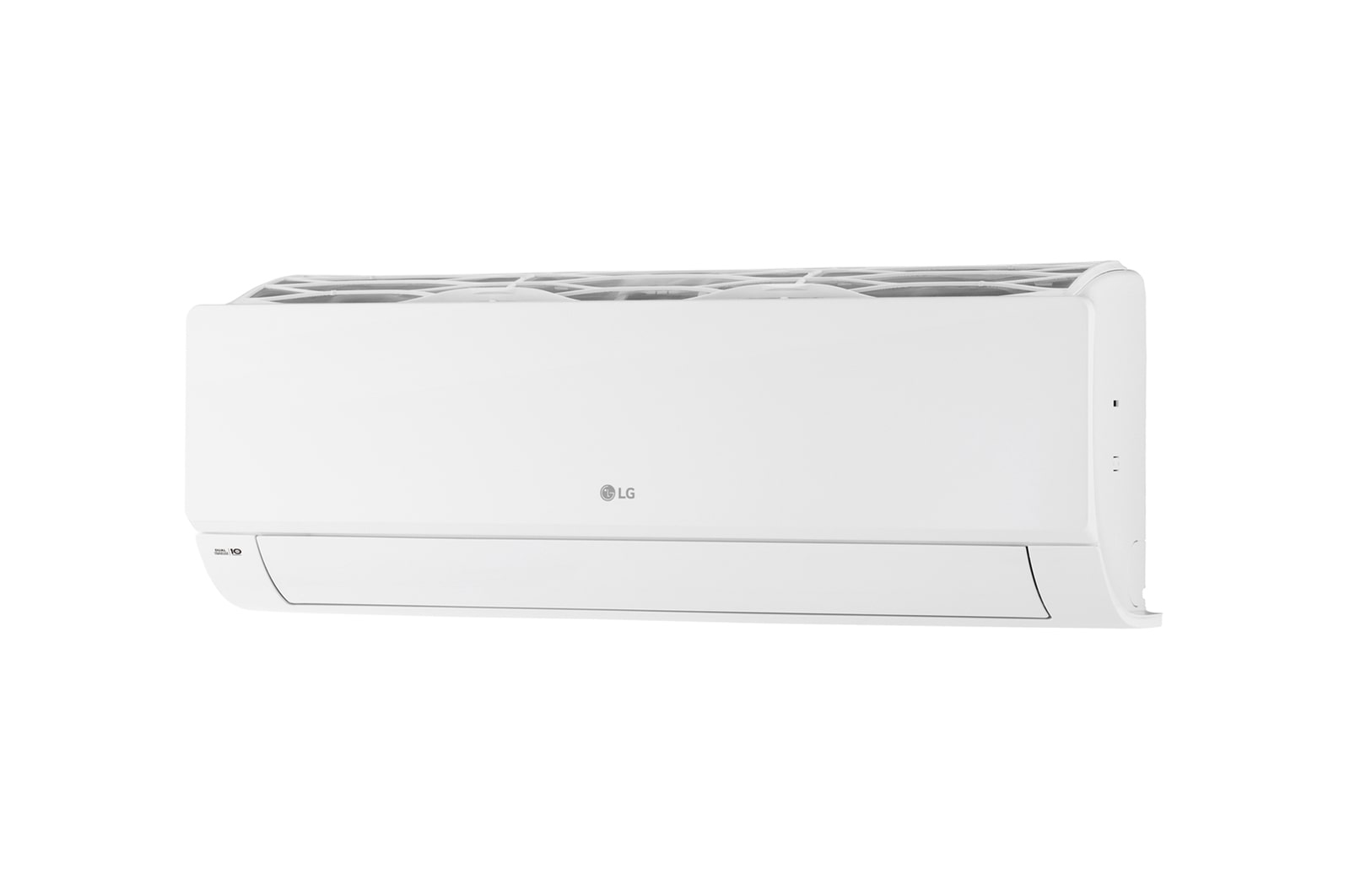

Right side of the LG wall mounted air conditioner

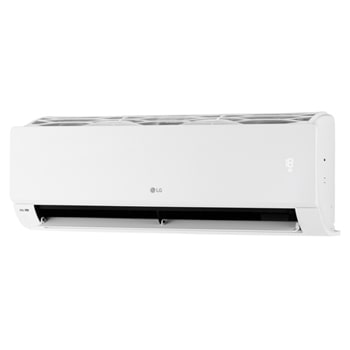

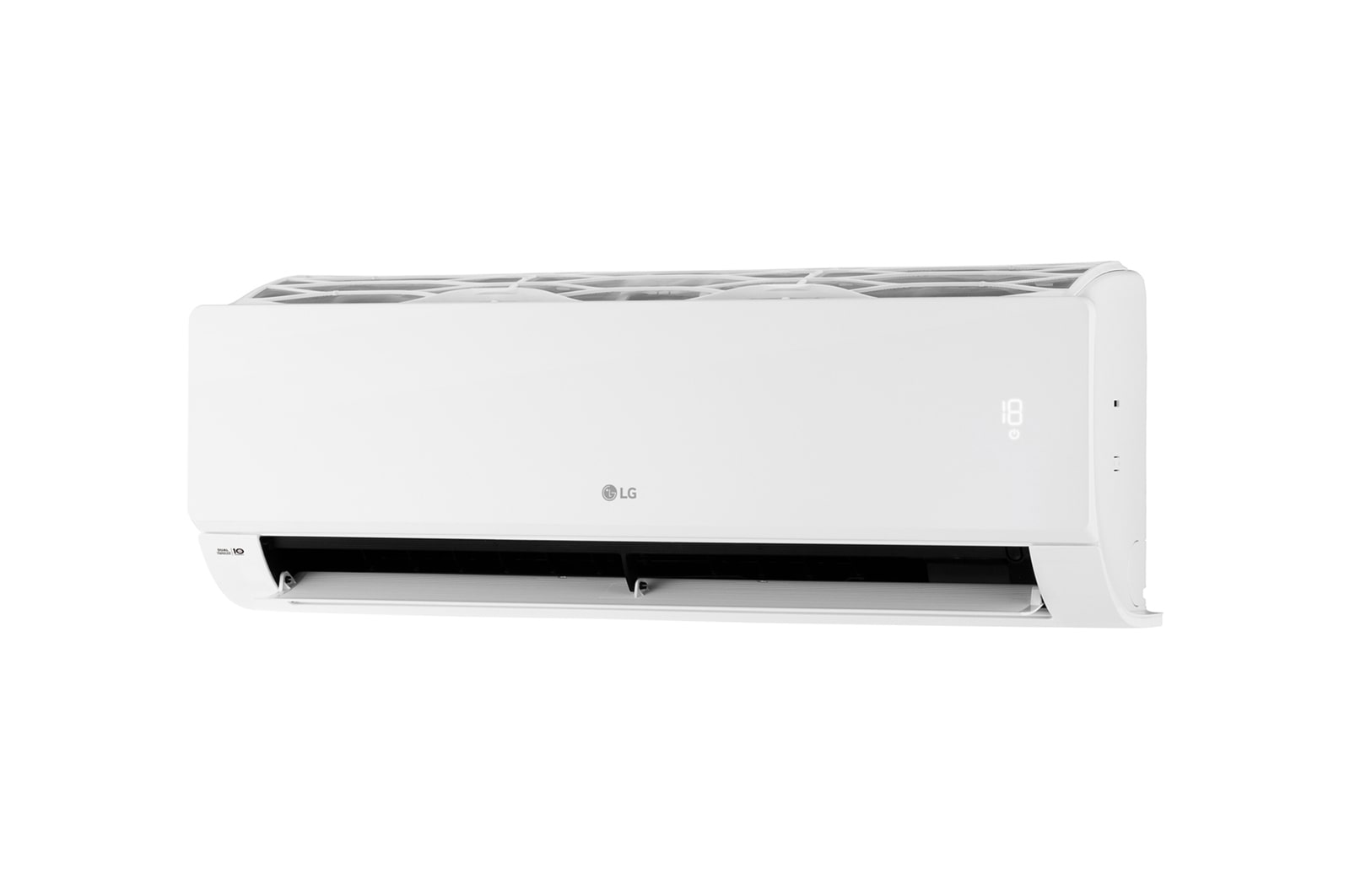

Right side of the LG wall mounted air conditioner with narrow open vane

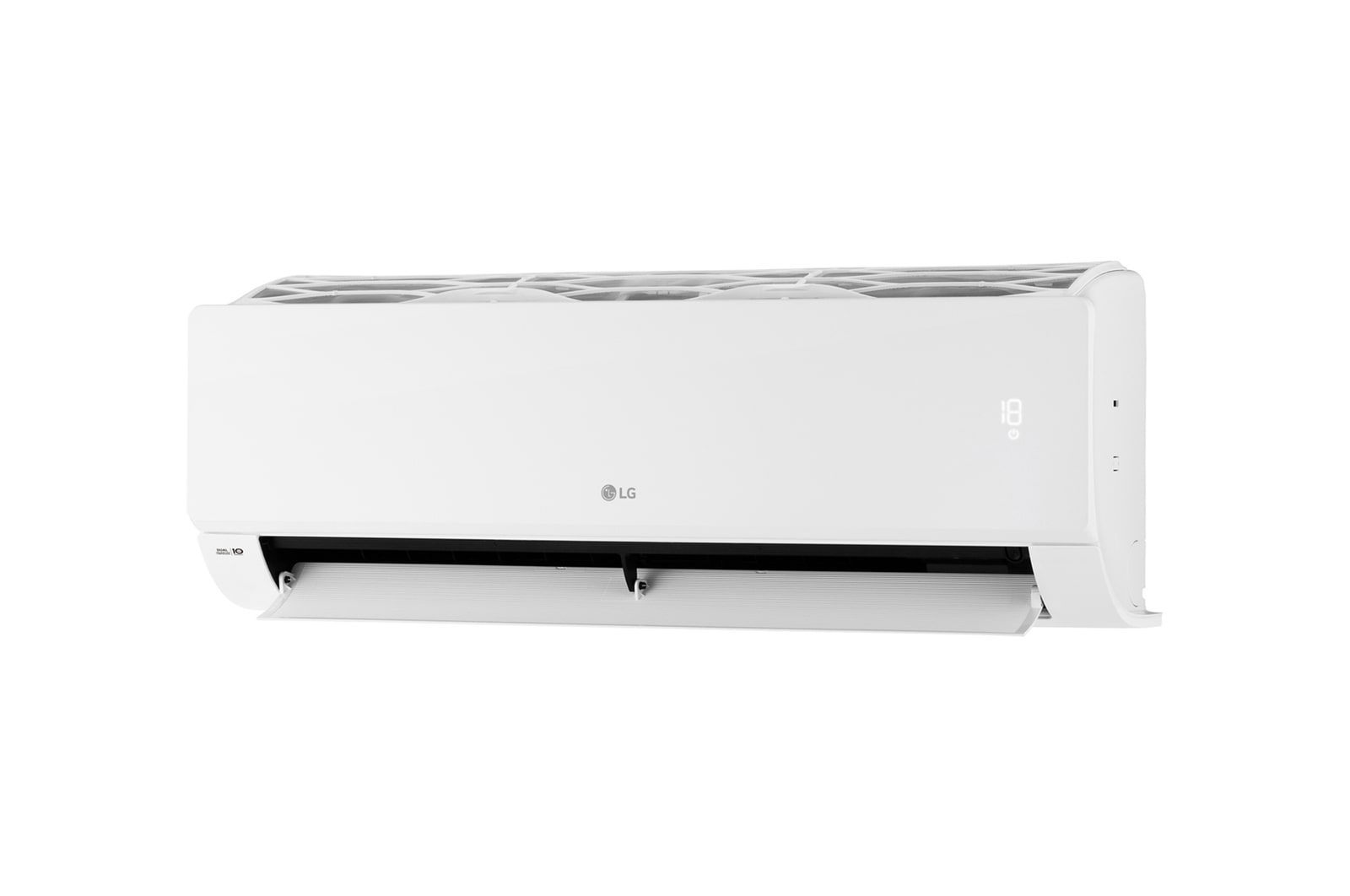

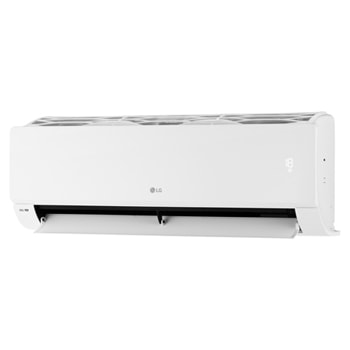

Right side of the LG wall mounted air conditioner with wide open vane

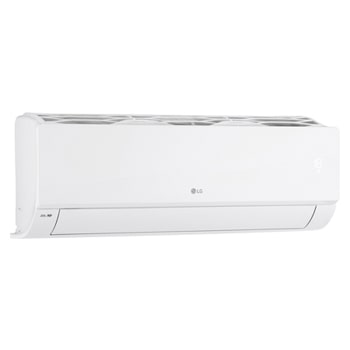

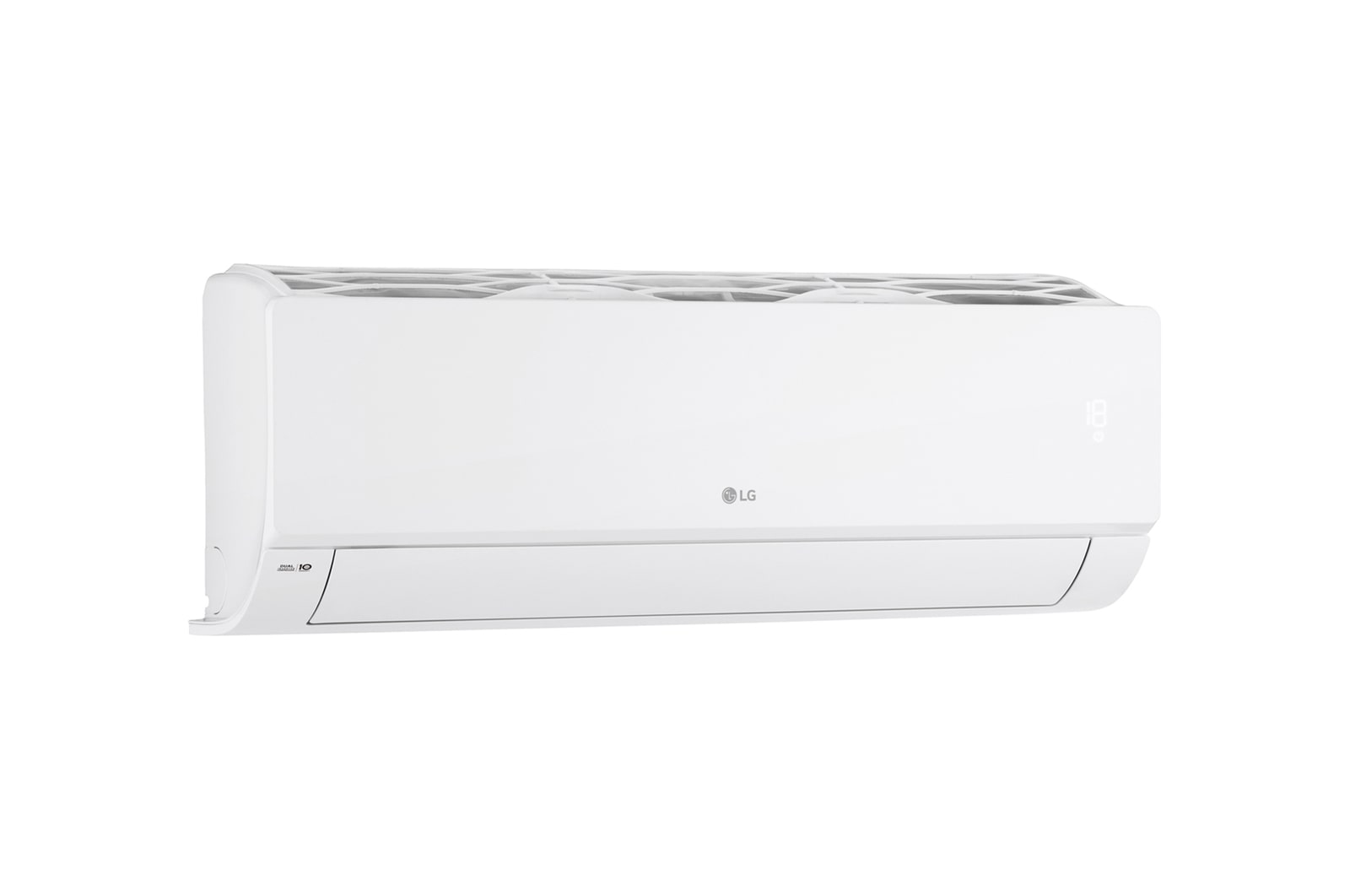

Left side of the LG wall mounted air conditioner

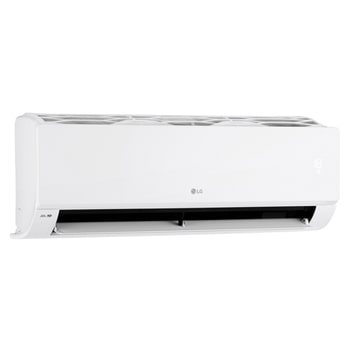

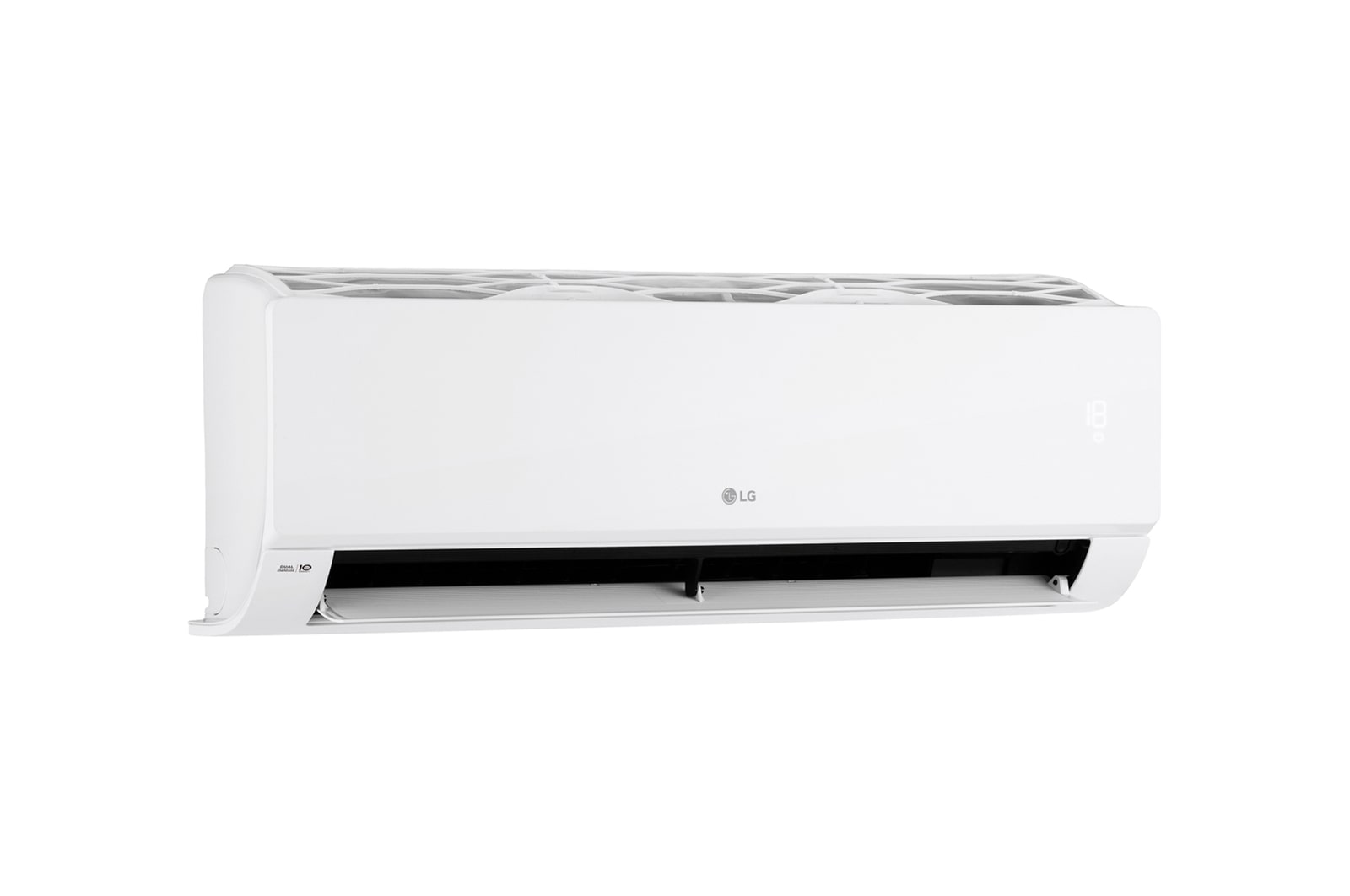

Left side of the LG wall mounted air conditioner with narrow open vane

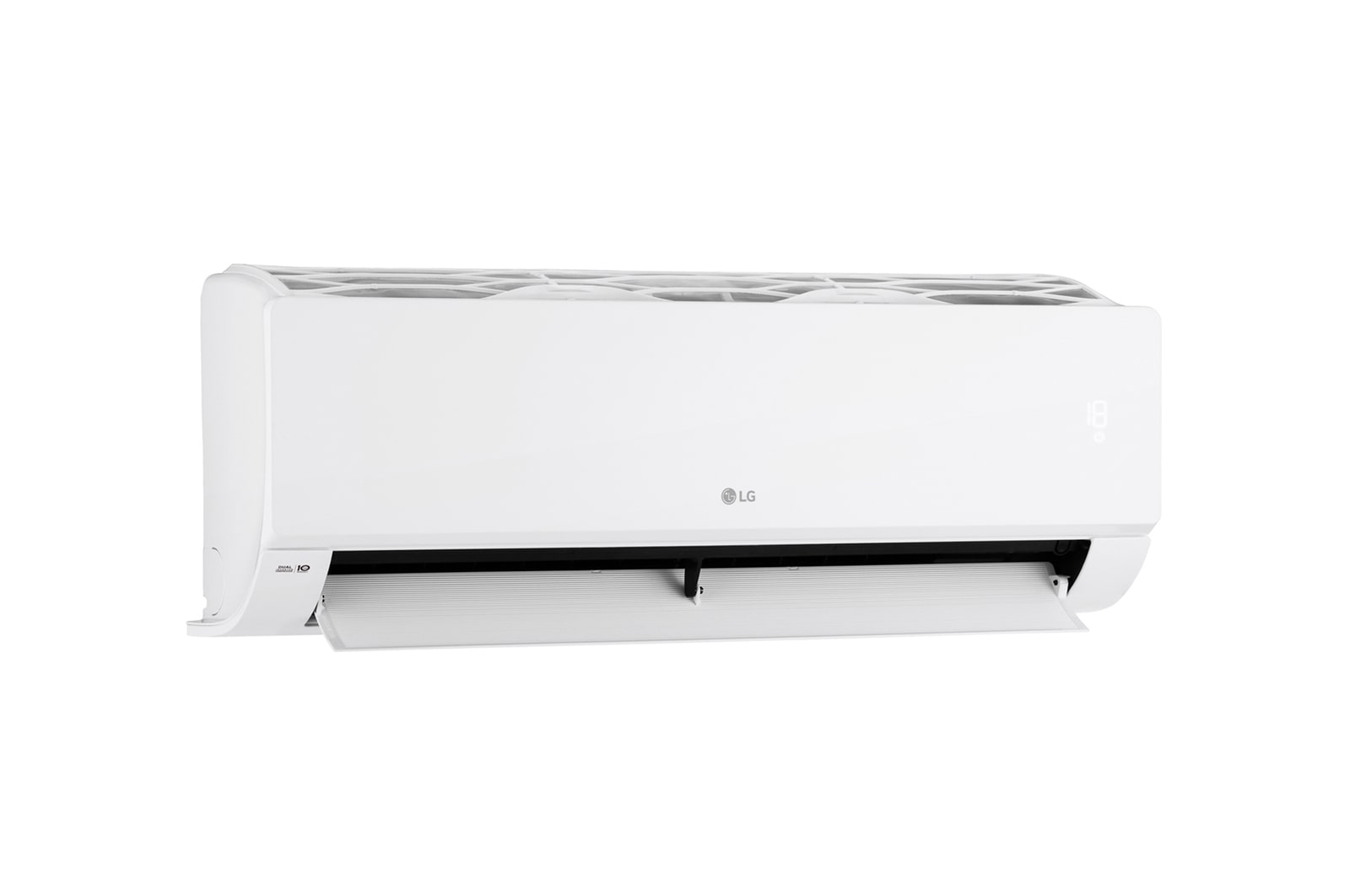

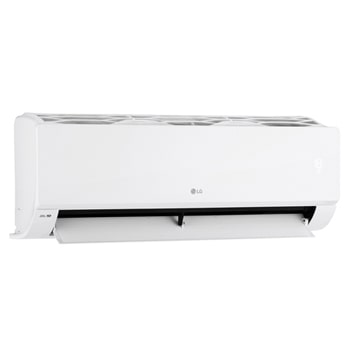

Left side of the LG wall mounted air conditioner with wide open vane

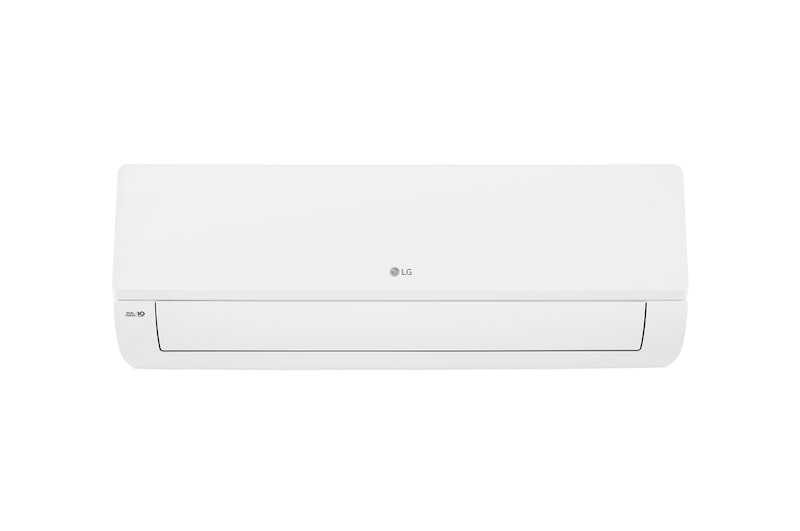

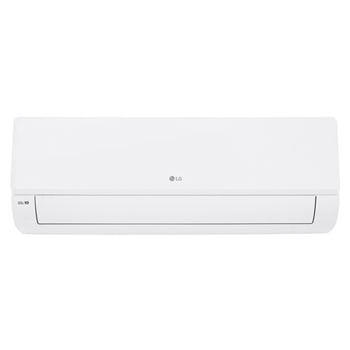

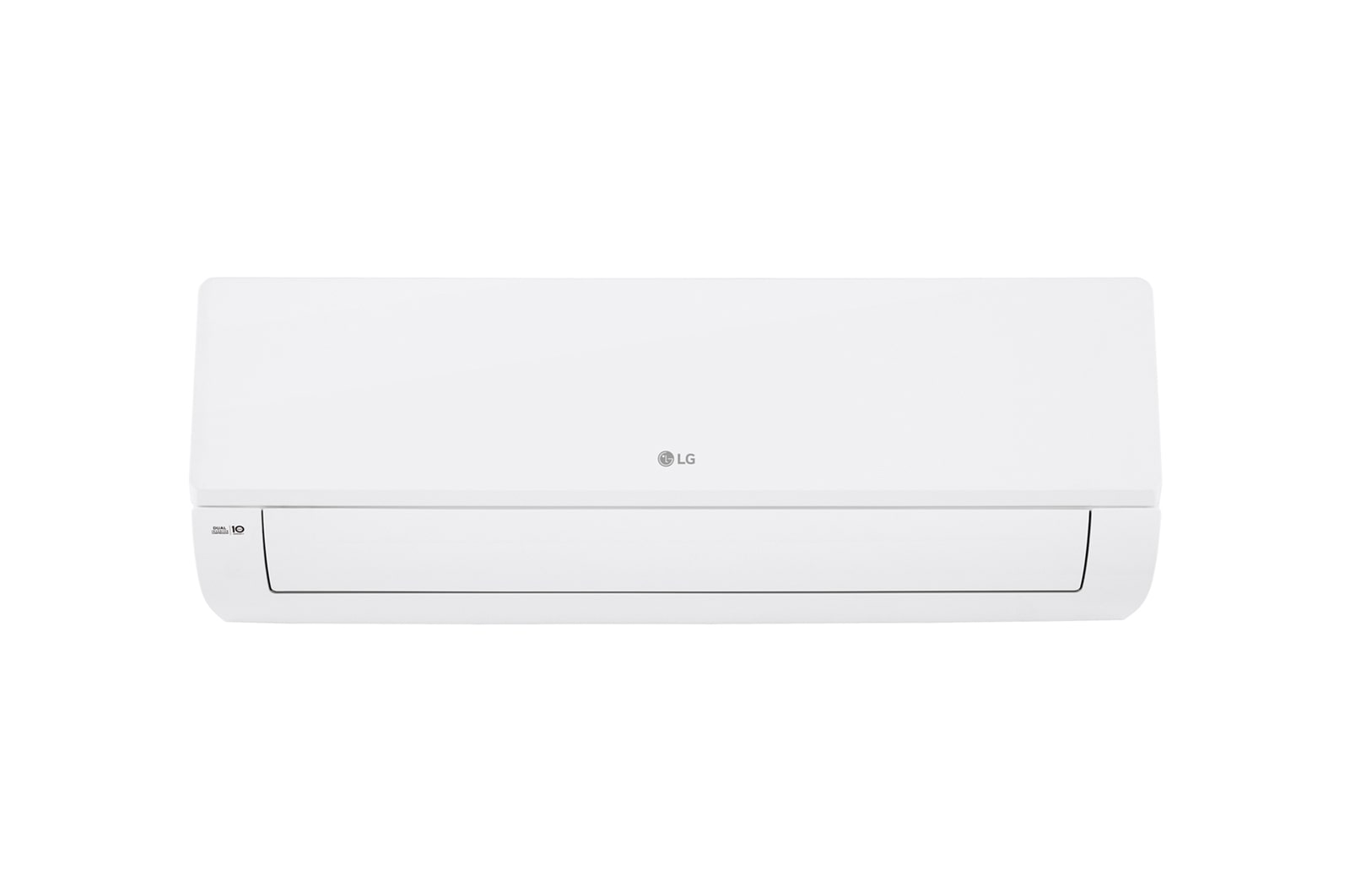

Bottom view of the LG wall mounted air conditioner

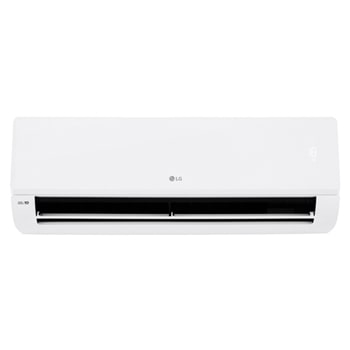

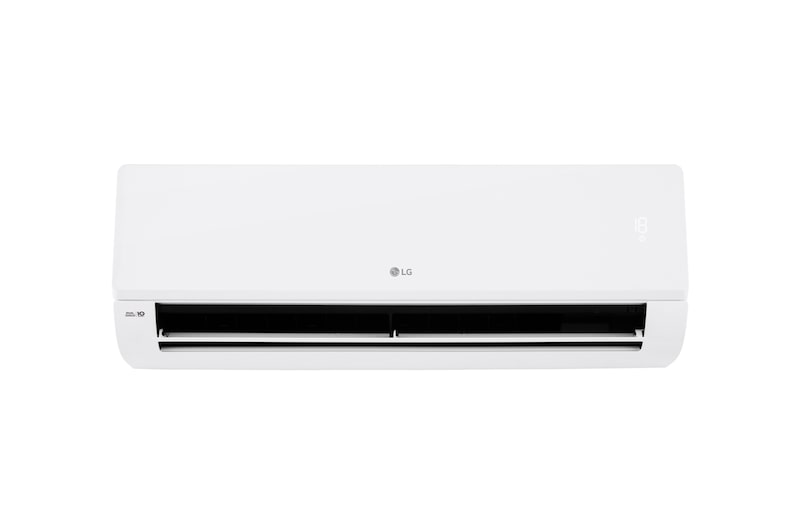

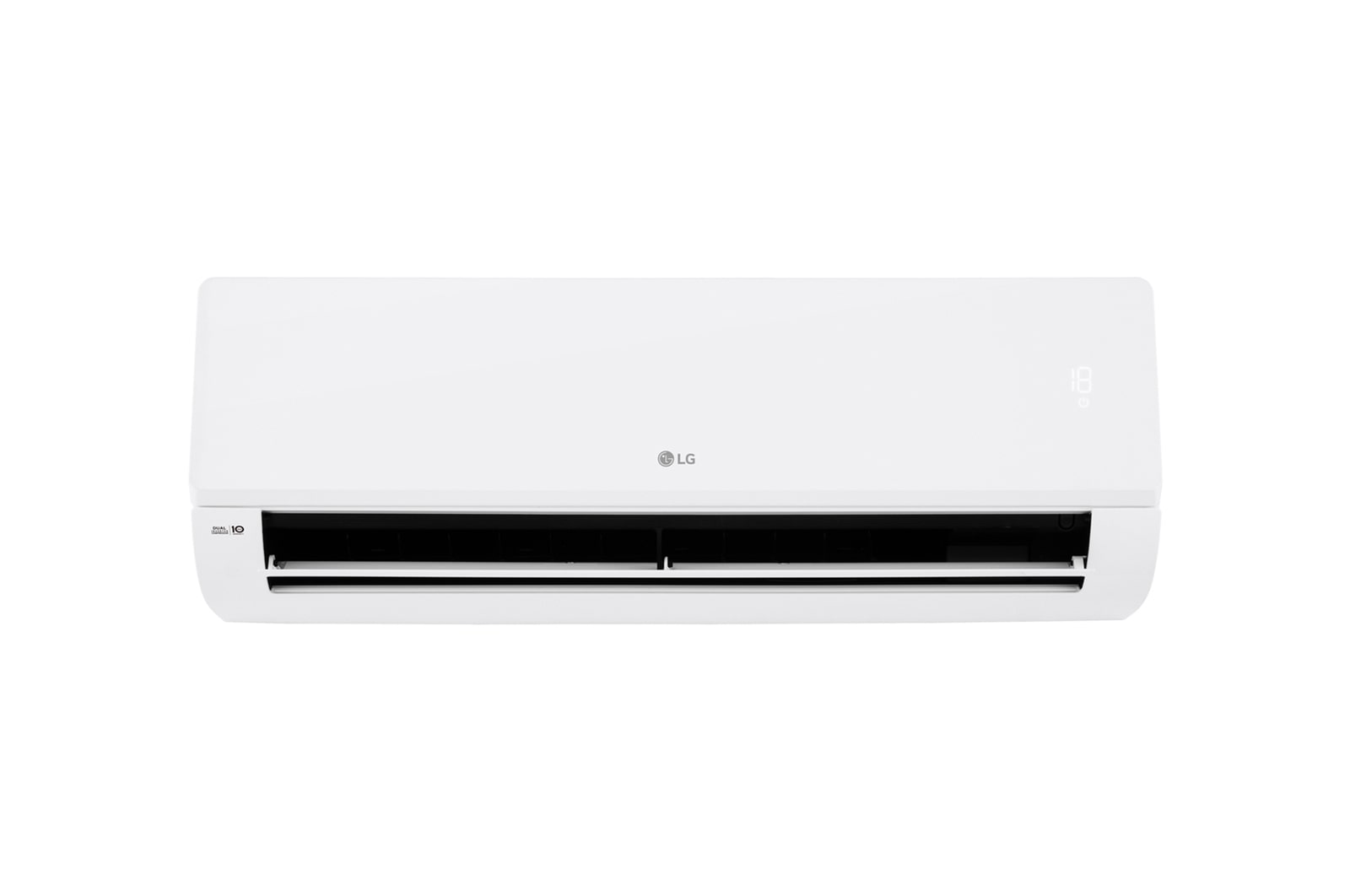

Bottom view of the LG wall mounted air conditioner with open vane

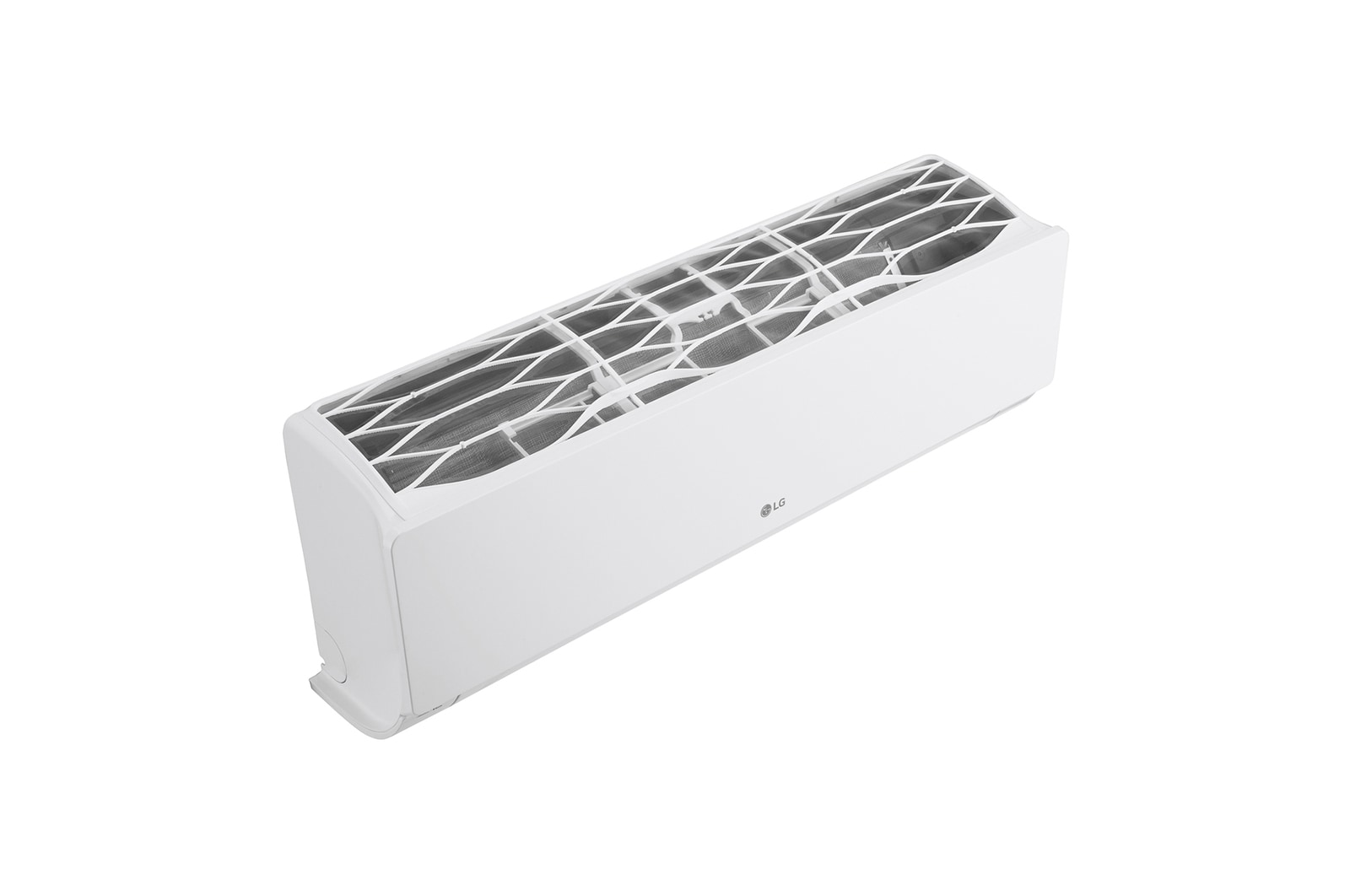

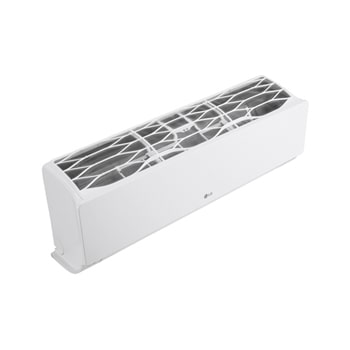

Top-right view of the LG wall mounted air conditioner
Front view of 1.0HP Split Type Dual Inverter Residential Air Conditioner HS-09ISA
Front view of the LG wall mounted air conditioner with open vane
Front view of the LG wall mounted air conditioner with wide open vane
Right side of the LG wall mounted air conditioner
Right side of the LG wall mounted air conditioner with narrow open vane
Right side of the LG wall mounted air conditioner with wide open vane
Left side of the LG wall mounted air conditioner
Left side of the LG wall mounted air conditioner with narrow open vane
Left side of the LG wall mounted air conditioner with wide open vane
Bottom view of the LG wall mounted air conditioner
Bottom view of the LG wall mounted air conditioner with open vane
Top-right view of the LG wall mounted air conditioner

Key Features

  • Fast Cooling
  • Dual Inverter Compressor™
  • Active Energy Control
  • Auto Cleaning
More

Smarter Cooling, crafted for you

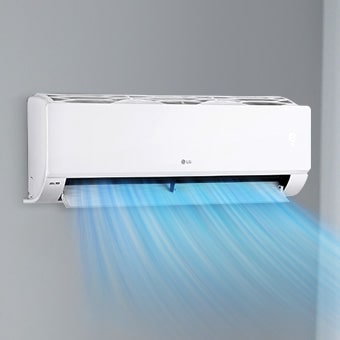

Image of operating LG air conditioner on the wall.

Fast Cooling

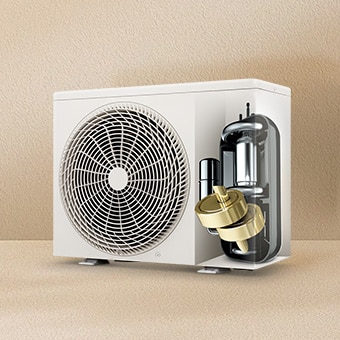

Image of a dual inverter compressor

Dual Inverter Compressor™

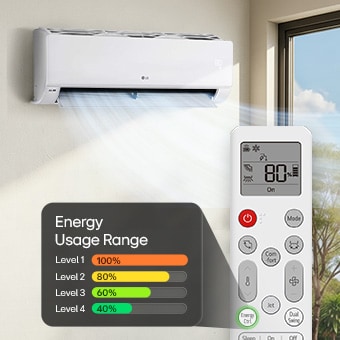

Image explaining air conditioner energy usage levels with a remote control

Active Energy Control

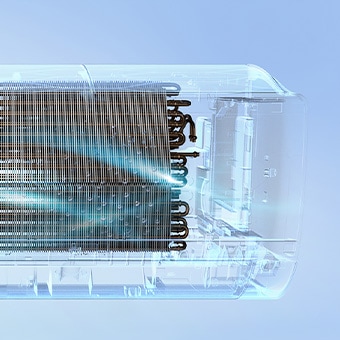

Image of clean air flow through an air conditioner cooling coil

Auto Cleaning

Fast Cooling

Just one click to a cooler room with jet mode

Get the fast cooling that you need with a click.

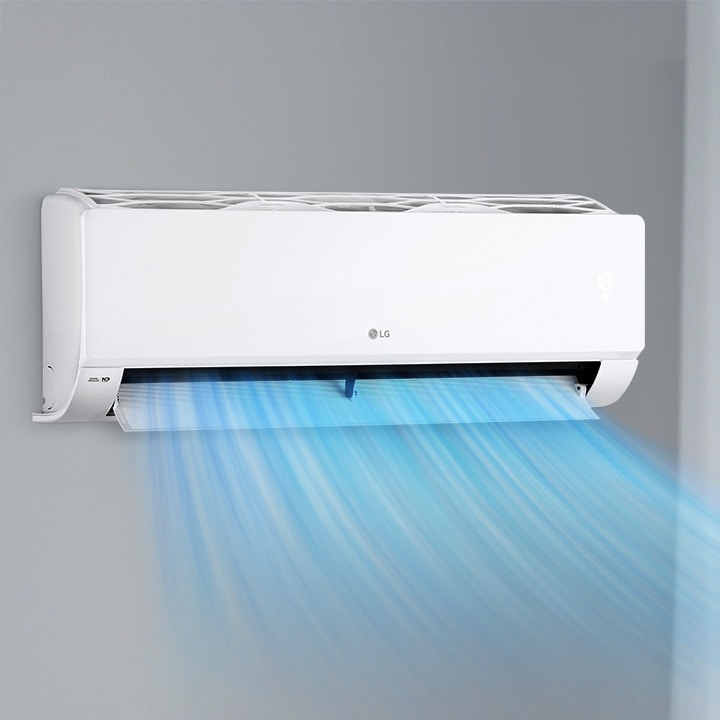

The LG air conditioner is operating on the wall.

The LG air conditioner is operating on the wall.

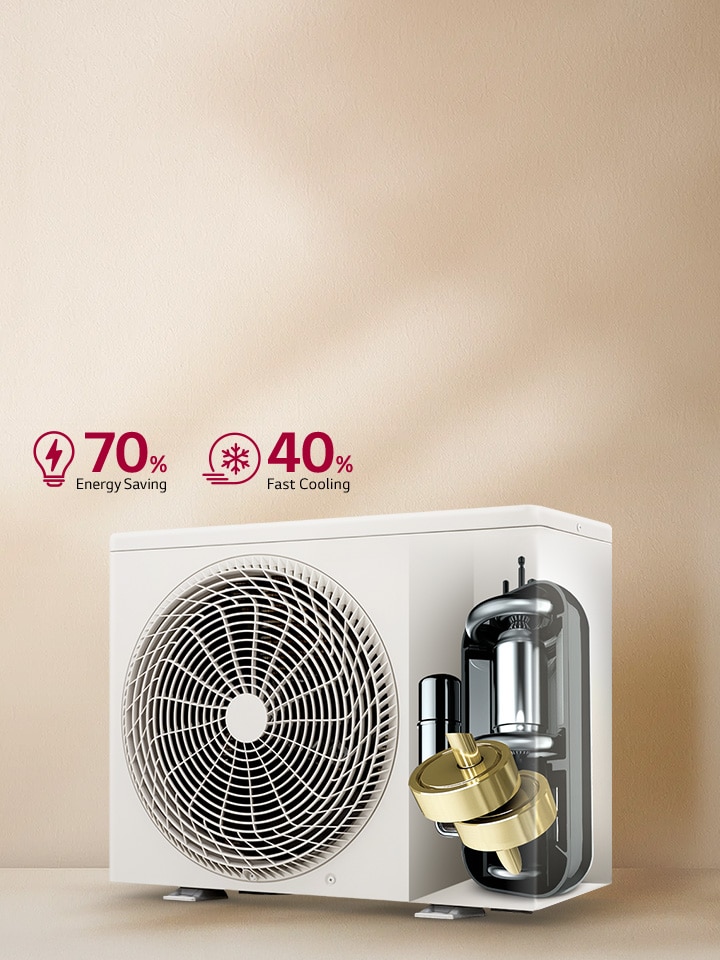

Image of LG air conditioner's dual inverter compressor that can save up to 70% of energy and cool up to 40% faster

Image of LG air conditioner's dual inverter compressor that can save up to 70% of energy and cool up to 40% faster

Dual Inverter Compressor™

Efficient energy use, faster cooling

Delivers reliable performance with balanced energy use-saving up to 70% energy1) and cooling up to 40% faster2).

Active Energy Control

Power your way, save as you need

Save energy with 4-level control, easily adjusted by remote. Power use is shown clearly at each level, from 40% to 100%3).

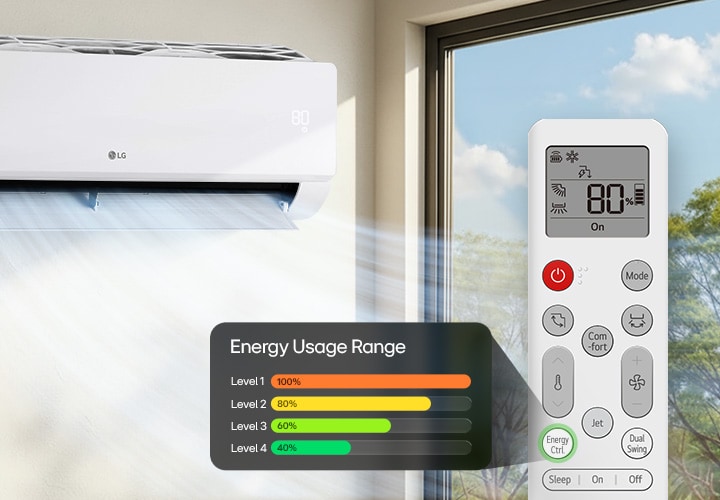

Image of a wall-mounted LG air conditioner blowing cool air with energy usage chart

Image of a wall-mounted LG air conditioner blowing cool air with energy usage chart

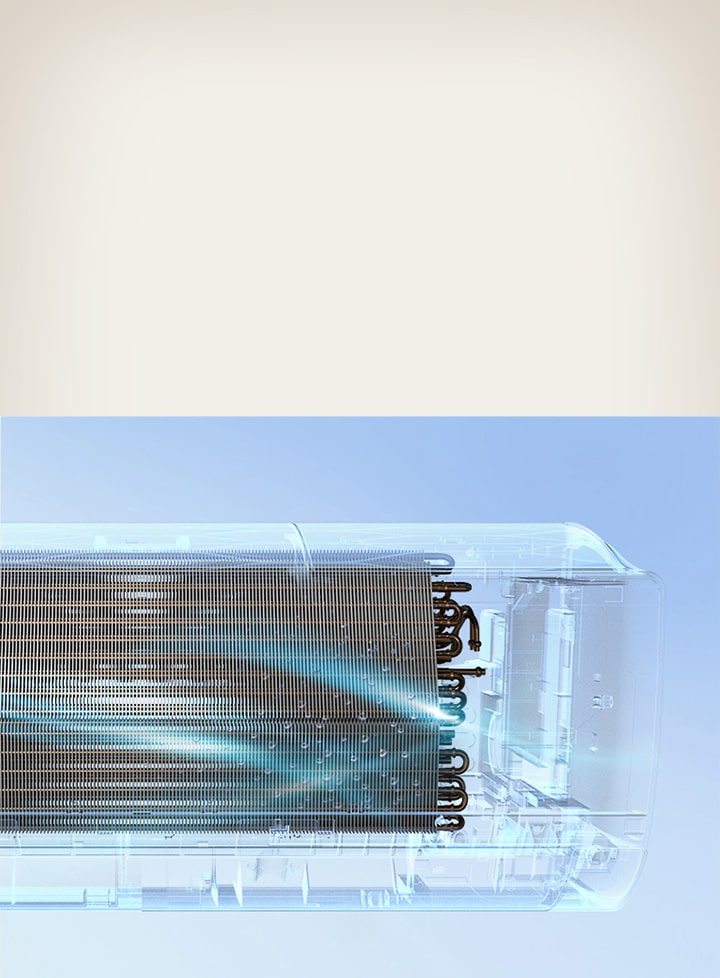

video of LG air conditioner heat exchanger showing fins with condensation and airflow

Auto Cleaning

Always fresh with automatic dry care

Automatically dries internal moisture4), keeping the air conditioner fresh and hygienic.

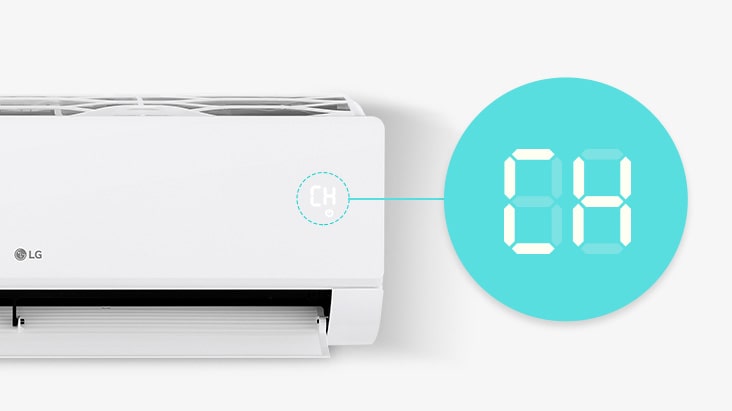

Smart Diagnosis

Smart LED helps you get smart answers

Simply call LG customer service, give the LED code, and service engineers will provide a solution.

Image explaining quiet air conditioner cooling compared to rustling leaves and library noise levels

Image explaining quiet air conditioner cooling compared to rustling leaves and library noise levels

Low Noise

Quiet nights with a gentle breeze

LG air conditioners operate at low sound levels, thanks to LG's unique skew fan and Dual Inverter Compressor™ which eliminate unnecessary noise and allow for smooth operation.

1.Energy Saving

-TUV has verified that LG Inverter air conditioners (US-Q242K*) save up to 70% more energy than non-inverter LG air conditioners (TS-H2465DAO).

-Test Date: 2016.12, Test Conditions : Test room size: 4.3 m * 7.0 m * 2.3 m, Test Conditions: Indoor temperature 33°C, Outdoor temperature 35°C, Relative humidity 60%, Setting temperature 26°C, Test Method : 26.5°C Reach Time Comparison, Test Model: TS-H2465DA0(Conventional) US-Q242Kxy0(Dual Inverter)



2.Fast Cooling

-TUV has verified that LG Inverter air conditioners (US-Q242K*) cool up to 40% faster than non-LG inverter air conditioners (TS-H2465DAO).

-Test Date : 2016.12, Test Conditions : Test room size: 4.3 m * 7.0 m * 2.3 m, Test Conditions: Indoor temperature 33°C, Outdoor temperature 35°C, Relative humidity 60%, Setting temperature 26°C, Test Method: Measured power consumption during 8hr, Test Model: TS-H2465DA0,TS-122YD4(Conventional) US-Q242Kxy0, US-Q122Jxy0.



3.Active Energy Control

- The remote controller display image may be changed without notice.

- This feature is only available in cooling mode.

- The operation limits the maximum power consumption to 80%, 60%, and 40% in stages, which may result in reduced cooling performance. For stronger cooling, please use the normal cooling mode or Jet Mode.



4.Auto Cleaning

- When the product is turned off, the Auto Cleaning function is automatically activated.

- During Auto Cleaning, the product operates In fan mode For a certain period of time to help remove residual moisture from the heat exchanger.

- Auto Cleaning is activated When the product is turned off.

- The drying conditions inside the appliance may vary depending on the temperature or humidity of the indoor air.

- For initial use, activation of the function via the remote control is required. please refer to the manual included with the product For detailed instructions.

Print

Key Specs

  • GENERAL - Product Type

    Wall Mounted

  • GENERAL - HVAC Type

    C/O

  • GENERAL - Cooling Power Consumption Rated/Min(W)

    840 / 200

  • Energy Saving - Energy Grade

    N/A

  • CONVENIENCE - ThinQ(Wi-Fi)

    N/A

  • HYGIENE - UV Nano

    N/A

  • AIR PURIFYING - Ionizer

    N/A

All Spec

BAR CODE

  • Bar Code

    8851434643927

COOLING

  • 4way

    Up-Down

  • Airflow direction control (Left & Right)

    Manual

  • Airflow direction control (Up & Down)

    Yes(6 Steps)

  • Fan Speed

    6 Steps

  • Power Cooling

    Yes

  • AI Air

    N/A

  • Comfort Air

    Yes

AIR PURIFYING

  • Air Purifying Display

    N/A

  • Ionizer

    N/A

  • PM 1.0 Sensor

    N/A

COMPLIANCE

  • Launching Month (YYYY-MM)

    2026-01

  • Manufacturer (Importer)

    LG Electronics

  • Product Model Name

    HS-09ISA

  • Product Type & Model Name

    Inverter & HS-09ISA

CONVENIENCE

  • Auto Restart

    Yes

  • Fan Mode

    Yes

  • Forced Switch Operation

    Yes

  • Low Noise

    N/A

  • On/Off Reservation(24Hr)

    Yes

  • Remote Controller

    Yes

  • Reservation

    Yes

  • Smart Diagnosis

    Yes

  • ThinQ(Wi-Fi)

    N/A

  • Deep Sleep

    N/A

  • Sleep Timer+

    N/A

ENERGY SAVING

  • Active Energy Control

    Yes

  • Energy Display

    Yes

  • Energy Monitoring

    Yes

  • Energy Saving(Cooling)

    N/A

  • Energy Grade

    N/A

  • kW Manager

    N/A

  • Radar Sensor

    N/A

DESIGN

  • Color(Body)

    White

  • Color(Discharge)

    Black

  • Display

    88 Hidden

FILTER

  • Fine Dust Filter

    Yes

  • Ultra Fine Dust Filter

    N/A

HYGIENE

  • Auto Cleaning

    Yes

  • UV Nano

    N/A

  • Heat Exchanger Cleaning

    N/A

OUTDOOR UNIT

  • Outdoor Unit Model Name

    HSU09ISA

GENERAL

  • Cooling Power Consumption Rated/Min(W)

    840 / 200

  • Heating Consumption Power Rated/Min(W)

    N/A

  • HVAC Type

    C/O

  • Indoor Unit Dimension_WxHxD(mm)

    837x308x189

  • Indoor Unit Weight(kg)

    7.5

  • Indoor Unit Weight(lb.)

    16.5

  • Outdoor Unit Dimension_WxHxD(mm)

    717 x 495 x 230

  • Outdoor Unit Weight(kg)

    16.5

  • Outdoor Unit Weight(lb.)

    36.4

  • Product Type

    Wall Mounted

  • Product Type II

    Inverter

  • Rated Input Voltage(V, Hz)

    230, 60

  • Refrigerant Type

    R32

  • Cooling Capacity Max(BTU/h)

    10407

  • Cooling Capacity Rated(HP)

    N/A

  • Cooling Capacity Rated/Min(BTU/h)

    9212 / 3412

DEHUMIDIFICATION

  • Dehumidification

    N/A

RAC B2B FUNCTION

  • PI485 Module

    N/A

  • Dry Contact

    N/A

  • Wired Remote Controller

    N/A
