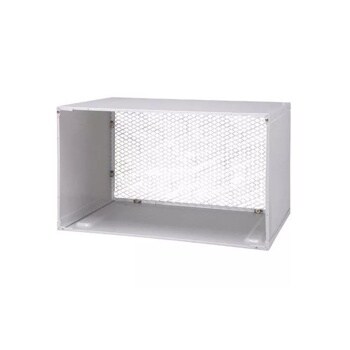

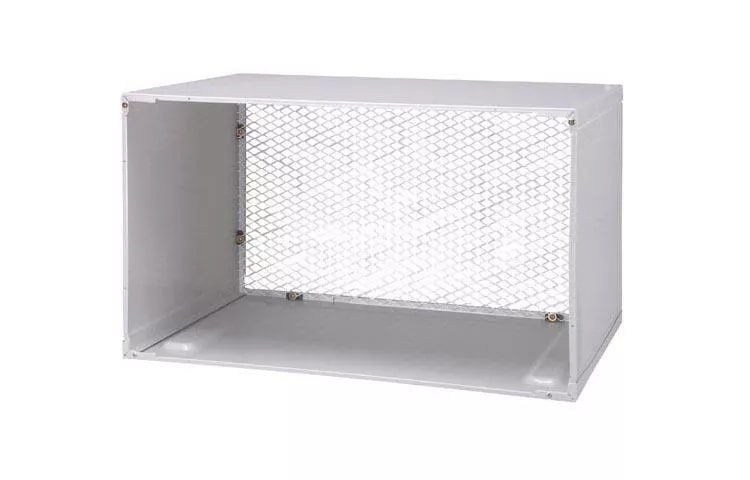

Thru-the-Wall Air Conditioner 26" Wall Sleeve
$

Dimensions

AXSVA1 AXSVA1

DIMENSIONS/WEIGHT

    • Dimensions (WxHxD)
    • 25 7/8" x 15 17/32" x 16 23/32"

UPC CODES

    • UPC
    • 048231355322

What people are saying

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 17ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

9,800 BTU 115-Volt Through-the-Wall Air Conditioner LT1016CER Cools 425 Sq. Ft. with ENERGY STAR and Remote Do I need the grill and or the stamped grill or just the sleeve

Asked by: Helpitout
The LG 9,800 BTU 115v Through-the-Wall Air Conditioner, Model # LT1016CER does not come with a wall sleeve so you would need to purchase the LG Thru-the-Wall Air Conditioner 26'' Wall Sleeve, Model # AXSVA1. However, the wall sleeve does not come with a grille. All wall sleeves used to mount the new air conditioner must be in good structural condition and have a rear grille to securely attach the new air conditioner so you will also need to purchase the LG Thru-the-Wall Air Conditioner Architectural Grille, Model # AXRGALA01 if you purchase the wall sleeve or purchase the LG Thru-the-Wall Air Conditioner Wall Sleeve with Stamped Aluminum Grille, Model # AXSVA4...^Ivan
Answered by: Ivanf
Date published: 2022-06-14

Is there an install video? Like how to mount it, screw it in place etc?

Asked by: Clarity1234
The LG Thru-the-Wall Air Conditioner 26'' Wall Sleeve, Model # AXSVA1comes with an installation guide, but there is no installation video tutorial for it...^Ivan
Answered by: Ivanf
Date published: 2022-06-14

I want to install a LW 1817 IVSM THROUGH THE WALL- will this fit that model?

Asked by: Newf lover
As implied in its title, the LG Thru-the-Wall Air Conditioner 26'' Wall Sleeve, Model # AXSVA1 is designed for compatibility with "Thru-the-Wall LG Air Conditioners. It is not compatible with Window Air Conditioners. The W x H x D dimensions for the wall are 25 7/8" x 15 17/32" x 16 23/32" and those for the LG 18,000 BTU DUAL Inverter Smart wi-fi Enabled Window Air Conditioner, Model # LW1817IVSM are 25.98" x 17.72" x 26.22", and as you can see from the dimensions, the air conditioner will not fit into the sleeve. As a Window Air Conditioner, the LW1817IVSM requires standard single-hung or double-hung windows with actual opening widths from 29” to 41” and the top and bottom window sashes must open sufficiently to allow a clear vertical opening of 19” from the bottom of the upper sash to the inside sill for p[roper installation. The side and top louvers on the unit MUST NOT be covered or blocked. All side louvers of the cabinet must remain exposed to the outside of the structure and unobstructed. Non-window installations, including using sleeves or wall openings, and other installation methods are not recommended...^Ivan
Answered by: Ivanf
Date published: 2022-04-13

I purchased your LT1430cnr, LT1236cer & LT0816cer units and I would like to know which sleeves are best for each; Thanks!.

Asked by: DrRox
The LG Thru-the-Wall Air Conditioner 26'' Wall Sleeve, Model # AXSVA1 is the only wall sleeve that we currently have for our Through-the-Wall Air Conditioners...^IFV
Answered by: Ivanf
Date published: 2021-07-21

is this the correct sleeve for LG model LT1236CER through the wall AC?

Asked by: magojr
The LG Thru-the-Wall Air Conditioner 26'' Wall Sleeve, Model # AXSVA1 is compatible with the LG 12,000 BTU 230v Through-the-Wall Air Conditioner, Model # LT1216CER. You will also need the LG Stamped Aluminum Grille, Model # AXRGALA01 or you can purchase the LG Wall Sleeve with Stamped Aluminum Grille, Model # AXSVA4...^IFV
Answered by: Ivanf
Date published: 2020-10-12

I'd like to install the LT0816CER into a wall that is 9 1/2 inches thick.  I'm concerned that side vents, if this unit has them, would be blocked by the wall.  Is this a problem?

Asked by: Rickyboy1959
As implied in the title, the ENERGY STAR® LG 8,000 BTU 115v Through-the-Wall Air Conditioner, Model # LT0816CER is a Through-the-Wall Air Conditioner that is designed for installation in a wall. Unlike Window Air Conditioners that have louvers in the sides and top on their cabinets, Through-the-Wall Air Conditioners do not have louvers in the sides or on the top which is why they can be installed with a Wall Sleeve. This Air Conditioner has to be installed in a wall using the LG Thru-the-Wall Air Conditioner 26'' Wall Sleeve, Model # AXSVA1 which is what supports the air conditioner when it is installed in a wall...^IFV
Answered by: Ivanf
Date published: 2020-07-08

Will this fit a LG LW1516ER

Asked by: Charlie Bobo
The LG 15,000 BTU Window Air Conditioner, Model # LW1516ER is not a Through-the-Wall Air Conditioner and it cannot be used with the LG Thru-the-Wall Air Conditioner 26'' Wall Sleeve, Model # AXSVA1...^IFV
Answered by: Ivanf
Date published: 2020-05-26

We are retrofitting 8 apartments with your through wall: LG LT1016CER 9,800 BTU AC unit and are planning to use the wall sleeve: AXSVA1 We would like to make sure these two are compatible and find out the required size of the rough opening.

Asked by: Volker
Yes the LT1016CER is compatible with the AXSVA1. The AXSVA need the following cuttout dimensions: Cut-Out Front to Back Width (in.) 16.72 in Cut-Out Height (in.) 15.53 in Cut-Out Left to Right Length (in.) 25.88 in ^CP
Answered by: ChrisPSM
Date published: 2021-07-07
