Discontinued
LW1214HR

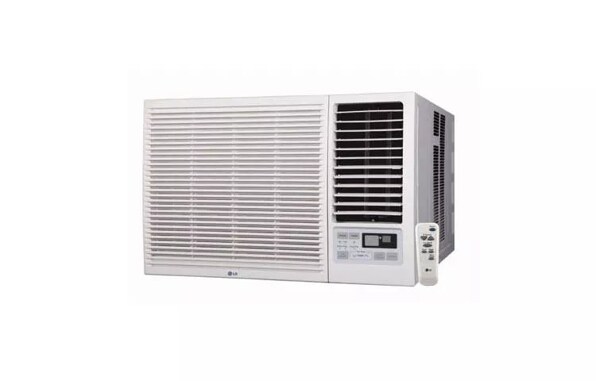

Window Air Conditioner
  • 11,500/12,000 BTU Cooling / 9,200/11,200 BTU Heating
  • Cooling EER (BTU/Watts) 9.8/9.8
  • Seasonal Heating & Cooling
  • Multiple Cooling/Heating Speeds

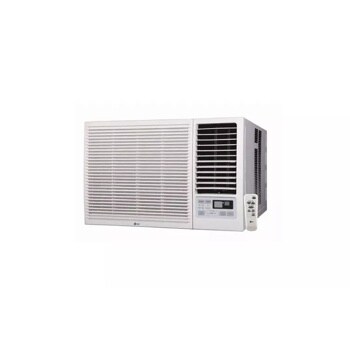

Window Air Conditioner

PERFORMANCE

  • EER
    9.8 / 9.8
    Dehumid. (Pts/Hr)
    3.3
  • Dry Air Flow (CFM)
    265
    dBA Level (Indoor / Outdoor)
    51 / 57
  • Est. Cooling Area (Sq. Ft.)
    550
    BTU Performance Cooling
    11,500 / 12,000
  • BTU Performance Heating
    9,200 / 11,200

DIMENSIONS

  • Product (WxHxD)
    23 5/8" x 14 31/32" x 22 1/16"
    Shipping (WxHxD)
    27 1/16" x 18 1/8" x 23 5/8"
  • Net Weight (lbs.)
    87
    Shipping Weight (lbs.)
    93
  • Stuffing Quantity (20ft/40ft)
    135/297

FEATURES

  • Thermostat Control
    Thermistor
    Air Deflection
    4-Way
  • Energy Saver Function
    Yes
    Fan Speed: Cooling (Heating)
    2(2)
  • Fan Only Speed
    2
    Compressor
    Rotary
  • Indoor Fan Type
    Blower
    Type Air Discharge
    Side by side
  • Outdoor Vent / Exhaust
    Yes
    Chassis Type
    Slide In-Out

MATERIALS/FINISHES

  • Available Colors
    White

ELECTRICAL RATINGS

  • Voltage / 60 Hz
    208/230
    Watts (Cooling)
    1,170/1,220
  • Watts (Heating)
    2,900/3,500
    Rated Amps (Cooling)
    5.8/5.5
  • Rated Amps (Heating)
    14.0/15.3

WARRANTY

  • Limited Warranty
    1 Year Parts and Labor
    UPC
    048231372831
What people are saying
Rated 4 out of 5 by from Nice cooling. I bought this five years ago and i am satisfied with the product but am feeling some noise while compressor works.
Date published: 2019-01-11
Rated 1 out of 5 by from LG Electronics - LW12 Bought this unit 2 years ago when renovating my home and it has already stopped working......runs constantly and does not cool. Very disappointing product.
Date published: 2016-05-17
Rated 5 out of 5 by from great AC for our use Use in the upstairs of our storage building. Works great , does everything we expected
Date published: 2015-08-22
  • y_2019, m_9, d_16, h_23
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_10
  • loc_en_US, sid_MD05096421, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 206ms
  • REVIEWS, PRODUCT
ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Can I mount this to exhaust into my workshop? How many cubic feet of space is required for the unit to operate?

I am mounting this in a wall between my workshop and an office area i am building. My workshop is approximately 2500 square feet and is ventilated with louvers on 2 ends of the shop. is there a formula i can use to determine how big a unit i can install?
Asked by: Denton
It is always recommended to have a window air conditioner vented directly outdoors, as the exhaust is hot, moist air which could make the occupation of such a workshop hazardous.
Answered by: NeilE
Date published: 2015-08-19

Can I buy a extra remote for this AC/Heat window unit?

I would like to purchase a remote for this unit. I have one for mine but need one for my dad's unit as well. The one I have seems to universal and works on his. Looking forward in hearing from you and thank you in advance..
Asked by: Check1
Accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for the remote control is 6711A20066L.
Answered by: NeilE
Date published: 2014-12-10

heater functioning

Does the heater turn on and off by the thermostat? When I activated the heater, the unit continued to operate for over 8 hours with no heat coming out --- it actually cooled the room down instead of heating it up!
Asked by: MoodyElric
It should NOT blow cold air all the time. If you turn the thermostat up to it's highest temp the unit should blow hot until the temp in the surrounding area is reached or the heat pump needs to recycle and then it will blow cool air for a short period and then go back to heating I found that running it in E-Saver while heating was not a good thing as when the heating portion stopped it just blew cold air and did not shut down as I though it would. The instruction book is quite detailed and warrants careful reading...I had to read through it twice.
Answered by: Irishman54
Date published: 2015-02-21

What is the voltage for the lw1214HR

Asked by: medoc
220 VAC
Answered by: Irishman54
Date published: 2014-11-24

How long should the compresser stay on?

My husband and I just installed this unit (he is a handyman). It blows fine but the compressor only stays on for about 30 seconds and turns of, then after about 1 minute it comes back on for another 30 seconds. Is this whats its supposed to do? All of out other units do not do this.
Asked by: Casey205
It depends on your settings but based on what your saying I would say that the unit needs Freon or Oil and thus the compressor is cycling on and off. It needs to be checked out or returned to the store! It's definitely NOT normal operation.
Answered by: Irishman54
Date published: 2015-02-21

Is an outside cover available for this model?

LW1214HR LG - the size of covers I have found online do not fit the dimensions of this model. Any ideas on where to find an outside cover to fit the dimensions for this model?
Asked by: tinker8629
Are you looking for a cover to protect the unit when you're not using it? It comes with a case/cover that it slides into when you mount it. If I were going to cover it for preservation I would get some 2 mil plastic and duct tape it around the unit and seal it up.
Answered by: Irishman54
Date published: 2015-02-21

 How does the timing work for the heater

Asked by: Boy 2

Why is the eer rating lower on the heat pump molels?

Asked by: mghamms
