55UH5F-H

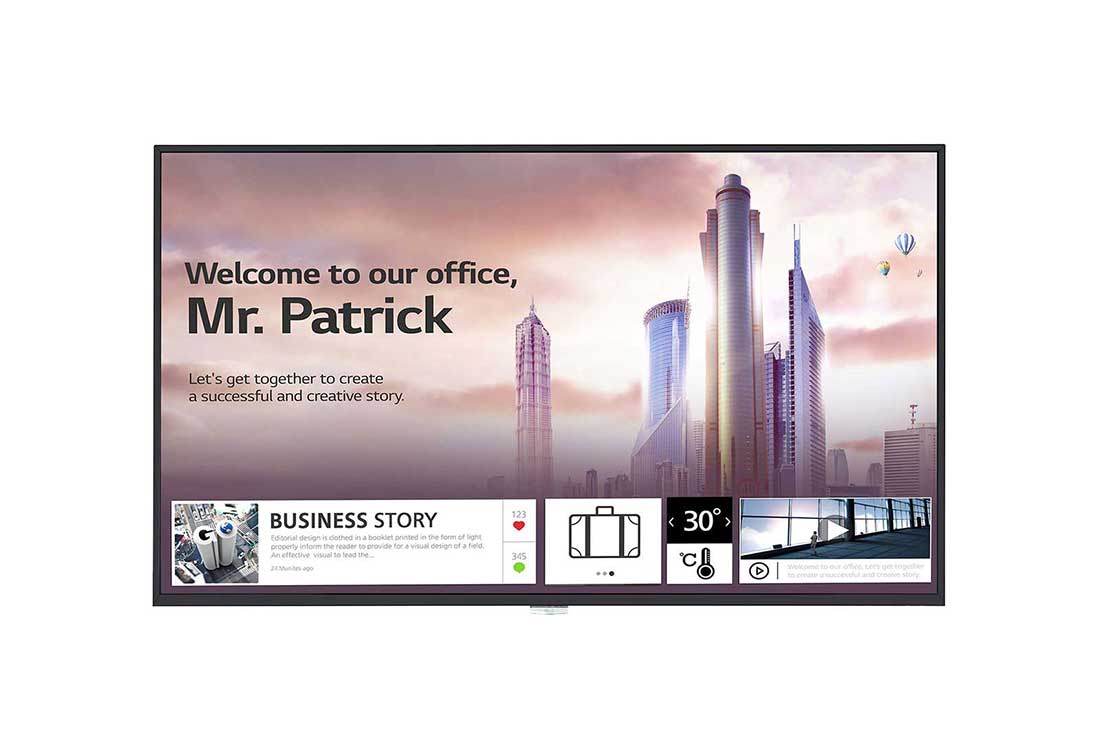

55” UH5F-H Series Slim UHD IPS Digital Signage with non-glare coating, webOS platform, Cisco & Crestron compatible, & IP5x Certified
/
1/10
55” UH5F-H Series Slim UHD IPS Digital Signage with non-glare coating, webOS platform, Cisco & Crestron compatible, & IP5x Certified
$
1,450.00
SUPERB PICTURE QUALITY
Clear View with Non-glare Coating
Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.
SUPERB PICTURE QUALITY
ULTRA HD Resolution
With a resolution that is 4 times higher than FHD, it makes the color and details of the content more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear content with virtually no distortion.
SLEEK AND PRACTICAL DESIGN
Narrow Bezel & Slim Depth
This series has a small bezel size and thickness, which saves space and enables easy installation. In addition, it provides an immersive experience and has a sophisticated design that improves the décor of the space where the product is installed.
SLEEK AND PRACTICAL DESIGN
Detachable Logo and Built-in Speaker
The UH5F-H series has a new transparent logo that is removable, giving users flexibility during installation. Content will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
*Image for illustration purposes only.
PRODUCT RELIABILITY
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, virtually eliminating the risk of performance degradation.
PRODUCT RELIABILITY
30° Tilting Installation
The UH5F-H series supports the installation with 30 degrees of tilt* so the screen can be viewed when displayed in high spaces.
*Tilt installation of up to 30 degrees facedown is supported. (In conditions within 30ºC temperature, 50% humidity)
*Image for illustration purposes only.
*Image for illustration purposes only.
EASY INSTALLATION
Auto Screen Rotation
This series automatically detects its orientation (landscape or portrait mode) in the initial installation step. Manual rotation set-up isn't required. The direction of the on screen display and background contents will be set when you turn on the display.
*Conventional displays without auto screen rotation. Image for illustration purposes only.
EASY INSTALLATION
Fine Adjustment
The UH5F-H series is equipped with a "horizontal sensor" which shows users how the device is tilted, so that it can be precisely installed.
webOS™ SMART SIGNAGE PLATFORM
High-Performance with webOS™
Built-in Quad Core System on Chip (SoC) can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS™ platform enhances user convenience with intuitive graphical user interface (GUI) and access to an advanced ecosystem of third-party development applications.
webOS™ SMART SIGNAGE PLATFORM
Various Sensor Applications
LG webOS™ smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.
MEETING ROOM SOLUTION COMPATIBILITY
Compatible with AV Control System
The UH5F-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
*Network based control.
*Image for illustration purposes only.
*Image for illustration purposes only.
MEETING ROOM SOLUTION COMPATIBILITY
Compatible with Video Conference System
The UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smart video conference.
*Using an HDMI cable connection.
*Image for illustration purposes only.
*Image for illustration purposes only.
ENERGY STAR® Certified
PANEL
-
- Screen Size
- 55"
- Panel Technology
- IPS
-
- Back Light Type
- Edge
- Aspect Ratio
- 16:9
-
- Native Resolution
- 3840 x 2160 (UHD)
- Refresh Rate
- 60Hz
-
- Brightness (Typ.)
- 500nits
- Contrast Ratio
- 1,100:1
-
- Dynamic CR
- 1,000,000:1
- Color Gamut
- BT709 95%
-
- Viewing Angle (H x V)
- 178° x 178°
- Color Depth
- 10 bit, 1.07 Billion colors
-
- Response Time (G to G)
- 8 ms
- Surface Treatment (Haze)
- 28%
-
- Lifetime
- 50,000 Hrs
- Operation Hours (Hours/Day)
- 24/7
-
- Portrait/Landscape
- Yes/Yes
SOUND
-
- Speaker
- Yes
CONNECTIVITY
-
- HDMI IN
- Yes (3) HDMI1/HDMI2: HDCP 2.2/1.4 HDMI3: HDCP 1.4
- DP In
- Yes (1), HDCP2.2/1.3
-
- DVI-D In
- Yes (1), HDCP1.4
- Audio In
- Yes
-
- RS232C In
- Yes (1), 4pin 3.5mm Jack
- RJ45 (LAN) IN
- Yes
-
- IR In
- Yes
CONNECTIVITY
-
- USB in
- USB2.0 Type A(1)
CONNECTIVITY
-
- DP Out
- Yes (1), Input: HDMI1/2/3/DVI/DP
- Audio Out
- Yes
-
- RS232C OUT
- Yes (1), 4pin 3.5mm Jack
MECHANICAL
-
- Bezel Color
- Black
- Bezel Width
- T/R/L: 9.9mm, B: 14.4mm
-
- Weight (Head)
- 41.9 lbs/19.0kg
- Packed Weight
- 53.4 lbs/24.2kg
-
- Monitor Dimension (W x H x D)
- 48.6 x 28.4 x 1.6 in/1234.4 x 720.9 x 39.9 mm
- Carton Dimensions (W x H x D) (Box outer size)
- 53.5 x 32.9 x 6.9 in/1360.0 x 835.0 x 175.0 mm
-
- Handle
- Yes
- VESA™ Standard Mount Interface
- 300 x 300
-
- Tilt (Face Down)
- Yes (Max 30°, 30°C temp, 50% humidity)
- Operation Temperature
- 32°F to 104°F/0°C to 40°C
-
- Operation Humidity
- 10% to 80%
- OPS type compatible
- Yes
KEY FEATURES
-
- Internal Memory
- 8GB
- Built-in Wi-Fi
- Yes
-
- Temperature Sensor
- Yes
- Auto Brightness sensor
- Yes
-
- Local Key Operation
- Yes
- webOS ver.
- webOS4.1
-
- Local Contents Scheduling
- Yes
- Group Manager
- Yes
-
- USB Plug & Play
- Yes
- Fail over
- Yes
-
- Booting Logo Image
- Yes
- No Signal Image
- Yes
-
- RS-232C Sync
- Yes
- Local Network Sync
- Yes
-
- PIP
- Yes
- PBP
- Yes (4)
-
- Screen Share
- Yes
- Video Tag
- Yes (4)
-
- Play via URL
- Yes
- Screen Rotation
- Yes
-
- External Input Rotation
- Yes
- Gapless Playback
- Yes
-
- Tile Mode Setting
- Yes (Max. 15x15)
- Setting Data Cloning
- Yes
-
- SNMP
- Yes
- ISM Method
- Yes
-
- Auto Set ID
- Yes
- Status Mailing
- Yes
-
- Control Manager
- Yes
- Crestron Inside
- Yes
-
- Smart Energy Saving
- Yes
- PM mode
- Yes
-
- Wake on LAN
- Yes
- Beacon
- Yes
-
- HDMI-CEC
- Yes
- SI Server Setting
- Yes
-
- webRTC
- Yes
- Pro:Idiom
- Yes
POWER
-
- Power Supply
- 100-240 Vac, 50/60 Hz
- Power Type
- Built-in Power
-
- Typ. Power
- 105W
- Max. Power
- 145W
-
- BTU (British Thermal Unit)
- 358 BTU/Hr (Typ.)/495 BTU/Hr (Max)
- Smart Enegy Saving
- 84W
-
- DPM
- 0.5W
- Power Off
- 0.5W
LG SOFTWARE & SERVICES*
-
- SuperSign CMS
- Yes
- SuperSign Control / Control+
- Yes/Yes
LG SOFTWARE & SERVICES*
-
- SuperSign WB
- Yes
- SuperSign Media Editor
- Yes
-
- LG ConnectedCare
- Yes
- *
- SuperSign CMS, Control+, White Balance and LG ConnectedCare are optional pay-for software/services.
Warranty & Other
-
- Warranty
- 3 Year Limited
- FCC (Regulatory)
- Class A
-
- CE (Regulatory)
- Yes
- ErP
- Yes
-
- Energy Star
- Yes
- Basic Accessories
- Remote Control (battery 2ea), Power Cord, QSG, IR/Light receiver, DP Cable (1.8m), Regulation Book, Phone to RS232C Adapter
