KEY FEATURES

  • Smart Brightness(Typ.) Control
  • Advanced Localized Dimming
  • Quarter Wave Plate (QWP)
  • Wide Viewing Angle
  • Anti-reflection

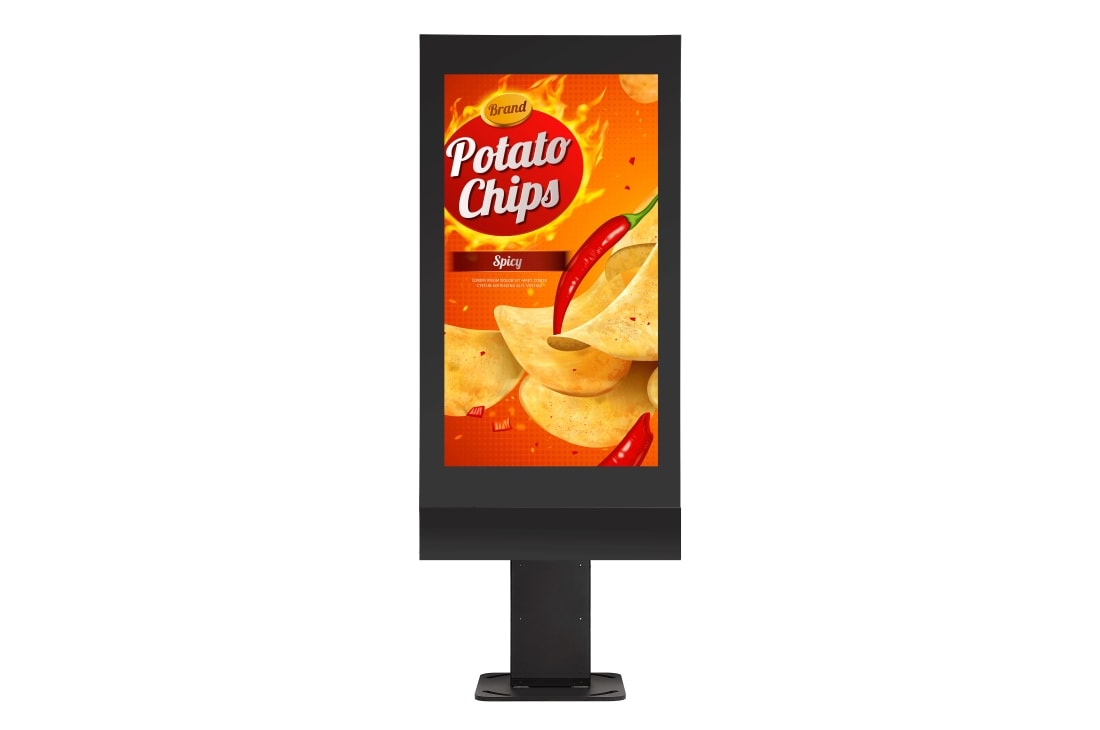

75” (75.52” Diagonal) Outdoor Commercial Signage
$ 22,500.00
Committed to Sustainability

LG Recognized as MSAP Leader

LG’s environmental practices have earned us the title of Leader in the MindClick Sustainability Assessment Program 22-23.
MSAP Ratings recognize environmental and social leadership by acknowledging manufacturers who promote sustainability and sustainable practices.
LG has earned the Leader status in the categories of Cruise TVs, Healthcare TVs, Digital Signage, Small Monitors, and Hospitality: H Models.

Smart Brightness Control

The auto-brightness sensor and preset time scheduler helps save power whenever possible.

Advanced Localized Dimming

The backlighting in specific areas of the screen can be controlled to increase contrast and provide a clearer image with twice the detail.

Quarter Wave Plate (QWP)

FPR (Film-type Patterned Retarder) technology is embedded with a QWP which enables clear visibility even when the viewer is wearing polarized sunglasses.

Wide Viewing Angle

IPS technology creates a wide viewing angle, showing the same crisp, clear image at any angle within 178 degrees from the top, bottom, right and left.

Anti-reflection

Less interference between reflection of external light & back light thanks to anti-reflection coating.

PANEL

    • Screen Size
    • 75" Class (74.52" diag)
    • Panel Technology
    • IPS
    • Native Resolution
    • 3,840 x 2,160 (UHD), M+
    • Aspect Ratio
    • 16:9
    • Brightness
    • 3,000cd/m2 (Typ.) 2,400cd/m2 (min) through front protective glass
    • Contrast Ratio
    • 1,200:1
    • Viewing Angle (H x V)
    • 178 x 178
    • Response Time
    • 8 ms (Typ.) (G to G BW)
    • Surface Treatment
    • Hard coating (2H),Anti-glare treatment of the front polarizer (Haze 3% (Typ.))
    • QWP Polarizer (FPR Film)
    • Yes
    • Local dimming
    • 48 Block
    • Orientation
    • Portrait only

CONNECTIVITY

    • External Control
    • RS232C, RJ45, SD Card, USB 3.0
    • Input
    • HDMI, DP, DVI-D, Audio
    • Output
    • DP, External Speaker (*waterproof speakers are mandatory for outdoor installation)

PHYSICAL SPECIFICATION

    • Bezel Color
    • Medium Texture Black (Common color)
    • Bezel Width
    • 110 mm (T), 230 mm (B), 73.3.0 mm (L/R)
    • Front Glass
    • 9.5 mm (AR, Front Safety Vandal Glass)
    • Dimensions (w/Stand)(W x H x D)
    • 1,075.6 x 2,361.6 x 218.9 mm / 42.3” x 93.0” x 8.6”
    • Weight (Head)
    • 180 kg / 396.8 lbs
    • Dimensions (w/o Stand)(W x H x D)
    • 1,075.6 x 1,991.6 x 218.9 mm / 42.3” x 78.4” x 8.6”
    • Dimensions (Carton) (W x H x D)
    • 1,292 x 2,296 x 468 mm / 50.9” x 90.4” x 18.4"
    • Weight (Packed)
    • 210 kg / 463.0 lbs
    • Handle
    • Option (I-Bolt)

SPECIAL FEATURES

    • Yes
    • Temperature Sensor, Tile Mode, Natural Mode@Tile Mode, Auto-Brightness Sensor, Pixel Sensor, Cooling Fan, ISM Method, DPM Select, Energy Saving, Smart Energy Saving, File Play with USB, Internal Memory (8 GB), Easy Brightness Control, Content Scheduling, Fail over, DP daisy chain

ENVIRONMENTAL CONDITIONS

    • Direct Sunlight
    • Yes
    • Dust / Water Proofing
    • IP 56
    • Operation Humidity
    • 5 % to 100 %
    • Operation Temperature
    • -30 °C to 50 °C

POWER

    • Power Consumption (Smart Energy Saving)
    • 350W
    • Power Consumption (Typ./Max)
    • 750W (Full White) / 403W (IEC 62087)
    • Power Supply
    • 100-240V~, 50/60Hz
    • Power Type
    • Built-In Power

STANDARD CERTIFICATIONS

    • EMC
    • FCC Class "A" / CE / KCC
    • ErP / Energy Star
    • No / No
    • Safety
    • UL / cUL / CB

MEDIA PLAYER COMPATIBILITY

    • External Media Player Attachable
    • No
    • OPS Type Compatible
    • No

SOFTWARE COMPATIBILITY

    • SuperSign-C
    • Yes
    • SuperSign-Lite
    • Yes

ACCESSORIES

    • Basic
    • Remote controller, EIG, ESG, Regulation book, Phone to RS232C gender, USB cable, HDMI cable
    • Optional
    • Media player (driven by customer), Enclosure Stand (ST-750X)
