75TR3BF-B

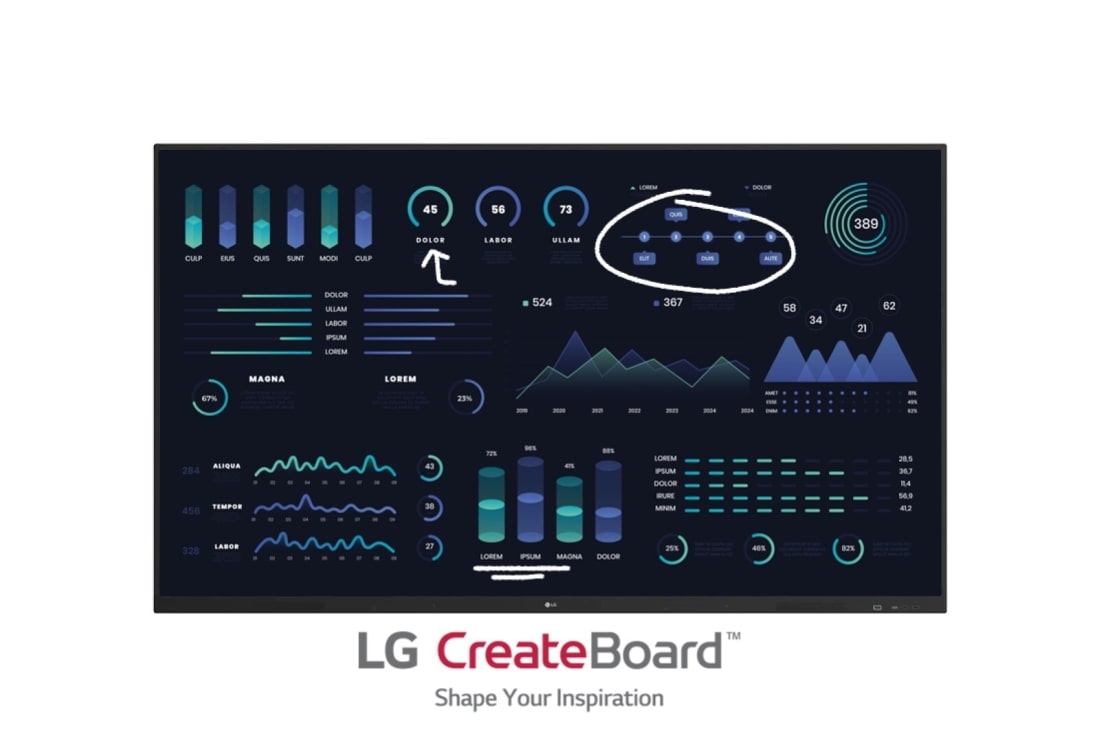

75” TR3BF-B Series IR Multi-Touch Point UHD IPS Digital Display
  • Multi-touch (20 points) & dual pen compatible
  • Ultra HD (3,840 x 2,160 resolution)
  • IPS Panel create superior picture quality
  • Android OS with Chrome web browser
  • Built-in OPS kit
  • Supports Air Class & screen sharing
75” TR3BF-B Series IR Multi-Touch Point UHD IPS Digital Display
$
*Images are for illustrative purpose only.
*Images are for illustrative purpose only.

PANEL

  • Screen Size
    75
    Panel Technology
    IPS
  • Back Light Type
    M+, Direct
    Aspect Ratio
    16:09
  • Native Resolution
    3,840 x 2,160 (UHD)
    Brightness(Typ., cd/m², w/ Protection Glass)
    330
  • Contrast Ratio
    1,100:1
    Viewing Angle (H x V)
    178 x 178
  • Response Time
    8ms(G to G)
    Life Time (Typ.)
    30,000 Hrs (Min.)
  • Operation Hours
    16Hr
    Orientation
    Landscape

CONNECTIVITY

  • (Input) Video / Audio
    HDMI (3), RGB / Audio In
    (Input) External Control
    RS232C In, RJ45
  • (Input) USB
    USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update), USB 3.0 (3), Touch Out(USB2.0,B Type) (2)
    (Output) Video / Audio
    HDMI (1), Optical Output / Audio Out

MECHANICAL SPECIFICATIONS

  • Bezel Color
    Black
    Bezel Width(Off Bezel)
    Top/Right/Left:17.7mm, Bottom:45.7mm
  • Monitor Dimension (W × H × D)
    1,709×1,020×86mm
    Weight (Head)
    67kg
  • Carton Dimensions(W x H x D) with pallet
    1,950×1,266×285mm
    Packed Weight
    85kg
  • Handle
    Yes
    VESA™ Standard Mount Interface
    800 x 400

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%

POWER

  • Power Supply
    100-240 V~, 50/60 Hz
    Power Type
    Built-In Power
  • Power Consumption (Typ. / Max.)
    260W / 300W

SOUND

  • Speaker
    Built in 24W (12W + 12W)

STANDARD(CERTIFICATION)

  • Safety
    UL / cUL / CB
    EMC
    FCC Class "A" / CE
  • ErP / Energy Star
    Yes / No

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible
    Yes

ACCESSORY

  • Basic
    Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Control

SPECIAL FEATURE

  • Embedded Writing Software
    Yes

TOUCH SPECIFICATIONS

  • Touch type
    IR
    Available object size for touch
    Ø3 mm ↑
  • Response Time
    60ms ↓ (Android) / 100ms ↓ (Windows)
    Accuracy
    1.5mm
  • Interface
    USB 2.0
    Protection Glass Thickness
    4T (Anti-Glare)
  • Protection Glass Transmission
    87%
    Operating System Support
    Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch)
  • Multi touch point
    Max 20 Point
