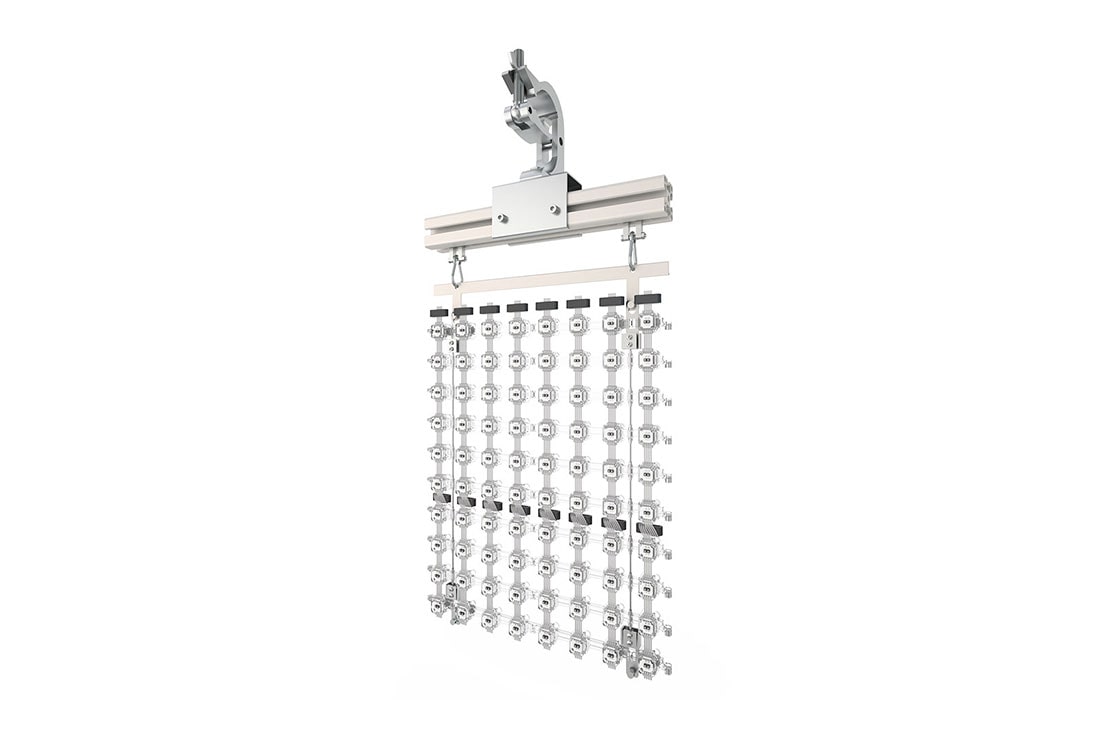

Flexible Mesh LED Display
*All images in this page are for illustrative purposes only.
Flexibility for Various Screen Shapes
With its ability to be curved, folded, or rolled, GMBD can be easily formed into a variety of shapes for artistic, ornamental, or creative work. Its features can be widely applied to building facades, outdoor commercial, large events, or other areas to provide daytime or night views.
Lightweight Mesh LED
Its small, lightweight design reduces weight strain even for large screens, reducing time and cost for installation.
Easy Maintenance
Its LED Data Line Bypass function keeps LED PKGs working even when a middle LED PKG is broken (or dead). A single dead pixel can be fixed or replaced separately, which allows the LED to be operated with reduced costs and time for maintenance.
PHYSICAL PARAMETERS
-
- Pixel Configuration
- 2 in 1 SMD
- Pixel Pitch (mm)
- 40.00
-
- Module Resolution (W × H)
- 1 × 80
- Module Dimensions (W × H, mm)
- 18 × 3,200
-
- Weight per Module (kg)
- 0.48
- No. of Modules per Cabinet (W × H)
- 8 × 1
-
- Cabinet Resolution (W × H)
- 8 × 80
- Cabinet Dimensions (W × H × D, mm)
- 320 × 3,200
-
- Cabinet Surface Area (m²)
- 1.024
- Weight per Cabinet (kg/Cabinet)
- 6.4
-
- Weight per Square Meter (kg/m²)
- 6.4
- Physical Pixel Density (pixels/m²)
- 625
-
- Cabinet Material
- Plastic body and silicon cable
- Service Access
- Front and Rear
OPTICAL SPECIFICATIONS
-
- Max Brightness (After Calibration, nit)
- 3,000
- Color Temperature (K)
- 18,000-25,000
-
- Visual Viewing Angle (H × V)
- 120 × 120
- Brightness Uniformity
- 90%
-
- Contrast Ratio
- 20,000 : 1
- Processing Depth (bit)
- 12 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
-
- Power Consumption (W/Cabinet, Max.)
- 384
- Power Consumption (W/Cabinet, Avg.)
- 128
-
- Power Consumption (W/m², Max.)
- 375
- Heat Dissipation (BTU/h/Cabinet, Max.)
- 1,310
-
- Heat Dissipation (BTU/h/Cabinet, Avg.)
- 437
- Heat Dissipation (BTU/h/m², Max.)
- 1,280
-
- Power Supply (V)
- 9
- Frame Rate (Hz)
- 50 / 60
-
- Refresh Rate (Hz)
- 20,000
OPERATION SPECIFICATIONS
-
- LED Lifetime (Half brightness)
- 100,000
- Operating Temperature (°C)
- -40 to +60
-
- Operating Humidity
- 10-90%RH
- IP Rating Front / Rear
- IP66 / IP66
CERTIFICATION
-
- Certification
- CE / FCC / cTUVus / CB
ENVIRONMENT
-
- Environment
- RoHS, REACH
CONTROLLER
-
- Controller
- LCLY006
90 DEGREE CORNER CUT
-
- 90 Degree corner cut
- Yes
