Discontinued

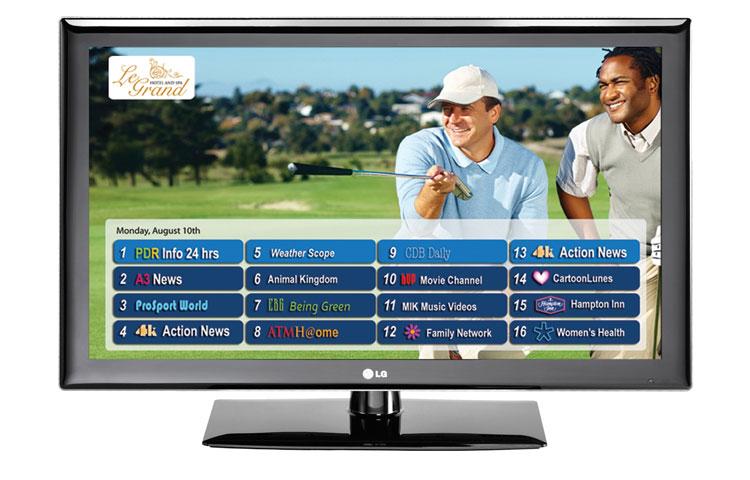

37LD655H

37'' class (37.0'' measured diagonally) Pro:Centric™ LCD Widescreen HDTV with Applications Platform

37" class (37.0" measured diagonally) Pro:Centric™ LCD Widescreen HDTV with Applications Platform

Energy Guide

The estimated annual energy cost determined in accordance with 16 CFR Part 305.5 for model 37LD655H is $19.“Your energy cost depends on your utility rates and use. The estimated cost is based on 11 cents per kWh and 5 hours of use per day. For more information, visit www.ftc.gov/energy.”FTC Television labeling rule (18 CFR Part 305, as added by 76 Fed. Reg. 1038 (Jan 6, 2011)).

Pro:Centric, Pro:Idiom

  • The Full 1080p 37LD655H Pro:Centric™ enabled HDTV leads the way in advancing the guest experience and streamlining how hoteliers deliver in-room entertainment. Provide in-room service applications such as an Electronic Program Guide (EPG) as well as guestroom access to hotel amenities all to provide an exceptional stay with Guest-Centric entertainment and hotel options. Along with Pro:Idiom® DRM and MPEG-4 H.264 decoding, its integrated b-LAN™ technology also enables the delivery of a wide range of interactive content and functionality by supporting many HD VOD/HD FTG and other FTG systems.

PANEL

    • Native Display Resolution
    • 1920 x 1080
    • Maximum Computer Resolution (RGB)
    • 1360 x 768
    • Life Span
    • 60,000 hours (approx.)
    • LCD Panel Type
    • 37"
    • Dynamic Contrast Ratio
    • 20,000:1
    • Display Area
    • 37.0" diagonal
    • Contrast Ratio
    • 1200:1
    • Viewing Angle (HxV)
    • 178° x 178°
    • Response Time
    • 4ms (max)

VIDEO

    • Just Scan 0% over scan HDMI/Component
    • 1080i/1080p/720p
    • Just Scan 0% over scan RF DTV
    • 720p
    • Picture Status Mode
    • 7 Modes (Intelligent Sensor, Vivid, Standard, Cinema, Sports, Game, Natural)
    • Video Reset/Intializing
    • Yes
    • XD Color (Active Color Management)
    • Yes
    • XD Engine
    • Yes
    • 24p Real Cinema
    • Yes
    • All Format Converter
    • 1080i/720p/480p/480i~768p
    • Aspect Ratio Adjustment
    • 5 Modes
    • Black Stretcher
    • Yes
    • Built-In Tuner
    • ATSC/NTSC/QAM Tuner
    • Color Temperature
    • Cool, Normal, Warm, User
    • Comb Filter
    • 3D Digital
    • DTV Signal Strength (digital)
    • Yes
    • Decoder Formats
    • MPEG-2/MPEG-4 H.264 (full HD real time decoding, AC-3 decoding)
    • EZ Picture Selection Mode
    • 3 Modes (Cool, Medium, Warm)

AUDIO

    • Dolby Digital Decoder
    • Yes
    • EZ Sound/Sound Selection Mode
    • 5 Modes (Standard, Music, Cinema, Sports, Game)
    • EZ SoundRite (Auto Volume Limiter)
    • Yes
    • Invisible Speaker System
    • Yes
    • Audio Power
    • 20W (10W x 2)
    • Mono/Stereo/Dual (MTS/SAP)
    • Yes
    • Mute
    • Yes
    • SRS TruSurround XT™
    • Yes
    • Speaker System Details
    • 2 Way 4 Speaker
    • Clear Voice
    • Yes
    • Bass/Treble/Balance
    • Yes

SPECIAL FEATURES

    • Channel Add/Delete
    • Yes
    • Channel Labeling
    • Yes
    • Closed Captions
    • Yes
    • Commercial Mode Setup Menu (Installer Menu)
    • Yes
    • Discrete IR Codes
    • Yes
    • Favorite Channel
    • Yes
    • Flashback (Quick View)
    • Yes
    • Integrated Pro:Idiom
    • Yes
    • PIP with RJP
    • Yes
    • Parental Control w/V-Chip
    • Yes
    • Pro:Centric Platform
    • Yes (supports Java/Adobe Flash applications)
    • RJP Plug & Play Support
    • Yes
    • Anti-theft Warning Label
    • Yes
    • Auto Programming
    • Yes
    • Sleep Timer, On/Off Timer
    • Yes
    • Splash Image-Logo (on start up)
    • Yes
    • TV Link Protocol
    • Yes
    • Trilingual Menus
    • English/Spanish/French
    • USB Cloning
    • Yes
    • USB Media Host (JPEG & MP3)
    • Yes
    • b-Lan Embeded (Version 6.3 or up)
    • Yes
    • Key Lock/Child Lock
    • Yes
    • MPEG4
    • Yes
    • Manual Clock
    • Yes

INPUTS/OUTPUTS

    • HDMI V1.3
    • 2 Inputs
    • IR In/Out
    • 1
    • USB 2.0
    • 1 Side (Media Host, Cloning, and Service)
    • LAN (RJ-45)
    • 1 (service only)
    • MPI Slot
    • 1
    • PC Audio In (RGB/DVI with adaptor)
    • 1
    • RF In
    • 1 (ATSC/NTSC)
    • RGB In (PC/DTV Input)
    • 1 (Rear for PC RGB)
    • RJP Interface
    • 1
    • RS-232C Input
    • 1
    • Remote Control Out (IR)
    • 1
    • Digital Audio Out (Optical)
    • 1
    • Composite Video & Audio L/R In
    • 1 Rear/1 Side
    • Component HD/DVD & Audio L/R In
    • 1
    • Bathroom Speaker Out (3.5mm phone jack)
    • 1
    • IR Pass Thru
    • 1

CABINET

    • Unit Weight
    • with Stand 28.2 lbs, without Stand 24.7 lbs
    • VESA Standard Mount Interface
    • 200mm x 200mm
    • Weight with Packaging
    • 35.7 Ibs
    • Color
    • Matte Black
    • Dimensions with Stand (W×H×D)
    • 36.1" x 24.6" x 10.3"
    • Dimensions without Stand (W×H×D)
    • 36.1" x 22.0" x 3.0"
    • Packaging (W×H×D)
    • 39.2" x 26.0" x 9.0"
    • Power Cord Length
    • 9 ft.
    • Stand w/built-in security plate (parts included, tools not included)
    • Yes
    • Standard Stand Fixing Hole (360 x 90)
    • Yes
    • TORX Security Screws (2 each)
    • Yes
    • Table Stand Included
    • ±90° Swivel

POWER

    • EcoSmart Dynamic Power Savings
    • Yes
    • EcoSmart Intelligent Sensor
    • Yes
    • EcoSmart Static Power Savings
    • Yes
    • Power Consumption (typ.) with Power Saving Modes Disabled
    • 140W
    • Stand-by
    • Under 1W
    • Power Source
    • 100~240V 50/60Hz

REQUIRED LISTINGS

    • RoHS Compliant
    • Yes
    • UL, c-UL, NOM
    • Yes

SERVICE/LIMITED WARRANTY

    • Limited Warranty (Parts/Labor)
    • 2 Years

UPC

    • 37LD655H
    • 7 19192 90170 4
