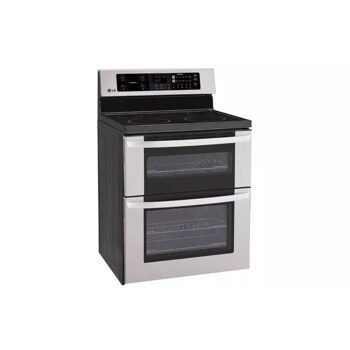

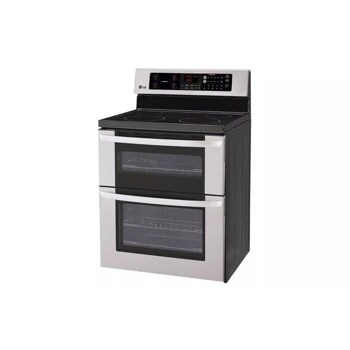

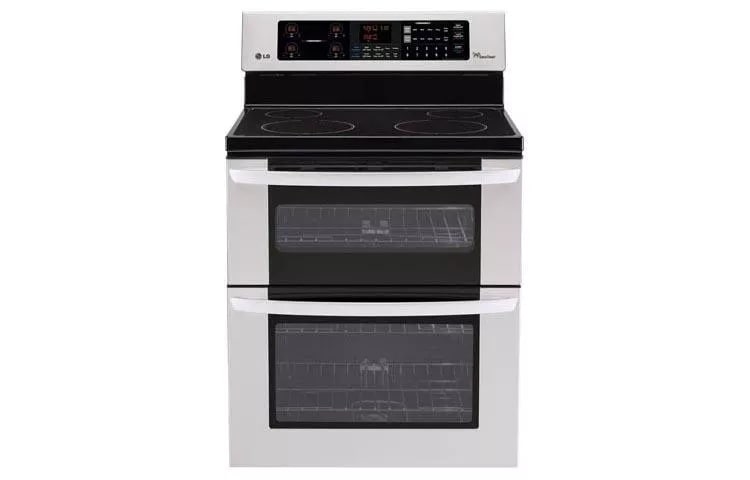

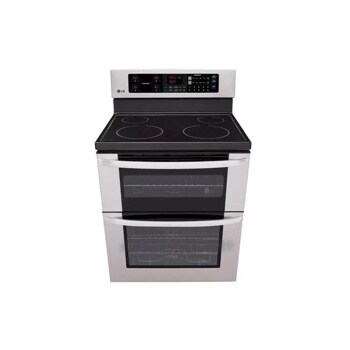

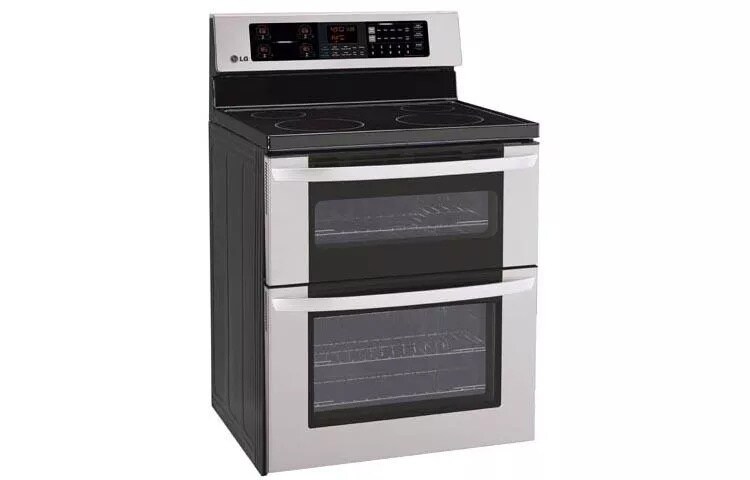

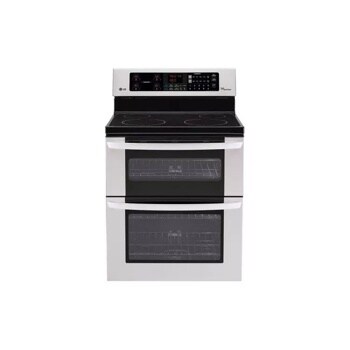

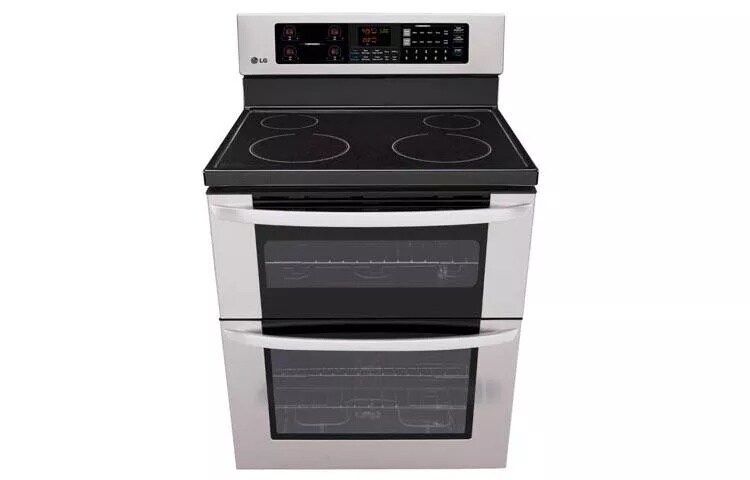

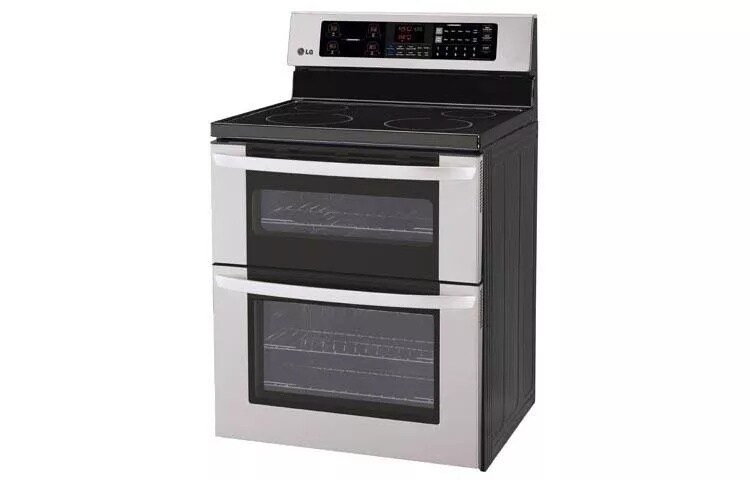

6.7 cu. ft. Capacity Electric Double Oven Range with a 6”-High Upper Oven and EasyClean®
DISCONTINUED
6.7 cu. ft. Capacity Electric Double Oven Range with a 6”-High Upper Oven and EasyClean®
LDE3031ST
Key features
- EasyClean® Cleaning Feature
- Large Capacity (6.7 cu ft.)
- Upper Oven Height (6")
- IntuiTouch™ Controls
Specifications
POWER/RATINGS
COOKTOP
WARRANTY / UPC
OVEN FEATURES
CONTROL
CAPACITY
APPEARANCE
DIMENSIONS/CLEARANCES/WEIGHT
See All
POWER/RATINGS
Amp Rating at 208V
10.3 KW
Amp Rating at 240V
13.8 W / 57.4 A
KW Rating at 208V
120/208 VAC
KW Rating at 240V
120/240 VAC
POWER/RATINGS
Amp Rating at 208V
10.3 KW
Amp Rating at 240V
13.8 W / 57.4 A
KW Rating at 208V
120/208 VAC
KW Rating at 240V
120/240 VAC
COOKTOP
Cooktop Finish
Grey Patterned on Black Ceramic Glass
Element Configuration - Left Front
9” / 2500W
Element Configuration - Left Rear
6" / 1200W
Element Configuration - Right Front
9” / 2500W
Element Configuration - Right Rear
6" / 1200W
Cooktop Element Type
Radiant
WARRANTY / UPC
Limited Warranty
1 Year Parts and Labor (In Home Service), 5 Years Limited on Cooktop and Radiant Surface Units (In home service)
UPC
482313175048
OVEN FEATURES
Configuration
Freestanding Electric Double Oven
Oven Cooking Modes
Bake, Broil, Proof (Lower Only), Warm
Cleaning
Self Clean / EasyClean®
Oven Light
Yes
Oven Rack
3 Standard Racks
Bake Element (Upper)
2100W / 4 Pass (Exposed Bake)
Bake Element (Lower)
2500W / 4 Pass (Exposed Bake)
Broil Element (Lower)
3800W / 6 Pass
EasyClean® Technology
Yes
Broil Element (Upper)
Sheathed Heater, 3200W
CONTROL
Control Location
Backsplash
Control Type
IntuiTouch™ Keypad
Control Display
VFD (Scrolling Display)
CAPACITY
Total Capacity
6.7 cu. ft.
Upper Oven
2.32 cu. ft.
Lower Oven
4.38 cu. ft.
APPEARANCE
Available Colors
Stainless Steel
Handle
Matching Stainless
Oven Door Feature
Large WideView™ Plus Window, Full SS Wrap
DIMENSIONS/CLEARANCES/WEIGHT
Shipping Weight (lbs)
243
Cabinet Width (in)
30"
Overall Depth (in)
28 3/16"
Overall Height (in)
47 7/16"
Overall Width (in)
29 7/8"
Height to Cooking Surface (in)
36"
Oven Interior Dimensions (Upper) (in) (W x H x D)
24 1/2" x 9 9/16" x 18 15/16"
Product Weight (lbs)
193
Oven Interior Dimensions (Lower) (in) (W x H x D)
24 1/2" x 16 5/16" x 18 15/16"
