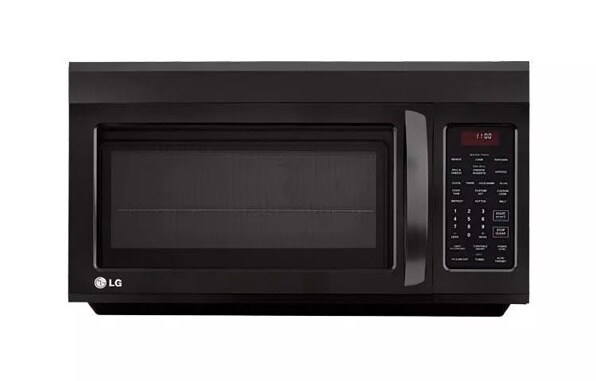

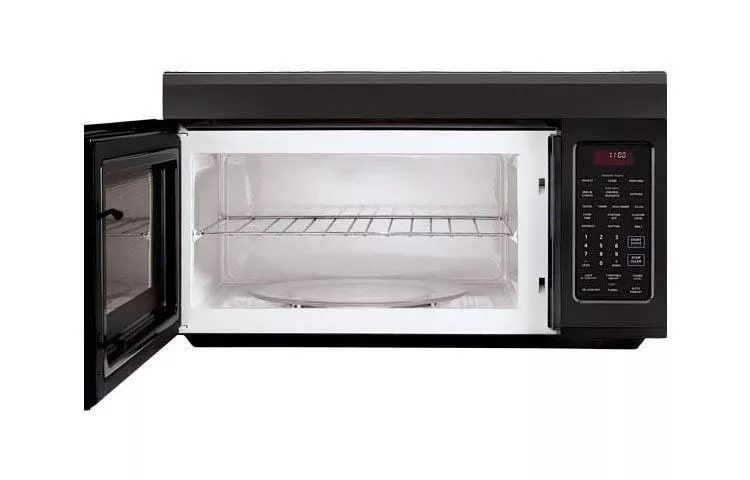

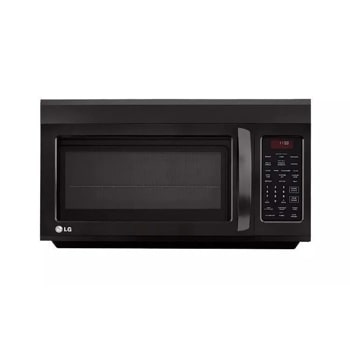

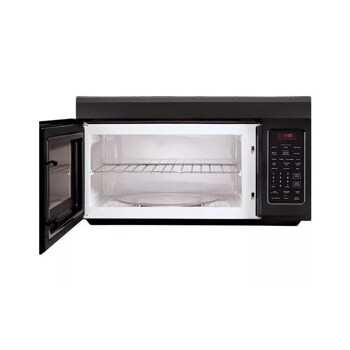

1.8 cu. ft. Over the Range Microwave Oven

  • LMV1814SB

  • Smooth Black

Key Features

  • QuietPower™ Ventilation System
  • Sensor Cooking
  • Auto Defrost
  • One Touch Settings
QuietPower™ Ventilation System

QuietPower™ Ventilation System

With an Over-the-Range Microwave Oven, strong ventilation is key. That’s why LG has created the QuietPower vent, which does the job quietly, without interrupting your life.

Senses Optimal Temperature for Fast Results

Senses Optimal Temperature for Fast Results

Sensor Cooking technology senses humidity levels within the oven and automatically adjusts cooking time and performance to help provide optimal heating performance.

Core Features

Core Features

CAPACITY
Oven Capacity 1.8 cu. ft.
DIMENSIONS/WEIGHT
Shipping Weight (lbs) 63 lbs
Product Weight (lbs) 55.1 lbs
Stuffing Quantity 330/40Ft. (Based on ISTA-2A Std.)
Oven Interior Dimensions (in) (W x H x D) 21 3/4" x 9 7/8" x 14 5/8"
Overall Depth (in) 15 3/8"
Overall Height (in) 16 3/4"
Overall Width (in) 29 7/8"
Carton Dimensions 33 1/2" x 20 3/16" x 19 3/8"
OVEN FEATURES
Cavity Coating (Anti-bacteria & deodorizing) White Coating
Output (Watts-IEC705) Microwave 1100W
COOKING FEATURES
Sensor Cook Options 7
Power Levels 10
Auto and Rapid Defrost Auto Defrost (Meat, Poultry, Fish)
Reheat Sensor Reheat (Dinner Plate, Soup/Sauce, Casserole, Roll/Muffin)
Popcorn Key Yes
Kids Meal Mac & Cheese, Chicken Nuggets, Hot Dog
More/Less Yes
Custom Set Yes
Melt/Soften Yes
EZ-On (Add 30 seconds) Yes
Sensor Cook Yes
Custom Cook Yes
Hold/Warm Yes
CONVENIENCE FEATURES
Turntable Type DDS
Turntable Diameter 14.2"
Clock / Timer Cooking time Set-up/display
Cooking Complete Reminder Yes
LIGHTING
Cooktop Lighting High/Low/Off
SAFETY FEATURES
Child Lock On START Pad
VENTING SYSTEM
Filtration Carbon Coated Charcoal Filter
Speed (Step) 3 (Turbo-High-Low-Off)
Vent Air Flow (CFM) 400 CFM
Ventilation Direction Front
CONTROL
Control Location Right
Control Type IntuiTouch™ - Keypad
Control Display White VFD Scrolling, 2 Line
APPEARANCE
Available Colors Smooth Black (SB)
POWER/RATINGS
Input Volt/Hertz 120/60
Input Amps/Watts (Microwave) 14A / 1650W
Ratings UL Listed
WARRANTY/UPC
Limited Warranty 1 Year Parts and Labor (in-home service), 10 Years Limited On Magnetron (in-home service)
UPC 048231 318006

What People Are Saying

Rated 4.8 out of 5 by 5 reviewers.
Rated 5 out of 5 by Great addition to my home runs quiet, simple to use. the installation instructions weren't completely clear but we got it done. March 14, 2015
Rated 5 out of 5 by Sensor cooking is spot on. We have had this microwave for a few months now, and it seems well built and the sensor cooking feature is great. Clean up is easy inside and out. We think it's a great product for the price. September 6, 2014
Rated 5 out of 5 by This product has great features and size Quality of the product is unmatched, very easy to use and operate. December 31, 2013
Rated 5 out of 5 by works as expected good value for price Have had no problems since purchased 2 months ago. controls easy to use with with prompts on screen to help select desired cooking reheating requirements ...excellent product September 18, 2013
Rated 4 out of 5 by Great quality microwave My husband and I made a great choice on purchasing this microwave it has held up to its use and is very durable. Has a great feature of having a timer set and also microwaving at the same time. The price is well worth what you pay for this great product! March 6, 2013
  • 2015-08-27T13:35:35.936-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_5, tr_5
  • loc_en_US, sid_MD05006380, prod, sort_default
1-5 of 5

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

7 Questions & 8 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


Additional question....When will the LMV1814SB be available?
Category: I do not own this product
Interested in: Specifications
2 years, 6 months ago
User Name:
waiter
Madison wi

Please wait while more information about waiter is loaded.
Additional information about waiter could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
YES and YES
I ordered mine and was a month before taking delivery, but after installing the unit was well worth the wait.
Gender: male
11 months ago
User Name:
Rick63
South Boardman, MI 49680, USA

Please wait while more information about Rick63 is loaded.
Additional information about Rick63 could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
Yes, it has a TURNTABLE ON/OFF button and an interior light as well as a cook top light.

Thank you. We appreciate your feedback, please give us a “thumbs up” if this answer is helpful to you; and please let us know if we can assist you with anything else.

Have a lovely week!
2 years, 6 months ago
User Name:
Nadine

Please wait while more information about Nadine is loaded.
Additional information about Nadine could not be loaded.
+2points
2out of 2found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

2 answers

What is the item number and where can I get a back plate?

Don't know why this is not sold with the unit.
Category: I own this product
1 year, 9 months ago
User Name:
Bulldog8

Please wait while more information about Bulldog8 is loaded.
Additional information about Bulldog8 could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
There should have been a 30 inch plate in with the hardware with many holes to mount the unit.
Once the plate is mounted to the wall ( be sure to use the template supplied with the unit, and follow instruction to the letter) the lower back of the microwave has slots that fit over the tangs on the plate. Once on the tangs rotate front up and install upper two screws, again using template. Measurements are critical to be in the proper location to attach upper screws through cabinet to the microwave.
Gender: male
11 months ago
User Name:
Rick63
South Boardman, MI 49680, USA

Please wait while more information about Rick63 is loaded.
Additional information about Rick63 could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
We regret the trouble you have experienced with this microwave oven. The mounting bracket should have been attached to the back of the microwave cabinet. However, a replacement bracket can be ordered from our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/conte.... The Part Number for this Mounting Plate is 3300W0A030A.
1 year, 9 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

Is door removable

The handle on my door has broken loose on the bottom. Can I remove the door so it can be laid flat to glue the handle back on?
Category: I own this product
Interested in: Troubleshooting
1 year, 8 months ago
User Name:
sherric

Please wait while more information about sherric is loaded.
Additional information about sherric could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
We regret the trouble you have experienced with this microwave oven door. While it is possible for the door to be removed, it is not recommended to do so without the assistance of a qualified technician. If the door is not properly aligned, some of the harmful portion of the cooking process can escape during operation. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair....
1 year, 8 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Category: I do not own this product
1 year, 7 months ago
User Name:
Hotdog

Please wait while more information about Hotdog is loaded.
Additional information about Hotdog could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Unit has Hotdog - Chicken Nuggets - Mac & Cheese kind of a kids strip just under the sensor touch controls.
Gender: male
11 months ago
User Name:
Rick63
South Boardman, MI 49680, USA

Please wait while more information about Rick63 is loaded.
Additional information about Rick63 could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

I need a replacement plate

My contractors broke my original plate that came with my unit. The replacement they provided is too big.
How can I get a replacement?
Category: I own this product
Interested in: Troubleshooting
7 months ago
User Name:
Congress1997
Fishers, IN, USA

Please wait while more information about Congress1997 is loaded.
Additional information about Congress1997 could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/conte.... The part number for this Glass Plate is MJS47373301.
7 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
