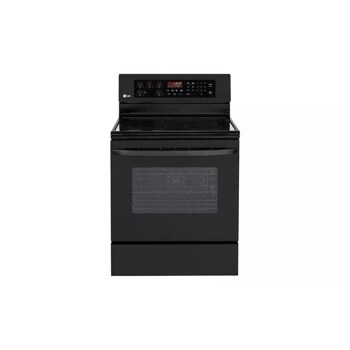

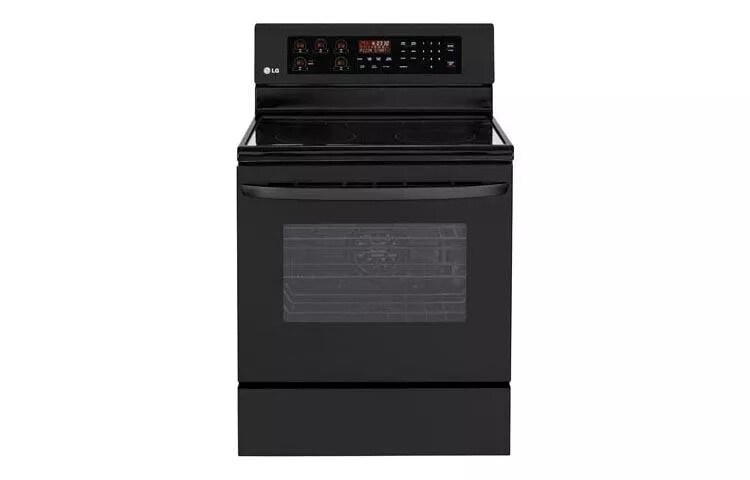

6.3 cu. ft. Capacity Electric Single Oven Range with Fan Convection

  • LRE3023SB

  • Smooth Black

Key Features

  • Large Capacity (6.3 cu ft.)
  • Fan convection
  • IntuiTouch™ controls
  • 5 Cook Top Elements
AVAILABLE COLORS:
Without a doubt...one of the finest ovens we've seen.

Without a doubt...one of the finest ovens we've seen.

The heat is on and LG's largest capacity oven LRE3023 scores big time... for cooking capacity, temperature control and convection performance.

The Largest Electric Oven in the Industry*

The Largest Electric Oven in the Industry*

You can handle all of your family’s cooking needs. Whether you’re baking large batches of cookies or a roast for the holidays, this oven can fit it all.

*Based on manufacturers’ published specifications of freestanding electric single oven ranges, April 2012.

OUR FASTEST BOILING ELEMENT

OUR FASTEST BOILING ELEMENT

LG’s fastest boiling solution offers the most powerful double element in the market at 6400 Watts.* The dual element provides a total 6400W of power while each ring provides 3200W of power.



*Among leading brands, non-induction elements.

HEAT WAVE

HEAT WAVE

LG's fan convection system delivers the ideal temperature and airflow for fast preheating and precise cooking.

Easy Operation at a touch

Easy Operation at a touch

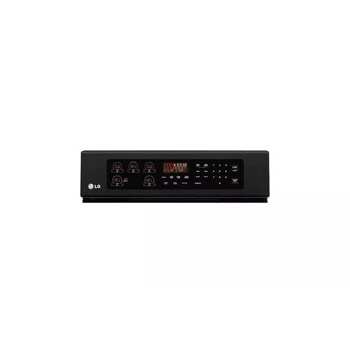

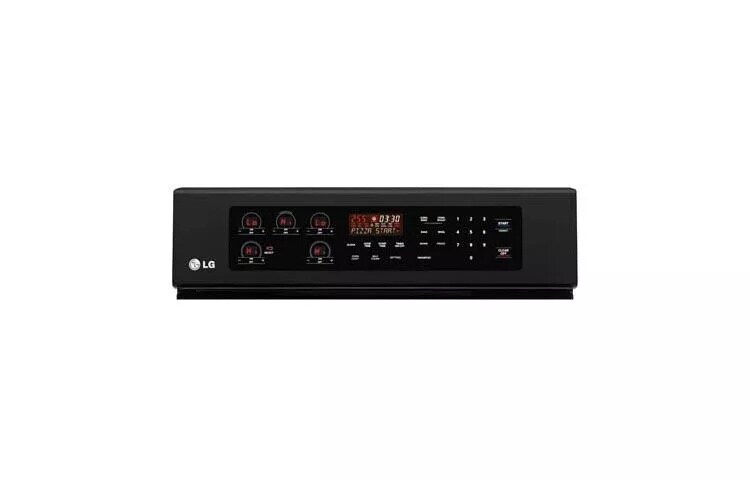

IntuiTouch™, with scrolling IntuiScroll™ display, makes operating your electric range a snap. The left side of the panel mirrors the cook top elements, while the right side controls the oven functions.

Less Mess

Less Mess

Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning.

Brilliantly Lit

Brilliantly Lit

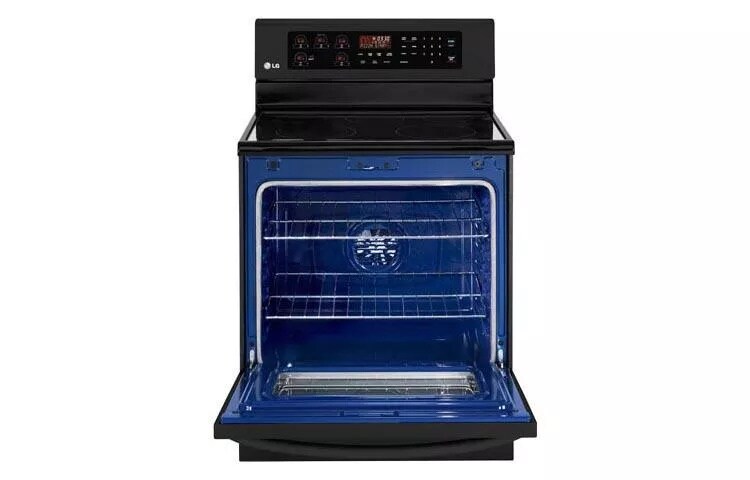

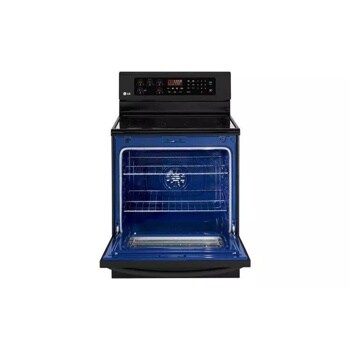

A premium range should meet your needs and look beautiful doing it. The Brilliant Blue Interior provides an upscale look with premium interior design.

SUMMARY
Range Type Single Door
CAPACITY
Oven Capacity 6.3 cu.ft.
OVEN FEATURES
Configuration Freestanding Electric Oven with Storage Drawer
Bake Element 3400W / 6 Pass (Hidden Bake)
Broil Element Sheathed Heater, 4200W / 6 Pass
Oven Cooking Technology EventJet™ Fan Convection
Oven Cooking Modes Bake, Broil, Conv Bake, Conv Broil, Warm, Proof, Favorites
Cleaning Self Clean (3,4,5 hours)
Oven Light Yes
Oven Rack 2 Standard Racks
Door Lock Yes
Oven Cleaning Features Delay Bake (up to 12 hours), Delay Clean, Automatic Shut-Off (After 12 hours)
COOKTOP
Element Size/Wattage - Left Rear 6" / 1200W
Element Size/Wattage - Right Rear 6" / 1200W
Element Size/Wattage - Center Rear 7"/100W (Warming)
Cooktop Burner Type Radiant
Cooktop Finish Grey Patterned on Black Ceramic Glass
5th Element Yes
CONTROL
Control Location Backsplash
Control Type IntuiTouch™ Keypad
Control Display Scrolling Display / White(Green VFD+Pink Smog)
APPEARANCE
Available Colors Stainless Steel, Smooth Black, Smooth White
Handle Matching Stainless
Oven Door Feature Large WideView™ Plus Window, Full SS Wrap
DIMENSIONS/CLEARANCES/WEIGHT
Shipping Weight (lbs) 180
Product Weight (lbs) 157
Cabinet Width (in) 30"
Overall Depth (in) 25 7/8 (to door) / 28 1/4" (including handle)
Overall Height (in) 47 1/8"
Overall Width (in) 29 7/8"
Oven Interior Dimensions (Upper) (in) (W x H x D) 24 13/16 x 19 11/16 x 19 1/4"
Height to Cooking Surface (in) 36"
Drawer Dimensions (in) (W x H x D) 22 3/16 x 4 1/2 x 16 3/8"
Carton Dimensions (in) (W x H x D) 33 11/16 x 50 7/8 x 30 9/16"
POWER/RATINGS
Amp Rating at 208V 120 / 208 VAC
Amp Rating at 240V 120 / 240 VAC
KW Rating at 208V 11.5 kW
KW Rating at 240V 15.3 kW
WARRANTY/UPC
Limited Warranty 1 Year Parts and Labor (In Home Service); 5 Years Limited on Cooktop and Radiant Surface Units

What People Are Saying

Rated 4.7 out of 5 by 157 reviewers.
Rated 5 out of 5 by Easy and beautiful Everything about this range was designed with the user in mind. It's sleek and modern and works like a charm. August 19, 2015
Rated 5 out of 5 amazing range I love everything about this. Performance, features, price...I could go on and on. Easy to use, looks so sophisticated in my kitchen. Great all around. June 14, 2015
Rated 5 out of 5 Excellent Product Have had this product for 4 months easy to use and clean. Excellent results. Glad we got it!! April 7, 2015
Rated 5 out of 5 by Love this stove I like this stove. It is easy to use, easy to clean, looks great. It is fun to use when you set the temp, it sings to you when it reaches the baking temp. Also sings to you when your baking timer is completed. It's so nice to have a modern looking stove and a smooth easy to clean cook top is a plus. I also like that there are no nobs, just a smooth surface that you can wipe clean easily. February 7, 2015
Rated 2 out of 5 by Convection oven has never worked! The repair man came and checked out the convection oven and had to order a control panel for it. He came on the 15th of January and has not called or been back. I am very disappointed that the convection oven didn't work, on a new stove and still doesn't. I tried to use the convection oven three different times and I had to change it to regular bake to get my stuff to cook. I like the other features, but not sure I would recommend this stove to any one else. My daughter had the same problem and her stove was replaced. It is a LRE3083ST01 January 27, 2015
Rated 5 out of 5 by Great Features and Price I found this range to be as advertised.The oven is spacious and quick to preheat.The burners work great and I really like that there are no knobs.Easy to clean range top and since I have had several boil overs I know.If a wet towel doesn't take care of it,a razor blade does.I have had this range for 2 months. January 1, 2015
Rated 5 out of 5 by Wonderful improvement over previous stove I find the space inside the oven is the best that I have ever had. I love how the oven not only lets know it is heated with sound. I like he flashing light notification. The ability to use the front for large skillets on the front fantastic. December 31, 2014
Rated 5 out of 5 by A good value I've had it about a month, long enough to use all the features and both wet and dry cleaning. I could have paid much more, but I've not found any aspect where I thought "I wish it had..." The wet cleaning didn't go well, and it really is for very light cleaning. But, remembering to remove the racks first, the hot cleaning went very well. It looks great in the all-stainless kitchen, but I am most impressed with the performance. The heat is easy to control, but I had to get used to shorter cooking times as the cooktop heats very quickly and efficiently. This model was recommended by a leading consumer magazine. December 16, 2014
  • 2015-08-27T13:35:34.859-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_157, tr_157
  • loc_en_US, sid_MD00019542, prod, sort_default
2 3 4 5 6 Next>>

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

8 Questions & 6 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


Why does LG advertise this rack with the range and not include it? Very frustrating. Also I found that my range did not come wth a broiler pan either. I love LG and this is the second complete set of LG appliances I have bought in 4 years (new home) and I was disappointed that my new range did not come with a broiler pan either.The last one a couple years ago did.
2 years, 11 months ago
User Name:
Dori
Massachusetts

Please wait while more information about Dori is loaded.
Additional information about Dori could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
We regret your dissatisfaction with the accessories of this range. The specifications sheet provided with this unit, as well as the included accessories section of the owner’s manual, both show that this unit only comes with 2 Standard Baking Racks.
2 years, 9 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
-1point
0out of 1found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

Use of Pressure Cooker on smoothtop surface

Does LG recommend the use of a pressure cooker on a smoothtop cooking surface and is the glasstop rated to withstand the heat and/or weight. The range is a electric and the pressure cooker manufacturer indicates the pressure cooker is designed to be used on a smoothtop cooking surface.
Category: I own this product
Interested in: How To use
2 years, 8 months ago
User Name:
Stue
Carlisle, PA, USA

Please wait while more information about Stue is loaded.
Additional information about Stue could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Page 20 of the owner’s manual has the following to say about Pressure Cookers / Canners. Be sure that the canner is centered over the surface unit and flat on the bottom. The base must not be more than 1” larger than the element. Use of water bath canners with rippled bottoms may extend the time required to bring the water to a boil and cooktops may be damaged. Some canners are designed with smaller bases for use on smooth top surfaces. Use the high heat setting only until the water comes to a boil or pressure is reached in the canner. Reduce to the lowest heat setting that maintains the boil or pressure. If the heat is not turned down, the cooktop may be damaged.
2 years, 8 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

Is the electric burner clicking every 10 seconds normal when in use?

Also does the convection fan stop and start all the time while the oven is convection baking?
Category: I own this product
Interested in: Troubleshooting

Products related to my question


2 years, 6 months ago
User Name:
Anonymous
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
The oven fan will run during convection cooking. The fan will stop when the door is open, but the heat will not turn off. In some cases, the fan may shut off during a convection cycle. It is not uncommon for the burners to click, but it would not seem that this should occur that frequently. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair....
2 years, 6 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
I have the Model LRE3023SB
Category: I own this product
Interested in: How To use
2 years, 7 months ago
User Name:
jl44431
Leetonia ,Ohio

Please wait while more information about jl44431 is loaded.
Additional information about jl44431 could not be loaded.
-1point
0out of 1found this question helpful.
HelpfulNot Helpful

Answers

Answer:
These two objects are not items to be compared. The Convection Fan is the device by which the True Convection mode is made possible. Convection is a cooking process accomplished by circulating heat throughout the oven cavity, to provide more even cooking. This is performed BY the Convection Fan.
2 years, 7 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
-1point
0out of 1found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

Preheat Melody

Is there a way to turn of the melody that plays when the oven is pre-heated?
Category: I own this product
Interested in: How To use
2 years, 1 month ago
User Name:
Anonymous
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Press the SETTING button 5 times. BEEP will appear in the display. Press the 1 button for LOUD, 2 for NORMAL, 3 for LOW and 4 for MUTE. Finally, press the START button to accept the change. This information is found on page 14 of the owner’s manual.
2 years, 1 month ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
