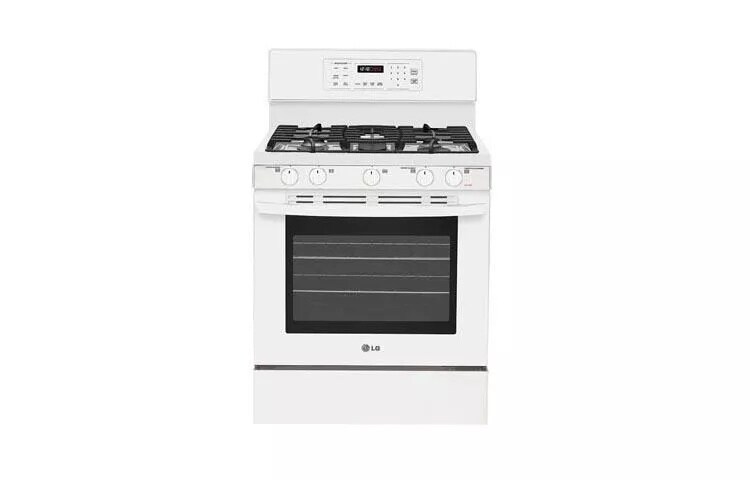

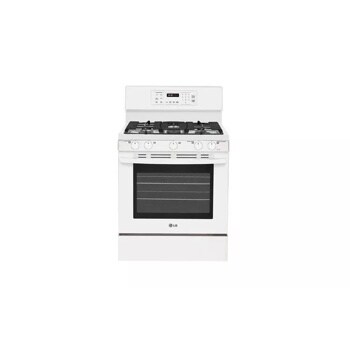

LRG3093SW

5.4 cu. ft. Capacity Gas Single Oven Range with Oval Burner and Griddle

KEY FEATURES

  • Large Capacity Oven
  • Superboil™ 17,000 BTU Burner
  • 5 High Performance Sealed Burners
  • IntuiTouch™ Controls
5.4 cu. ft. Capacity Gas Single Oven Range with Oval Burner and Griddle

SUMMARY

    • Range Type
    • Single Door
    • Cooktop Material
    • Coated Porcelain
    • Capacity
    • 5.4 cu. ft.
    • Product Dimensions (WxHxD)
    • 29 15/16” x 47 5/8” x 26 29/32”
    • Color
    • Smooth White
    • Control System
    • IntuiTouch™/Knobs
    • Number of Burners
    • 5
    • Burner Power (BTUs)
    • Left Front (High Output): 12,000 BTU, Left Rear (All Purpose): 9,100 BTU, Center: 8,000 BTU, Right Front (SuperBoil™): 17,000 BTU, Right Rear (Simmer): 5,000 BTU
    • Broil Burner
    • 15,500 BTU Flat Broiler
    • Bake Burner
    • 18,000 BTU

OVEN FEATURES

    • Configuration
    • Freestanding Gas Oven with Storage Drawer

DIMENSIONS

    • Width
    • 29 15/16"
    • Height (to top of cooktop)
    • 36"
    • Height (to top of backguard)
    • 47 5/8"
    • Depth (including door)
    • 26 1/2"
    • Depth (including handle)
    • 26 29/32"
    • Oven Capacity (WxHxD)
    • 24 1/2" X 19 1/2" X 19 11/16"
    • Drawer (WxHxD)
    • 23" x 4 11/16" x 16 1/2"
    • WideView™ Window (WxH)
    • 19 19/32 x 11 1/32"
    • Net Weight
    • 227 lbs

TYPE

    • Type
    • Free Standing Gas
    • Oven/Cooktop
    • IntuiTouch™/Knobs

FEATURES

    • Display
    • VFD
    • Electronic Clock & Timer
    • Yes
    • Control Lock Function
    • Yes
    • Audible Preheat Signal
    • Yes
    • Special Functions
    • Temperature Unit of Measure (F/C) Beeper Volume (High, Low, Mute), Language: English or Spanish, Preheating Alarm Light On/Off
    • Door Lock
    • Yes

COOKTOP SPECIFICATIONS

    • Burner Type
    • Coated Procelain
    • No. of Sealed Gas Burners
    • 5
    • Configuration - Left Front
    • 12000Btu/h
    • Configuration - Left Rear
    • 9100Btu/h
    • Configuration - Center (Single Oval)
    • 8000Btu/h
    • Configuration - Right Front
    • SuperBoil™ 17000Btu/h
    • Configuration - Right Rear
    • 5000Btu/h

OVEN SPECIFICATIONS

    • Capacity
    • 5.4 cu. ft.
    • Type
    • Self-Cleaning
    • Variable Cleaning Time
    • 2hr, 3hr, 4hr
    • Delay Clean
    • Yes
    • Broil Burner
    • 15.5k BTU
    • Broiler Type
    • Flat Broiler
    • Bake Burner
    • 18K BTU
    • Delay Bake
    • 12 Hours
    • Automatic Shut-Off
    • After 12 Hours
    • WideView™ Window
    • Yes
    • GoCook™ Smart Oven Light
    • Yes
    • Interior Oven Light Adjustment
    • 1, Auto/Manual
    • No. of Racks/Positions
    • 2 Full/7

DRAWER

    • Capacity
    • 1.0 cu. ft.
    • Type
    • Storage

MATERIALS/FINISHES

    • Available Colors
    • Smooth White (SW), Smooth Black (SB), Stainless Steel (ST)
    • Oven Interior
    • Brilliant Blue
    • Knobs
    • Matching Metal
    • Handle
    • Matching Commercial Handle

POWER SOURCE

    • Electrical Requirements
    • 540kW / 4.5A 120 VAC

WARRANTY/UPC

    • Limited Warranty
    • One Year Parts & Labor

What people are saying

Rated 4 out of 5 by from great picture disappointed withsound quality that we ned tolisten at level50 forgood volume
Date published: 2017-12-17
Rated 5 out of 5 by from Best Anniversary gift I ever gave my wife The grates are heavy duty and their design allows for sliding pots around when making multiple dishes. The digital controls are easy to use and alarms are loud enough to be heard from the other room without being deafening. The storage drawer holds more than average. The burners work great but I wish that the second high output burner was in the rear so we could have better skillet temp control. The "surprise" of the bright blue oven interior earned me extra bonus points with my wife and she uses the included broiling rack more than any pan we own. Recommend to anyone that likes to cook.
Date published: 2013-07-19
Rated 5 out of 5 by from Great Oven so far We have only had this for a little over a month now and so far love it. It is easy to use and does what it is supposed to. I do love the convection oven.
Date published: 2013-03-07
  • y_2021, m_4, d_12, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_2, tr_6
  • loc_en_US, sid_MD00001041, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 73ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

wHERE CAN i ORDER A GRIDDLE PAN

Asked by: DJR123
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for this item is: AEB72914203.
Answered by: NeilE
Date published: 2017-02-01

Where do I HOOK UP THE GAS LINE ON MODEL LRG3091ST

Asked by: Anonymous
We appreciate your interest in the setup of this gas oven. The gas valve should be located along the lower portion of the oven, in the back. According to the installation guide, this product must be installed by a licensed plumber or gas fitter.
Answered by: NeilE
Date published: 2013-10-22

Replacement of knobs on range/stove

What is the replacement part number for the knobs on the LRG3093 (White color) range? The plastic broke and I need to replace it.
Asked by: courtney
Accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. The part number for this Knob Kit for this model, manufactured in 2010, is AGM73689603.
Answered by: NeilE
Date published: 2013-10-22

BTU with LPG

Some ranges I have looked at give BTU output both with natural gas and with the LPG conversion. I'm concerned that some lose a great deal of heating power using LPG. My current LPG range (not an LG) will not bring water to a rolling boil! I want to be sure that the next one I purchase will.
Asked by: Kenneth
The company refuses to admit that upon conversion to LPG the range delivers substantially fewer BTU's than advertised. The socalled power burner, rated for 17,000 BTU only delivers 10,000 BTU according to tech support. The other burners also deliver less than rated, although not by such a large percentage.
Answered by: Gunther
Date published: 2013-10-22

Is this a dual fuel stove

is it also self cleaning
Asked by: Anonymous
Yes, just make sure your range is properly adjusted by a qualified service technician or installer for the type of gas (natural or LP) that is to be used. Your range can be converted for use with either type of gas. See the installation instructions. It does have the SELF-CLEANING feature, if you would like to read about is, please take a look at page 23 in the user manual. Thank you! We appreciate your feedback, please give us a “thumbs up” if this answer is helpful to you; and please let us know if we can assist you with anything else. Have a lovely week!
Answered by: Nadine
Date published: 2013-10-22

Does this convection system use a third burner or just a fan to bake?

Asked by: Mary
Hello Mary, sorry about the delay... As it turns out, none of our ranges have a third heating element. The LG LRG3093SW Range is not a convection model, I'm afraid. It is a regular oven. Thank you. Have a lovely week!
Answered by: Nadine
Date published: 2013-10-22

Does an LP conversion kit come along with the range?

I just purchased this range and Home Depot told me I have to order the conversion kit directly from LP which I did earlier today, but then I was looking online and in the description at some websites it says the conversion kit is included. I would really like to not have to pay extra for a conversion kit.
Asked by: Anonymous
Thank you for your question. The LP conversion kit does not come with this unit.
Answered by: Stan
Date published: 2013-10-22

Is the depth of the LRG 3095 and 3093 26-29/32 inches to the outer edge of the handle?

I see conflicting depth dimensions for this product on different websites....some say up to 28" depth. I need less than 27-1/4" to fit with new cabinets.
Asked by: dh
Thank you for your question. You should find all of the measurements and specifications for your unit at http://www.lg.com/us/support/index.jsp. If the information is not there, please feel free to contact one of product specialists at 1-800-243-0000 or via live chat @ www.LG.com.
Answered by: Stan
Date published: 2013-10-22
