Discontinued
LSDF9969BD

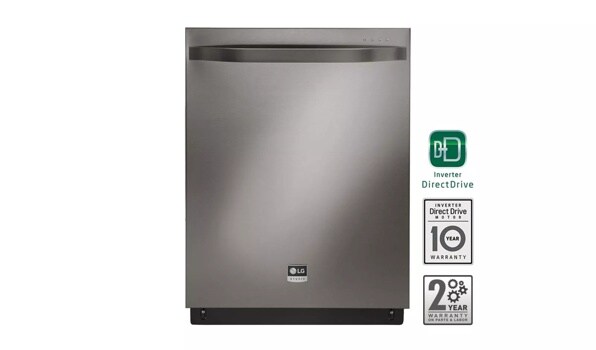

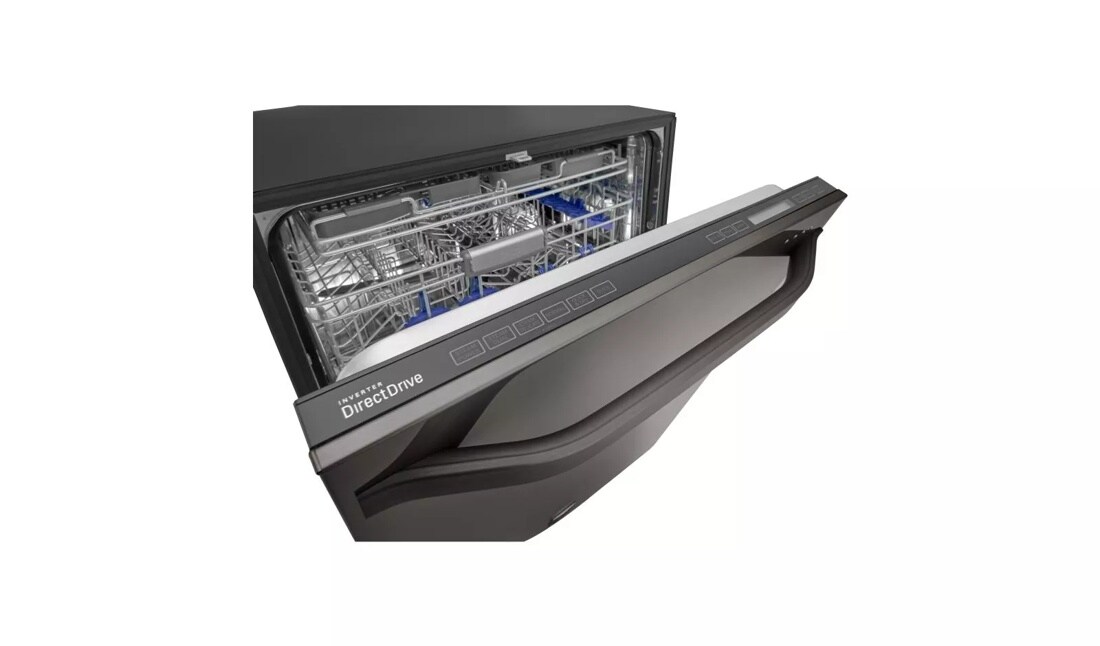

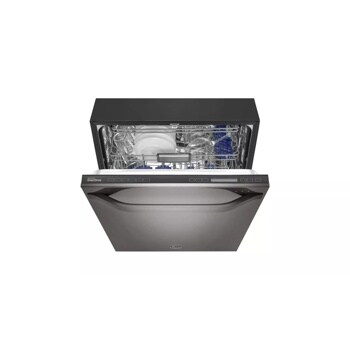

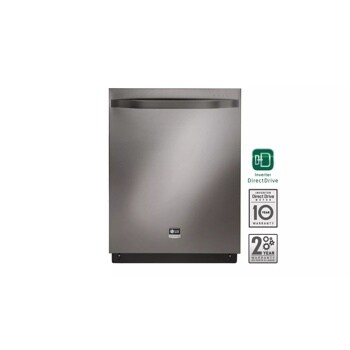

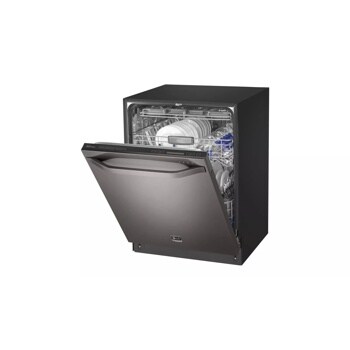

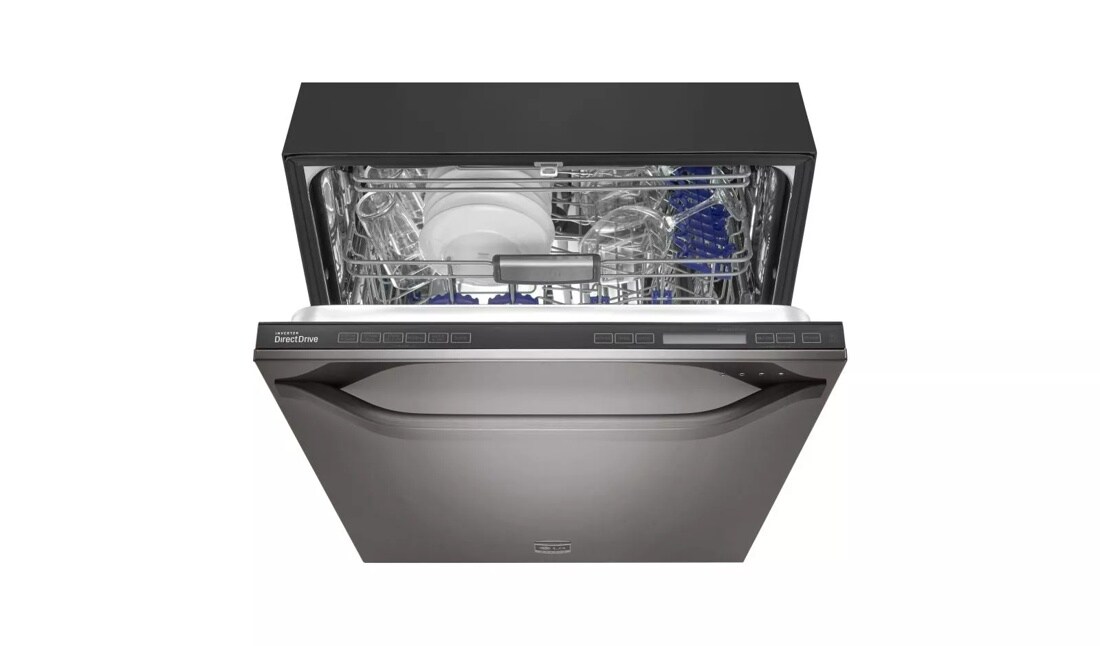

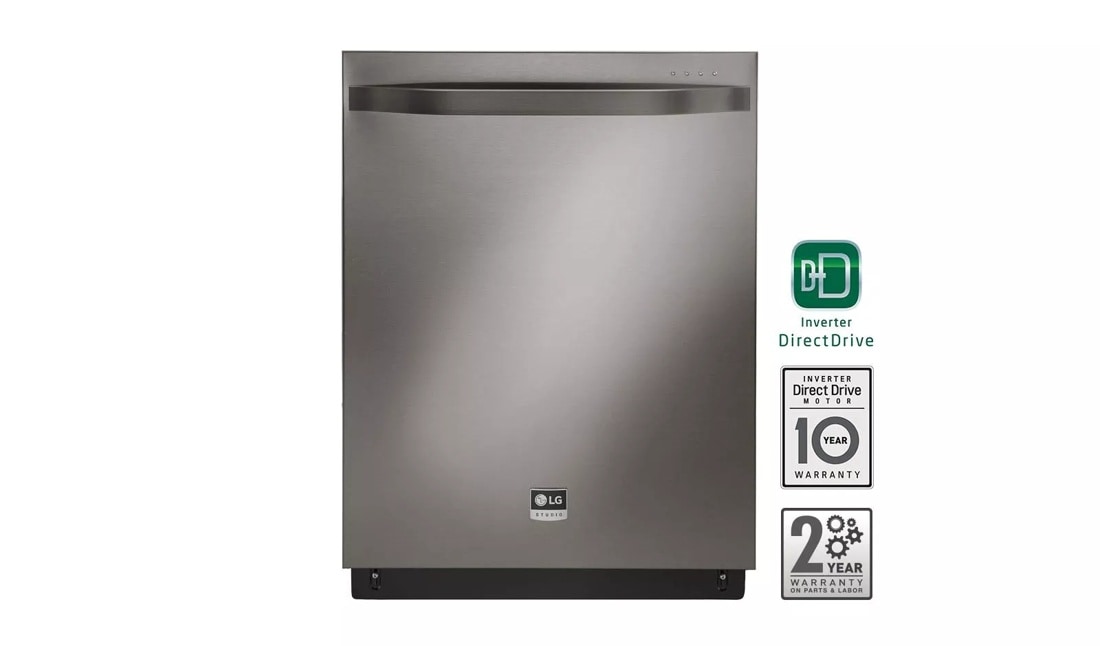

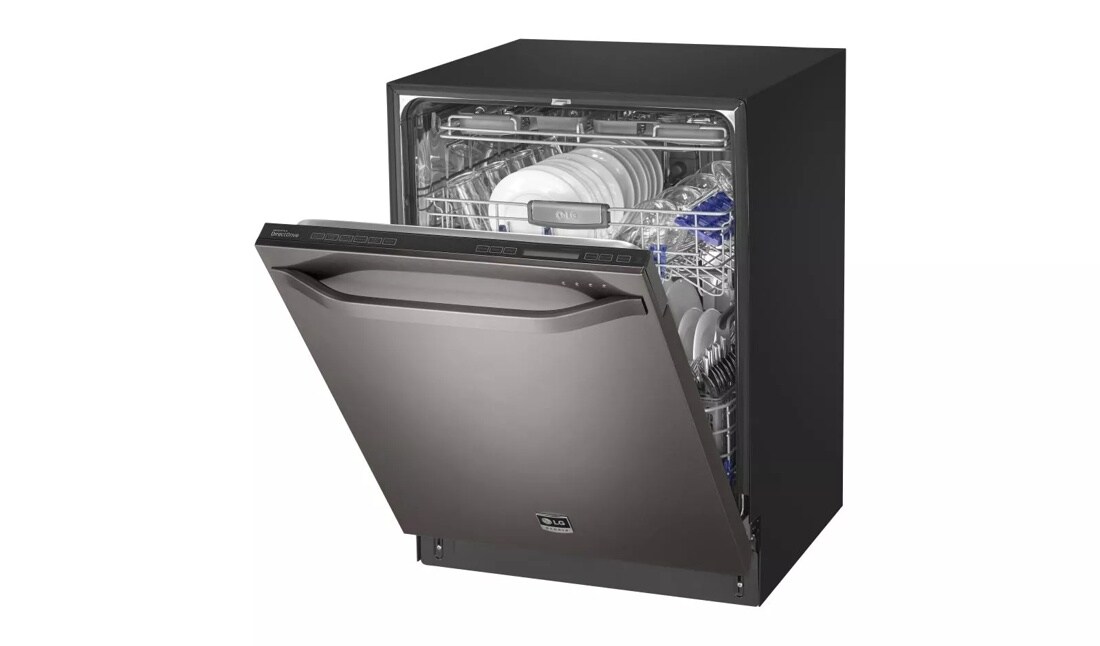

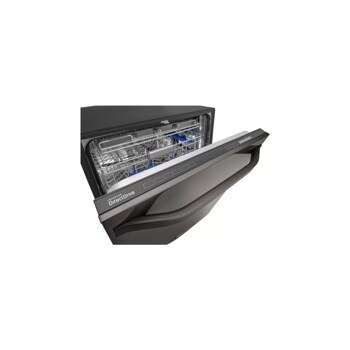

LG STUDIO - Top Control Dishwasher
  • Fingerprint-Resistant Finish
  • Hidden SmoothTouch™ Controls with LCD Display
LG STUDIO - Top Control Dishwasher

SUMMARY

  • LG STUDIO
    Yes
    Handle Design
    Towel Bar Handle

TYPE

  • Type
    Top Control Dishwasher

CAPACITY

  • Total Place Settings
    14
    Upper Rack Dish Height Limit
    12"
  • Lower Rack Dish Height Limit
    14"

RACKS AND BASKETS

  • Cutlery Baskets
    3-in-1 Detachable Baskets
    Stemware Holders
    Yes
  • Racks and Tines
    Nylon Coated with Rounded Tips
    EasyRack™ Plus System
    Yes
  • EasyRack™ Plus System: Upper Rack Color-Coded Foldable Tines
    Yes
    EasyRack™ Plus System: Lower Rack Color-Coded Foldable Tines
    Yes
  • EasyRack™ Plus System: Height Adjustable Upper Rack
    Yes

STYLE AND DESIGN

  • Electronic Controls
    Hidden SmoothTouch™ Controls with LCD Display
    Time Remaining Indicator
    Yes
  • Rinse-Aid Indicator
    Yes
    SignaLight™ Cycle Indicator Lights
    4: Wash, Rinse, Dry, Clean

FEATURES

  • Slim Direct Drive Motor
    Yes
    Number of Wash Cycles
    7
  • Wash Cycles
    Steam Power, Normal, Quick & Dry, Quick Wash, Rinse Only, SteamDelicate™, Steam Dual
    SenseClean™ Wash System
    Yes
  • Dual Spray Intensity Feature
    Yes
    Variable Spray Intensities
    Strong/Medium/Soft
  • Sanitary Rinse Cycle
    Yes
    Extra Rinse Option
    Yes
  • Multi-Level Water Direction
    5
    Hybrid Condensing Drying System
    Yes
  • LoDecibel™ Quiet Operation
    Yes
    Overflow Detector
    Yes
  • 120°F Inlet Water Capability
    Yes
    Delay Start
    Up To 19 Hours
  • Child Lock
    Yes

POWER SOURCE/RATING

  • Ratings/Requirements/Type
    UL Listed/120 V, 12 Amps/60 Hz
    Circuit Breaker Size
    15 Amps
  • ENERGY STAR® Qualified
    Yes

MATERIALS AND FINISHES

  • Tub Material
    Stainless Steel
    Handle
    Matching Commercial Handle (Vista Package)
  • Available Colors
    Black Stainless Steel (BD)
    Fingerprint & Smudge Resistant Exterior
    Yes

DIMENSIONS

  • Unit Dimensions (WxHxD)
    23 3/4" x 33 5/8" x 24 5/8"
    Required Clearances (WxHxD)
    24" x 34" x 25"
  • Carton Dimensions (WxHxD)
    27 1/5" x 35 1/10" x 29 3/5"
    Weight (Unit/Carton)
    110.2 lbs / 116.4 lbs

WARRANTY

  • Limited Warranty
    2 Year Parts & Labor, 5 Years on Control Board and Rack Parts, 10 Years Direct Drive Motor, Lifetime on the Stainless Steel Tub and Door Liner
    UPC
    048231018968

What people are saying

Rated 5 out of 5 by from Kristen 2.0 I got this to replace my girlfriend as primary dishwasher. What can I say.... best purchase ever. We now have more time for other activities. Thank you LG.
Date published: 2018-06-10
Rated 3 out of 5 by from Nice and quiet Not pleased with loading the dishes - the spikes fold down the minute something touches it and then the dishes fall down. can't find a good way to load the plates and small juice glasses. The glasses, silverware, and dishes are always clean
Date published: 2018-06-06
Rated 2 out of 5 by from Doesn't Dry This is my 3rd LG Steam Dishwasher. I had a wonderful experience with the first 2 dishwashers so I decided to purchase LG again. It washes well but will not dry the dishes. When I open the door after a cycle the inside of the door has water on it every time. If I close the door after emptying the clean dishes the water condensation doesn't go away....thus I have to leave it opened until it finally dries. The last thing I want to do is to deal with mold! I have been in touch with customer service to troubleshoot the problem but with no resolution thus far. This is my "final" home and I spared no expense to get items that I was confident would last for the rest of my lifetime. What a disappointment to be "stuck" with a dishwasher that doesn't operate correctly!
Date published: 2018-04-11
  • y_2020, m_1, d_19, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.4
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_26
  • loc_en_US, sid_MD05773887, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 200ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Just purchased a stainless dishwasher. The bottom face plate is black - can I order a stainless one?

Asked by: ChristieS
We apologize for the inconvenience, we do not sell a stainless steel face plate separately for this dishwasher. ^CP
Answered by: ChrisPSM
Date published: 2017-12-21

What is the decibel rating?

Asked by: Jill at
I had to download the manual specifications. I was curious myself. Found it is 42 db.
Answered by: PeterUnlisted
Date published: 2017-12-07

Is it ok to use the dishwasher detergent tabs? We clean our dishes well before putting them in the dishwasher and they still don't come out clean. Are we doing something wrong?

Asked by: BusyMomof2
Regrettably, we can only advise that you follow the manufacturer's instructions for the use of the dishwasher detergent tablets in the LG Studio - Top Control Dishwasher with TrueSteam® Technology, Model # LSDF9969BD. Detergent tabs can deliver a greater performance when removing stubborn stains, they might also require a longer rinsing cycle to remove mineral deposits and do not offer the same flexibility of liquid gel or dishwasher detergent powder when it comes to precise measurements for different sizes of dishwasher loads. You may want to try dishwashing powder or dishwashing gel to compare the results and see which one better suites your needs...^IFV
Answered by: LGJoel
Date published: 2017-01-17

Is the light supposed to continue blinking during the cycle!

Asked by: Curiously yiurs
We appreciate your interest in this dishwasher. If the unit is performing the cleaning operations properly, then the indicator lights are likely to be operating as designed.
Answered by: NeilE
Date published: 2017-02-25

Can this unit be converted with wheels and a sink attachment to make it a portable unit?
