• 9.0 cu. ft. Mega capacity
  • TrueSteam™ Technology
  • SmartDiagnosis™
  • SteamFresh™ Cycle

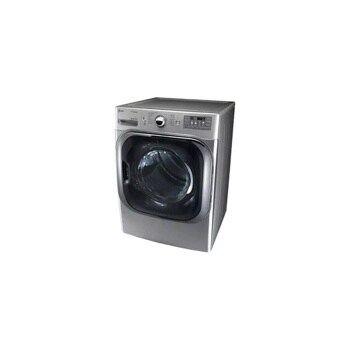

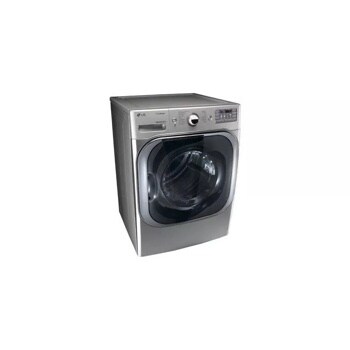

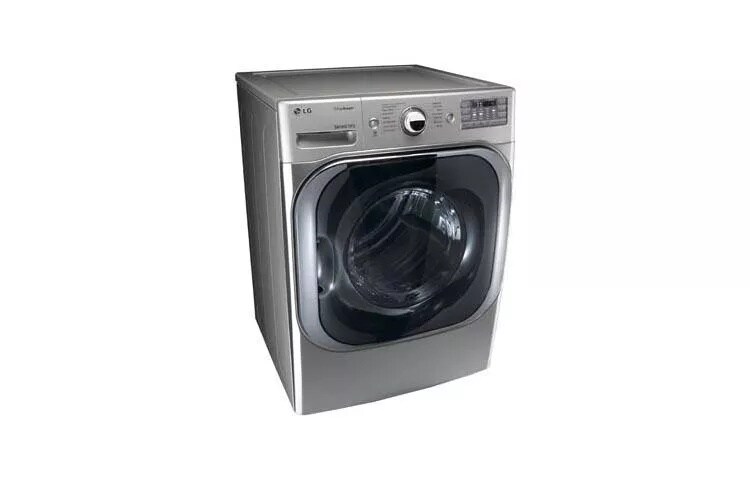

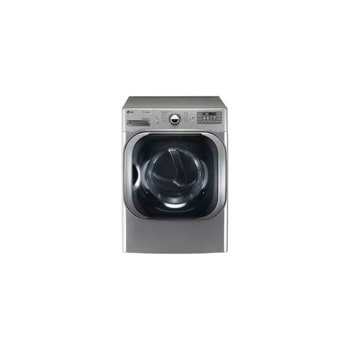

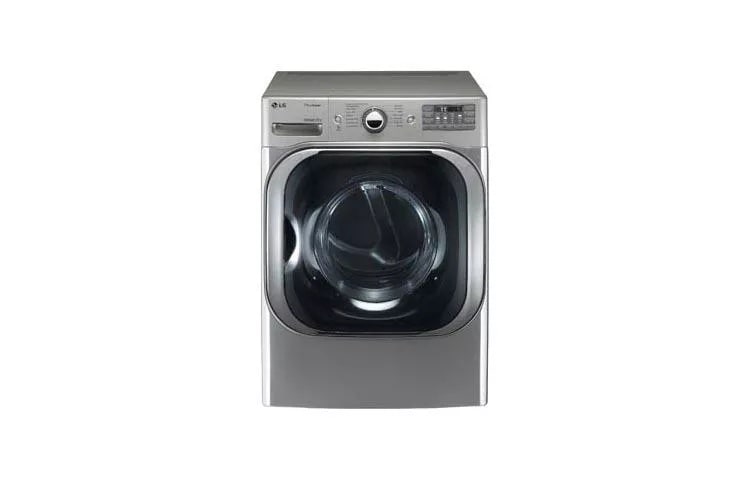

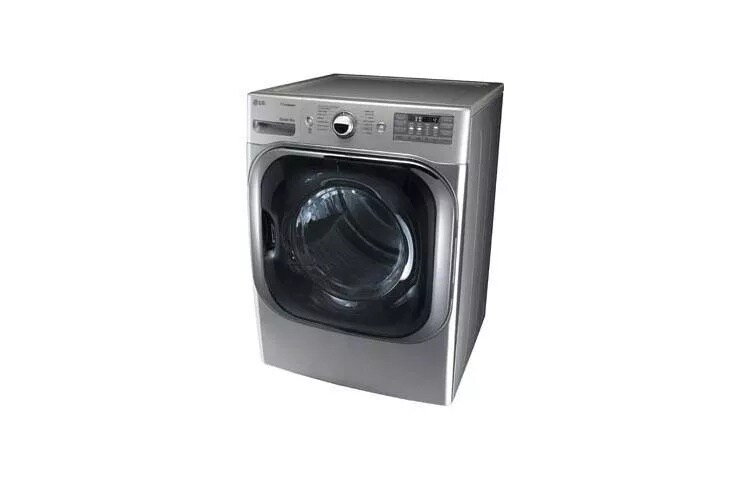

9.0 cu. ft. Mega Capacity Electric Dryer w/ Steam™ Technology


    • Dryer Type
    • Electric
    • Stackable
    • Yes
    • SteamDryer™
    • Yes


    • Capacity
    • 9.0 cu. ft.


    • Design Look
    • Front Control
    • Intelligent Electronic Controls with Dual LED Display
    • Yes
    • Touch Buttons
    • Yes
    • Dial-A-Cycle™
    • Yes


    • No. of Programs
    • 14
    • Programs (Sensor Dry)
    • Cotton/Normal, Perm. Press, Towels, Delicates, Heavy Duty, SteamFresh™, SteamSanitary™, SpotClean™, Anti-Bacterial, Jumbo Dry, Wool, Super Dry
    • Programs (Manual Dry)
    • Speed Dry, Air Dry
    • No. of Options
    • 11
    • Options
    • More Time, Less Time, Custom Program, Damp Dry Signal, Wrinkle Care, Child Lock, ReduceStatic™, EasyIron™, Rack Dry, End of Cycle Signal, Drum Light
    • Temperature Settings
    • High, Medium High, Medium, Low, Ultra Low
    • Drying Levels
    • Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
    • Manual Dry Times
    • 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time


    • SteamFresh™ Cycle
    • Yes
    • SteamSanitary™ Cycle
    • Yes
    • SpotClean™ Cycle
    • Yes
    • ReduceStatic™ Option
    • Yes
    • EasyIron™ Option
    • Yes
    • Sensor Dry
    • Yes
    • Precise Temperature Control with Variable Heater
    • Yes


    • LoDecibel™ Quiet Operation
    • Yes
    • SmartDiagnosis™
    • Yes
    • FlowSense™ Duct Clogging Indicator
    • Yes
    • Anti-Bacterial Cycle
    • Yes
    • Wrinkle Care Option
    • Yes
    • Remaining Time Display/Status Indicator(s)
    • Yes
    • End of Cycle Signal
    • Yes
    • Child Lock
    • Yes
    • 3 Minute Installation Check
    • Yes
    • Drying Rack
    • Yes
    • Drum Light
    • Yes
    • Venting Option
    • Electric: 4 Way Venting / Gas: 3 Way Venting
    • Leveling Legs
    • 4 Adjustable Legs
    • Reversible Door
    • Yes


    • NeveRust™ Stainless Steel Drum
    • Yes
    • Top Plate
    • White: Powder Coat / VCM: Porcelain
    • Cabinet
    • Painted Steel
    • Control Panel
    • Plastic
    • Transparent Door Glass
    • Yes
    • Available Colors
    • White (W), Graphite Steel (V)
    • Door Rim
    • Large Chrome Rimmed Glass Door with Dark Blue Tinted Cover


    • Ratings
    • CSA Listed
    • Electrical Requirements
    • 120V, 15 Amps (Gas) / 240V, 30 Amps (Electric)
    • Type
    • Gas/Electric

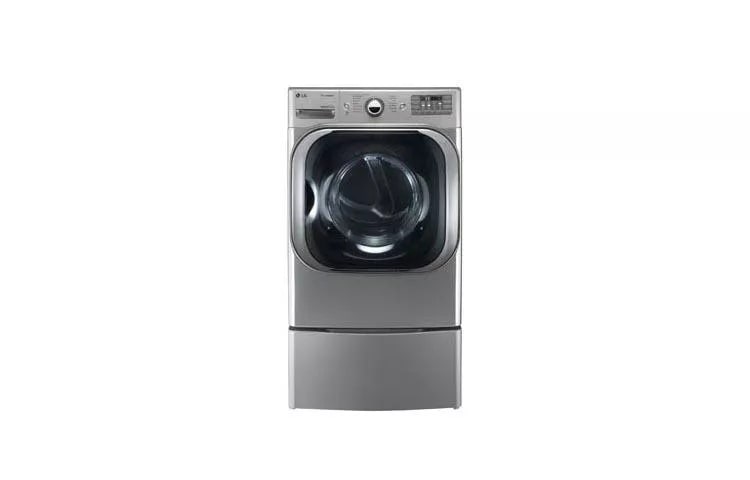

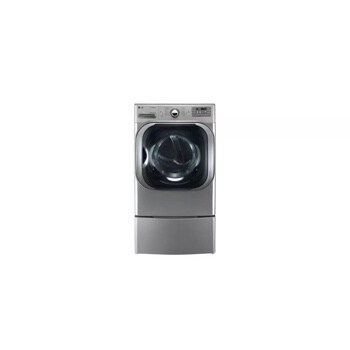

    • Pedestal
    • WDP5W/WDP5V
    • Pedestal (WxHxD)
    • 29" x 13 9/10" x 29 2/5"
    • Stacking Kit
    • KSTK2
    • LP Conversion Kit
    • 383EEL3002D
    • Side Venting Kit
    • DVK2 (383EEL9001L)


    • Product (WxHxD)
    • 29" x 40 4/5" x 32 3/10" (57" D with door open)
    • Carton (WxHxD)
    • 31 3/10" x 44 2/3" x 33 3/4"
    • Weight (Product/Carton)
    • 158 lbs. / 181 lbs.


    • Limited Warranty
    • 1 Year Parts and Labor


    • UPC
    • 048231012508

What people are saying

Rated 3 out of 5 by from While working! While under warranty it’s great. Purchased extra warranty day of purchase. Once it need service outside of warranty service was horrible. Customer acts like you’re a problem customer.
Date published: 2021-10-04
Rated 5 out of 5 by from Perfect for us We had a prior LG dryer that we loved and, following a move, found our new one. We are very satisfied by nearly everything about the dryer. The many, many settings are occasionally overwhelming, and not having a lighted panel is a pain at times. I'd also love to have the tub light stay on longer or be available as a push button would be great. We like the steam freshening for textiles (pillows, comforter, winter sweaters, etc.); this is a really great option. Thanks for the solid manufacturing and reliability. We did not get the flat drying rack that should have come with it and our sales person has not been able to get help with this in the five months we've been nagging her about it. Finally, we just bought one from an outside vendor. This is our only complaint, though, and is not likely to come up for others.
Date published: 2021-08-25
Rated 5 out of 5 by from Long Lasting and Durable I bought this dryer 8 1/2 years ago and it still lives up to its name and performance.
Date published: 2021-07-21
  • y_2022, m_8, d_12, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.32
  • cp_1, bvpage1
  • co_hasreviews, tv_4, tr_122
  • loc_en_US, sid_MD00019580, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 12ms


Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

My dryer will not heat up has anyone else had this problem I will put my clothes in for a full cycle and once it’s done they are still wet and freezing cold?

Asked by: Mckayla1012
We hate to see your dryer won't heat up. You can troubleshoot this issue using the following help article: If you need further assistance, you can contact our Customer Support by any of the below options: Phone: 1-800-243-0000 LiveChat: Email: Facebook Messenger: Twitter: @LGUSSupport The LG Community Forum is also a great resource for getting help from other LG customers:
Answered by: ChrisPSM
Date published: 2019-10-24

My dryer has a CL flashing and will not run

Asked by: CJ user
Hello, the CL code means Child Lock has been activated. Please see the link for troubleshooting. ^AC
Answered by: Amber C
Date published: 2018-08-27

The dryer doesn’t start, just heat some clicks

Asked by: Mario100
Hello, we do need more information to be able to assist. Please give us a call at 1-800-243-0000 when you are with the unit. ^AC
Answered by: Amber C
Date published: 2018-02-20

How do you reset after check filter feature shuts it off?

Asked by: Mikerabow
Hello, the check filter always flashes on the unit as a reminder to clean the filter and does not have the ability to turn the unit off. Of you received an error message, we would need that message. Please give us a call at 1-800-243-0000 so we can further help. ^AC
Answered by: amber
Date published: 2018-01-31

Can someone answer how long the DLEX8500V model was available and why it was discontinued? I was looking to purchase one, never used from an individual but wanted more information on the model.

Asked by: JonLG24
We appreciate your interest in this electric dryer. This particular model should have been available for the span of about a year. This model has not been discontinued, so much as replaced by different models with different feature sets. Product failures are not common, with this unit, but should something happen, we are still ready to assist with this model. Please note, however, that a product purchased from an individual, rather than from an authorized retailer, carries no manufacturer’s warranty.
Answered by: NeilE
Date published: 2017-03-21

Ck filter light flashes even though it's clean. Frustrating how can I reset? Notice lg is getting bad marks for this.

Asked by: Dask
We appreciate your interest in this electric dryer. According to the information in your owner’s manual, the DISPLAY panel will show CHECK FILTER when the dryer is turned on as a reminder to check the filter. It turns off when the START/PAUSE button is pressed. This is normal operation.
Answered by: NeilE
Date published: 2017-05-09

I found the dryer shooting out stream of water instead of vaporized steam. Anything wrong?

Asked by: Steam
We regret the trouble you have experienced with this electric dryer. Check to ensure that heat is generated normally in this dryer, and that the water is fresh and not distilled. Please contact our Customer Interactive Center at 800-243-0000 for additional information in this matter.
Answered by: NeilE
Date published: 2017-01-27

My dryer will not make a sound when it's done how do I turn it on

Asked by: Rustybusta2
We regret the inconvenience you have experienced with this electric dryer. If the End of Cycle Signal does not sound when it should, then it is suggested that the SIGNAL option may have been deactivated. Press the SIGNAL button repeatedly, on the display, until the desired volume setting has been achieved.
Answered by: NeilE
Date published: 2016-10-21
