Discontinued
DLHX4072W

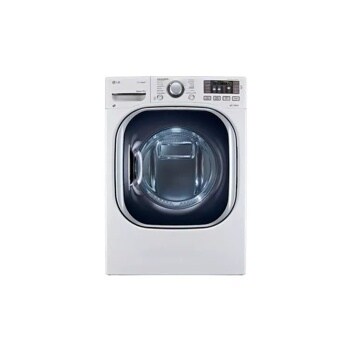

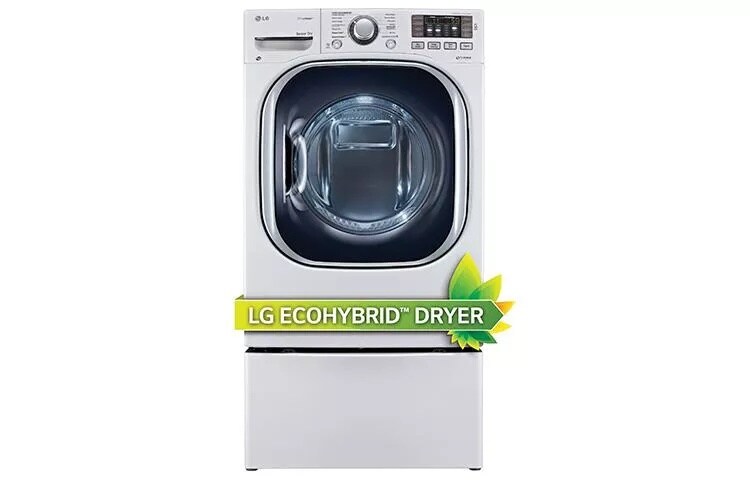

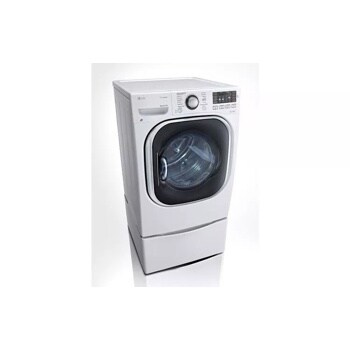

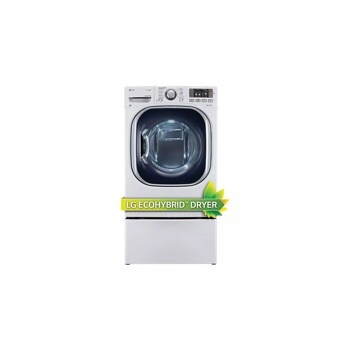

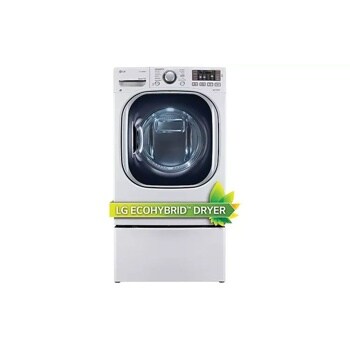

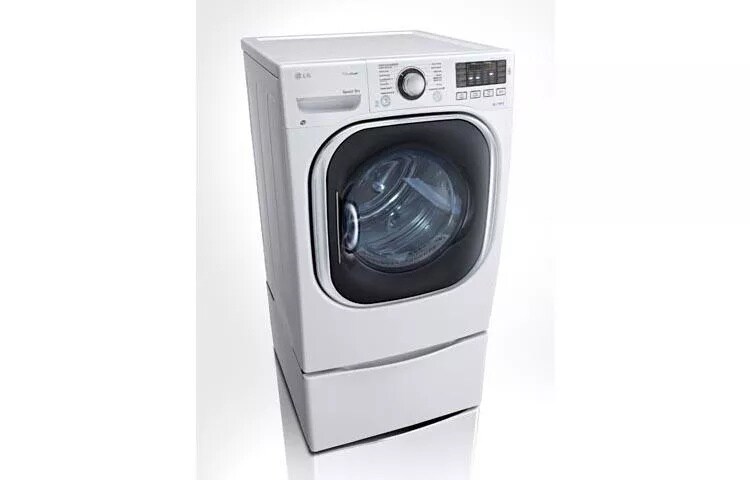

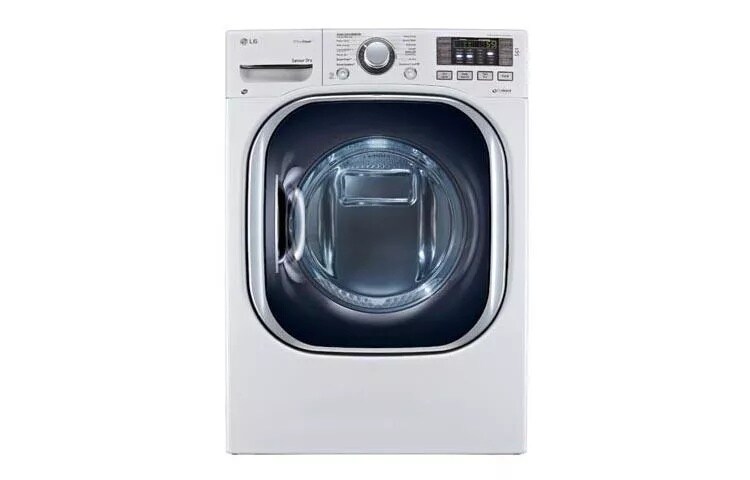

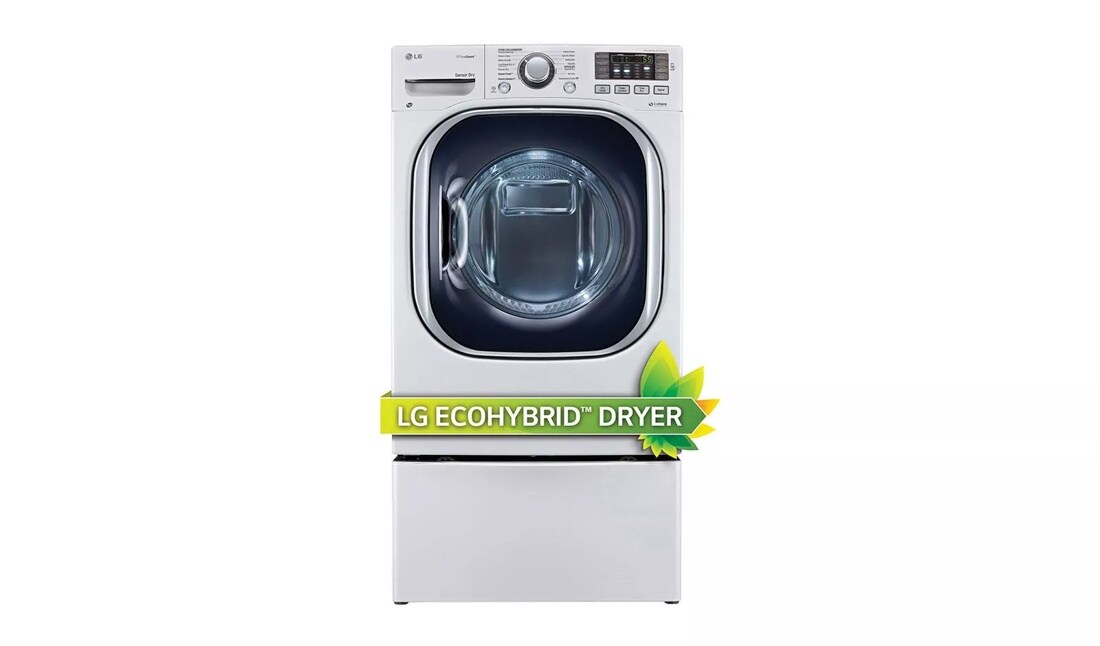

7.3 cu. ft. Ultra Large Capacity Dryer with EcoHybrid™ Technology
  • 7.3 cu. ft. Ultra Large Capacity with NeveRust™ Stainless Steel Drum
  • EcoHybrid™ Technology
  • TrueSteam® Technology
  • SteamFresh™ Cycle
  • ENERGY STAR® Qualified
7.3 cu. ft. Ultra Large Capacity Dryer with EcoHybrid™ Technology

SUMMARY

  • Dryer Type
    Electric
    SteamDryer™
    Yes
  • Stackable
    Yes
    Heat Pump
    Yes

CAPACITY

  • Capacity
    7.3 cu. ft.

APPEARANCE

  • Design Look
    Front Control
    Intelligent Electronic Controls with Dual LED Display
    Yes
  • Dial-A-Cycle™
    Yes

ENERGY

  • ENERGY STAR® Qualified
    Yes

DRYING PROGRAMS

  • No. of Programs
    14
    Programs (Sensor Dry)
    Cotton/Normal, Perm. Press, Heavy Duty, Bulky/Large, LowTemp Dry+, Delicates, Power Dry, Towels, Sports Wear, SteamFresh™, SteamSanitary™
  • Programs (Manual Dry)
    Speed Dry, Air Dry, Download Cycle
    Options
    EcoHybrid™, Wrinkle Care, Custom Program, Child Lock, More Time, Less Time, ReduceStatic™, EasyIron™, Damp Dry Signal, Rack Dry, Program Save, Drum Light
  • Temperature Settings
    High, Medium High, Medium, Low, Ultra Low
    Drying Levels
    Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
  • Manual Dry Times
    60 min., 50 min., 40 min., 30 min., 20 min.
    Signal Volume Level
    High, Medium, Low, Off

FABRIC CARE FEATURES

  • SteamFresh™ Cycle
    Yes
    TrueSteam® Technology
    Yes
  • SteamSanitary™ Cycle
    Yes
    ReduceStatic™ Option
    Yes
  • EasyIron™ Option
    Yes
    Sensor Dry
    Yes
  • Precise Temperature Control with Variable Heater
    Yes

CONVENIENCE FEATURES

  • NFC Tag On
    Yes
    LoDecibel™ Quiet Operation
    Yes
  • SmartDiagnosis™
    Yes
    FlowSense™ Duct Clogging Indicator
    Yes
  • Wrinkle Care Option
    Yes
    Remaining Time Display/Status Indicator(s)
    Yes
  • End of Cycle Signal
    Yes
    Child Lock
    Yes
  • Drum Light
    Yes
    Reversible Door
    Yes
  • Leveling Legs
    4 Adjustable Legs
    Venting Option
    1 Way Venting
  • 3 Minute Installation Check
    Yes
    Drying Rack
    Yes

MATERIALS AND FINISHES

  • NeveRust™ Stainless Steel Drum
    Yes
    Cabinet
    Painted Steel
  • Control Panel
    Plastic
    Transparent Glass Door
    Yes
  • Door Rim
    Large Square Chrome Rimmed Glass Door with Dark Blue Tinted Cover
    Available Colors
    Smooth White (W), Graphite Steel (V)

POWER SOURCE

  • Ratings
    CSA Listed
    Electrical Requirements
    240V, 26 Amps (Electric)
  • Type
    Electric

OPTIONS

  • Pedestal
    WDP4W, WDP4V
    Pedestal (WxHxD)
    27" x 13 3/5" x 28 2/5"
  • Stacking Kit
    KSTK1

DIMENSIONS

  • Product (WxHxD)
    27" x 30" x 39" (51" D with door open)
    Carton (WxHxD)
    29 1/2" x 31" x 43"
  • Weight (Product/Carton)
    167.5 lbs/171.3 lbs

Warranty/UPC

  • Limited Warranty
    1 Year Parts and Labor
    UPC
    048231013765
What people are saying
Rated 2 out of 5 by from Great for a year I have had this for going on two year now. At the 13 month Mark right out of warranty started getting and e13 error. Followed all instructions and had the problem intermittently for a few months. Then paid LG to come fix. They had to replace, told seemed to be faulty design. 3 months since pricy replacement of pump, getting the error again. I paid a premium for the Eco efficiency but now I am paying an out rageous premium just to keep it working. I would expect a recall or I just have really bad luck?
Date published: 2017-10-01
Rated 1 out of 5 by from 1 star because 0 isn't an option This dryer is garbage - the ecohybrid is a joke. Basically, what it means is that it will NEVER completely dry a load of laundry. I've had it worked on already and was told that the only way to get a load actually DRY is to override the system and use the manual setting.
Date published: 2017-09-22
Rated 5 out of 5 by from This product has great features Especially like the steam drying feature since it helps to reduce wrinkles. We can also use the steam without actually having to wash. This helps to refresh clothes urging a busy work day.
Date published: 2015-06-06
  • y_2019, m_9, d_20, h_19
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_MD05165580, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 9ms
  • REVIEWS, PRODUCT
ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Can this dryer run ventless as long as you never use the "quick/hot" settings? I assume if it's running on "eco" mode only it presumable could exhaust into the house just like any other ventless dryer?

Asked by: scavonejoe
I bought the service manual for this dryer partly to answer this question. The answer is no, it can not operate without a vent. Air is drawn in from the laundry room and blown out the vent in all modes of operation. I expect that vented air will be humid even when run in Eco mode. Ventless dryers would recirculate the humid air repeatedly until all water condensed out of it into the drain pan, but this dryer wasn't designed to do that in any mode. If you vent it into your laundry room, you will eventually get mold growing in the walls due to the water in the vented air.
Answered by: CDragon
Date published: 2017-07-10

The dryer button (the first one) says 4 things. Reduce static East iron Energy saver Custom PGM What does PGM mean?

Asked by: Per month
We appreciate your interest int his dryer. The PGM is an abbreviation for PROGRAM. The Custom PGM button allows for storing a custom configuration of cycle, water temperature, spin speed and cycle modifiers other than one of the preset features.
Answered by: NeilE
Date published: 2017-03-27

Why does my dryer sound like it has rocks rolling around when the dryer rotates?

Asked by: captmark
We regret the trouble you have experienced with this dryer. It is difficult to determine the cause of this noise without an inspection by a qualified service technician. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2016-08-25

how to do a diagnostic thru the phone on the dryer mike

Asked by: Mike c
We appreciate your interest in this electric dryer and its features. The steps for using the SmartDiagnosis function can be found on page 41 of your owner’s manual. These steps should never be used without speaking with the service department at 800-243-0000.
Answered by: NeilE
Date published: 2016-02-03

Is this a vented or ventless dryer?

My condo building does not permit vented dryers as they are deemed a fire hazard. I'd love to buy this one, but I need to know if this is ventless.
Asked by: kelchan
I was looking forward to the release of this dryer. Unfortunately LG makes it pretty darn hard to find on their own website. There are no spec manuals on this and it doesn't come up under the 'electric dryer' category. How do they expect to sell this? Anyway, look at this dryer WED99HEDC Whirlpool 7.3 cu. ft. HybridCare™ Duet Ventless Dryer. The name says it all and it's a heat pump like this one is. Good luck.
Answered by: UofMfan
Date published: 2016-05-04
