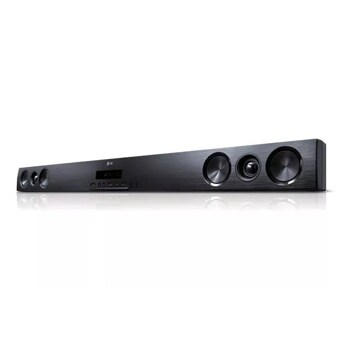

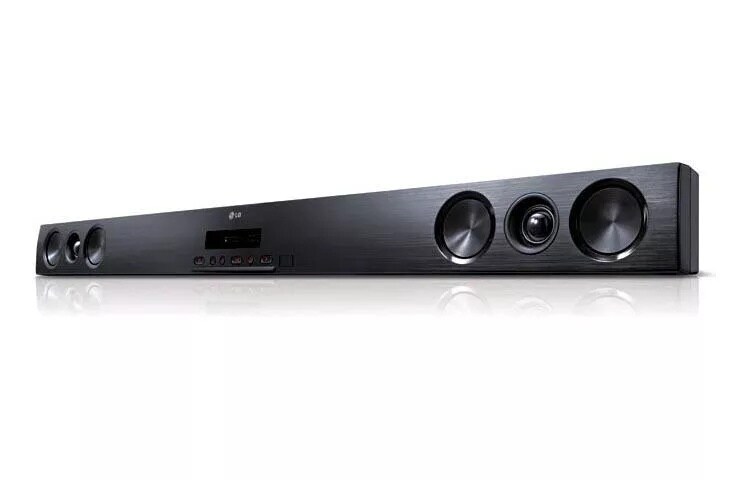

LSB306 Speaker Sound Bar


  • 140W 2 Channel Sound System
  • Bluetooth Streaming
  • 2 Optical Inputs
  • Wall mountable
LSB306 Speaker Sound Bar


    • Total Output Power
    • 140W (70W x 2)
    • Limited Waranty
    • 1 Year Parts/90 Days Labor


    • Main Unit Dimensions (WxHxD)
    • 39.4" x 3.2" x 2.0"
    • Shipping Dimensions (WxHxD)
    • 41.0" x 6.8" x 6.3"
    • Main Unit Weight
    • 5.1 lbs
    • Shipping Weight
    • 7.5 lbs


    • Speaker Type
    • Speaker Sound Bar
    • Output Power
    • 140W (70W x 2)


    • Optical Digital Audio In
    • 2
    • Portable Audio Input
    • 1


    • Digital/Analog Conversion
    • 192KHz/24bit
    • Signal/Noise Ratio
    • 100+ dB
    • LPCM
    • Yes
    • 2 Channel Down Mix
    • Yes
    • Dolby® Digital
    • Yes
    • Dolby® Digital Plus
    • Yes
    • DTS™
    • Yes
    • DSP
    • Yes


    • Mute
    • Yes
    • A/V Sync Delay (Audio Delay)
    • Yes
    • Sleep
    • Yes


    • Remote Control
    • Simple
    • Optical Cable
    • 1


    • System
    • AC 120V, 60Hz
    • Power On Consumption (Max.)
    • 30W
    • Power Off Consumption (Avg.)
    • 0.5W


    • Limited Warranty
    • 1 Year Parts/90 Days Labor


Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

I need a remote replacement for this how can I get one?

Asked by: tankerw
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at The part number for this item is: AKB73275404.
Answered by: NeilE
Date published: 2017-11-14

How do I connect this soundbar to a bluetooth compatible computer

Where can I download the bluetooth driver for this soundbar (LSB306) so I can play audio from computer via bluetooth?
Asked by: presidentsteve
We appreciate your interest in this Sound Bar system. No drivers are available for this device. This unit is compatible with Advanced Audio Distribution Profile (A2DP) and Audio/Video Distribution Remote Control Profile (AVRCP).
Answered by: NeilE
Date published: 2014-07-10

My sound bar has dead spots while using optical connection

I have a NB3532A sound bar connected to a Vizio TV. I get random dead spots where the sound from both soundbar and subwoofer drop out for a few seconds and then come back. This is annoying. I double checked the connections making sure both cable ends are seated correctly. I also switched from opt 1 to opt 2 with the same result. I verified that the TV speakers continue to function normally when the soundbar drops out. I have connected the TV by audio connection through the portable port and do not experience the problem. Is there something else I should try to get the optical connections to function properly?
Asked by: MrRoss
We regret the inconvenience you have experienced with this TV and Sound Bar. It is recommended to attempt using another OPTICAL CABLE, and/or connecting the TV to another OPTICAL Audio Receiver for testing purposes. After both have been attempted, if the drop in audio continues, then a problem lies in the Optical Audio Output processors in the television, or in the Optical Wire itself. If, when connected with an Optical cable to another device, the problem is no longer experienced, then there is a problem with the Sound Bar itself. The unit will require service. Please contact our Customer Interactive Center at 800-243-0000 to make proper service arrangements.
Answered by: NeilE
Date published: 2013-10-22

Xfinity remote code

What is the code i would use to setup my xfinity remote so that I can use that to control of the lsb306?
Asked by: jeb3078
All codes to be used will be located in the setup instructions for the Universal Remote Control. If you have experienced trouble in locating codes for LG, you may also try using Zenith or Goldstar codes, as some of these coincide with LG frequencies.
Answered by: NeilE
Date published: 2013-10-22

lost power cord can i purchase?

sound bar
Asked by: dmd1943
I apologize, but no; according to our product information, the power cord for this particular sound bar is wired directly to the internal Power Board Assembly. The replacement of such a cord would require the assistance of a service technician. Please contact our Customer Interactive Center at 800-243-0000 to make proper service arrangements.
Answered by: NeilE
Date published: 2013-10-22

Will TV remote (42LV550) control sound bar volume? Or must I use sound bar remote? Is this true for all LG sound bars?

Asked by: edpguy
While the Television remote control does not have the capability of controlling the Sound Bar, the Sound Bar remote control has some buttons to allow adjustment to the TV. The TV is designed with a FIXED Audio Output, so it can only control its own audio, unless connected via HDMI to a SimpLink-enabled Home Theater System. It will be the same with all LG Sound Bars.
Answered by: NeilE
Date published: 2013-10-22

Can you connect this to bluetooth headphones so you can listen to the tv from them?

Asked by: DC315
The bluetooth streaming is to stream to the sound bar, not from the sound bar.
Answered by: LGJoel
Date published: 2013-10-22

no base

I just connected the LSB 306 to my LG4750DC and after turning off the sound on the TV the sound bar has no base tone. The sound from the TV speakers is way better than the sound coming from the sound bar. I connected the optical cable as directed, am I doing something wrong? Doug
Asked by: dibber
Please contact LG's Customer Service team at for assistance.
Answered by: LGJoel
Date published: 2013-11-23
